Load cell brakes represent a significant advancement in braking technology, combining precision measurement with reliable brake force control. This technology has revolutionized various industries, from automotive applications to industrial machinery, offering unprecedented accuracy in force measurement and brake control.
A load cell brake is an advanced braking system that incorporates force measurement technology to precisely control and monitor braking force. The system uses load cells, which are transducers that convert mechanical force into measurable electrical signals, enabling accurate brake force measurement and control.

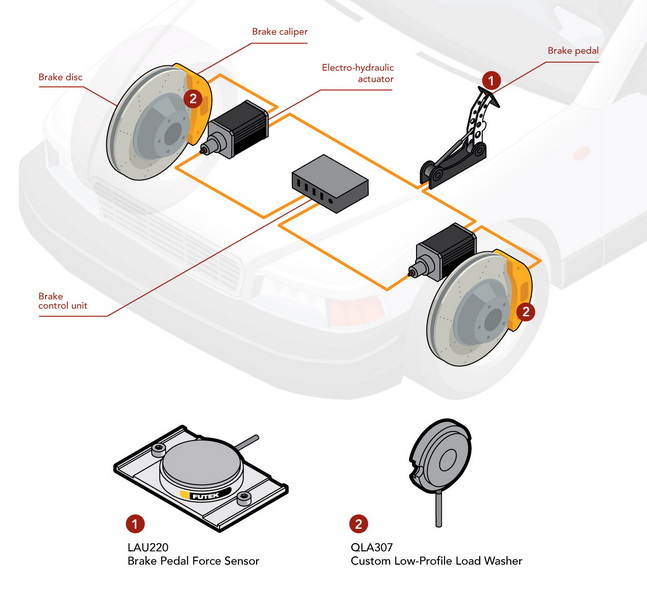

The system consists of several key components:
- Force transducer (load cell)
- Signal conditioning electronics
- Control unit
- Brake actuator
- Mechanical brake assembly

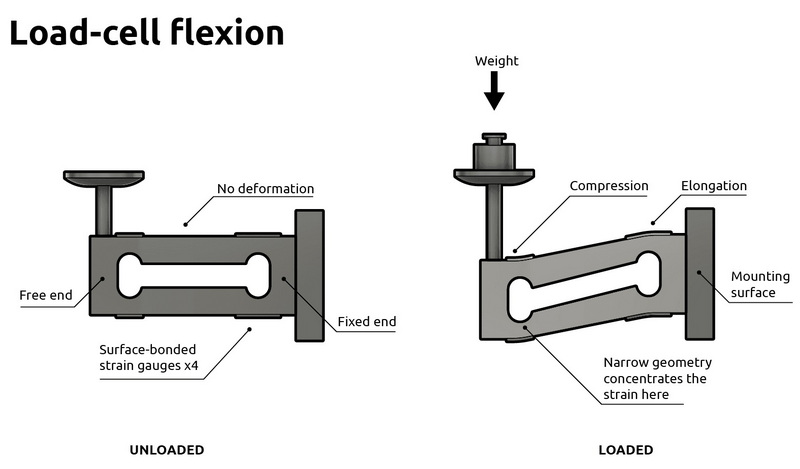

The load cell measures the applied force when the brake is activated, converting the mechanical pressure into electrical signals. These signals are then processed by the control unit to ensure precise brake force application.

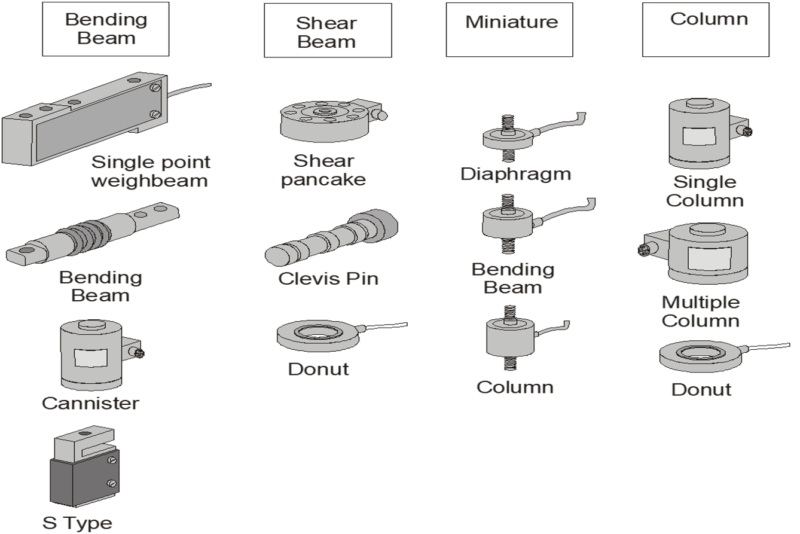

Several variations exist in load cell brake technology:
1. Strain Gauge Load Cell Brakes
2. Hydraulic Load Cell Brakes
3. Pneumatic Load Cell Brakes
4. Capacitive Load Cell Brakes
Load cell brakes find applications in numerous fields:
- Automotive Industry
- Industrial Machinery
- Testing Equipment
- Simulation Systems
- Manufacturing Processes
- Material Handling Equipment
- Research and Development
- Quality Control Systems
The implementation of load cell brakes offers numerous benefits:
1. Precise Force Measurement
2. Real-time Monitoring
3. Improved Safety
4. Consistent Performance
5. Data Collection Capabilities
6. Predictive Maintenance
7. Enhanced Control
8. Reduced Maintenance Costs
Proper installation and maintenance are crucial for optimal performance:
Installation Requirements:
- Proper mounting surface
- Correct alignment
- Appropriate wiring
- Calibration procedures
- Environmental protection
Maintenance Considerations:
- Regular calibration checks
- Cleaning and inspection
- Component replacement
- Software updates
- Performance monitoring
The technology continues to evolve with:
- Integration of IoT capabilities
- Advanced data analytics
- Improved sensor technology
- Enhanced durability
- Greater precision
- Smart monitoring systems
A1: A load cell brake's primary purpose is to provide precise measurement and control of braking force while converting mechanical pressure into electrical signals for accurate monitoring and adjustment.
A2: Load cell brakes typically require calibration every 6-12 months, depending on usage intensity and environmental conditions. However, more frequent calibration may be necessary in demanding applications.
A3: Load cell brakes offer superior precision, real-time monitoring capabilities, data collection, predictive maintenance features, and more consistent performance compared to conventional braking systems.
A4: While load cell brakes are versatile, they require proper environmental protection and may need special configurations for extreme conditions such as high temperatures, moisture, or corrosive environments.
A5: Regular maintenance includes calibration checks, cleaning, inspection of components, software updates, and monitoring of performance metrics to ensure optimal operation and longevity.
