In the world of industrial automation and weighing systems, load cells play a crucial role in accurately measuring weight and force. A load cell cable is an essential component that connects these sensors to measurement devices, ensuring the reliable transmission of data. This article will explore the intricacies of load cell cables, their types, applications, and the importance of proper installation and maintenance.
Before diving into load cell cables, it's important to understand what load cells are. A load cell is a transducer that converts mechanical force into an electrical signal. This conversion allows for precise weight measurements in various applications, from industrial scales to medical devices.
There are several types of load cells, including:
1. Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation caused by applied weight.
2. Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications.
3. Pneumatic Load Cells: Similar to hydraulic cells, but they use air pressure instead of fluid.
4. Load Pins: These are specialized load cells that can be integrated into structures to measure force directly.
A load cell cable is a specialized electrical cable designed to connect load cells to their respective measurement systems. The cable transmits the electrical signals generated by the load cell to a display or control system, allowing for real-time monitoring and data collection.
Load cell cables typically consist of several key components:
- Conductors: These are the wires within the cable that carry the electrical signals. They are usually made of copper for its excellent conductivity.
- Insulation: This material surrounds the conductors to prevent electrical interference and protect against environmental factors.
- Shielding: Some load cell cables include shielding to further reduce electromagnetic interference (EMI), ensuring accurate signal transmission.
- Connectors: At the ends of the cable, connectors are used to interface with the load cell and the measurement device.
Load cell cables come in various configurations, each suited for different applications. The most common types include:

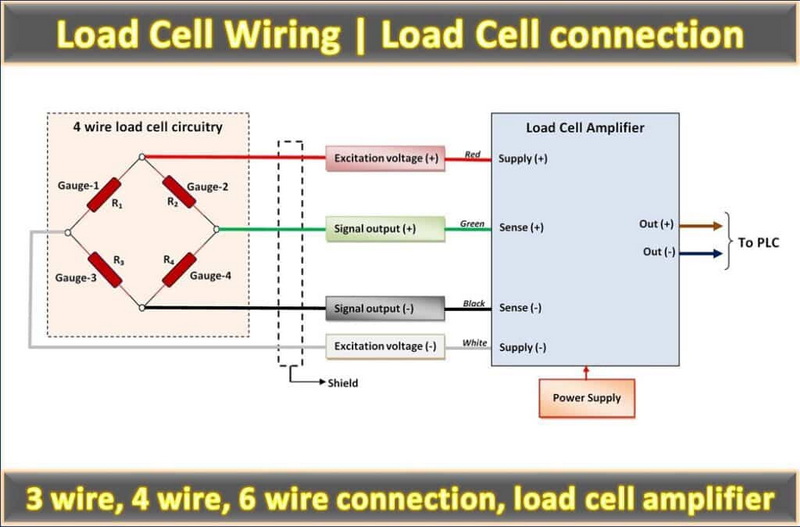

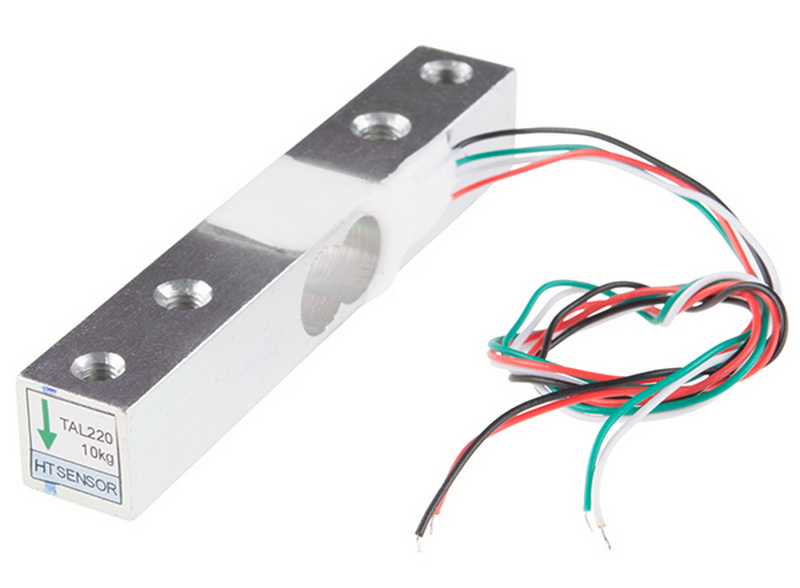

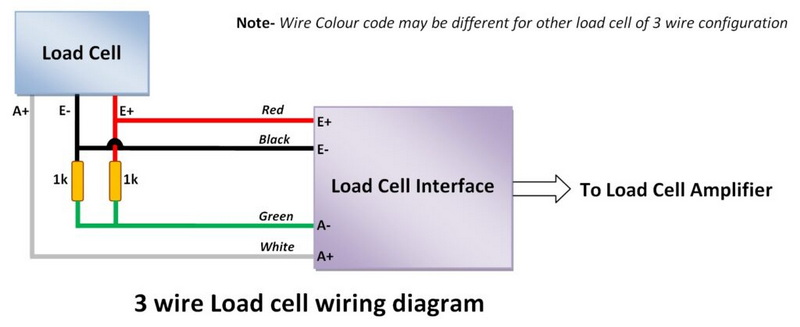

1. 4-Wire Load Cell Cables: These cables have four wires—two for power and two for signal. They are commonly used in applications where the distance between the load cell and the measurement device is short.

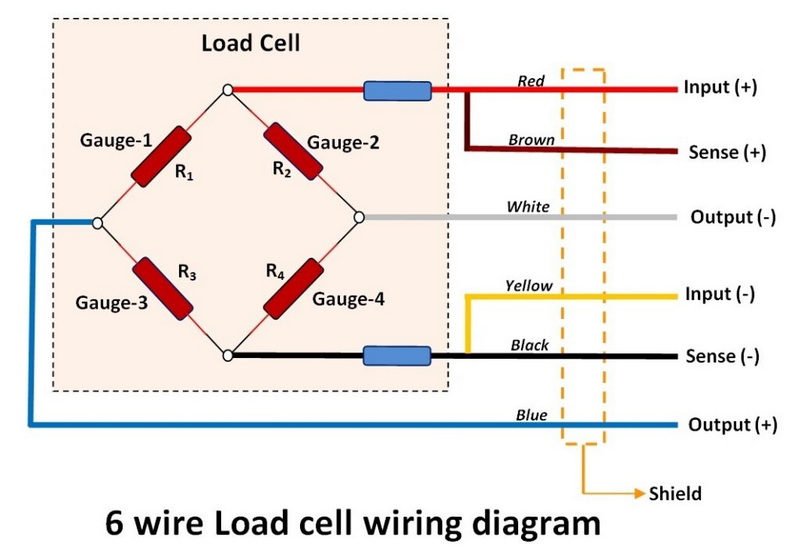

2. 6-Wire Load Cell Cables: These cables include additional wires for better accuracy and compensation for resistance in the cable. They are ideal for longer distances.
3. Shielded Load Cell Cables: These cables have an additional layer of shielding to protect against electromagnetic interference, making them suitable for environments with high electrical noise.
4. Custom Load Cell Cables: In some cases, custom cables are designed to meet specific requirements, such as unique lengths or environmental protections.
Load cell cables are used in a wide range of applications, including:
- Industrial Weighing Systems: Load cells are integral to scales used in manufacturing and logistics. They ensure that products are weighed accurately, which is crucial for inventory management and quality control.
- Medical Devices: In hospitals, load cells are used in patient monitoring systems to measure weight accurately. This data is vital for assessing patient health and administering appropriate treatments.
- Automotive Testing: Load cells are employed in crash testing and vehicle weight measurement. They help engineers understand how vehicles respond to forces during accidents, leading to safer designs.
- Aerospace: Load cells are used to measure forces in aircraft components during testing. This data is essential for ensuring the structural integrity and safety of aircraft.
- Construction and Civil Engineering: Load cells are used to monitor the weight of materials and structures, ensuring that they do not exceed safe limits. This application is critical in preventing structural failures.
The installation of load cell cables is critical for ensuring accurate measurements. Here are some key considerations:
1. Correct Wiring: Ensure that the wires are connected according to the manufacturer's specifications. Incorrect wiring can lead to inaccurate readings or damage to the load cell.
2. Cable Length: Use the appropriate length of cable to minimize resistance and signal loss. Longer cables may require a 6-wire configuration for better accuracy.
3. Environmental Protection: In harsh environments, use cables with appropriate insulation and shielding to protect against moisture, dust, and electrical interference.
4. Regular Maintenance: Periodically check the cables for wear and tear, and replace them if necessary to maintain accuracy.
If you encounter issues with load cell cables, consider the following troubleshooting steps:
1. Check Connections: Ensure that all connections are secure and correctly wired. Loose connections can lead to signal loss or inaccurate readings.
2. Inspect for Damage: Look for any signs of wear, fraying, or damage to the cable. Damaged cables should be replaced immediately to prevent further issues.
3. Test Signal Integrity: Use a multimeter to check for continuity and proper signal transmission. This step is crucial for diagnosing problems in the system.
4. Evaluate Environmental Factors: Ensure that the cable is not exposed to excessive heat, moisture, or electromagnetic interference. Environmental conditions can significantly affect the performance of load cell cables.
To ensure the longevity and reliability of load cell cables, consider the following best practices:
1. Avoid Sharp Bends: When routing cables, avoid sharp bends that can damage the insulation and conductors. Use gentle curves to maintain cable integrity.
2. Secure Cables Properly: Use cable ties or clips to secure cables and prevent them from moving or being damaged during operation.
3. Label Cables: Clearly label cables to identify their function and connection points. This practice simplifies troubleshooting and maintenance.
4. Use Protective Conduits: In environments with high exposure to chemicals or physical damage, consider using protective conduits to shield the cables.
5. Regular Inspections: Schedule regular inspections of load cell cables to identify potential issues before they lead to failures.
Load cell cables are vital components in the accurate measurement of weight and force across various industries. Understanding their types, applications, and installation requirements is essential for anyone working with load cells. Proper care and maintenance of these cables ensure reliable performance and longevity, ultimately leading to more accurate measurements.
A load cell cable connects load cells to measurement devices, transmitting the electrical signals generated by the load cell.
The main types include 4-wire, 6-wire, shielded, and custom load cell cables.
Ensure correct wiring, use appropriate cable lengths, protect against environmental factors, and follow the manufacturer's installation guidelines.
Inspect the cable for wear, check connections, and replace it if necessary to maintain accurate measurements.
Yes, but it is essential to use cables with proper insulation and shielding to protect against moisture, dust, and electrical interference.
