In the realm of industrial automation, the integration of sensors and control systems is crucial for efficient operations. One of the key components in this integration is the load cell, particularly when interfaced with Programmable Logic Controllers (PLCs). This article delves into the concept of load cells, their functionality, and their application within PLC systems, providing a comprehensive understanding of their importance in modern industrial processes.
A load cell is a type of transducer that converts a force or weight into an electrical signal. This conversion is essential for measuring weight in various applications, from simple scales to complex industrial systems. Load cells are widely used in industries such as manufacturing, food processing, and logistics, where precise weight measurements are critical.
Load cells come in various types, each designed for specific applications. The most common types include:
1. Strain Gauge Load Cells: These are the most widely used load cells. They operate on the principle of strain gauges, which change resistance when stretched or compressed. This change in resistance is converted into an electrical signal proportional to the weight applied.
2. Hydraulic Load Cells: These load cells use hydraulic pressure to measure weight. When a load is applied, it compresses a fluid-filled chamber, and the pressure change is measured to determine the weight.
3. Pneumatic Load Cells: Similar to hydraulic load cells, these use air pressure to measure weight. They are less common but can be useful in specific applications where hydraulic systems are not feasible.
4. S-Type Load Cells: These are designed in an S-shape and are often used for tension and compression applications. They are versatile and can be used in various setups.
5. Bending Beam Load Cells: These load cells are designed to measure weight by bending under load. They are commonly used in platform scales.
Load cells operate by converting mechanical force into an electrical signal. When a load is applied to the load cell, it deforms slightly. This deformation is measured by strain gauges attached to the load cell. The strain gauges change their electrical resistance in response to the deformation, and this change is converted into a voltage signal.

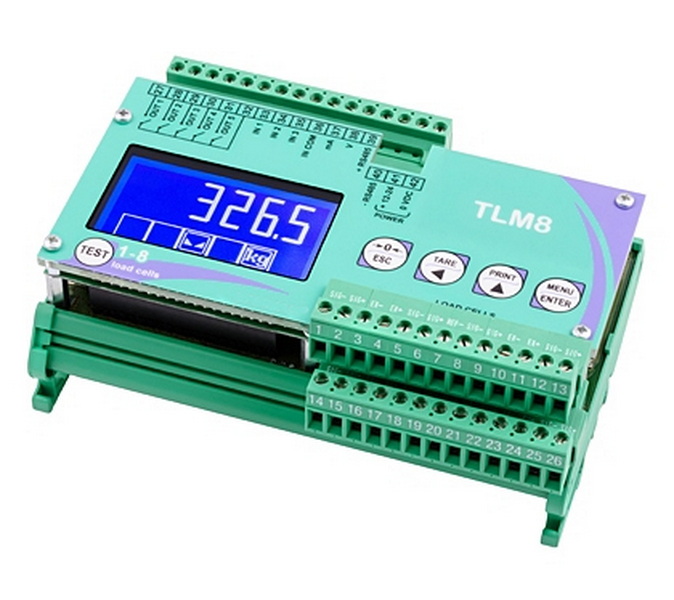

The raw signal from a load cell is typically very small and requires amplification and conditioning before it can be used by a PLC. This process involves:
- Amplification: The small voltage signal is amplified to a level that can be processed by the PLC.
- Filtering: Noise reduction techniques are applied to ensure that the signal is clean and accurate.
- Analog to Digital Conversion: The conditioned signal is converted into a digital format that the PLC can interpret.

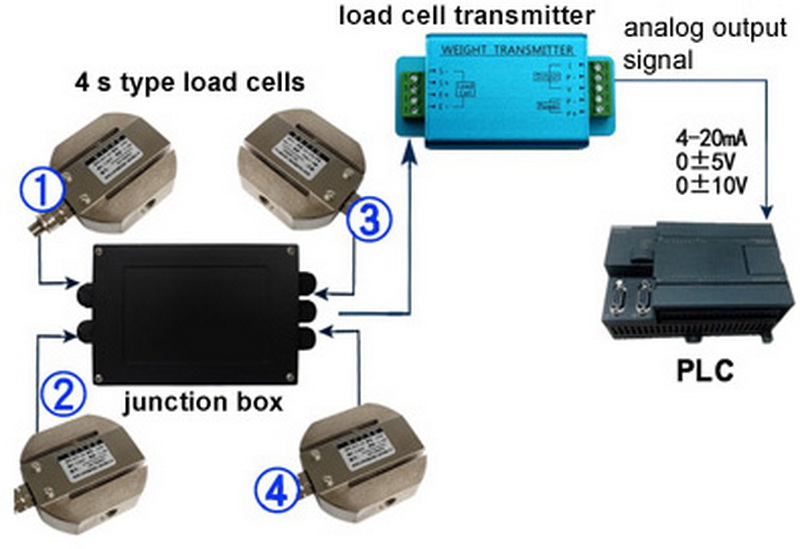

Integrating load cells with PLCs allows for automated weight measurement and control in industrial processes. The PLC can receive the digital signal from the load cell and use it to make decisions based on predefined logic.

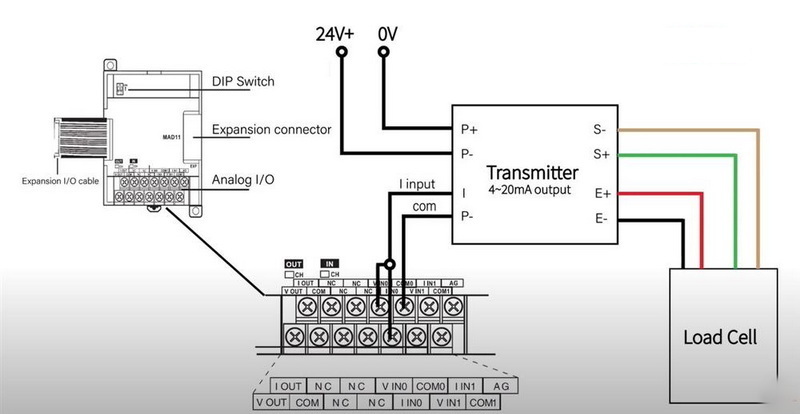

1. Wiring the Load Cell: The load cell must be properly wired to the PLC's analog input module. This involves connecting the load cell's output to the appropriate terminals on the PLC.
2. Configuring the PLC: The PLC must be configured to recognize the load cell's signal. This includes setting up the correct input type (e.g., voltage or current) and scaling the input to represent the actual weight.
3. Programming the PLC: The PLC program must include logic to process the weight data. This can involve setting thresholds for weight limits, triggering alarms, or controlling other devices based on the weight measured.
4. Testing and Calibration: After integration, the system should be tested and calibrated to ensure accurate weight measurements. Calibration involves comparing the load cell's output to known weights and adjusting the system accordingly.
Load cells are used in a variety of applications within PLC systems, including:
In industries such as food processing and pharmaceuticals, accurate weighing is critical. Load cells integrated with PLCs can automate the weighing process, ensuring that products are filled to the correct weight. This automation not only improves efficiency but also enhances product quality by minimizing human error.
In manufacturing, load cells are used in batching systems to measure the precise amount of materials needed for production. The PLC can control the flow of materials based on the weight measured by the load cell, ensuring that the correct proportions are maintained. This is particularly important in industries where the quality of the final product depends on the exact mixture of ingredients.
Load cells can also be used to measure forces in applications such as testing and quality control. The PLC can monitor these forces and trigger actions if they exceed predefined limits. For example, in a testing environment, if a product fails to meet the required force specifications, the PLC can automatically reject it from the production line.
In logistics and warehousing, load cells can help manage inventory by providing real-time weight measurements of stored goods. This data can be used to optimize storage and retrieval processes, ensuring that inventory levels are accurately tracked and managed. By integrating load cells with inventory management systems, companies can reduce waste and improve efficiency.
Load cells can be used to monitor loads on equipment such as cranes and hoists. The PLC can ensure that loads do not exceed safe limits, preventing equipment failure and accidents. This is crucial in industries where heavy lifting is common, as it helps maintain safety standards and protect workers.
Integrating load cells with PLCs offers several advantages:
- Accuracy: Load cells provide precise weight measurements, which are essential for quality control and compliance with industry standards. This accuracy is vital in industries where even slight deviations can lead to significant issues.
- Automation: The integration allows for automated processes, reducing the need for manual intervention and increasing efficiency. Automation not only speeds up operations but also reduces labor costs.
- Real-time Monitoring: PLCs can continuously monitor weight data, enabling quick responses to changes in the process. This real-time capability allows for immediate adjustments, enhancing overall system performance.
- Data Logging: The system can log weight data for analysis, helping to identify trends and improve processes over time. This data can be invaluable for making informed decisions about production and quality control.
- Scalability: Load cell systems can be easily scaled to accommodate changes in production needs. As businesses grow, their systems can adapt without requiring a complete overhaul.
While load cells offer many benefits, there are also challenges to consider:
- Calibration: Regular calibration is necessary to maintain accuracy, which can be time-consuming. Companies must establish a routine calibration schedule to ensure ongoing precision.
- Environmental Factors: Load cells can be affected by temperature, humidity, and other environmental factors, which may require additional compensation measures. Understanding the operating environment is crucial for selecting the right load cell.
- Signal Interference: Electrical noise can interfere with the load cell signal, necessitating careful wiring and shielding. Proper installation practices can mitigate these issues and ensure reliable performance.
Load cells play a vital role in industrial automation, particularly when integrated with PLCs. Their ability to accurately measure weight and force makes them indispensable in various applications, from manufacturing to logistics. Understanding how load cells work and how to integrate them with PLCs can significantly enhance operational efficiency and product quality.
A load cell converts mechanical force or weight into an electrical signal for measurement and control.
Calibration involves comparing the load cell's output to known weights and adjusting the system to ensure accurate measurements.
Common types include strain gauge, hydraulic, pneumatic, S-type, and bending beam load cells.
Yes, but they may require protective enclosures or special materials to withstand extreme conditions.
A PLC processes the electrical signal from the load cell, allowing for automated control and monitoring based on weight measurements.
