In the world of industrial weighing systems, precision and accuracy are paramount. One of the key components that contribute to achieving these goals is the load cell summing junction. This device plays a crucial role in integrating multiple load cells into a single system, allowing for accurate weight measurement across various applications. In this article, we will explore what a load cell summing junction is, how it works, its applications, and its importance in modern weighing systems.
Before diving into the specifics of summing junctions, it's essential to understand what load cells are. A load cell is a transducer that converts a force (usually weight) into an electrical signal. This signal can then be measured and displayed on a digital readout or used in a control system. Load cells are widely used in various industries, including manufacturing, transportation, and food processing, to ensure accurate weight measurements.
There are several types of load cells, including:
1. Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation under load.
2. Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications.
3. Pneumatic Load Cells: These measure weight by the pressure of air in a chamber and are suitable for specific applications where hydraulic systems are impractical.

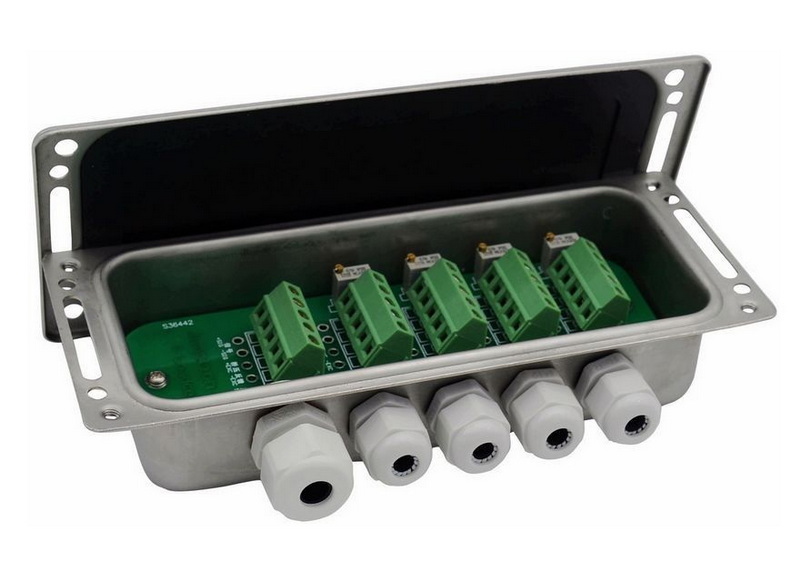

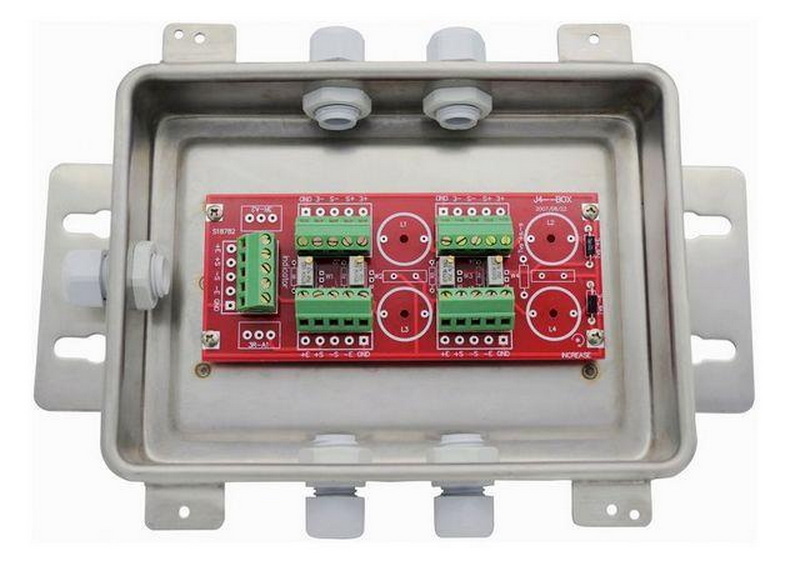

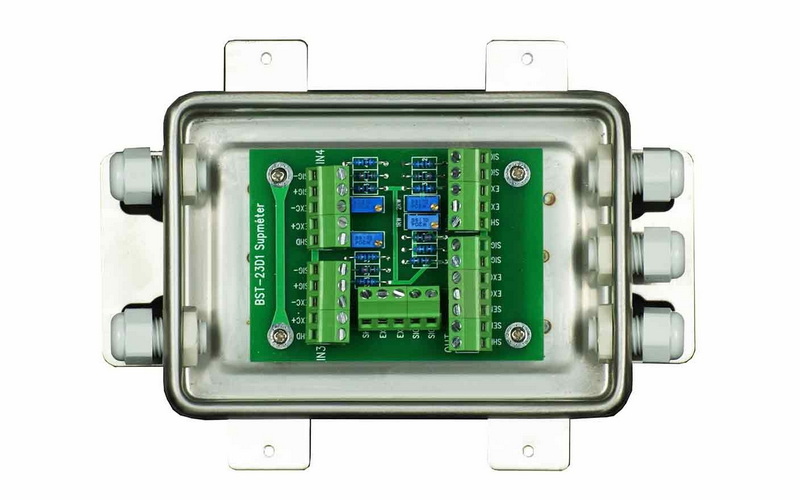

A load cell summing junction, often referred to as a junction box or summing box, is a device that combines the output signals from multiple load cells into a single output signal. This is particularly useful in applications where multiple load cells are used to measure weight across a larger area, such as in platform scales or batching systems.
The operation of a load cell summing junction is relatively straightforward. Each load cell generates an electrical signal proportional to the weight it measures. The summing junction collects these signals and sums them to produce a single output signal. This output can then be sent to a weight indicator or control system for further processing.

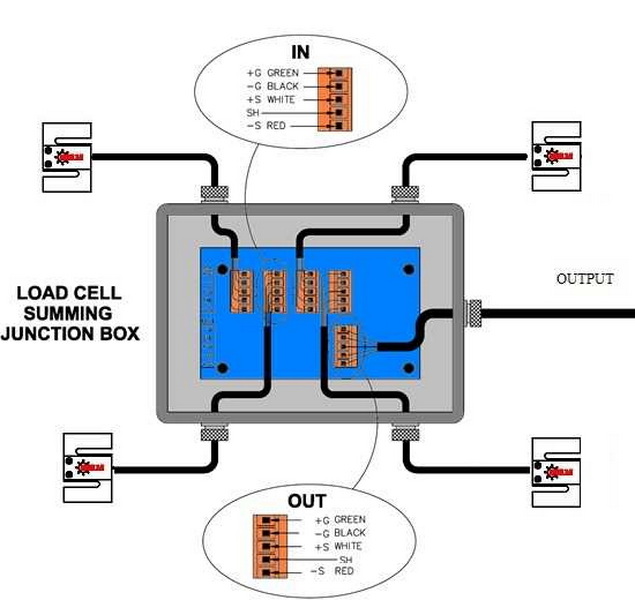

1. Input Terminals: These are the connection points for the load cell wires. Each load cell will have its wires connected to these terminals.
2. Signal Processing Circuitry: This circuitry is responsible for summing the signals from the load cells. It may also include components for signal conditioning, such as filtering and amplification.
3. Output Terminal: This terminal provides the summed output signal, which can be connected to a weight indicator or other devices.
1. Simplified Wiring: Instead of running multiple wires from each load cell to the indicator, a summing junction allows for a single output wire, simplifying installation and reducing clutter.
2. Improved Accuracy: By summing the signals from multiple load cells, the system can provide a more accurate representation of the total weight, especially in applications where weight distribution may vary.
3. Flexibility: Summing junctions can accommodate various configurations of load cells, making them versatile for different applications.
Load cell summing junctions are used in a wide range of applications, including:
1. Platform Scales: In industrial settings, platform scales often use multiple load cells to measure the weight of large items. A summing junction allows these load cells to work together seamlessly.
2. Batching Systems: In food processing and manufacturing, batching systems require precise weight measurements of ingredients. Summing junctions help ensure that the total weight is accurately measured, even when multiple load cells are involved.
3. Truck Scales: Truck scales often use multiple load cells to measure the weight of large vehicles. A summing junction allows for accurate weight measurement across the entire scale.
4. Weighbridges: Similar to truck scales, weighbridges use summing junctions to measure the weight of vehicles and their loads accurately.
5. Industrial Automation: In automated systems, load cell summing junctions can be integrated into control systems to provide real-time weight data for monitoring and control purposes.
Installing a load cell summing junction involves several steps:
1. Mounting: The junction box should be mounted in a location that is easily accessible for wiring and maintenance.
2. Wiring: Connect the load cell wires to the input terminals of the summing junction. Ensure that the connections are secure and properly insulated.
3. Output Connection: Connect the output terminal of the summing junction to the weight indicator or control system.
Calibration is essential to ensure accurate weight measurements. This process typically involves:
1. Setting Up Known Weights: Place known weights on the scale to establish reference points.
2. Adjusting the Output: Use the calibration settings on the weight indicator to adjust the output signal until it matches the known weights.
3. Verifying Accuracy: After calibration, verify the accuracy by testing with various weights to ensure consistent readings.
While load cell summing junctions are generally reliable, issues can arise. Here are some common problems and their solutions:
1. Inconsistent Readings: If the output signal fluctuates, check the wiring connections for any loose or damaged wires. Ensure that all load cells are functioning correctly.
2. Zero Drift: If the scale does not read zero when no weight is applied, recalibrate the system. This may involve adjusting the zero setting on the weight indicator.
3. Signal Interference: Electrical interference can affect the accuracy of the readings. Ensure that the summing junction is installed away from sources of electromagnetic interference, such as motors or transformers.
As technology advances, load cell summing junctions are becoming more sophisticated. Some of the advanced features include:
1. Digital Signal Processing: Modern summing junctions may incorporate digital signal processing (DSP) technology, which enhances the accuracy and reliability of the weight measurements. DSP can filter out noise and improve the signal quality, leading to more precise readings.
2. Remote Monitoring: Many summing junctions now offer remote monitoring capabilities. This allows operators to check weight measurements from a distance, which is particularly useful in large facilities or when the weighing system is in a hard-to-reach location.
3. Integration with IoT: The Internet of Things (IoT) is making its way into industrial applications, including load cell summing junctions. IoT-enabled devices can send weight data to cloud-based systems for analysis, enabling better inventory management and operational efficiency.
4. User-Friendly Interfaces: Newer models often come with user-friendly interfaces that simplify the calibration and setup process. Touchscreen displays and intuitive menus make it easier for operators to manage the system.
5. Enhanced Durability: Many summing junctions are designed to withstand harsh industrial environments. Features such as weatherproof enclosures and robust materials ensure longevity and reliability, even in challenging conditions.
A load cell summing junction is an essential component in modern weighing systems, providing the ability to accurately measure weight across multiple load cells. Its benefits, including simplified wiring, improved accuracy, and flexibility, make it a valuable tool in various applications, from industrial scales to batching systems. Understanding how these junctions work and their importance can help businesses optimize their weighing processes and ensure accurate measurements.
The primary function is to combine the output signals from multiple load cells into a single output signal for accurate weight measurement.
Mount the junction box, connect the load cell wires to the input terminals, and connect the output terminal to the weight indicator.
Common applications include platform scales, batching systems, truck scales, and industrial automation.
Calibration involves placing known weights on the scale and adjusting the output signal until it matches the known weights.
Check the wiring connections for any loose or damaged wires and ensure all load cells are functioning correctly.
