A load cell transducer is a crucial component in various industries, serving as a device that converts force into an electrical signal. This technology is fundamental in applications ranging from industrial weighing systems to medical devices and structural monitoring. Understanding how load cells work, their types, applications, and advantages can provide valuable insights into their significance in modern technology.

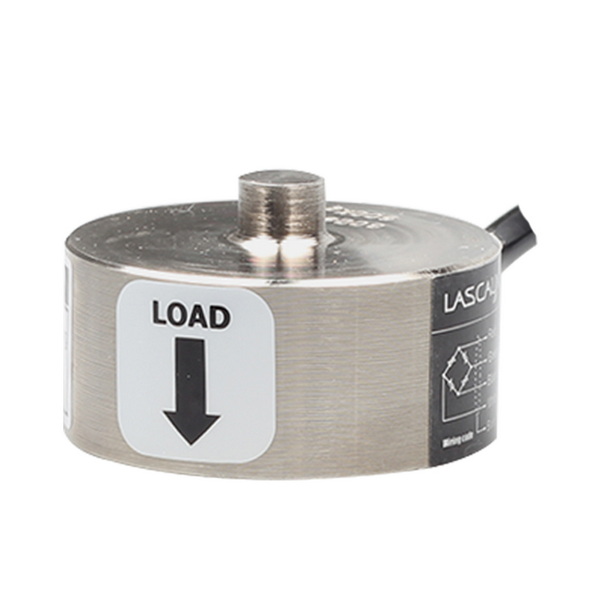

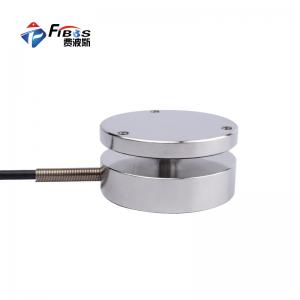

A load cell is a type of transducer that measures weight or force. It operates on the principle of converting mechanical force into an electrical signal. When a load is applied to the load cell, it deforms slightly, and this deformation is measured by strain gauges attached to the cell. The change in resistance of these gauges is proportional to the force applied, allowing for precise measurements.
Load cells typically consist of a metal element that deforms under load. This deformation is measured by strain gauges, which are bonded to the metal. When the load is applied, the metal element bends, causing the strain gauges to stretch or compress. This change in shape alters the electrical resistance of the gauges, which is then converted into a voltage signal. This signal can be processed and displayed as a weight measurement.
There are several types of load cells, each designed for specific applications. The most common types include:
Strain gauge load cells are the most widely used type. They utilize strain gauges to measure the deformation of the load cell element. These load cells are known for their accuracy and reliability, making them suitable for various applications, including industrial scales and force measurement systems.
Hydraulic load cells use fluid pressure to measure force. When a load is applied, it compresses a fluid-filled chamber, and the pressure change is measured. These load cells are often used in heavy-duty applications, such as weighing large vehicles or containers.
Pneumatic load cells operate similarly to hydraulic load cells but use air pressure instead of fluid. They are less common but can be beneficial in environments where electrical components may pose a risk, such as explosive atmospheres.
S-type load cells are designed to measure both tension and compression forces. They are often used in applications where the load can be applied in either direction, such as hanging scales or crane scales.
Beam load cells are typically used in industrial applications. They consist of a beam that bends under load, with strain gauges attached to measure the deformation. These load cells are often used in platform scales and industrial weighing systems.
Load cells are used in a wide range of applications across various industries. Some of the most common applications include:
Load cells are integral to industrial weighing systems, including platform scales, truck scales, and bench scales. They provide accurate weight measurements, ensuring compliance with regulations and standards.
In the medical field, load cells are used in devices such as patient scales and infusion pumps. They help ensure accurate measurements, which are critical for patient care.
Load cells are used in structural monitoring systems to measure the load on bridges, buildings, and other structures. This data is essential for ensuring safety and integrity over time.
In the aerospace and automotive industries, load cells are used for testing components and systems. They help engineers measure forces during testing, ensuring that products meet safety and performance standards.
Load cells play a vital role in robotics and automation, providing feedback on force and weight. This information is crucial for tasks such as pick-and-place operations and quality control.
Load cells offer several advantages that make them a preferred choice for force and weight measurement:
Load cells provide precise measurements, making them suitable for applications where accuracy is critical. Their ability to deliver consistent results is essential in industries where even minor discrepancies can lead to significant issues.
With proper calibration and maintenance, load cells can offer consistent performance over time, ensuring reliable measurements. This reliability is crucial in applications such as medical devices, where accurate readings can impact patient care.
Load cells can be used in various applications, from industrial weighing to medical devices, making them highly versatile. Their adaptability allows them to meet the needs of different industries and applications.
Load cells can be easily integrated into existing systems, allowing for seamless upgrades and improvements in measurement capabilities. This ease of integration is particularly beneficial for businesses looking to enhance their operational efficiency without overhauling their entire system.
While the initial investment may vary, the long-term benefits of using load cells, such as reduced errors and improved efficiency, often outweigh the costs. Businesses can save money in the long run by minimizing waste and ensuring accurate measurements.
While load cells are highly effective, there are some challenges and considerations to keep in mind:
Regular calibration is essential to maintain accuracy. Load cells should be calibrated according to the manufacturer's specifications and industry standards. Failure to calibrate can lead to inaccurate readings, which can have serious consequences in critical applications.
Load cells can be affected by environmental factors such as temperature, humidity, and vibration. It is crucial to select load cells designed for specific environmental conditions to ensure optimal performance. For example, load cells used in outdoor applications may need to be weatherproofed to prevent damage.
Proper installation is vital for accurate measurements. Load cells should be installed according to the manufacturer's guidelines to ensure optimal performance. Incorrect installation can lead to misalignment and inaccurate readings.
Regular maintenance is necessary to ensure the longevity and reliability of load cells. This includes checking for wear and tear, recalibrating, and ensuring proper connections. A proactive maintenance schedule can help prevent unexpected failures and extend the lifespan of the equipment.
As technology continues to advance, load cells are also evolving. Some of the future trends in load cell technology include:
Wireless load cells are becoming increasingly popular due to their ease of installation and flexibility. They eliminate the need for cumbersome wiring, making them ideal for applications where traditional wiring may be impractical.
Smart load cells equipped with sensors and IoT capabilities are emerging. These devices can provide real-time data and analytics, allowing for better monitoring and decision-making. Smart load cells can enhance operational efficiency by providing insights into load patterns and usage.
Advancements in materials science are leading to the development of more durable and lightweight load cells. These new materials can improve the performance and lifespan of load cells, making them suitable for even more demanding applications.
As industries move towards greater automation, load cells are being integrated into automated systems for real-time monitoring and control. This integration allows for more efficient operations and improved accuracy in measurements.
Load cell transducers are essential devices that play a critical role in various industries. Their ability to convert force into an electrical signal allows for accurate and reliable measurements, making them indispensable in applications ranging from industrial weighing to medical devices. Understanding the different types of load cells, their applications, and their advantages can help organizations make informed decisions about their measurement needs.
The primary function of a load cell is to convert mechanical force into an electrical signal for measurement.
The different types of load cells include strain gauge, hydraulic, pneumatic, S-type, and beam load cells.
Load cells are commonly used in weighing systems, medical devices, structural monitoring, aerospace testing, and robotics.
Load cells should be calibrated regularly, typically according to the manufacturer's specifications and industry standards.
Environmental factors such as temperature, humidity, and vibration can affect the performance of a load cell.
