Before diving deeper into pancake load cells, it's essential to understand what load cells are. A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and recorded, allowing for precise weight and force measurements. Load cells are widely used in various industries, including manufacturing, automotive, aerospace, and medical fields.
Load cells come in various shapes and sizes, each designed for specific applications. The most common types include:
- S-Type Load Cells: These are used for both tension and compression applications and are often found in hanging scales.
- Shear Beam Load Cells: These are typically used in platform scales and are known for their durability.
- Canister Load Cells: Also known as pancake load cells, these are designed for high-capacity applications and are often used in industrial settings.
Pancake load cells stand out due to their design and functionality. Here are some key features that make them unique:

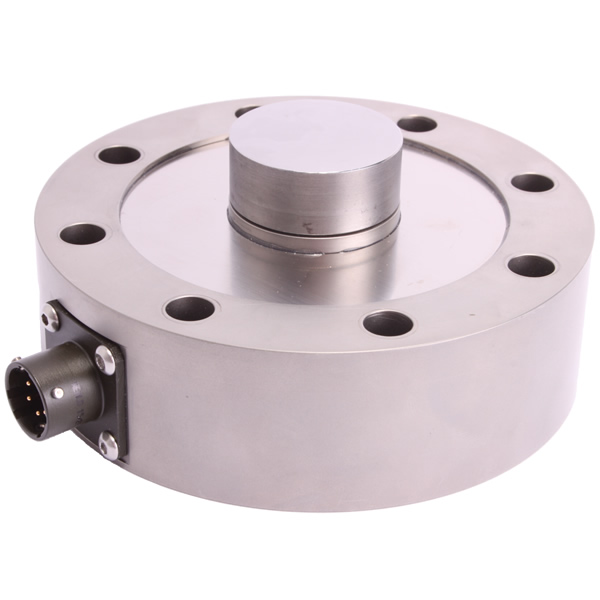

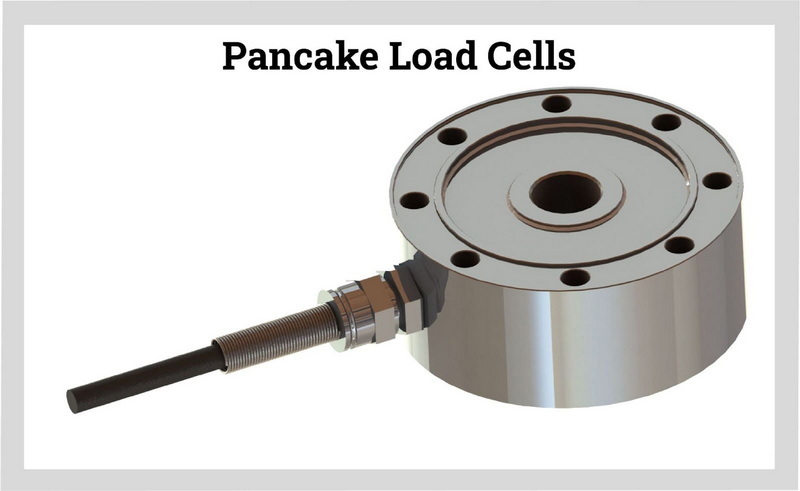

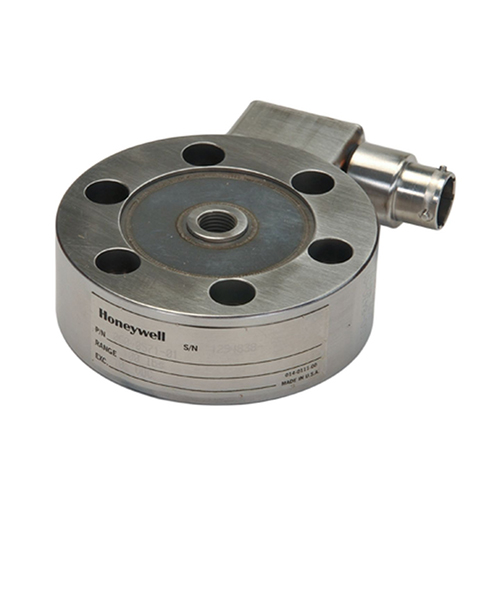

The flat, circular design of pancake load cells allows them to fit into tight spaces where traditional load cells may not. This design is particularly useful in applications where height is a constraint. Their low profile makes them ideal for integration into various systems without adding significant bulk.
Pancake load cells are capable of measuring large forces, making them ideal for heavy-duty applications. They can handle loads ranging from a few pounds to several tons, depending on the model. This high capacity is essential in industries such as construction and manufacturing, where heavy loads are common.
These load cells can measure both tension and compression forces, making them suitable for a wide range of applications. This versatility is a significant advantage in industries where both types of measurements are required. For instance, they can be used in testing the tensile strength of materials as well as in weighing applications.
Pancake load cells are known for their high accuracy and precision. They utilize strain gauge technology, which allows for very small changes in force to be detected and measured accurately. This level of precision is crucial in applications where even minor discrepancies can lead to significant issues.
Constructed from materials like stainless steel or aluminum, pancake load cells are designed to withstand harsh environments. They are often sealed to protect against dust and moisture, ensuring reliable performance in challenging conditions. This durability makes them suitable for outdoor applications and environments where exposure to the elements is a concern.
Pancake load cells are used in various applications across multiple industries. Here are some common uses:
In laboratories, pancake load cells are used to test the strength and durability of materials. They can measure the force required to break or deform materials, providing valuable data for engineers and researchers. This application is critical in industries such as construction, where material integrity is paramount.
These load cells are often used in weighing systems, such as truck scales and platform scales. Their ability to handle large loads makes them ideal for industrial weighing applications. They provide accurate weight measurements, which are essential for inventory management and logistics.
Pancake load cells are used in applications where precise force measurement is critical. This includes testing the force exerted by machinery, monitoring the load on structures, and measuring the force in robotic applications. Their accuracy ensures that safety standards are met in various engineering applications.
In the aerospace and automotive industries, pancake load cells are used to test components and systems under various load conditions. This testing ensures that parts can withstand the forces they will encounter in real-world applications. For example, they are used in crash testing to measure the forces experienced by vehicles during collisions.
Pancake load cells are used in load monitoring systems to ensure that equipment operates within safe limits. This is particularly important in industries like construction and manufacturing, where excessive loads can lead to equipment failure or accidents. By continuously monitoring loads, companies can prevent costly downtime and enhance safety.
Pancake load cells operate based on the principle of strain gauges. A strain gauge is a device that measures the amount of deformation (strain) experienced by an object when a force is applied. Here's how the process works:
1. Force Application: When a force is applied to the pancake load cell, it causes a deformation in the load cell's structure.
2. Strain Measurement: The strain gauges attached to the load cell detect this deformation. As the load cell deforms, the resistance of the strain gauges changes.
3. Signal Conversion: This change in resistance is converted into an electrical signal, which is proportional to the amount of force applied.
4. Data Output: The electrical signal is then processed and displayed as a weight or force measurement.
Proper installation and calibration are crucial for ensuring accurate measurements with pancake load cells. Here are some key steps:
- Alignment: Ensure that the load cell is aligned correctly with the load being applied. Misalignment can lead to inaccurate readings.
- Mounting: Use appropriate mounting hardware to secure the load cell in place. It should be mounted on a flat surface to prevent any additional forces from affecting the measurement.
- Calibration: Regular calibration is necessary to maintain accuracy. This involves applying known weights to the load cell and adjusting the output signal accordingly.
Pancake load cells offer several advantages over other types of load cells:
- Space-Saving Design: Their flat design allows for installation in tight spaces, making them ideal for applications with limited vertical clearance. This is particularly beneficial in automated systems where space is at a premium.
- High Accuracy: Pancake load cells provide precise measurements, which is essential in applications where accuracy is critical. This high level of precision helps in maintaining quality control in manufacturing processes.
- Durability: Built to withstand harsh environments, these load cells are resistant to corrosion and damage, ensuring long-term reliability. Their robust construction makes them suitable for outdoor and industrial applications.
- Versatile Applications: Their ability to measure both tension and compression makes them suitable for a wide range of applications across various industries. This versatility reduces the need for multiple types of load cells in a single application.
While pancake load cells have many advantages, there are also challenges to consider:
- Cost: Pancake load cells can be more expensive than other types of load cells, which may be a consideration for budget-conscious projects. However, their durability and accuracy often justify the investment.
- Installation Complexity: Proper installation and calibration require expertise, which may necessitate hiring professionals. This can add to the overall cost of implementing a load cell system.
- Sensitivity to Environmental Factors: While they are durable, extreme temperatures and environmental conditions can still affect their performance. It is essential to select load cells that are rated for the specific environmental conditions they will encounter.
Pancake load cells are essential tools in many industries, providing accurate and reliable measurements of force and weight. Their unique design, high capacity, and versatility make them suitable for a wide range of applications, from material testing to load monitoring. Understanding how these load cells work and their advantages can help businesses make informed decisions about their use in various projects.
The primary function of a pancake load cell is to measure force or weight accurately in both tension and compression applications.
To install a pancake load cell, ensure proper alignment with the load, secure it to a flat surface using appropriate mounting hardware, and calibrate it regularly for accurate measurements.
Pancake load cells are commonly used in industries such as manufacturing, aerospace, automotive, and material testing.
Advantages include their space-saving design, high accuracy, durability, and versatility in measuring both tension and compression.
Pancake load cells should be calibrated regularly, depending on usage and environmental conditions, to ensure accurate measurements.
