In the world of industrial weighing and force measurement, load cells play a crucial role. Among the various types of load cells, the parallel beam load cell stands out due to its unique design and functionality. This article will explore what a parallel beam load cell is, how it works, its applications, advantages, and much more. By the end, you will have a comprehensive understanding of this essential component in weighing systems.
Before diving into parallel beam load cells, it's essential to understand what load cells are. A load cell is a transducer that converts a force into an electrical signal. This conversion is achieved through the use of strain gauges, which are sensitive to deformation. When a load is applied to the load cell, the strain gauges detect the change in resistance caused by the deformation, allowing for precise weight measurement.
Load cells come in various types, each designed for specific applications. The most common types include:
- Compression Load Cells: These measure the force applied to compress the load cell.
- Tension Load Cells: These measure the force applied to pull the load cell.
- Shear Beam Load Cells: These measure the force applied in a shear direction.
- Parallel Beam Load Cells: These are designed to measure weight by bending a beam under load.

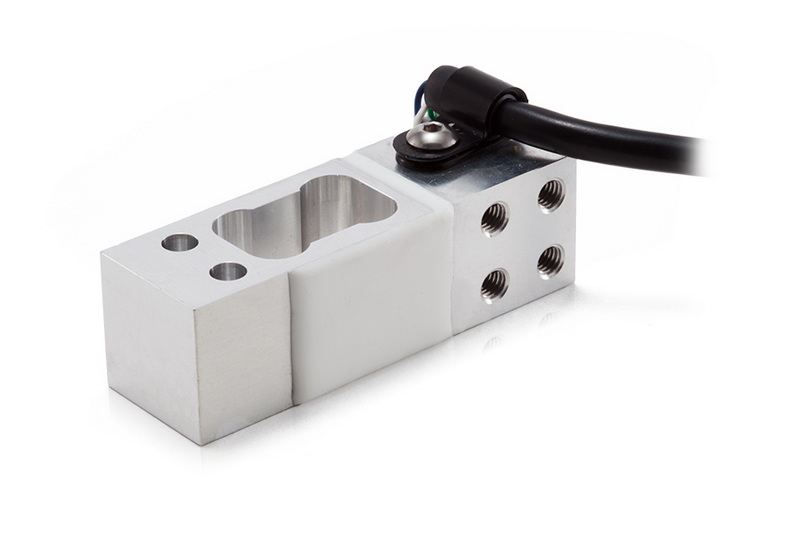

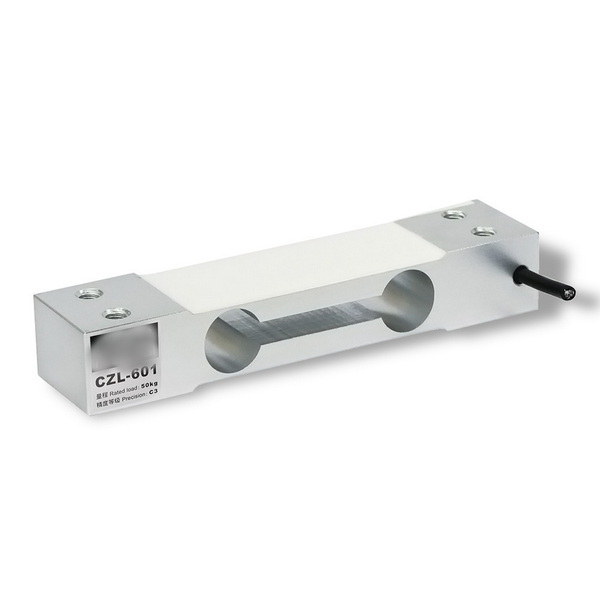

A parallel beam load cell is a specific type of load cell that utilizes a beam structure to measure weight or force. The design typically consists of a beam that is supported at both ends, with the load applied at the center. This configuration allows for accurate measurement of the load through bending.
The construction of a parallel beam load cell involves several key components:
- Beam: The main structure that bends under load. It is usually made from high-strength materials like aluminum or stainless steel.
- Strain Gauges: These are attached to the beam and measure the deformation caused by the applied load.
- Mounting Hardware: This includes brackets and fixtures that secure the load cell in place.
- Electrical Connections: Wires that connect the strain gauges to a measurement device, allowing for the conversion of mechanical force into an electrical signal.

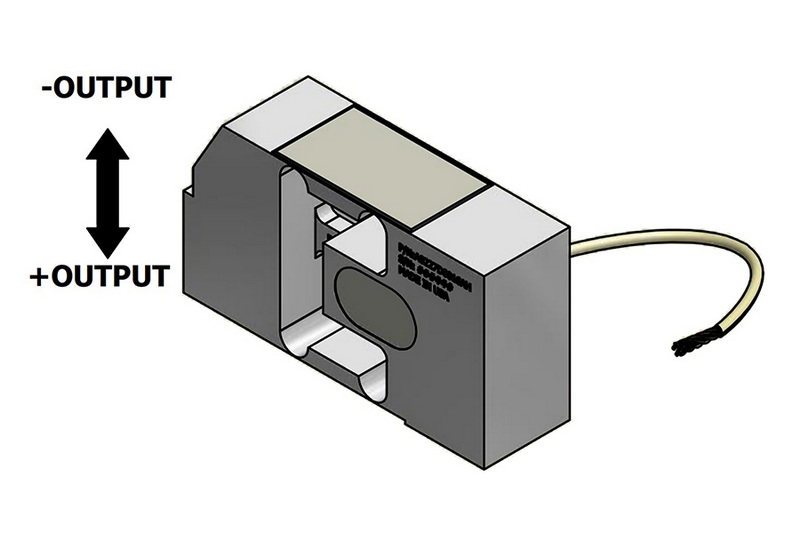

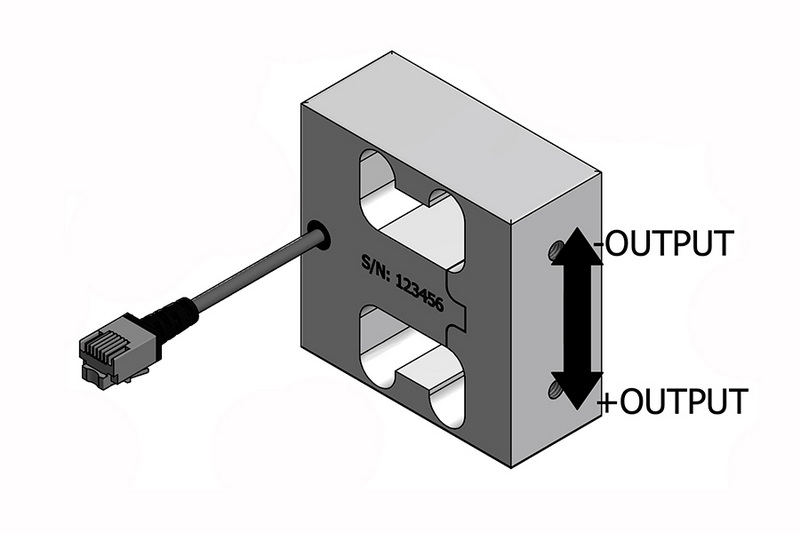

The operation of a parallel beam load cell is based on the principles of mechanics and electronics. When a load is applied to the center of the beam, it causes the beam to bend. This bending creates tension on one side of the beam and compression on the other side.
1. Load Application: The load is applied to the center of the beam.
2. Bending of the Beam: The beam bends, causing strain on the material.
3. Strain Gauge Response: The strain gauges detect the deformation and change their electrical resistance.
4. Signal Conversion: The change in resistance is converted into an electrical signal, which is proportional to the applied load.
5. Output: The electrical signal is sent to a display or control system, providing a measurement of the weight or force.
Parallel beam load cells are widely used in various industries due to their accuracy and reliability. Some common applications include:
- Industrial Weighing: Used in scales for weighing products in manufacturing and distribution.
- Material Testing: Employed in laboratories to test the strength and durability of materials.
- Automotive Testing: Used in crash tests and other automotive applications to measure forces.
- Food Industry: Utilized in food processing and packaging to ensure accurate weight measurements.
- Medical Equipment: Found in medical scales and devices that require precise weight measurements.
Parallel beam load cells offer several advantages that make them a preferred choice in many applications:
1. High Accuracy: They provide precise measurements, making them suitable for applications requiring high accuracy.
2. Stability: The design minimizes the effects of side loads and other external forces, ensuring stable readings.
3. Versatility: They can be used in various applications across different industries.
4. Ease of Installation: The mounting hardware allows for straightforward installation in various setups.
5. Durability: Made from robust materials, they can withstand harsh environments and heavy loads.
While parallel beam load cells have many advantages, there are also challenges to consider:
- Calibration: Regular calibration is necessary to maintain accuracy over time.
- Temperature Sensitivity: Changes in temperature can affect the readings, so temperature compensation may be required.
- Installation: Proper installation is crucial to avoid misalignment, which can lead to inaccurate measurements.
To ensure the longevity and accuracy of parallel beam load cells, regular maintenance is essential. Here are some tips for maintaining these devices:
- Regular Calibration: Schedule periodic calibration to ensure accurate measurements.
- Visual Inspections: Regularly check for signs of wear, damage, or misalignment.
- Cleanliness: Keep the load cell clean and free from debris that could affect its performance.
- Environmental Considerations: Protect the load cell from extreme temperatures, moisture, and corrosive substances.
As technology advances, load cells are becoming more sophisticated. Some trends to watch for include:
- Wireless Load Cells: These eliminate the need for physical connections, allowing for more flexible installations.
- Smart Load Cells: Equipped with sensors and IoT capabilities, these load cells can provide real-time data and analytics.
- Enhanced Materials: The use of advanced materials can improve durability and performance in extreme conditions.
Parallel beam load cells are an essential component in the field of force measurement and weighing systems. Their unique design, high accuracy, and versatility make them suitable for a wide range of applications. Understanding how they work and their advantages can help industries choose the right load cell for their needs.
Parallel beam load cells measure weight through bending, while shear beam load cells measure weight through shear forces.
Ensure proper alignment, secure it with mounting hardware, and connect the electrical wiring to the measurement device.
With proper maintenance, a parallel beam load cell can last many years, often exceeding a decade.
Yes, but they should be protected from extreme weather conditions and moisture.
It is recommended to calibrate load cells at least once a year or more frequently if used in critical applications.
