A shear beam load cell is a crucial component in the field of industrial weighing and force measurement. These devices are designed to convert mechanical force into an electrical signal, allowing for precise measurement of weight or force in various applications. This article will explore the working principles, types, applications, advantages, and limitations of shear beam load cells, providing a comprehensive understanding of this essential technology.

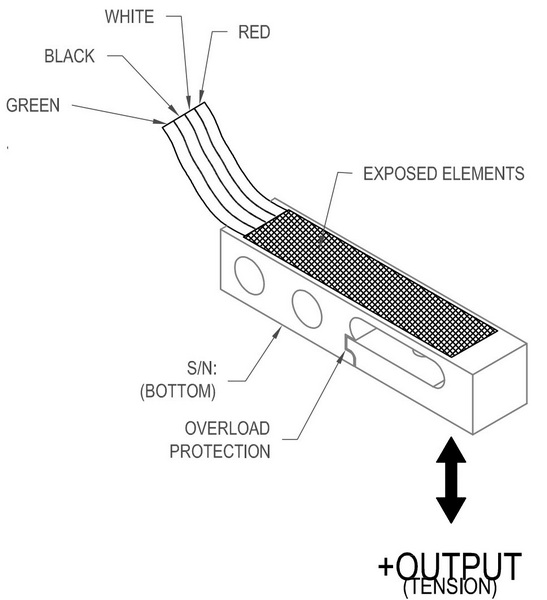

A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell uses strain gauges to measure the deformation of a material when a load is applied. This deformation is then converted into an electrical signal that can be measured and displayed.

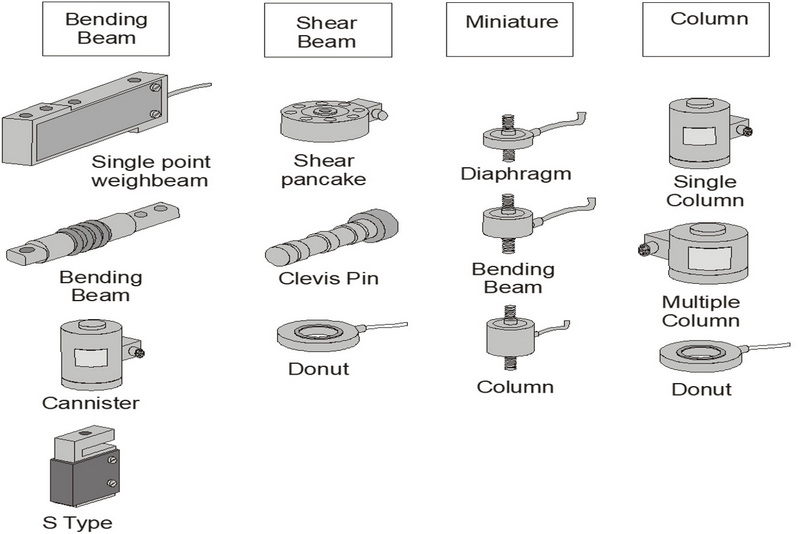

Load cells come in various types, each designed for specific applications. The most common types include:
- Compression Load Cells: These measure the force applied to compress the load cell.
- Tension Load Cells: These measure the force applied to pull the load cell.
- Shear Beam Load Cells: These measure the force applied in a shear direction, making them ideal for various industrial applications.

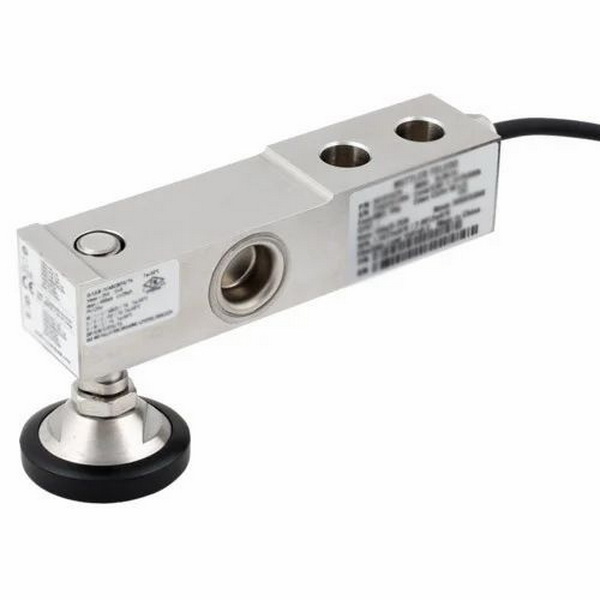

A shear beam load cell is a specific type of load cell that measures weight or force by detecting the shear strain in a beam when a load is applied. The design of a shear beam load cell allows it to be mounted in a way that it can measure both tension and compression forces.
The working principle of a shear beam load cell is based on the concept of shear stress. When a load is applied to the load cell, it causes the beam to deform. This deformation creates shear stress, which is measured by strain gauges attached to the beam. The strain gauges convert the mechanical deformation into an electrical signal, which is then processed to determine the magnitude of the applied load.
Shear beam load cells are typically constructed from high-strength materials such as aluminum or stainless steel. The design often includes a rectangular or I-beam shape, which provides the necessary structural integrity to withstand heavy loads. The strain gauges are usually bonded to the beam in a specific configuration to ensure accurate measurements.
Shear beam load cells are widely used in various industries due to their versatility and reliability. Some common applications include:
Shear beam load cells are commonly used in industrial weighing scales, including platform scales, truck scales, and floor scales. Their ability to handle large loads and provide accurate measurements makes them ideal for these applications.
In material testing applications, shear beam load cells are used to measure the force required to break or deform materials. This information is crucial for quality control and product development.
Shear beam load cells are also used in force measurement applications, such as in testing machines and load testing equipment. They provide precise measurements of force, which is essential for ensuring the safety and reliability of structures and components.
In automation and robotics, shear beam load cells are used to measure the force exerted by robotic arms and other automated systems. This information is vital for controlling the operation of these systems and ensuring they function correctly.
In the food and beverage industry, shear beam load cells are used in various applications, including batching, filling, and packaging processes. Their accuracy and reliability ensure that the correct amounts of ingredients are used, which is critical for maintaining product quality and consistency.
Shear beam load cells are also utilized in medical equipment, such as hospital beds and patient scales. They provide accurate weight measurements, which are essential for patient care and monitoring.
Shear beam load cells offer several advantages that make them a popular choice in various applications:
Shear beam load cells provide high accuracy and precision in measurements, making them suitable for applications where exact weight or force measurement is critical.
The robust design of shear beam load cells allows them to withstand harsh environmental conditions, including extreme temperatures, humidity, and mechanical stress.
These load cells can be used in a wide range of applications, from industrial weighing to material testing, making them a versatile choice for many industries.
Shear beam load cells are relatively easy to install and integrate into existing systems, which can save time and reduce installation costs.
Compared to other types of load cells, shear beam load cells are often more cost-effective, providing a good balance between performance and price.
Despite their many advantages, shear beam load cells also have some limitations:
Shear beam load cells can be sensitive to side loads, which can affect their accuracy. It is essential to ensure that the load is applied correctly to minimize this issue.
Regular calibration is necessary to maintain the accuracy of shear beam load cells. This can be time-consuming and may require specialized equipment.
While shear beam load cells are generally cost-effective, high-precision models can be expensive, which may be a consideration for some applications.
Some shear beam load cells may have a limited range of measurement, which can restrict their use in certain applications. It is important to select a load cell that meets the specific requirements of the application.
In summary, shear beam load cells are essential devices in the field of industrial weighing and force measurement. Their ability to accurately measure weight and force, combined with their robust design and versatility, makes them a popular choice in various applications. Understanding the working principles, advantages, and limitations of shear beam load cells is crucial for selecting the right load cell for specific needs.
A shear beam load cell measures force in a shear direction, while a compression load cell measures force applied to compress the load cell. Shear beam load cells are often used in applications where both tension and compression forces need to be measured.

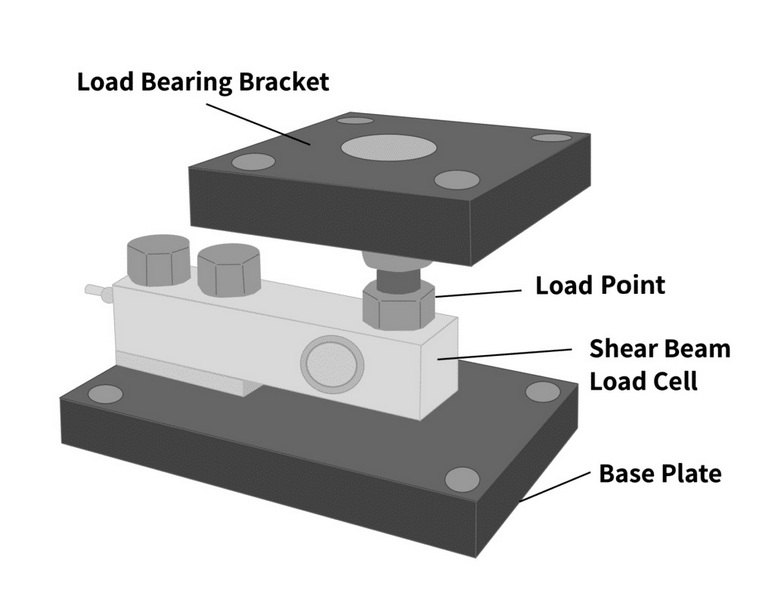

Installation typically involves mounting the load cell securely to a base or platform, ensuring that the load is applied correctly. It is essential to follow the manufacturer's guidelines for installation to ensure accurate measurements.
Calibration frequency depends on the application and the manufacturer's recommendations. Generally, it is advisable to calibrate load cells at least once a year or whenever there are significant changes in the operating conditions.
Yes, shear beam load cells can be used in outdoor applications, but it is essential to choose models that are designed to withstand environmental factors such as moisture, temperature fluctuations, and dust.
The lifespan of a shear beam load cell can vary depending on the application and operating conditions. However, with proper care and maintenance, they can last for many years, often exceeding a decade.
