In the world of industrial measurement and automation, load cells play a crucial role in converting force or weight into an electrical signal. Among the various types of load cells, shielded signal load cells are particularly important due to their ability to minimize electrical noise and interference. This article will explore the concept of shielded signal load cells, their construction, applications, advantages, and how they differ from other types of load cells.
A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell uses a strain gauge, which is a device that measures the amount of deformation (strain) experienced by an object when a force is applied. When the load cell is subjected to a load, the strain gauge deforms, causing a change in its electrical resistance. This change is then converted into a measurable electrical signal.
Load cells can be categorized into several types based on their design and application:
1. Compression Load Cells: These load cells measure the force applied to compress them.
2. Tension Load Cells: These are designed to measure the force applied in tension.
3. Shear Beam Load Cells: These load cells measure the shear force and are commonly used in platform scales.
4. Bending Beam Load Cells: These load cells measure bending forces and are often used in low-capacity applications.
A shielded signal load cell is a type of load cell that incorporates shielding in its design to protect the signal wires from electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding is essential in environments where electrical noise can distort the signal, leading to inaccurate measurements.
The construction of a shielded signal load cell typically includes:
- Load Cell Body: Made from materials like stainless steel for durability and resistance to environmental factors.
- Strain Gauges: Attached to the load cell body, these gauges detect deformation.

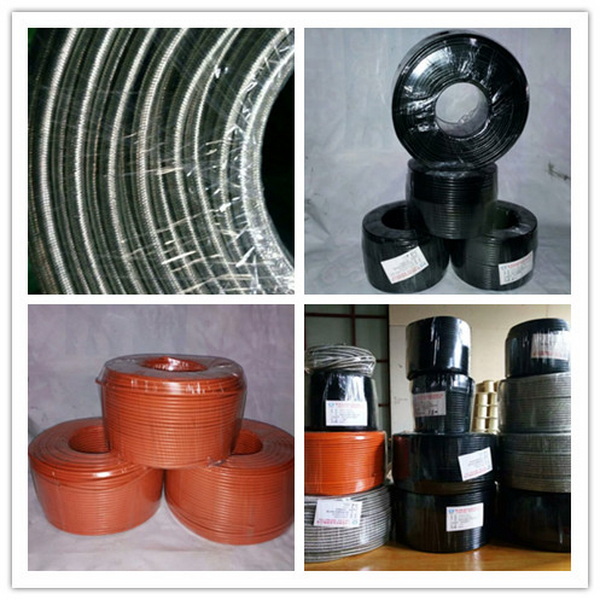

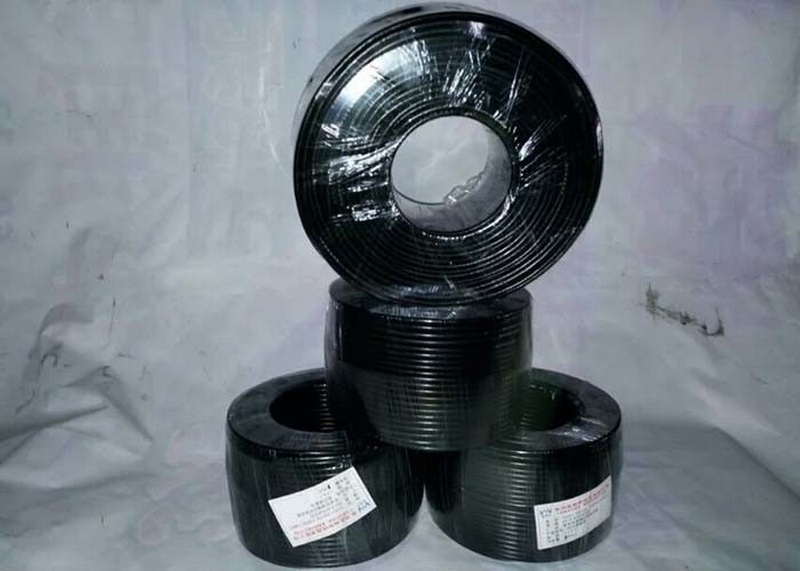

- Shielded Cable: The signal wires are encased in a shielded cable that prevents external noise from affecting the signal.
- Connector: A secure connection point for interfacing with measurement systems.
When a load is applied to a shielded signal load cell, the strain gauges deform, causing a change in resistance. This change is converted into an electrical signal. The shielded cable ensures that this signal remains unaffected by external electromagnetic fields, which is particularly important in industrial settings where heavy machinery and electrical equipment are present.
The electrical signal generated by the load cell is typically very small (in millivolts). Therefore, it often requires amplification and conditioning before it can be accurately read by a digital display or data acquisition system. Signal conditioning involves filtering, amplifying, and converting the signal into a format suitable for further processing.
Shielded signal load cells are used in various applications, including:
1. Industrial Weighing Systems: Used in scales for weighing heavy loads in factories and warehouses.
2. Material Testing: Employed in laboratories to measure the force required to break or deform materials.
3. Automotive Testing: Used in crash testing and load testing of vehicle components.
4. Aerospace: Applied in testing the structural integrity of aircraft components.
5. Medical Devices: Utilized in devices that require precise weight measurements, such as patient scales.
1. Noise Immunity: The primary advantage of shielded signal load cells is their ability to resist electrical noise, ensuring accurate measurements even in noisy environments.
2. Durability: Many shielded load cells are designed to withstand harsh conditions, including moisture, dust, and extreme temperatures.
3. High Accuracy: These load cells provide precise measurements, which are critical in applications where accuracy is paramount.
4. Versatility: Shielded signal load cells can be used in a wide range of applications across various industries.
While non-shielded load cells can be effective in controlled environments, they are more susceptible to electrical noise. This can lead to inaccurate readings, especially in industrial settings where machinery generates significant electromagnetic interference. Shielded load cells, on the other hand, maintain signal integrity, making them the preferred choice for many applications.
Proper installation of shielded signal load cells is crucial for optimal performance. Here are some key considerations:
- Cable Routing: Ensure that the shielded cables are routed away from sources of electrical noise, such as motors and transformers.
- Grounding: Proper grounding of the load cell and its shielding is essential to prevent noise pickup.
- Mounting: Load cells should be securely mounted to prevent movement that could affect measurements.
Regular maintenance is important to ensure the longevity and accuracy of shielded signal load cells. This includes:
- Calibration: Periodic calibration is necessary to maintain measurement accuracy.
- Visual Inspections: Regularly check for signs of wear or damage to the load cell and its cables.
- Cleaning: Keep the load cell and surrounding area clean to prevent contamination that could affect performance.
As technology advances, the design and functionality of load cells continue to evolve. Some trends to watch for include:
- Wireless Load Cells: The development of wireless technology allows for easier installation and reduced cable clutter.
- Smart Load Cells: Integration of sensors and IoT technology enables real-time monitoring and data analysis.
- Enhanced Signal Processing: Advances in signal processing algorithms improve the accuracy and reliability of load cell measurements.
Shielded signal load cells are an essential component in many industrial applications, providing accurate and reliable measurements in challenging environments. Their ability to minimize electrical noise makes them a preferred choice for various industries, from manufacturing to aerospace. As technology continues to advance, we can expect further innovations in load cell design and functionality, enhancing their performance and applications.
The main purpose is to provide accurate weight measurements while minimizing the effects of electrical noise and interference.
Ensure proper cable routing away from noise sources, secure mounting, and proper grounding of the load cell and its shielding.
Shielded load cells offer better noise immunity, durability, and accuracy, making them suitable for industrial environments.
Calibration should be performed periodically, depending on the application and usage conditions, to maintain measurement accuracy.
Yes, many shielded load cells are designed to withstand harsh environmental conditions, making them suitable for outdoor use.
