Load cells are crucial components in various industrial applications, particularly in weighing and measurement systems. Among the different types of load cells available, six wire load cells stand out due to their enhanced accuracy and reliability. This article delves into what six wire load cells are used for, their advantages, working principles, applications, and considerations for use.

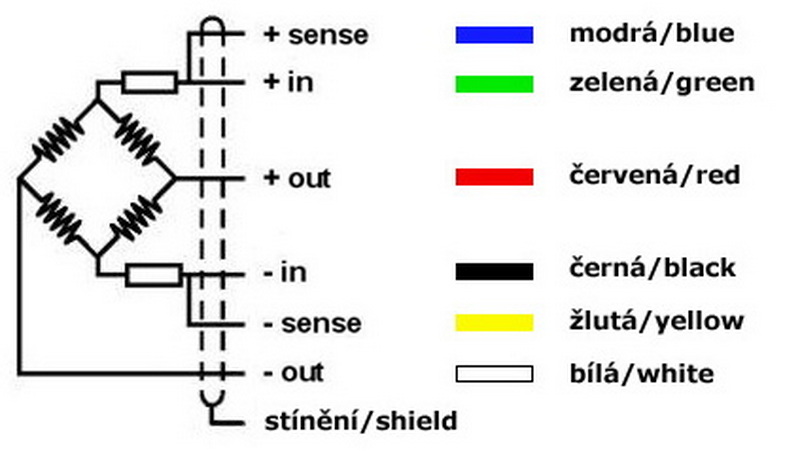

A six wire load cell consists of six wires connected to its strain gauge element. These wires are divided into two sets:
- Excitation Circuit: Provides power to the strain gauge.
- Sense Circuit: Measures the output voltage from the strain gauge.
The primary advantage of using a six wire configuration is its ability to compensate for lead resistance, which can significantly affect measurement accuracy. This compensation is particularly beneficial in applications where long cables are used or where environmental factors may introduce noise or voltage fluctuations.
The structure of a six wire load cell typically includes:
- Strain Gauge: The primary sensing element that deforms under load.
- Wires: Two pairs for excitation and sensing.
- Body: Usually made from materials like aluminum or stainless steel, designed to withstand mechanical stress.
- Mounting Hardware: Ensures secure installation and alignment with the load being measured.
When a force is applied to a six wire load cell, the strain gauge deforms, causing a change in resistance. This change is converted into a voltage signal that is processed by the instrumentation amplifier. The sense wires measure this voltage directly at the load cell, allowing for adjustments based on any variations in excitation voltage due to cable length or environmental conditions.
1. Force Application: When weight or force is applied, it creates strain on the load cell.
2. Resistance Change: The strain gauge experiences deformation, leading to a change in its electrical resistance.
3. Signal Generation: This resistance change generates a small voltage signal proportional to the applied force.
4. Amplification: The signal is then amplified using an instrumentation amplifier to make it suitable for further processing.
5. Output Signal: Finally, the amplified signal is transmitted to a display or control system for interpretation.
- Increased Accuracy: By compensating for lead resistance, six wire load cells provide more accurate readings compared to four wire configurations.
- Environmental Compensation: They can adjust for temperature changes and electrical noise, ensuring stable performance in various conditions.
- Flexibility in Installation: The additional sense wires allow for longer cable runs without compromising measurement accuracy.
- Improved Linearity: Six wire load cells often exhibit better linearity across their measurement range compared to other types.
- Reduced Temperature Effects: They are less sensitive to temperature variations due to their design, which helps maintain consistent performance.
Six wire load cells are utilized in numerous applications across different industries:
- Industrial Weighing Systems: Commonly used in platform scales, conveyor scales, and tank weighing systems due to their high precision.
- Automotive Testing: Employed in testing setups where precise force measurements are critical, such as crash testing and component testing.
- Medical Equipment: Used in devices that require accurate weight measurements, such as hospital beds and scales.
- Aerospace Applications: Ideal for measuring loads in aircraft testing environments where precision is paramount.
- Food Industry: Used in packaging and processing lines where accurate weight measurement is essential for quality control.
- Construction Equipment: Employed in cranes and other lifting equipment to ensure loads do not exceed safe limits.
When implementing six wire load cells, several factors must be considered to ensure optimal performance:
1. Calibration: Regular calibration is essential for maintaining accuracy. Calibration can be performed using known weights or calibration systems.
2. Mounting: Proper mounting techniques must be employed to ensure that the load cell is securely attached and that forces are applied correctly.
3. Environmental Factors: Operating conditions such as temperature and humidity should be monitored to avoid performance degradation.
4. Cable Management: Proper management of cables is crucial to minimize interference and ensure that the sense wires accurately reflect the load cell's output without distortion from external factors.
5. Signal Conditioning: Implementing appropriate signal conditioning techniques can enhance performance by filtering out noise and amplifying weak signals before they reach the display or control system.
6. Regular Maintenance: Routine checks on connections and physical integrity of the load cell can prevent issues related to wear and tear over time.
Despite their advantages, users may encounter some common issues with six wire load cells:
- Drift in Readings: This may occur due to temperature changes or mechanical stress on the load cell. Regular recalibration can help mitigate this issue.
- Intermittent Signals: Loose connections or damaged cables can cause intermittent readings. Inspecting connections regularly can help identify these problems early.
- Non-linear Output: If the output does not correlate linearly with applied force, it may indicate improper installation or calibration issues that need addressing.
1. Check all wiring connections for integrity.
2. Ensure that the load cell is properly mounted without any mechanical stress.
3. Recalibrate if readings drift significantly over time.
4. Use shielding on cables if electrical noise is suspected.
5. Consult manufacturer guidelines for specific troubleshooting steps related to your model.
Six wire load cells offer significant advantages over traditional four wire configurations, particularly in terms of accuracy and reliability. Their ability to compensate for lead resistance and environmental factors makes them suitable for a wide range of applications across various industries. Understanding their functionality and proper implementation can lead to improved measurement outcomes and enhanced operational efficiency.
As industries continue to evolve towards automation and precision engineering, the role of advanced measuring instruments like six wire load cells will become increasingly vital. With proper care, calibration, and installation practices, these devices can provide consistent performance that meets the demands of modern applications.

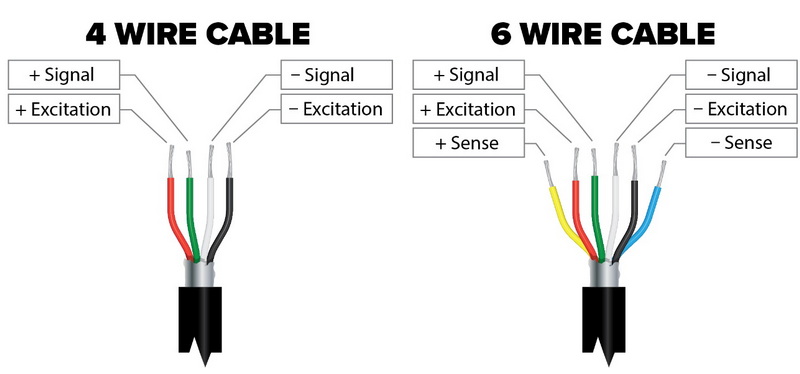

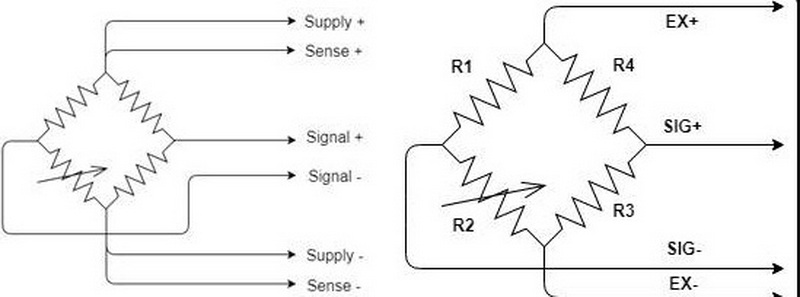

Four wire load cells use four wires for excitation and signal transmission, while six wire load cells add two additional sense wires to measure voltage directly at the load cell.
Calibration involves applying known weights to the load cell and adjusting the output readings accordingly, often using specialized calibration equipment.
Yes, but it's important to ensure they are rated for outdoor use and protected from environmental elements that could affect their performance.
Industries such as manufacturing, automotive, aerospace, medical, and logistics frequently use six wire load cells for precise weighing applications.
Temperature changes can impact resistance measurements; however, six wire configurations help mitigate these effects by compensating for variations in excitation voltage.
