A tension load cell operates as a transducer that converts mechanical force into an electrical signal. When a load is applied, the load cell deforms slightly, and this deformation is detected by strain gauges bonded to its surface. The change in resistance of these gauges produces a voltage signal proportional to the applied force.

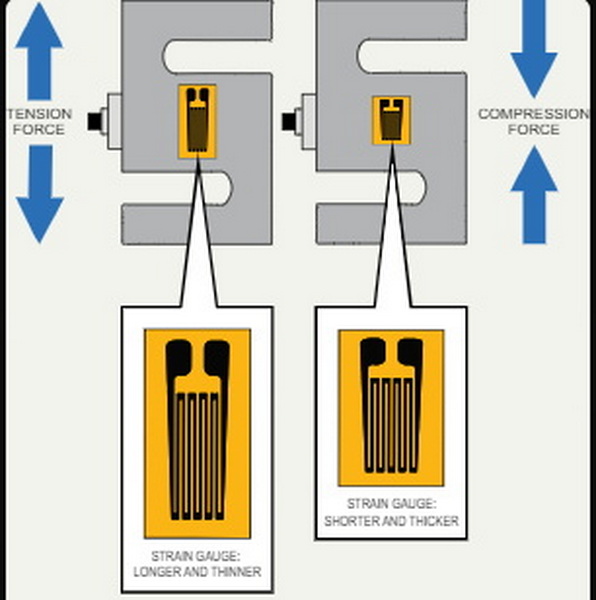

- Mechanical Deformation: When a tensile force is applied, the load cell stretches. This deformation alters the electrical resistance of the strain gauges.
- Signal Conversion: The change in resistance generates a small electrical signal, typically measured in millivolts. This signal requires amplification for accurate readings.
- Output: The amplified signal can be displayed on digital readouts or processed by control systems for further analysis.
The operation of tension load cells can be further understood through the following steps:

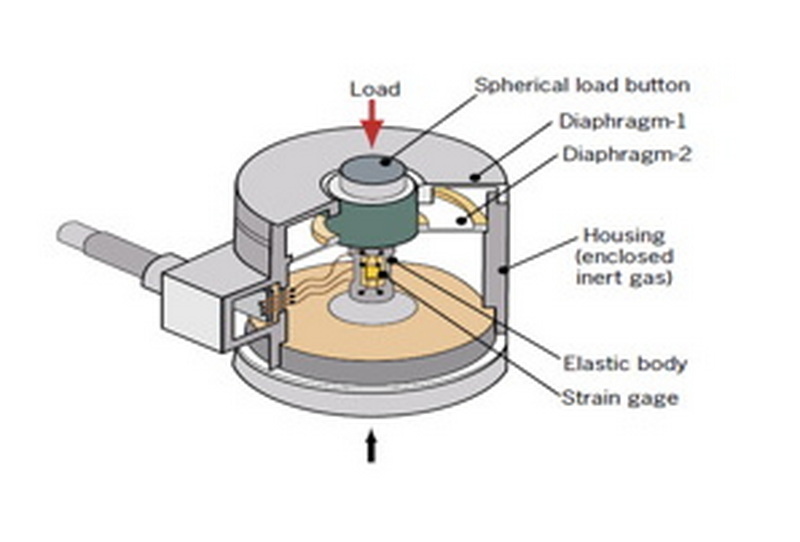

1. Strain Gauge Principle: Strain gauges are thin metallic wires or films that change resistance when stretched or compressed. In tension load cells, these gauges are arranged in a Wheatstone bridge configuration to enhance sensitivity and accuracy.
2. Load Application: As tension is applied to the load cell, it experiences elongation. This elongation causes the strain gauges to stretch, resulting in a measurable change in their resistance.
3. Signal Conditioning: The small voltage changes from the strain gauges are often too weak for direct measurement. Signal conditioning circuits amplify these signals and filter out noise, ensuring that only relevant data is processed.
4. Data Output: The conditioned signal can be sent to a display unit or integrated into a larger control system for real-time monitoring and analysis.
Tension load cells come in various designs to suit different applications:

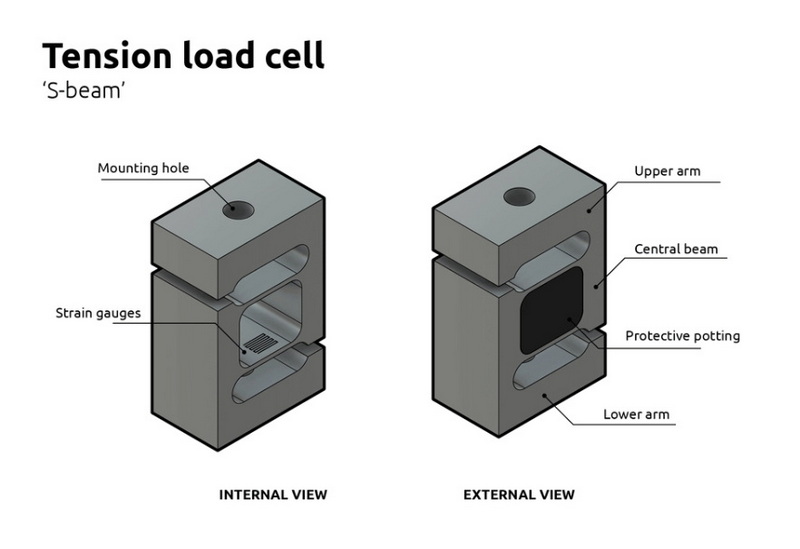

- S-Type Load Cells: Characterized by their S-shape, these load cells are commonly used for suspended applications where space is limited.
- Z-Type Load Cells: Similar to S-type but designed for different mounting configurations and applications requiring lower profile designs.
- Tension Links: Used in overhead crane applications to measure loads without affecting headroom; they provide high accuracy while being compact.
- Crane Scales: Integrated into lifting systems to provide real-time weight measurements; they are often equipped with digital displays for ease of reading.
- Inline Load Cells: These can be installed directly into machinery or equipment where space is at a premium; they measure tensile forces along the axis of the load cell.
| Type | Shape | Common Uses | Advantages |
|--------------------|--------------|-----------------------------------|----------------------------------|
| S-Type | S-shaped | Suspended loads | High accuracy and versatility |
| Z-Type | Z-shaped | Low-profile applications | Compact design |
| Tension Links | Link | Overhead cranes | Minimal headroom interference |
| Crane Scales | Various | Lifting operations | Real-time weight display |
| Inline Load Cells | Cylindrical | Machinery integration | Space-saving design |
Tension load cells are versatile and find use in various industries:
- Manufacturing: Monitoring tension in cables and wires during production processes ensures quality control and prevents product defects.
- Construction: Measuring forces in structural components like bridges and buildings helps engineers ensure safety and compliance with regulations.
- Aerospace: Testing materials for tensile strength and durability is critical in ensuring that components can withstand extreme conditions during flight.
- Transportation: Used in cranes and hoists to ensure safe lifting operations; accurate measurements prevent accidents caused by overloading.
- Research and Development: Engineers use tension load cells in laboratories to test materials under controlled conditions, providing data essential for innovation.
- Agriculture: In agricultural machinery, tension load cells help monitor forces during operations such as harvesting or planting, optimizing performance and efficiency.
In manufacturing, companies like Boeing utilize tension load cells during assembly processes to ensure that components fit together correctly under specified loads. In construction, engineers use them to monitor stress on cables used in suspension bridges, ensuring structural integrity over time.
The advantages of tension load cells include:
- Accuracy: They provide precise measurements of tensile forces, crucial for safety and quality control across various applications.
- Durability: Often made from stainless steel or other robust materials, they resist corrosion and wear, making them suitable for harsh environments.
- Ease of Installation: Many tension load cells come with built-in mounting points for quick setup, reducing downtime during installation.
- Versatility: Suitable for a wide range of applications across different industries; they can be easily adapted for specific needs based on design variations.
Despite their advanced technology, tension load cells can be cost-effective solutions compared to traditional mechanical measuring devices. Their ability to provide real-time data minimizes errors associated with manual measurements and enhances operational efficiency.
When selecting a tension load cell, consider the following factors:
- Load Capacity: Ensure the load cell can handle the maximum expected force without risk of damage or inaccurate readings.
- Sensitivity: Choose a model with appropriate sensitivity for your application needs; higher sensitivity allows for detecting smaller changes in force.
- Environmental Conditions: Consider factors like temperature, humidity, and exposure to chemicals that may affect performance; some models are specifically designed for harsh environments.
- Calibration Requirements: Ensure that the load cell can be easily calibrated for accurate measurements; some models come pre-calibrated while others may require more extensive setup.
Regular maintenance is crucial for ensuring long-term performance and accuracy. This includes periodic calibration checks and visual inspections for signs of wear or damage. Proper care extends the lifespan of the device and maintains its reliability over time.
Tension load cells are vital instruments in measuring tensile forces across various industries. Their ability to convert mechanical stress into electrical signals makes them indispensable for ensuring safety and accuracy in applications ranging from manufacturing to construction. With advancements in technology, tension load cells continue to evolve, providing enhanced performance and reliability that meet modern demands.
By understanding their operation, types, applications, benefits, and selection criteria, businesses can make informed decisions about integrating tension load cells into their processes. As industries continue to innovate and push boundaries, tension load cells will play an increasingly important role in ensuring precision engineering and safety standards are met across all sectors.
- Tension load cells measure pulling forces (tensile), while compression load cells measure pushing forces (compressive).
- Calibration involves applying known weights to the load cell at specified intervals and adjusting its output signal to match these weights accurately through software or hardware adjustments.
- Yes, many tension load cells can measure dynamic loads effectively; however, specific models may be required for high-speed applications due to their design characteristics.
- Common materials include stainless steel for its strength and resistance to corrosion as well as aluminum for lightweight applications where weight savings are critical.
- Installation typically involves connecting the load cell securely to the structure it will monitor using appropriate mounting hardware while ensuring proper alignment concerning the applied loads.
