At their core, wireless load cells function by converting force into an electrical signal. This signal is then transmitted wirelessly to a receiver or display unit. The basic components of a wireless load cell include:
- Load Cell Element: This is the sensing component that measures the force applied. It can be based on various technologies, including strain gauges or magnetoelastic sensors.
- Wireless Transmitter: This component sends the measured data to a receiver. It can use different communication protocols such as Bluetooth, Wi-Fi, or proprietary wireless technologies.
- Power Source: Most wireless load cells are battery-operated, allowing for flexibility in deployment without the need for external power sources.
The operation begins when a load is applied to the load cell element. The internal mechanism of the load cell deforms slightly under this load, causing changes in its electrical resistance. These changes are converted into an electrical signal proportional to the weight or force applied. The wireless transmitter then sends this information to a receiving device, where it can be displayed or logged for further analysis.
Wireless load cells offer several benefits compared to their wired counterparts:
- Mobility and Flexibility: The absence of cables allows for easy installation and repositioning, making them suitable for dynamic environments.
- Safety: Eliminating wires reduces the risk of tripping hazards and potential damage in hazardous environments.
- Cost-Effective Installation: Wireless systems can be more economical than installing extensive wiring, especially in large or complex setups.
- Real-Time Data Monitoring: Many wireless load cells can connect to mobile devices or computers, enabling operators to monitor loads in real time from a distance.
- Reduced Maintenance: With fewer physical connections, there is less wear and tear, leading to lower maintenance costs over time.
- Enhanced Data Collection: Wireless load cells can often be integrated with software systems that allow for advanced data analytics, enabling better decision-making based on real-time information.
The versatility of wireless load cells allows them to be used in various applications:
- Construction: Monitoring bolt loads in structural assemblies ensures safety and integrity over time. They are also used in crane operations to ensure that lifting capacities are not exceeded.
- Logistics: Used in weighing goods during loading and unloading processes to optimize inventory management. This helps in maintaining accurate records and improving efficiency in supply chain operations.
- Industrial Automation: Integrating with machinery to provide real-time feedback on operational loads. This allows for adjustments during manufacturing processes to maintain quality control.
- Research and Development: Used in laboratories for precise measurements in experiments requiring high accuracy. They are essential in testing materials under various conditions to understand their behavior under stress.
- Agriculture: Wireless load cells are increasingly being used in agriculture for monitoring the weight of produce during harvesting and transport, ensuring optimal handling practices.
There are several types of wireless load cells available, each suited for specific applications:

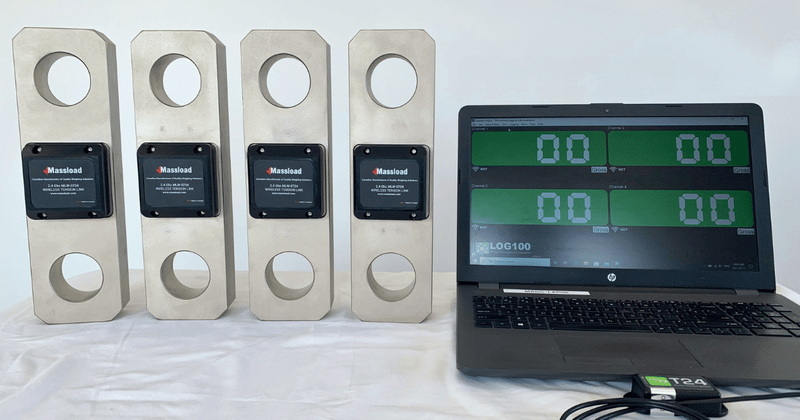

1. Tension Load Cells: Designed to measure tensile forces, commonly used in lifting applications such as cranes and hoists.
2. Compression Load Cells: Used to measure compressive forces, ideal for weighing applications like truck scales and platform scales.
3. Multi-Point Load Cells: These systems use multiple load cells to monitor forces at various points, beneficial for large structures like bridges or multi-story buildings where uniform distribution of loads needs monitoring.
4. Bluetooth Load Cells: These connect directly to mobile devices for easy monitoring but have a limited range compared to other wireless technologies.
5. IoT-Compatible Load Cells: These integrate with Internet of Things (IoT) systems for enhanced data processing and remote monitoring capabilities. They allow users to gather data from multiple sensors across different locations seamlessly.
6. Strain Gauge Load Cells: Utilizing strain gauges bonded onto a metallic element, these load cells provide high accuracy and stability under varying conditions.
7. Hydraulic Load Cells: These use hydraulic fluid pressure changes to measure weight and are often used in heavy-duty applications such as weighing trucks or large containers.
When selecting a wireless load cell for your application, consider the following factors:
- Load Capacity: Ensure the load cell can handle the maximum expected weight or force without risk of damage. It's essential to choose a model that exceeds your maximum expected loads for safety margins.
- Communication Range: Verify that the wireless transmission range meets your operational needs. Different environments (like factories vs outdoor settings) may require different specifications due to interference factors.
- Battery Life: Choose models with longer battery life to minimize maintenance interruptions. Some advanced models come with rechargeable batteries or energy harvesting capabilities that extend operational periods significantly.
- Environmental Conditions: Assess whether the load cell can withstand temperature extremes, humidity, and exposure to dust or chemicals. Look for models with IP ratings indicating their resistance levels against environmental factors.
- Installation Requirements: Look for devices that are easy to install and come with user-friendly interfaces. Some models may offer plug-and-play solutions that simplify setup processes dramatically.
While wireless load cells present numerous advantages, there are challenges associated with their use:
- Signal Interference: Wireless signals can be affected by obstacles such as walls or machinery, which may lead to data loss or inaccuracies if not properly managed.
- Battery Dependency: Regular maintenance is required to ensure battery levels are adequate; otherwise, they may fail unexpectedly during critical operations.
- Data Security Concerns: As with any wireless technology, there is a potential risk of unauthorized access or data breaches if proper security protocols are not implemented.
The future of wireless load cell technology looks promising with advancements focusing on several key areas:
- Integration with AI and Machine Learning: Future systems may leverage artificial intelligence algorithms to analyze data patterns over time, allowing predictive maintenance and optimized operational strategies based on historical performance metrics.
- Enhanced Connectivity Options: As IoT technology continues evolving, expect more robust connectivity options that allow seamless integration across platforms while ensuring secure data transmission protocols.
- Miniaturization and Increased Sensitivity: Ongoing research aims at developing smaller yet more sensitive sensors capable of measuring lighter loads with greater accuracy than ever before.
- Sustainability Initiatives: There is growing interest in developing eco-friendly materials and energy-efficient designs that minimize environmental impact while maintaining performance standards.
Wireless load cells represent a significant advancement in measurement technology, providing flexibility, safety, and efficiency across various industries. Their ability to transmit data wirelessly opens up new possibilities for monitoring and managing loads effectively. As technology continues to evolve, we can expect even more innovative solutions that leverage wireless capabilities for enhanced performance. With careful consideration of their advantages and challenges, organizations can harness the full potential of these devices to improve operational efficiency and safety standards significantly.
Wireless load cells offer mobility, safety by eliminating trip hazards from wires, cost-effective installation by reducing wiring needs, real-time data monitoring capabilities, reduced maintenance requirements due to fewer physical connections, and enhanced data collection through integration with software systems that enable advanced analytics.
They are commonly used in construction (for monitoring structural integrity), logistics (for accurate inventory management), industrial automation (for real-time feedback), research and development (for precise experimental measurements), agriculture (for monitoring produce weights), and many other sectors requiring accurate weight measurements without wired constraints.
To ensure accuracy, choose a load cell with an appropriate capacity for your application; verify its calibration before use; regularly maintain it according to manufacturer guidelines; ensure proper installation away from potential sources of interference; and utilize software tools designed for accurate data logging and analysis.
Yes, many traditional load cells can be outfitted with wireless transmitters or adapters designed specifically for retrofitting existing systems into wireless configurations without replacing the entire setup—this approach often provides cost savings while enhancing functionality.
Considerations include load capacity (to handle expected weights), communication range (to meet operational needs), battery life (to minimize maintenance interruptions), environmental conditions (to withstand temperature extremes/humidity), ease of installation (for user-friendly operation), as well as compatibility with existing systems if integration is required.
