Instron load cells are precision force transducers that play a crucial role in materials testing and quality control across various industries. These sophisticated devices are designed to accurately measure and convert applied forces into electrical signals, providing invaluable data for researchers, engineers, and manufacturers. In this comprehensive article, we will explore the intricacies of Instron load cells, their working principles, applications, and the technology behind their exceptional performance.
Instron load cells are transducers that convert a value of force into a proportional electrical signal. They are an integral part of the load weighing system in materials testing machines. Instron is unique in the industry as the only testing system manufacturer that designs and manufactures its own load cells, ensuring that they meet the specific requirements of materials testing systems.
Instron load cells operate on a simple yet precise principle. They contain a full bridge of strain gauges bonded to internal load-bearing structures. When these structures are subjected to mechanical stress, the electrical resistance of the gauges changes, resulting in a change in the output signal. This signal is then conditioned for display readouts in accordance with international standards.
1. High Accuracy: Instron load cells offer exceptional accuracy, often exceeding the level required by most materials testing standards.
2. Wide Measurement Range: They provide high accuracy over a wide measurement range, allowing for versatile testing capabilities.
3. High Stiffness: The load cell structure has high axial stiffness, reducing stored energy that can transfer to the specimen at break and potentially give false values.
4. Resistance to Offset Loads: Increased lateral stiffness reduces measurement errors from off-axis loading, commonly found in compression and flexural tests.
5. Excellent Zero Stability: This feature ensures consistent and reliable measurements over time.
6. Temperature Compensation: All Instron load cells are individually temperature-compensated to maintain accuracy across various environmental conditions.
Instron load cells are manufactured in the company's center in High Wycombe, United Kingdom. The manufacturing process involves several critical steps to ensure the highest quality and performance:
1. Design: Instron engineers design load cells to meet the unique requirements of materials testing systems.
2. Precision Manufacturing: The load cells are precision-machined to exacting tolerances.
3. Strain Gauge Application: High-quality strain gauges are carefully bonded to the load-bearing structures.
4. Temperature Compensation: Each load cell undergoes individual temperature compensation.
5. Calibration: Load cells are tested for accuracy and repeatability on calibration apparatus traceable to international standards.
6. Quality Control: Rigorous quality control measures are implemented throughout the manufacturing process.

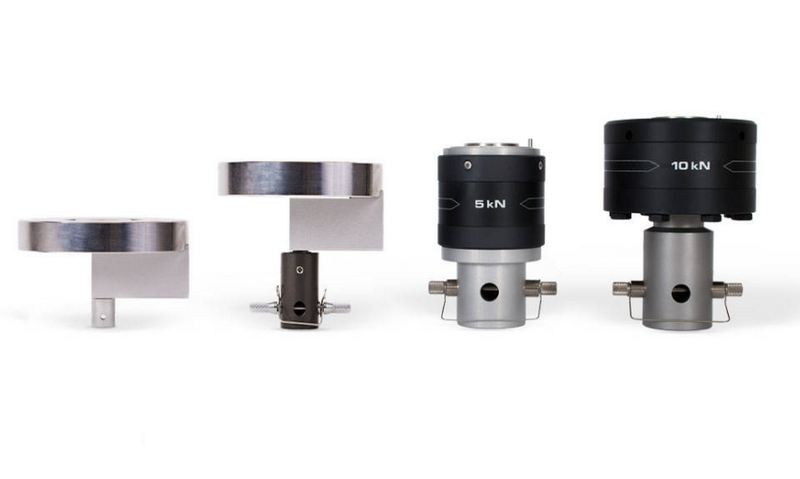

Instron offers a variety of load cells to suit different testing requirements:

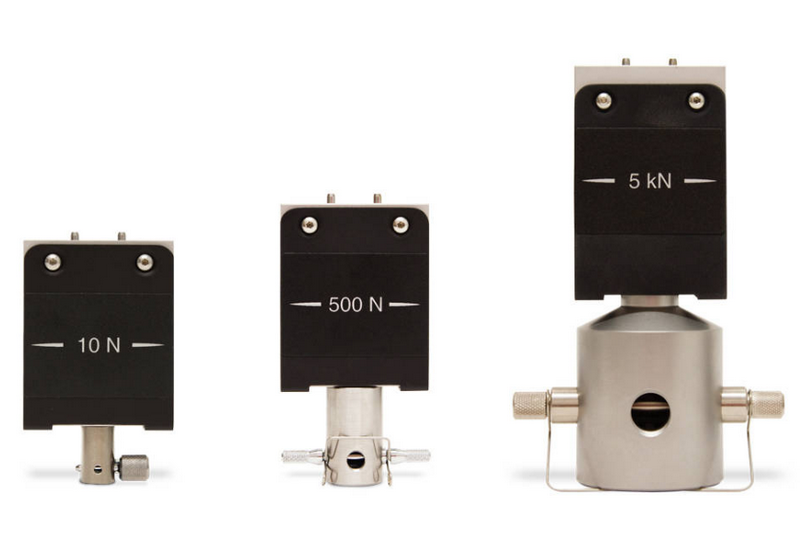

1. 2525-800 Series: These load cells have rated capacities from ± 2.5 N to ± 100 kN and are designed for use in tension, compression, and reverse stress mode.

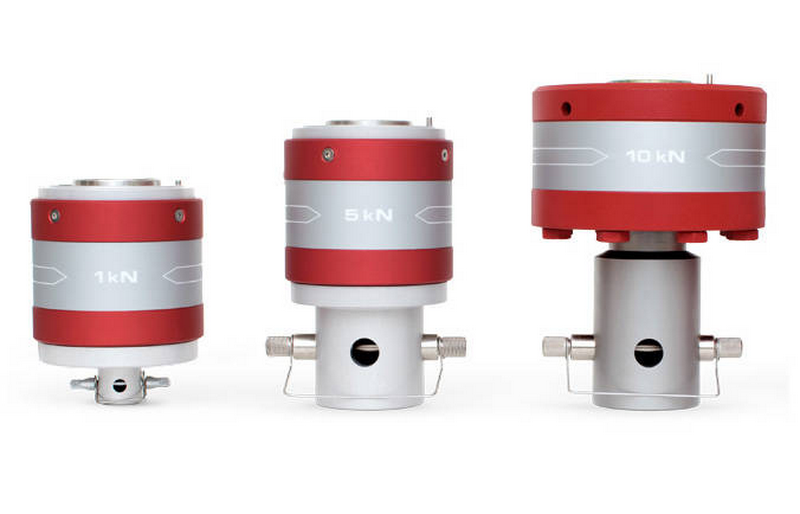

2. 2580 Series Static Load Cells: Specifically designed for use with 6800 and 5900 Series testing systems, these load cells offer force capacities from ±500 N to ±600 kN.

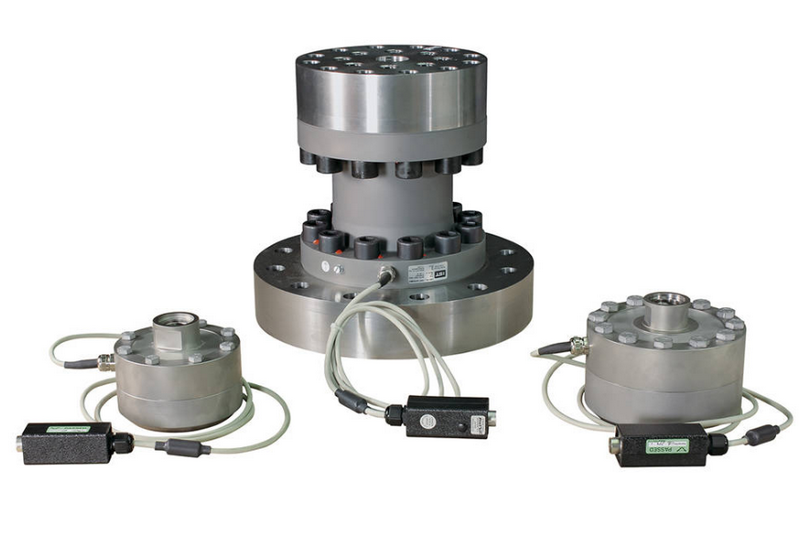

3. Dynamic Load Cells: These are designed for fatigue testing and other dynamic applications.
4. Specialty Load Cells: Instron also produces custom load cells for specific testing requirements.
Instron load cells find applications in a wide range of industries and testing scenarios:
1. Materials Testing: Used in tensile, compression, and flexural testing of various materials.
2. Aerospace: Testing of aircraft components and materials.
3. Automotive: Quality control and R&D in the automotive industry.
4. Medical Devices: Testing of implants, prosthetics, and other medical devices.
5. Construction: Testing of building materials and structural components.
6. Electronics: Testing of electronic components and assemblies.
7. Textiles: Testing of fabric strength and durability.
Instron load cells feature automatic recognition with electronic serial numbers and electrical calibration. This allows for simple, error-free operation and quick setup of testing systems.
The load cells can withstand up to 150% of their rated capacity without permanent zero shift and up to 300% without mechanical failure. This feature reduces the possibility of damage during testing.
The double-shear design of Instron load cells ensures excellent alignment throughout the test and high resistance to offset loading, even with large specimens.
Calibration is a critical aspect of maintaining the accuracy and reliability of Instron load cells. All Instron load cells are calibrated using apparatus traceable to international standards. The calibration process ensures:
1. Accuracy across the full range of the load cell
2. Repeatability of measurements
3. Compliance with international testing standards
Instron's Massachusetts headquarters houses the largest commercial deadweight stack in the United States, allowing for exceptional calibration capabilities.
Instron load cells are designed to integrate seamlessly with Instron testing systems. They feature:
1. Quick-attach systems for easy installation and removal
2. Compatibility with various grips and fixtures
3. Integration with Instron's Bluehill Universal software for data acquisition and analysis
As materials testing requirements become more complex and demanding, Instron continues to innovate in load cell technology. Future developments may include:
1. Higher accuracy load cells for even more precise measurements
2. Miniaturization for testing of smaller components
3. Smart load cells with built-in diagnostics and self-calibration capabilities
4. Integration with IoT and Industry 4.0 technologies
Instron load cells are sophisticated force measurement devices that play a crucial role in materials testing across various industries. Their high accuracy, wide measurement range, and robust design make them indispensable tools for researchers, engineers, and quality control professionals. As technology continues to advance, Instron load cells will undoubtedly evolve to meet the ever-increasing demands of modern materials testing.
Instron load cells are known for their exceptional accuracy. Typically, they can achieve accuracy equal to or better than 0.025% of the load cell rated output or 0.25% of the indicated load, whichever is greater. This high level of accuracy ensures reliable and consistent test results across a wide range of applications.
The frequency of calibration for Instron load cells depends on several factors, including usage, environmental conditions, and specific industry standards. Generally, it is recommended to calibrate load cells at least once a year. However, for critical applications or high-frequency use, more frequent calibrations may be necessary. Always consult your industry standards and Instron's recommendations for the most appropriate calibration schedule.
Yes, many Instron load cells are designed to perform in both tension and compression modes. This versatility allows for a wide range of testing applications without the need to change load cells frequently. However, it's important to verify the specific capabilities of your load cell model, as some specialized load cells may be optimized for either tension or compression testing.
The lifespan of an Instron load cell can vary depending on usage, maintenance, and environmental factors. With proper care and regular calibration, Instron load cells can last for many years, often a decade or more. However, factors such as overloading, shock loading, or exposure to harsh environments can potentially shorten the lifespan. Regular inspection and adherence to proper handling procedures can help maximize the longevity of your load cell.
Selecting the appropriate Instron load cell depends on several factors:
1. The type of testing (tension, compression, flexural, etc.)
2. The expected force range of your tests
3. The required accuracy and resolution
4. Environmental conditions (temperature, humidity, etc.)
5. Compatibility with your testing system and fixtures
It's recommended to consult with Instron's technical support team or a sales representative to ensure you select the most suitable load cell for your specific testing requirements. They can provide expert guidance based on your application needs and help you choose a load cell that will deliver optimal performance and accuracy.
