Bending beam load cells are essential components in various weighing and force measurement applications. They are widely used in industries ranging from manufacturing to medical devices, providing accurate measurements in compact and efficient designs. This article delves into the workings, applications, advantages, and considerations of bending beam load cells.
A bending beam load cell is a type of transducer that converts a force applied to it into an electrical signal. This conversion is achieved through the bending of a beam, which is equipped with strain gauges that detect the deformation caused by the applied load.
The fundamental principle behind a bending beam load cell involves the elastic deformation of a beam when a load is applied. The following steps outline how it operates:
- Application of Force: When weight is applied to the load cell, it causes the beam to bend.
- Strain Gauge Response: Strain gauges attached to the beam measure this deformation. As the beam bends, the strain gauges experience changes in resistance.
- Signal Conversion: These resistance changes are converted into an electrical signal using a Wheatstone bridge circuit, where the output voltage is proportional to the applied load.
Bending beam load cells typically feature:
- Compact Size: Their small dimensions make them suitable for tight spaces.
- Material Composition: Often constructed from high-strength materials like stainless steel or nickel-plated steel for durability.
- Environmental Protection: Many models come with IP68 ratings, making them resistant to dust and water ingress.

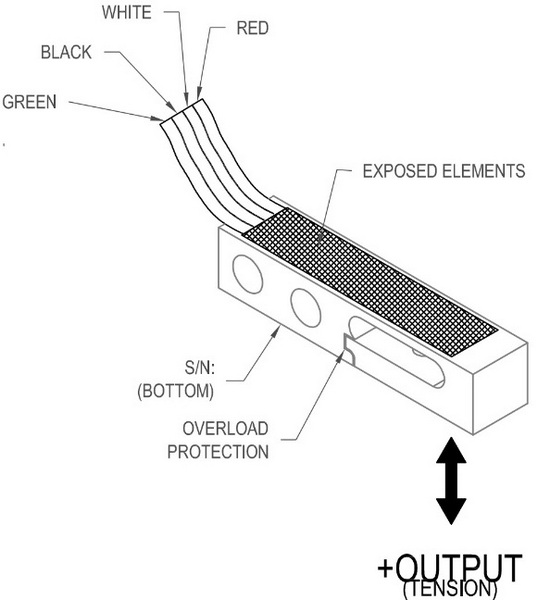

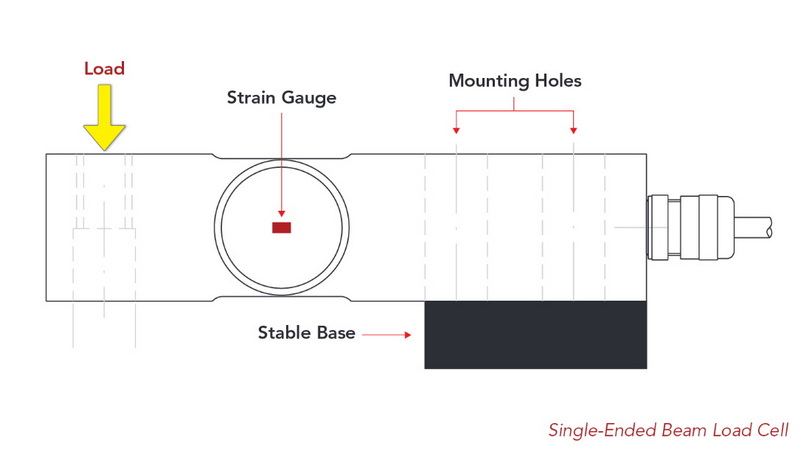

To better understand how bending beam load cells work, consider the diagram below illustrating their basic structure:
Bending Beam Load Cell Diagram
Bending beam load cells are versatile and find applications across various sectors:
- Weighing Scales: Commonly used in platform scales and industrial scales for precise weight measurement.
- Medical Devices: Employed in devices requiring accurate weight measurements, such as hospital beds and scales.
- Industrial Process Controls: Utilized in systems that require monitoring of weight or force during production processes.
- Robotic Designs: Integrated into robotic systems for feedback on weight and force exertion.
- Packaging Machinery: Used in automated packaging lines to ensure accurate filling and weighing of products.
In retail environments, bending beam load cells are often used in electronic scales due to their accuracy and compact size. For instance, grocery store scales utilize these load cells to provide precise weight measurements for produce, ensuring customers pay accurately for what they purchase.
In hospitals, bending beam load cells are critical components of patient weighing systems. These devices must be highly accurate to monitor patient health effectively. A case study involving a hospital's patient monitoring system highlighted how integrating advanced bending beam load cells improved accuracy by 15%, leading to better patient care outcomes.
In manufacturing plants, bending beam load cells are employed in conveyor systems to monitor product weights continuously. This application ensures that products meet quality standards before packaging and shipping, reducing waste and increasing operational efficiency.
Bending beam load cells offer several benefits that make them a preferred choice for many applications:
- Cost-Effectiveness: They are generally more affordable than other types of load cells, making them accessible for various industries.
- High Accuracy: Capable of providing precise measurements with low error margins, often below ±0.02%.
- Ease of Installation: Their compact design allows for straightforward integration into existing systems without significant modifications.
- Durability: Built to withstand harsh industrial environments, they offer long-term reliability and performance.
When comparing bending beam load cells with other types such as shear beam or S-type load cells, several factors come into play:
| Feature | Bending Beam Load Cell | Shear Beam Load Cell | S-Type Load Cell |
|-------------------------------|------------------------|----------------------|------------------|
| Cost | Lower | Moderate | Higher |
| Size | Compact | Larger | Medium |
| Accuracy | High | High | Very High |
| Application Flexibility | Moderate | High | High |
| Environmental Resistance | Good | Excellent | Good |
Bending beam load cells can be categorized based on their design and application:
- Miniature Beam Load Cells: Ideal for low-capacity applications, often used in testing machines where space is limited but precision is crucial.
- Overload Protected Models: Designed with internal mechanisms to prevent damage from excessive loads; these models are essential in environments where sudden surges in weight may occur.
- Double Bending Beam Cells: Feature two beams for enhanced stability and accuracy in measurements; commonly used in high-capacity applications where precision under heavy loads is necessary.
Choosing the right type of bending beam load cell depends on several factors:
- Load Capacity: Determine the maximum weight you need to measure.
- Environmental Conditions: Consider factors such as humidity, temperature fluctuations, and exposure to chemicals.
- Installation Space: Assess the available space for installation to ensure compatibility with your system design.
Calibration is crucial for ensuring the accuracy of bending beam load cells. The process typically involves:
1. Applying known weights to the load cell.
2. Recording the output signal.
3. Adjusting the system until the output matches the expected values for all applied weights.
4. Documenting calibration results for future reference and compliance with industry standards.
To maintain optimal performance:
- Regularly inspect for physical damage or wear.
- Ensure electrical connections are secure and free from corrosion.
- Periodically recalibrate to account for any drift in measurements over time.
- Clean the exterior surfaces regularly to prevent dust accumulation that could affect performance.
Common issues that may arise include:
- Drifting Readings: This can occur due to temperature changes or mechanical stress; recalibration may be necessary.
- Inconsistent Measurements: Check for loose connections or mechanical misalignment that could affect performance.
- Physical Damage: Inspect for cracks or bends in the beam that may compromise integrity; replace if necessary.
Bending beam load cells are indispensable tools in modern weighing systems, offering precision, durability, and versatility across various applications. Their ability to provide accurate measurements in compact designs makes them ideal for both industrial and medical uses. By understanding their workings, advantages, types, calibration processes, and maintenance requirements, users can maximize their effectiveness in real-world applications.
In conclusion, as industries continue to evolve towards automation and precision engineering, bending beam load cells will remain integral components that facilitate accurate measurements critical for operational success.
The primary components include a metal spring element (the beam), strain gauges attached to measure deformation, and a Wheatstone bridge circuit for signal conversion.
Installation typically involves securing the load cell at its mounting points, connecting it to an appropriate signal processing unit, and calibrating it with known weights.
Factors include temperature variations, mechanical stress beyond rated capacity, improper installation, and environmental conditions such as humidity or dust exposure.
Yes, many bending beam load cells are designed to measure both types of forces depending on their configuration and installation setup.
It is recommended to calibrate them at least once a year or more frequently if they are subjected to heavy use or extreme conditions that could affect their performance.
