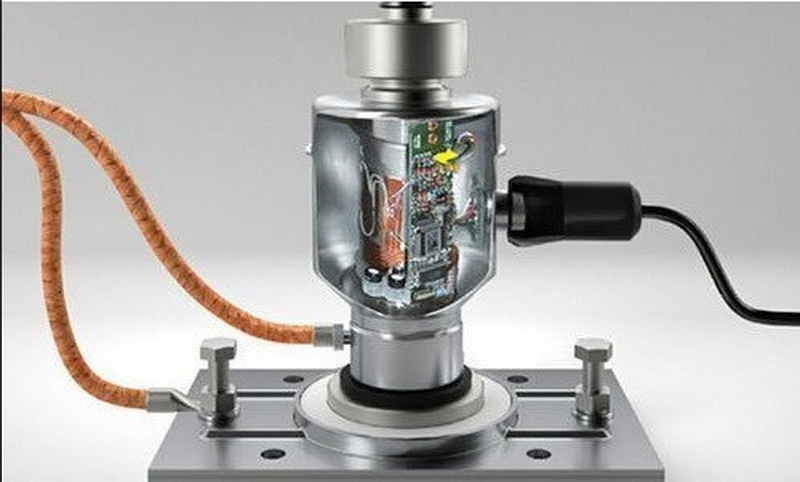

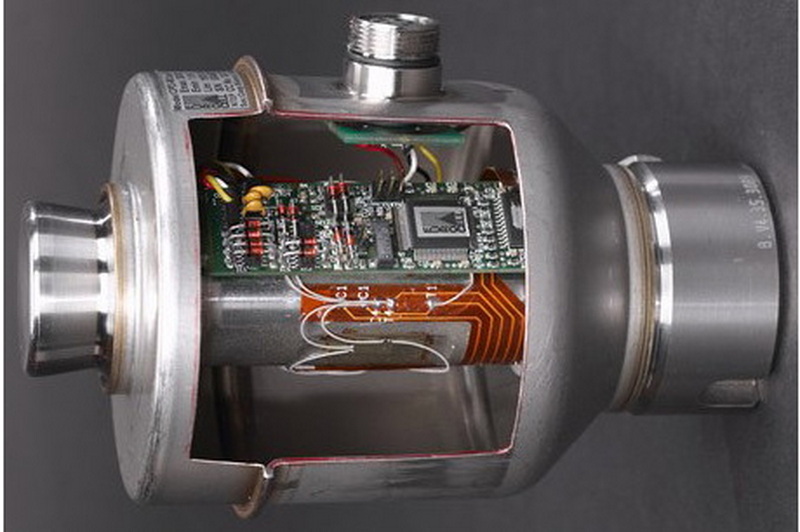

Digital load cells operate by measuring the mechanical load applied to them and converting this force into an electrical signal. The process involves several key components:
- Load-Bearing Structure: Typically made of materials such as aluminum or stainless steel, this structure bears the weight and transmits the force to the internal sensors.
- Strain Gauges: These are sensitive devices attached to the load-bearing structure that measure deformation (strain) when a load is applied. In digital load cells, multiple strain gauges are often arranged in a Wheatstone bridge configuration to enhance accuracy.
- Signal Processing Circuit: This component amplifies the electrical signal generated by the strain gauges and converts it from analog to digital using an ADC.
- Microcontroller: A microcontroller processes the digital signal, applies necessary algorithms for data correction, and prepares the output for communication.
- Output Interface: Digital load cells can communicate data through various interfaces like USB, RS-232, RS-485, or Ethernet, allowing seamless integration into existing systems.
Digital load cells offer numerous advantages over their analog counterparts:
Digital load cells provide more accurate measurements due to their ability to eliminate common errors associated with analog systems, such as temperature fluctuations and hysteresis. They utilize advanced algorithms for real-time data processing, ensuring high precision in weight measurement.
Constructed with solid-state components, digital load cells are more durable than analog models. They are less susceptible to damage from vibrations and shocks, making them ideal for harsh industrial environments.
Digital systems produce a stable signal that is less prone to interference from electromagnetic noise or fluctuations in power supply. This stability is critical for applications requiring consistent performance.
Calibration of digital load cells is straightforward and often automated through software interfaces. This reduces downtime and maintenance costs compared to analog systems that require manual adjustments.
Digital load cells can easily be integrated into existing systems and customized for specific applications. Their ability to communicate with various industrial networks enhances their versatility.
With built-in microcontrollers, digital load cells can perform complex calculations and data filtering directly within the sensor. This capability allows for features like temperature compensation and real-time diagnostics.
Digital load cells are widely used across various industries due to their precision and reliability. Some common applications include:
- Industrial Automation: Used in production lines for real-time weight monitoring and control.
- Quality Control: Essential in manufacturing processes where precise measurements are critical for product quality.
- Logistics and Warehousing: Employed in weighing systems for inventory management and shipping processes.
- Laboratory Testing: Utilized in research settings for accurate weight measurements in experiments.
- Medical Equipment: Incorporated into devices that require precise weight measurements, such as scales used in hospitals.
- Food Industry: Used in packaging lines to ensure accurate filling of products, maintaining compliance with regulations regarding product weights.
- Construction: Involved in weighing materials on-site to ensure compliance with safety regulations and project specifications.
There are several types of digital load cells designed for specific applications:
These are commonly used in platform scales and provide accurate measurements for moderate loads. They are known for their compact design and ease of installation.
Ideal for heavy-duty applications, shear beam load cells offer high accuracy and stability under substantial weights. They are often used in truck scales and large industrial scales.
Used primarily in testing applications where compressive forces need to be measured accurately. They are commonly found in materials testing machines that evaluate the strength of materials under compression.
These compact devices are suitable for limited spaces while still providing reliable performance. They are often used in robotics or applications where size constraints exist.
These versatile sensors can measure both tension and compression forces. Their design allows them to be used in various applications including hanging scales and force measurement setups.
Calibrating a digital load cell is crucial for ensuring its accuracy over time. The calibration process typically involves:
1. Applying Known Weights: A series of known weights are applied to the load cell.
2. Recording Output: The output signals generated by the load cell are recorded at each known weight.
3. Adjusting Settings: Using calibration software, adjustments are made to align the output signals with the known weights.
4. Verification: The calibration is verified by reapplying known weights and checking the accuracy of the readings.
5. Routine Checks: Regular checks should be performed to ensure continued accuracy over time, especially if the load cell is subjected to harsh conditions or heavy use.
Integrating digital load cells into existing systems can be accomplished through various communication interfaces:
- USB Connections: For direct connection to computers or data acquisition systems.
- RS-232/RS-485 Interfaces: Commonly used in industrial environments for longer distances and multi-load cell setups.
- Ethernet TCP/IP: Allows for network integration, enabling real-time data sharing across multiple devices.
- Wireless Communication: Some modern digital load cells offer wireless options that eliminate cabling requirements, providing flexibility in installation.
Despite their advantages, digital load cells also face certain challenges:
Extreme temperatures or humidity levels can affect performance if not properly compensated for during design or calibration phases.
Digital load cells require stable power supplies; fluctuations can lead to inaccurate readings unless adequately managed through power conditioning equipment.
While they offer long-term savings through reduced maintenance costs and increased accuracy, the initial investment for digital load cells may be higher compared to traditional analog options.
The future of digital load cell technology looks promising with several trends emerging:
As industries move towards smart manufacturing practices, integrating digital load cells with IoT technologies will enable real-time monitoring and analytics capabilities that enhance operational efficiency.
With improvements in processing power within digital load cells themselves, there will be greater capabilities for predictive maintenance and anomaly detection based on historical data trends collected directly from sensors.
As demand grows for smaller devices across many sectors including medical technology, continued miniaturization of digital load cells will allow them to fit into increasingly compact spaces without sacrificing performance.
Digital load cells represent a significant advancement in weight measurement technology, offering enhanced accuracy, durability, and flexibility compared to traditional analog models. Their ability to integrate seamlessly with modern industrial systems makes them indispensable across various sectors including manufacturing, logistics, healthcare, food production, and construction. As technology continues to evolve, digital load cells will likely become even more integral to automated processes and precision measurement tasks.

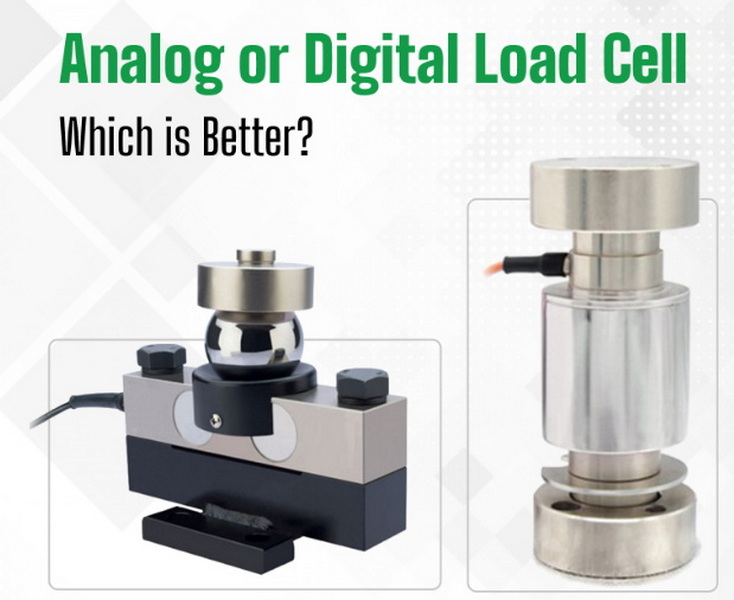

Digital load cells convert mechanical stress into a digital signal using internal processing while analog load cells output an analog voltage that requires external processing units for interpretation.
Calibration involves applying known weights to the cell, recording its output, adjusting settings via calibration software, and verifying accuracy through repeated tests with known weights.
Industries such as manufacturing, logistics, healthcare, agriculture, food production, construction, and research laboratories frequently utilize digital load cells for precise weight measurement tasks.
Yes, they can be integrated using various communication interfaces like USB, RS-232/RS-485, or Ethernet TCP/IP depending on system requirements.
Digital load cells provide higher accuracy, improved signal stability, easier calibration processes, greater durability against environmental factors, enhanced data processing capabilities, and flexibility in application customization.
