Load cells are essential components in various applications, from industrial scales to medical devices. They convert mechanical force into an electrical signal, allowing for precise measurements of weight and force. One critical aspect of load cell operation is the excitation voltage, which powers the load cell and influences its performance. This article delves into the concept of excitation voltage, its significance, and how it affects load cell functionality.

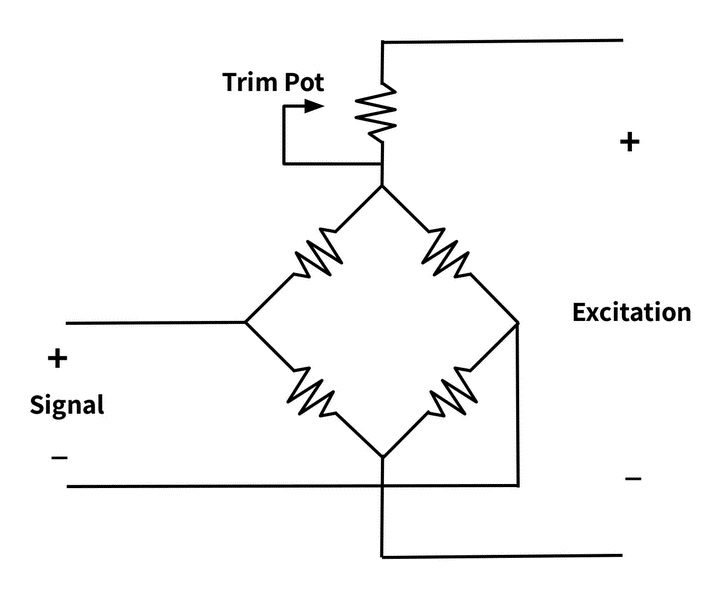

Excitation voltage refers to the electrical voltage supplied to a load cell to enable it to function correctly. Typically, this voltage ranges from 3 to 15 volts DC, depending on the load cell design and application. The excitation voltage is crucial because it energizes the strain gauges within the load cell, allowing them to measure changes in resistance caused by applied loads.
1. Powering the Load Cell: The primary function of excitation voltage is to power the load cell. Without it, the load cell cannot produce an output signal, rendering it ineffective for measurement purposes.
2. Signal Output: The output signal of a load cell is directly proportional to the excitation voltage. For instance, if a load cell has a rated output of 1 mV/V and is powered with a 10V excitation voltage, it will produce a 10 mV output when the rated capacity is applied.
3. Measurement Accuracy: The accuracy of load cell measurements is influenced by the excitation voltage. A stable and appropriate excitation voltage ensures that the load cell provides reliable and consistent readings.
4. Signal-to-Noise Ratio: Higher excitation voltages can improve the signal-to-noise ratio, which is crucial for applications requiring high precision. This means that the load cell can deliver clearer signals, minimizing the impact of electrical noise.

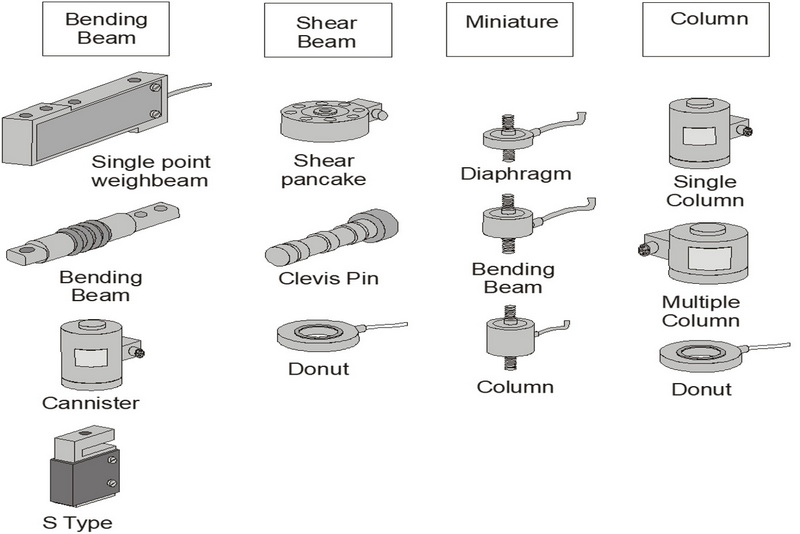

Different types of load cells have varying excitation voltage requirements. Here are some common types:
◆ Strain Gauge Load Cells: These are the most widely used load cells, typically requiring an excitation voltage between 5V and 10V. They operate on the principle of resistance change in a strain gauge when a load is applied.
◆ Capacitive Load Cells: These load cells measure changes in capacitance and may require different excitation voltages depending on their design.
◆ Hydraulic Load Cells: These use fluid pressure to measure weight and may have different power requirements compared to electronic load cells.
Several factors can influence the choice of excitation voltage for a load cell:
1. Load Cell Design: The internal design and materials used in the load cell can dictate the optimal excitation voltage.
2. Application Requirements: Different applications may require different levels of precision and stability, influencing the choice of excitation voltage.
3. Environmental Conditions: Factors such as temperature and humidity can affect the performance of load cells, necessitating adjustments in excitation voltage.
4. Signal Conditioning: The use of amplifiers and signal conditioning equipment can also impact the required excitation voltage.
To ensure optimal performance of load cells, consider the following best practices:
◆ Follow Manufacturer Specifications: Always adhere to the manufacturer's guidelines regarding excitation voltage to avoid damaging the load cell or compromising measurement accuracy.
◆ Use Stable Power Supplies: Ensure that the power supply used for excitation voltage is stable and free from fluctuations to maintain consistent load cell performance.
◆ Regular Calibration: Periodically calibrate load cells to ensure that they provide accurate measurements, especially if the excitation voltage is adjusted.
◆ Monitor Environmental Conditions: Be aware of the environmental conditions in which the load cell operates, as these can affect its performance.
Excitation voltage is a fundamental aspect of load cell operation, directly impacting their performance and accuracy. Understanding the role of excitation voltage, the types of load cells, and the factors influencing voltage requirements can help users select the right load cell for their applications. By following best practices and adhering to manufacturer specifications, users can ensure reliable and accurate measurements in their systems.
The typical excitation voltage for a load cell ranges from 3 to 15 volts DC, depending on the specific design and application.
A stable and appropriate excitation voltage is crucial for ensuring accurate load cell measurements. Higher voltages can improve the signal-to-noise ratio, enhancing measurement precision.
It is not advisable to use a different excitation voltage than recommended by the manufacturer, as this can lead to inaccurate readings or damage to the load cell.
Strain gauge load cells, capacitive load cells, and hydraulic load cells all require excitation voltage, though the specific requirements may vary.
Load cells should be calibrated regularly, especially if there are changes in the excitation voltage or environmental conditions that could affect their performance.
This article provides a comprehensive overview of excitation voltage for load cells, emphasizing its importance in ensuring accurate and reliable measurements.
