Load cells are essential components in various industrial applications, particularly in weighing and force measurement systems. Understanding the concept of *load cell creep* is crucial for ensuring accurate measurements over time. This article delves into the definition, causes, effects, and mitigation strategies related to load cell creep, providing a comprehensive overview for professionals and enthusiasts alike.
Load cell creep refers to the gradual change in the output signal of a load cell when a constant load is applied over time. This phenomenon occurs due to the material properties of the load cell, particularly in the strain gauge, which measures deformation caused by the applied load. Creep is typically expressed as a percentage of the applied load over a specified time interval, indicating how much the output signal deviates from its initial reading while under constant load conditions.

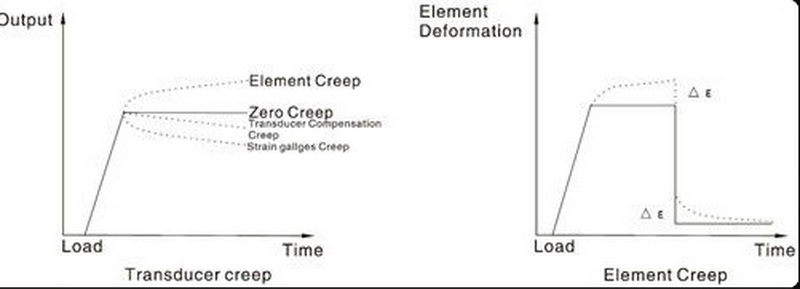

Creep can be understood through two primary concepts:
- Creep: The change in load cell output occurring with time under constant load conditions.
- Creep Recovery: The change in output that occurs after the load is removed, as the load cell returns to its original state.

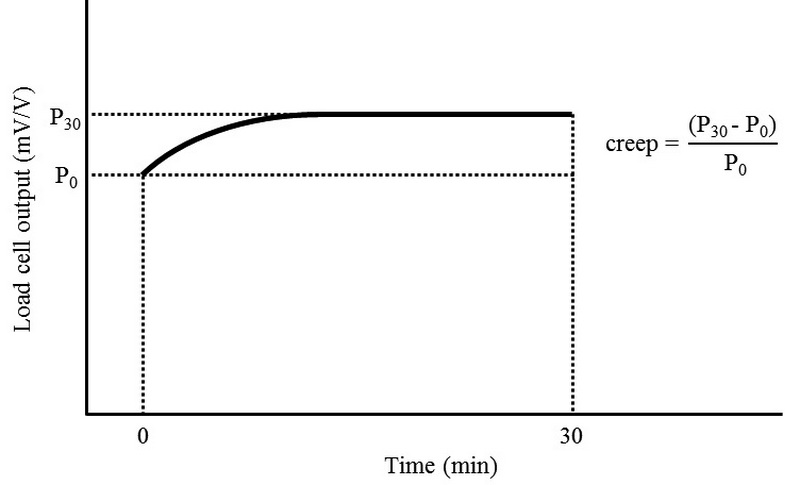

Creep is generally measured using specific protocols that involve applying a known weight to the load cell and recording the output signal at regular intervals. For example, if a load cell rated for 1000 kg has a creep rate of 0.01%, this means that its output could change by 0.4 kg over a thirty-minute period while maintaining that load.
Several factors contribute to load cell creep:
- Material Properties: The materials used in constructing the load cell, including metals and polymers, can exhibit viscoelastic behavior, leading to time-dependent deformation.
- Temperature Variations: Changes in temperature can affect material properties and lead to variations in readings. For instance, an increase in temperature may cause materials to expand, affecting their stiffness and ultimately altering measurement outputs.
- Mechanical Stress: Prolonged application of weight can cause permanent deformation in some materials, although most creep is recoverable. This is particularly relevant in applications where heavy loads are frequently applied.
- Environmental Conditions: Factors such as humidity and pressure can also influence performance. High humidity levels can lead to corrosion or moisture absorption in certain materials, further complicating measurement accuracy.
The impact of creep on measurements can be significant:
- Accuracy Degradation: Over time, continuous measurements can lead to inaccuracies if creep is not accounted for. This can be particularly problematic in industries where precision is critical.
- Calibration Challenges: Regular calibration may be required to ensure that measurements remain within acceptable ranges. Failure to calibrate regularly can result in compounding errors over time.
- Operational Efficiency: In applications where precision is critical (e.g., pharmaceuticals or food processing), unaccounted creep can lead to costly errors or product loss. For example, inaccurate weight measurements could result in incorrect dosages or product specifications.
- Cost Implications: Inaccuracies caused by creep can lead to financial losses due to product recalls or regulatory fines if products do not meet specified standards.
To minimize the effects of creep on measurements, several strategies can be employed:
1. Regular Calibration: Implementing a routine calibration schedule helps maintain accuracy and account for any drift caused by creep. Calibration should be performed under similar environmental conditions as those experienced during normal operation.
2. Environmental Control: Keeping environmental conditions stable (temperature, humidity) can reduce variability in measurements. Using climate-controlled environments for sensitive applications can help mitigate these effects.
3. Load Cell Selection: Choosing high-quality load cells designed with minimal creep characteristics can enhance performance. Load cells made from advanced materials with low hysteresis are often preferable.
4. Shorter Measurement Intervals: Reducing the time an object remains on the scale can help mitigate long-term creep effects. For instance, using dynamic weighing techniques where loads are measured quickly can reduce exposure time.
5. Use of Multiple Load Cells: In some cases, employing multiple load cells with opposite creep characteristics can cancel out errors. This approach allows for redundancy and improved reliability in measurements.
6. Implementing Software Corrections: Advanced data acquisition systems can include software algorithms designed to compensate for known creep behaviors based on historical data trends.
Load cell creep has implications across various industries:
- Food Industry: In food processing plants where precise ingredient measurements are critical for product consistency and compliance with health regulations, even minor inaccuracies due to creep could lead to significant issues.
- Pharmaceuticals: Accurate dosing is vital in pharmaceutical manufacturing; therefore, understanding and managing load cell creep is crucial to ensure patient safety and regulatory compliance.
- Manufacturing and Robotics: In automated systems where robots handle materials based on weight measurements, any drift caused by load cell creep could affect production efficiency and quality control.
- Construction and Civil Engineering: Load cells are often used for monitoring structural loads; inaccuracies due to creep could lead to unsafe conditions if not properly managed.
As technology advances, so do solutions for managing load cell creep:
- Smart Load Cells: The integration of IoT technology allows for real-time monitoring of load cells' performance metrics, including drift and environmental conditions affecting accuracy.
- Advanced Materials Science: Research into new materials that exhibit less viscoelastic behavior could lead to more stable load cells with reduced susceptibility to creep.
- Machine Learning Algorithms: Utilizing machine learning techniques may enable predictive maintenance strategies that anticipate when calibration or adjustments are needed based on historical performance data.
Load cell creep is an important consideration in force measurement applications. By understanding its definition, causes, and effects, professionals can take proactive measures to mitigate its impact on accuracy and reliability. Regular calibration and environmental control are key strategies for ensuring precise measurements over extended periods.
In summary, awareness and management of load cell creep are essential for maintaining high standards of measurement accuracy across various industries. As technology evolves, ongoing advancements will likely provide new methods for addressing these challenges effectively.
Creep refers to changes in output due to material deformation under constant load, while drift involves changes due to environmental factors affecting measurement stability.
Load cell creep is tested by applying a constant weight and recording output changes over time at specified intervals to quantify deviations from initial readings.
While it cannot be completely eliminated due to inherent material properties, its effects can be minimized through careful design and operational practices.
Applications such as grain storage monitoring, industrial weighing scales, and continuous process control systems are commonly affected by load cell creep.
The frequency of calibration depends on usage conditions but typically ranges from monthly to annually based on operational requirements and environmental stability.
