A load cell is a type of transducer that converts a force or load into an electrical signal. This device is essential in various applications, particularly in weighing systems, where it measures the weight of objects or materials. Load cells are widely used in industries such as manufacturing, automotive, aerospace, and healthcare.
The fundamental principle behind a load cell is the relationship between force, deformation, and electrical output. When a load is applied to the load cell, it deforms slightly, which leads to changes in its electrical resistance or capacitance. This change can be measured and standardized, providing accurate weight readings.
Load cells come in several types, each designed for specific applications and measurement needs:

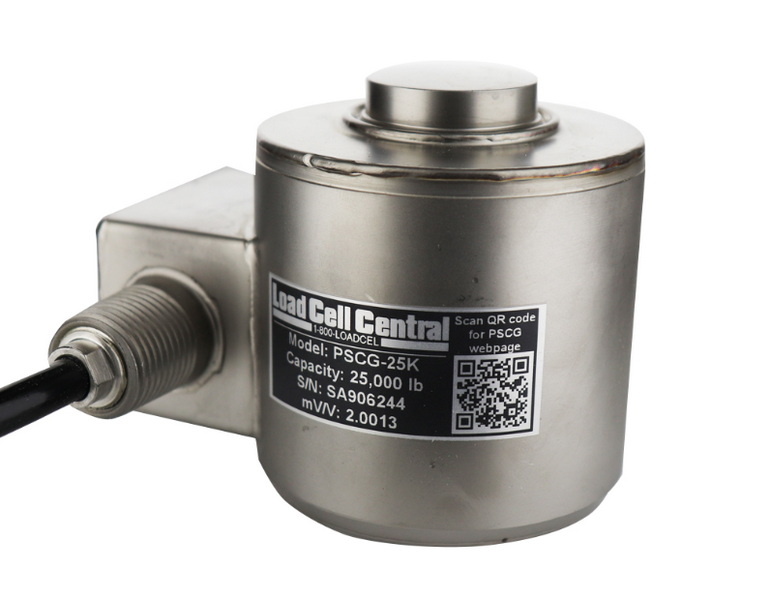

Strain gauge load cells are the most common type used in industrial applications. They consist of strain gauges bonded to a metal structure. When a load is applied, the metal deforms, changing the electrical resistance of the strain gauges and producing a measurable signal. These load cells are known for their high accuracy and reliability.
- High Accuracy: They provide precise measurements with minimal error.
- Wide Range: Suitable for various weight ranges from grams to tons.
- Cost-Effective: Generally less expensive than other types of load cells.
These load cells use liquid pressure to measure force. When weight is placed on the load cell, it pushes against a piston filled with liquid. The pressure generated by the liquid correlates with the applied force, allowing for accurate measurements. Hydraulic load cells are particularly useful in heavy-duty applications.
- Robustness: Capable of handling extreme conditions and heavy loads.
- High Capacity: Can measure very large weights effectively.
- Less Susceptible to Electrical Interference: Ideal for environments with high electromagnetic interference.
Pneumatic load cells operate similarly to hydraulic ones but use air pressure instead of liquid. They are often used in applications requiring high precision and resistance to shocks and vibrations. Their design allows them to be lightweight while still providing accurate measurements.
- Lightweight Design: Easier to install and handle.
- Fast Response Time: Ideal for dynamic measurements.
- Resistance to Environmental Factors: Less affected by temperature changes compared to other types.
Capacitive load cells measure changes in capacitance caused by an applied load. They consist of two conductive plates separated by an insulating material; when weight is applied, the distance between the plates changes, altering the capacitance. These load cells are often used in applications requiring high sensitivity.
- High Sensitivity: Capable of detecting very small changes in weight.
- Non-Contact Measurement: Can be used in environments where contact is not possible.
- Durability: Generally resistant to wear and tear over time.
These load cells generate an electric charge when subjected to mechanical stress. They are primarily used for dynamic measurements and are ideal for applications involving rapid changes in force. Piezoelectric load cells are commonly found in laboratories and testing facilities.
- Fast Response Time: Excellent for measuring dynamic loads.
- High Frequency Response: Suitable for applications requiring quick measurements.
- Compact Size: Can fit into tight spaces where other types may not work.
Load cells have diverse applications across various industries:
- Weighing Scales: Used in commercial scales for retail and industrial purposes.
- Material Testing: Essential for testing materials under tension or compression to ensure quality and safety.
- Manufacturing Processes: Integrated into machinery to monitor forces during production processes.
- Healthcare Devices: Used in medical scales and devices that require precise weight measurements.
- Automotive Testing: Employed in testing vehicle components for strength and durability.
In retail environments, load cells are integral components of electronic weighing scales that provide accurate weight readings for products sold by weight. They ensure that customers receive fair pricing based on precise measurements.
In manufacturing settings, load cells play a crucial role in automated systems that require real-time monitoring of material weights during production processes. This allows manufacturers to maintain quality control while optimizing their operations.
Load cells are widely used in research laboratories for experiments that require precise measurement of forces or weights. Their ability to provide accurate data makes them invaluable tools for scientists and engineers alike.
Load cells work by converting mechanical deformation into an electrical signal. When weight is applied to a load cell, it experiences strain that alters the resistance of the strain gauges attached to it. This change in resistance produces an electrical signal proportional to the applied load.
The signal can then be processed by electronic systems to provide accurate weight readings. The performance of a load cell can be affected by factors such as temperature, humidity, and mechanical stress, so proper calibration and maintenance are essential for ensuring accuracy.
Calibration is a critical process that ensures the accuracy of load cells over time. It involves comparing the output signal from the load cell against known weights and adjusting accordingly. Regular calibration helps maintain precision and reliability in measurements.
While load cells are highly effective measurement tools, they do face certain challenges:
- Temperature Sensitivity: Changes in temperature can affect readings; thus, compensation methods must be implemented.
- Mechanical Stress: Excessive loads beyond their rated capacity can lead to permanent deformation or failure.
- Environmental Factors: Dust, moisture, or chemical exposure can impact performance; therefore, protective measures should be considered.
Load cells are crucial components in modern technology for measuring weight and force accurately. Their versatility allows them to be used across various industries, from manufacturing to healthcare. Understanding their types, working principles, and applications can lead to better implementations and innovations in both industrial and commercial settings.
As technology continues to advance, new types of load cells are being developed to meet evolving demands. Whether you are involved in engineering, manufacturing, or any field requiring precise measurement, knowledge of load cells will undoubtedly enhance your understanding of weight measurement systems.
A load cell is a device that converts mechanical force or weight into an electrical signal that can be measured accurately.
Load cells operate by measuring strain caused by an applied load, typically using strain gauges that change resistance based on deformation.
Applications include weighing scales, industrial automation systems, material testing machines, healthcare devices, and automotive testing equipment.
Common types include strain gauge, hydraulic, pneumatic, capacitive, and piezoelectric load cells.
They provide accurate measurements essential for quality control and safety across various industries.
