Pneumatic load cells are essential devices used in various industrial applications for measuring force or weight by utilizing air pressure. Unlike other types of load cells, such as hydraulic or strain gauge load cells, pneumatic load cells operate based on the principles of air pressure and are particularly advantageous in environments where electrical components may pose safety risks.

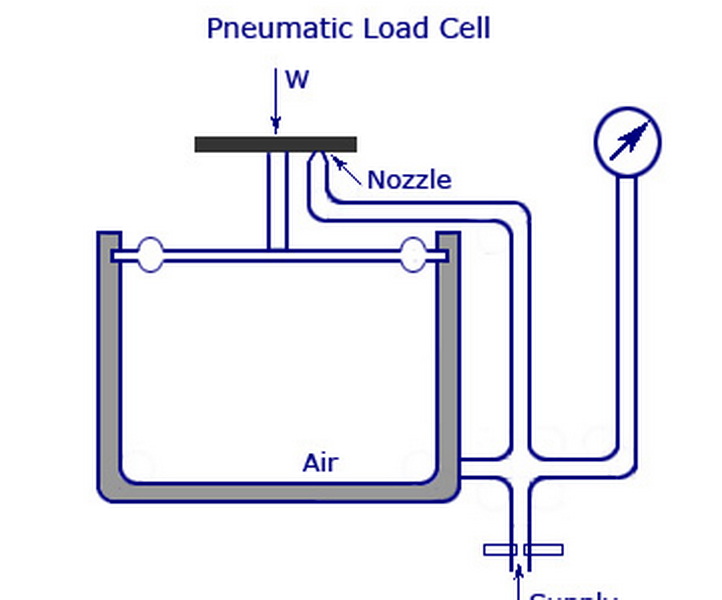

A pneumatic load cell consists of a diaphragm or piston that is connected to the load being measured. When a force is applied, the diaphragm compresses the air within the chamber, leading to an increase in air pressure. This pressure change is directly proportional to the applied force and can be accurately measured using a pressure gauge or transducer.

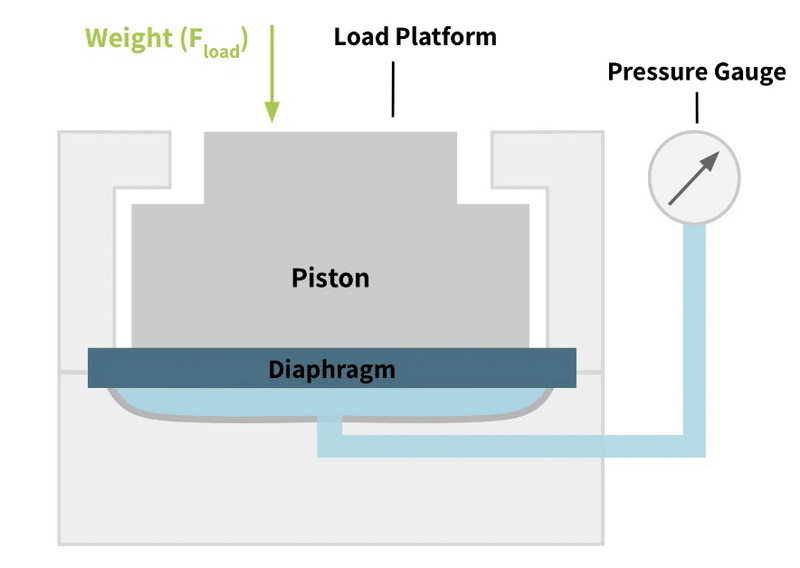

- Loading Platform: The surface where the load is applied.
- Diaphragm: An elastic membrane that responds to the applied force.
- Pressure Chamber: Contains pressurized air that balances the applied force.
- Pressure Regulator: Maintains consistent air pressure within the system.
- Pressure Gauge: Measures the pressure change, which correlates to the applied force.

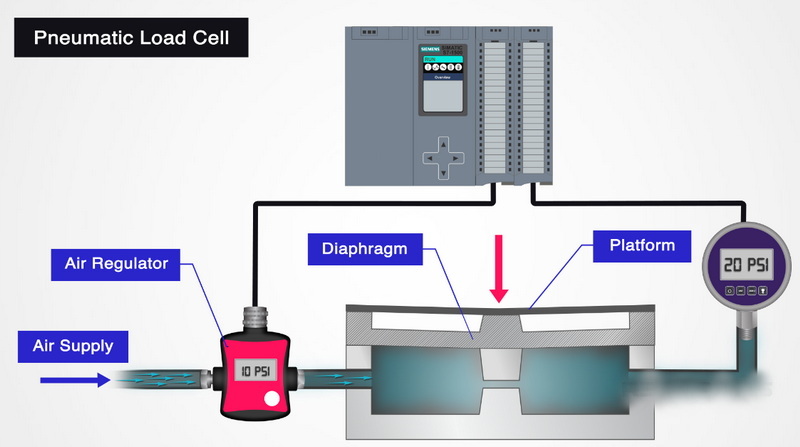

The basic operation of a pneumatic load cell involves several key steps:
1. Force Application: A load is placed on the loading platform.
2. Diaphragm Deflection: The applied force causes the diaphragm to deflect, compressing the air in the chamber.
3. Pressure Change: The compression increases air pressure within the chamber.
4. Measurement: The pressure gauge measures this change in pressure, which is then converted into a corresponding weight or force measurement.
This principle allows pneumatic load cells to provide accurate readings without electrical components, making them suitable for hazardous environments.
Pneumatic load cells offer several benefits over other types of load cells:
- Inherently Safe: They do not produce sparks and are not affected by electrical disturbances, making them ideal for explosive or hazardous environments.
- Resistance to Environmental Factors: These load cells are less sensitive to temperature changes and moisture, ensuring stable measurements in challenging conditions.
- Low Maintenance: Their simple design and minimal moving parts result in lower maintenance requirements compared to electrical load cells.
- Overload Protection: Pneumatic load cells can withstand overload conditions without damage due to their design limitations.
While pneumatic load cells have many advantages, they also come with some drawbacks:
- Lower Sensitivity and Resolution: Compared to strain gauge or capacitive load cells, pneumatic load cells may not provide as high sensitivity or resolution.
- Air Supply Requirements: They require a consistent and clean air supply, which can complicate installation and increase costs.
- Slower Response Time: Pneumatic systems generally have slower response times due to the nature of air compression.
Pneumatic load cells are utilized across various industries for numerous applications:
- Weighing Systems: Used in industrial scales and platform scales where precise weight measurement is essential.
- Material Testing: Employed in compression and tensile testing machines to measure material strength and durability.
- Process Control: Integral in assembly lines and robotics for monitoring forces during manufacturing processes.
- Force Monitoring Systems: Used in safety systems to detect and monitor forces exerted on machinery or structures.
Pneumatic load cells are a reliable choice for measuring force in environments where safety and cleanliness are paramount. Their unique operating principles allow them to function effectively without electrical components, making them particularly useful in hazardous settings. While they may not match the precision of other types of load cells, their advantages make them indispensable in many industrial applications.
Pneumatic load cells are primarily used for measuring weight and force in industrial applications such as weighing systems, material testing machines, process control systems, and safety monitoring devices.
They work by applying a force on a diaphragm that compresses air within a chamber. The change in air pressure is measured using a gauge and converted into a weight measurement.
They offer safety in hazardous environments, resistance to environmental factors like temperature changes, low maintenance needs, and inherent overload protection.
Yes, they generally have lower sensitivity compared to other types of load cells, require a clean air supply, and have slower response times due to air compression dynamics.
They are commonly found in industries such as chemical processing, pharmaceuticals, food production, automotive testing, aerospace applications, and any industry requiring precise weight measurements without electrical components.
