Shear beam load cells are essential devices used in various industrial applications for measuring weight and force. These load cells operate based on the principle of shear strain, providing precise measurements in environments where accuracy is critical. This article will explore the definition, working mechanism, applications, advantages, and considerations of shear beam load cells, along with relevant visuals and videos to enhance understanding.

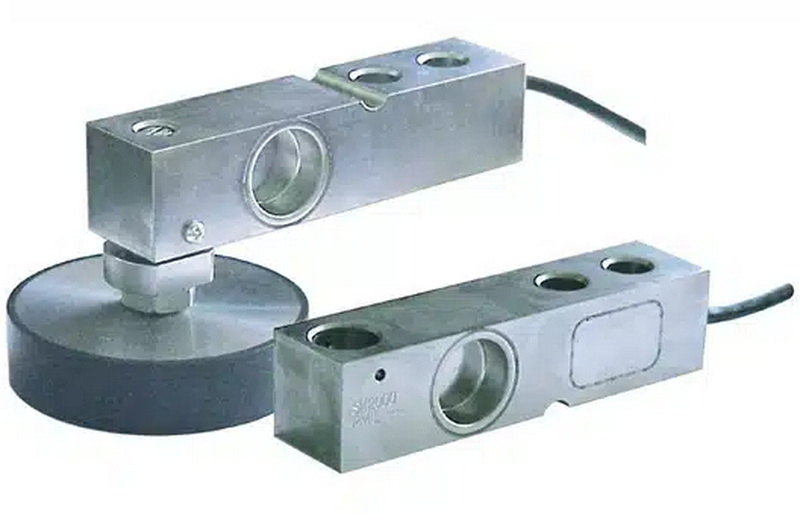

A shear beam load cell is a type of load cell that measures the force applied to it by detecting the shear strain in a metal beam. The design typically resembles a rectangular block with a thin vertical web at its center, which allows for precise measurement of forces applied perpendicular to its length.
The primary function of a shear beam load cell is to convert mechanical force into an electrical signal, which can then be quantified as weight or force.
The operation of a shear beam load cell involves several key components:
- Metal Beam: The core structure that deforms under load.
- Strain Gauges: Attached to the beam, these sensors measure the deformation caused by applied loads.
- Wheatstone Bridge Circuit: This circuit configuration is used to convert changes in resistance from the strain gauges into a measurable voltage output.
When a load is applied to the shear beam, it causes the beam to bend slightly. This bending creates shear strain in the material, which is detected by the strain gauges. The change in resistance of these gauges is proportional to the amount of force applied.
There are two main types of shear beam load cells:

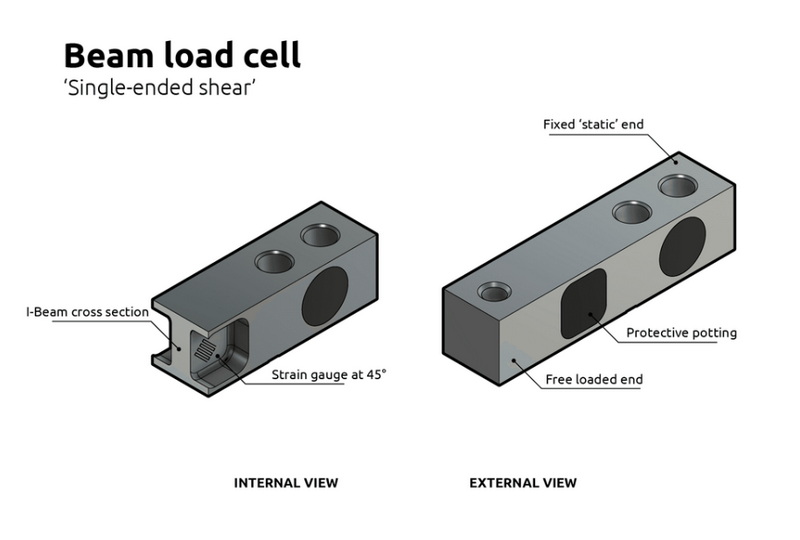

- Single-Ended Shear Beam Load Cells: These are fixed at one end with the load applied at the opposite end.
- Double-Ended Shear Beam Load Cells: These are fixed at both ends with the load applied in the center, suitable for higher capacity applications.
Shear beam load cells are widely used across various industries due to their versatility and reliability. Common applications include:
- Industrial Weighing: Used in floor scales and platform scales for accurate weight measurement.
- Tank Weighing: Ideal for weighing tanks and hoppers in manufacturing processes.
- Automotive Testing: Employed in safety testing to measure stress and strain on automotive components.
- Medical Equipment: Utilized in medical scales for precise patient weighing.
Shear beam load cells offer several advantages:
- High Accuracy: They provide precise measurements, crucial for applications requiring exact data.
- Durability: Constructed from high-strength materials, they can withstand harsh environments.
- Resistance to Side Loads: Their design allows them to handle lateral forces effectively.
- Compact Design: Low-profile designs make them suitable for space-constrained applications.
Proper installation is critical for ensuring accuracy and longevity. Here are some key considerations:
- Mounting Surface: Ensure that the load cell is mounted on a flat, smooth surface using high-strength bolts.
- Alignment: Proper alignment during installation helps prevent measurement errors due to misalignment.
- Environmental Protection: Depending on the application, selecting a model with appropriate ingress protection (IP rating) is essential.
To better understand shear beam load cells, it's helpful to compare them with other types:
| Feature | Shear Beam Load Cell | Bending Beam Load Cell |
|---|---|---|
| Measurement Principle | Shear Strain | Bending Strain |
| Capacity | Medium to High | Low to Medium |
| Resistance to Side Loads | Excellent | Moderate |
| Typical Applications | Industrial Weighing | Checkweighing |
As technology advances, shear beam load cells are expected to evolve with enhanced features such as:
- Wireless Communication: Enabling remote monitoring and data collection.
- Integration with IoT: Allowing for smarter manufacturing processes through real-time data analytics.
Shear beam load cells are vital components in various industrial applications where accurate weight measurement is necessary. Their design allows them to provide reliable and precise measurements while being resistant to side loads and environmental challenges. As industries continue to evolve towards automation and smart technologies, shear beam load cells will play an increasingly important role in enhancing operational efficiency and safety.
Shear beam load cells are primarily used in industrial weighing systems such as floor scales, tank weighing systems, and conveyor belts.
They work by measuring shear strain in a metal beam when a force is applied, converting this mechanical deformation into an electrical signal using strain gauges.
They offer high accuracy, durability, resistance to side loads, and a compact design suitable for various applications.
They should be mounted on flat surfaces using strong bolts and aligned properly to avoid measurement errors.
Future trends include wireless communication capabilities and integration with IoT technologies for enhanced data analytics and monitoring.
