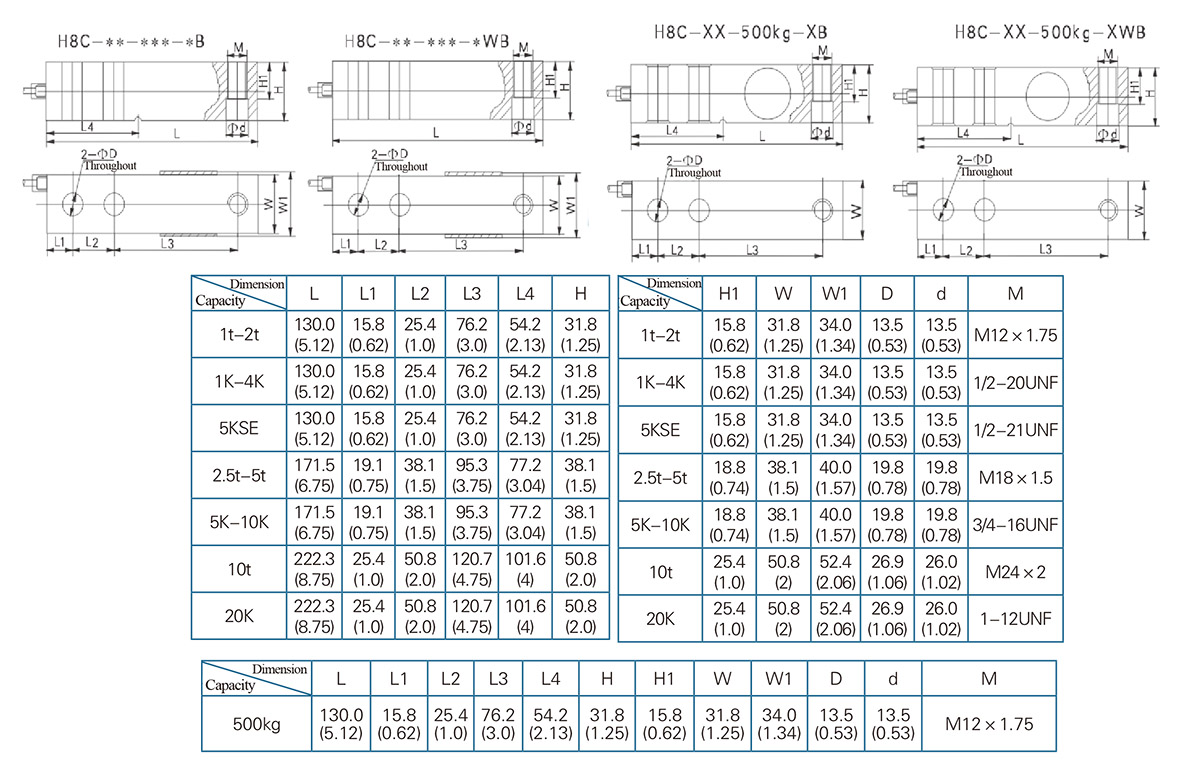

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
| Load Direction |
 |

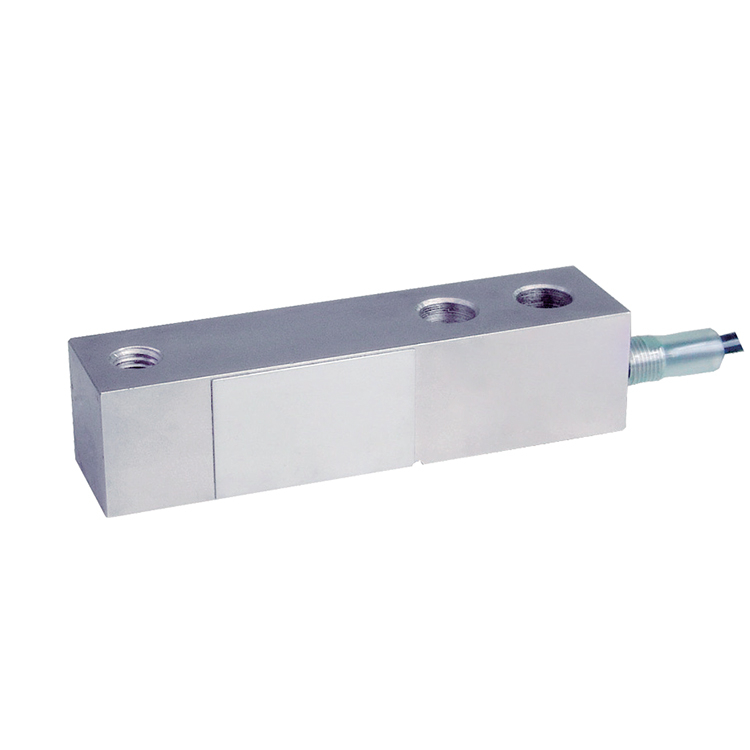

▶ Nickel plated alloy steel IP67 shear beam load cell (100 kg, 250kg are bending beam load cells) ▶ Adhesive sealed ▶ Suitable platform weighing, bed weighing, etc. ▶ High accuracy ▶ High reliability ▶ Current calibrated (sc-option) |
| Specifications |
| Specfications | Technique | ||||
| Maximum capacity (Emax) | 0.5/1/2/5t;0.25/0.5/0.75/1/1.5/2/2.5KLE/3/4/5/5KSE/7.5/10/15/20klb | ||||
| Accuracy class | C3 | C4 | C5 | A5M | B10M |
| Approvals | OIML R60 C3 | OIML R60 C4 | IML R60 C5 | III 5000 Multiple | IIIL 10000 Multiple |
| Maximum number of load cell intervals(nLC) | 3000nmax | 4000nmax | 5000 | 5000 | 10000 |
| Ratio of minimum LC verification interval Y=Emax / Vmin | Emax/10000V min | Emax/14000Vmin | Emax/18000Vmin | Emax/15000Vmin | Emax/10000Vmin |
| Combined error | ≤±0.02%FS | ≤±0.018%FS | ≤±0.010%FS | ≤±0.026%FS | ≤±0.050%FS |
| Creep | ≤±0.016%FS/30min | ≤±0.012%FS/30min | ≤±0.010%FS/30min | ≤±0.017%FS/30min | ≤±0.040%FS/30min |
| Temperature effect on sensitivity | ≤±0.011%FS/10℃ | ≤±0.009%FS/10℃ | ≤±0.008%FS/10℃ | ≤±0.013%FS/10℃ | ≤±0.040%FS/10℃ |
| Temperature effect on zero | ≤±0.015%FS/10℃ | ≤±0.010%FS/10℃ | ≤±0.007%FS/10℃ | ≤±0.014%FS/10℃ | ≤±0.020%FS/10℃ |
| Output sensitivity (=FS) | 3.0 ± 0.003mV/V 2.0 ± 0.002mV/V | ||||
| Input resistance | 350 ± 3.5Ω | ||||
| Output resistance | 350 ± 3.5Ω | ||||
| Insulation resistance | ≥ 5000MΩ(50VDC) | ||||
| Zero balance | ≤±1.0%FS | ||||
| Compensated temperature | -10~+40℃ | ||||
| Operating temperature | -35~70℃ | ||||
| Excitation, recommended voltage | 5~12V(DC) | ||||
| Excitation maximum | 18V(DC) | ||||
| Safe overload | 150%FS | ||||
| Ultimate overload | 300%FS | ||||
| Recommended torque on fixation | M12:100N.m, M18:200N.m, M24: 700N.m | ||||
| ATEX Classification(optional) | II1G Ex ia II1C T4/II1D Ex iaD20 T73℃/II3G Ex nL II C T4 | ||||
| "S1" Output Sensivity | 2.0±0.002Mv/V | ||||

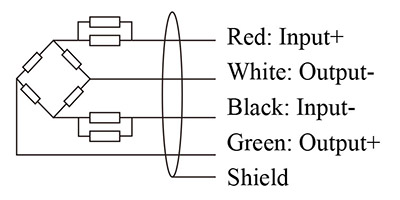

| Wiring | Red: Input+, Green: Output+, Transparent: Shield, Black:Input-,White: Output- Shielded,4 conductor | ||||
| Cable diameter: Φ5mm; Shielded cable length for 100kg-2t: 4m and 6m for the higher capacities | |||||

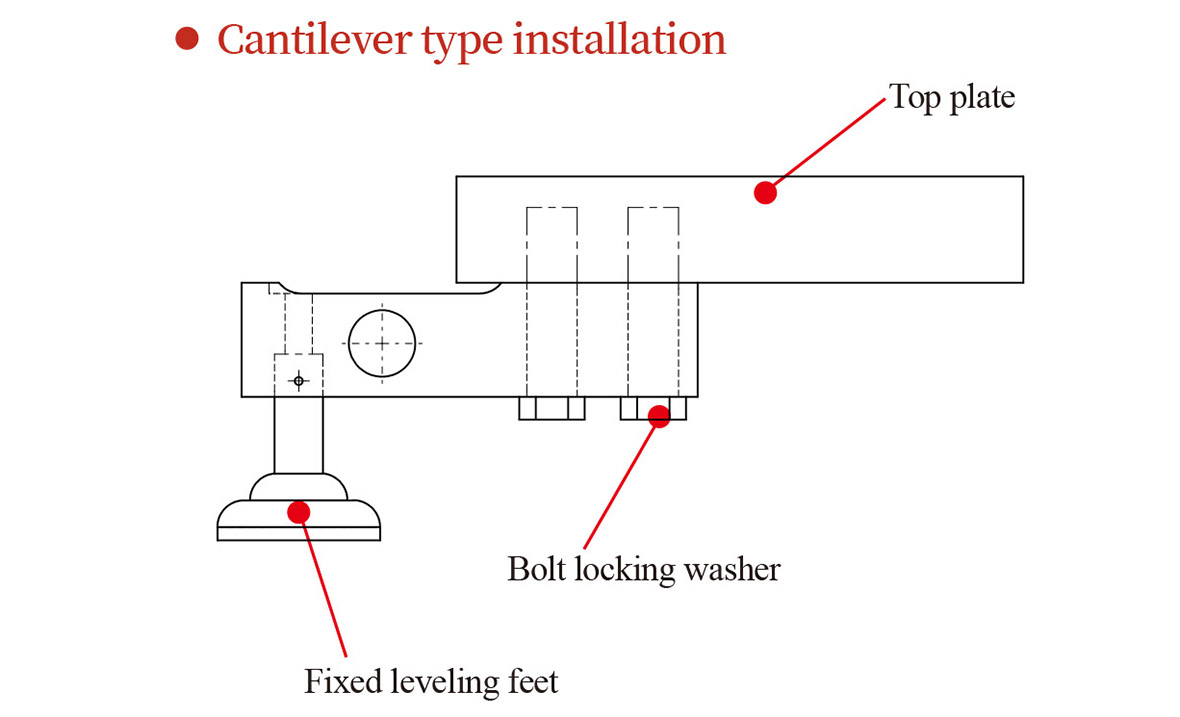

| Installation |
| Delivery Configurations |
