A single point load cell is a type of force transducer specifically designed to measure weight or force applied at a single point. This design allows for accurate measurements even when the load is not perfectly centered, making it an essential component in various weighing applications. Single point load cells are widely used in industries such as retail, medical, and manufacturing due to their versatility and precision.
Single point load cells operate based on the principle of strain gauges. When a load is applied to the weighing platform, the load cell deforms slightly. This deformation changes the electrical resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the amount of load applied, allowing for precise weight measurement.

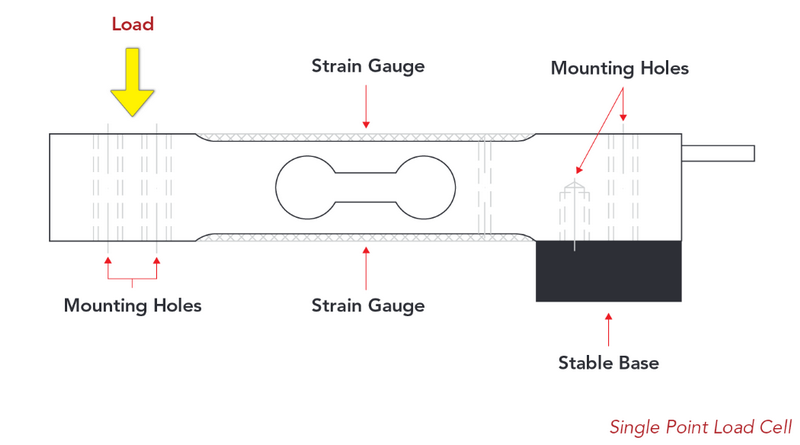

- Strain Gauges: These are thin, flexible electrical conductors that change resistance when stretched or compressed.
- Sensing Element: This metal element undergoes deformation when a load is applied, affecting the strain gauge's resistance.
- Body Material: Single point load cells are typically made from stainless steel or aluminum, chosen for their durability and resistance to corrosion.
1. Load Application: When an object is placed on the weighing platform, it exerts a force on the load cell.
2. Deformation: The sensing element deforms under this force, causing the attached strain gauges to stretch or compress.
3. Resistance Change: The deformation alters the electrical resistance of the strain gauges.
4. Signal Conversion: This change in resistance is converted into an electrical signal that corresponds to the weight of the object.
Single point load cells offer several advantages that make them suitable for various applications:
- High Accuracy: They provide precise measurements even with off-center loads.
- Compact Design: Their small size allows for easy integration into different systems.
- Cost-Effective: Typically, only one load cell is needed for a complete weighing system, reducing overall costs.
- Easy Installation: The straightforward design facilitates easy installation and calibration.
Single point load cells are utilized across multiple industries due to their versatility:
- Retail Scales: Used in grocery stores and supermarkets for pricing and inventory management.
- Industrial Scales: Employed in manufacturing facilities to weigh raw materials and finished products.
- Postal Scales: Used to accurately weigh packages for shipping purposes.
- Medical Scales: Found in healthcare settings for monitoring patient weight.
- Food Processing: Ensures accurate portion control and compliance with regulations.
Several factors can impact the performance and accuracy of single point load cells:
- Environmental Conditions: Temperature and humidity can affect readings; thus, some models are hermetically sealed for protection.
- Installation Alignment: Proper alignment during installation is crucial for accurate measurements.
- Calibration Procedures: Regular calibration ensures that the readings remain accurate over time.
To ensure optimal performance:
1. Follow manufacturer guidelines during installation.
2. Ensure proper alignment of the load cell.
3. Regularly calibrate using known weights.
Single point load cells are integral components in many industrial applications, providing reliable and accurate weight measurements across various sectors. Their unique ability to handle off-center loads makes them particularly versatile, while their compact design allows for easy integration into existing systems. Understanding their operation, advantages, and applications can help businesses make informed decisions when selecting load cells for their specific needs.
There are several types of load cells including single point, beam, canister, and S-type load cells. Each type serves different applications based on capacity and loading direction.
Calibration involves adjusting the output signal of the load cell to match known weights. This process ensures accurate measurements over time.
Single point load cells are typically constructed from stainless steel or aluminum due to their strength and corrosion resistance.
They are commonly used in retail scales, industrial scales, postal scales, medical scales, and food processing applications.
Factors such as environmental conditions, installation alignment, and calibration procedures can significantly influence accuracy.
