Load cells are crucial components in various weighing and force measurement applications across industries. Among the diverse range of load cells available, the 2000 kg capacity load cell is a popular choice for many industrial and commercial uses. This article will explore the cost factors, types, applications, and considerations when selecting a 2000 kg load cell.
A 2000 kg load cell is a force transducer designed to measure weights or forces up to 2000 kilograms (approximately 4,409 pounds). These devices convert the applied force into an electrical signal, allowing for precise and reliable weight measurements in various applications.
There are several types of 2000 kg load cells available, each suited for different applications:
1. S-Type Load Cells: These versatile load cells can measure both tension and compression forces.

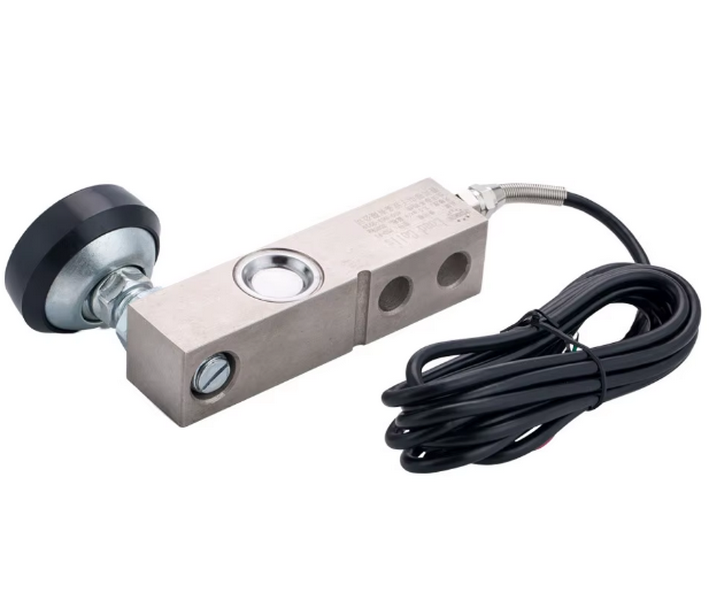

2. Shear Beam Load Cells: Ideal for platform scales and industrial weighing applications.
3. Single Point Load Cells: Commonly used in platform scales and bench scales.
4. Compression Load Cells: Designed for applications where force is applied vertically.
The cost of a 2000 kg load cell can vary significantly based on several factors:
Different types of load cells have varying price points. For example:
- S-Type load cells with a 2000 kg capacity can range from $150 to $300.
- Shear beam load cells may cost between $200 to $400.
- Single point load cells for 2000 kg capacity can be priced from $300 to $500.
The material used in manufacturing the load cell affects its cost:
- Aluminum load cells are generally less expensive but may have limitations in certain environments.
- Stainless steel load cells are more durable and corrosion-resistant, but come at a higher price point.
Higher accuracy load cells typically cost more. Factors influencing accuracy include:
- Rated output (e.g., 2mV/V ± 10%)
- Non-linearity and hysteresis specifications
- Temperature compensation range
Load cells with higher IP (Ingress Protection) ratings, such as IP66 or IP67, are more expensive due to their enhanced protection against dust and water.
Load cells with certifications like NTEP (National Type Evaluation Program) or OIML (International Organization of Legal Metrology) approvals may cost more but are necessary for certain applications.
2000 kg load cells find use in various industries and applications:
1. Industrial Weighing: Platform scales, floor scales, and pallet scales often utilize 2000 kg load cells.
2. Process Control: In manufacturing and production lines for weight-based batching and filling operations.
3. Material Handling: For weighing containers, hoppers, and silos in inventory management systems.
4. Agriculture: In livestock scales and grain handling equipment.
5. Transportation: For vehicle weighing and axle load measurement.
6. Testing and Quality Control: In force measurement applications for product testing and material strength analysis.
When selecting a 2000 kg load cell, consider the following factors:
Determine the specific needs of your application, including:
- Required accuracy
- Environmental conditions (temperature, humidity, exposure to chemicals)
- Space constraints
- Dynamic or static load measurements
Ensure the load cell is compatible with your existing equipment or the indicator/controller you plan to use.
While cost is important, it's crucial to balance it with the required performance and durability for your application.
Choose load cells from reputable manufacturers known for quality and reliability. Some well-known brands include:
- Sensortronics
- Zemic
- HBM
- Vishay Precision Group
Consider the availability of technical support, calibration services, and warranty options when selecting a supplier.
Proper installation and maintenance are crucial for optimal performance and longevity of 2000 kg load cells:
1. Installation: Follow manufacturer guidelines for mounting and wiring. Ensure proper alignment and protection from shock loads.
2. Calibration: Regular calibration is essential for maintaining accuracy. The frequency depends on usage and environmental factors.
3. Environmental Protection: Use appropriate accessories like load buttons or rod ends to protect the load cell from off-axis loads and environmental factors.
4. Regular Inspections: Periodically check for signs of damage, corrosion, or loose connections.
To optimize your investment in 2000 kg load cells:
1. Bulk Purchasing: If you need multiple load cells, consider buying in bulk for potential discounts[1].
2. Refurbished Options: Some suppliers offer refurbished load cells at lower prices, which can be suitable for non-critical applications.
3. Preventive Maintenance: Regular maintenance can extend the life of your load cells, reducing long-term costs.
4. Proper Sizing: Avoid oversizing load cells, as higher capacity units generally cost more. Choose a capacity that closely matches your application needs.
The load cell market is evolving with technological advancements:
1. Wireless Load Cells: Eliminating the need for complex wiring and enabling remote monitoring.
2. Smart Load Cells: Incorporating built-in diagnostics and self-calibration features.
3. Miniaturization: Development of smaller, high-capacity load cells for space-constrained applications.
4. Advanced Materials: Research into new materials for improved performance and durability.
The cost of a 2000 kg load cell can vary significantly based on factors such as type, material, accuracy, and environmental protection. While prices typically range from $150 to $500, high-precision or specialized models can cost more. When selecting a load cell, it's crucial to consider not just the initial cost but also long-term factors like durability, accuracy, and maintenance requirements.
By understanding the various factors influencing load cell costs and performance, users can make informed decisions that balance their budget constraints with application requirements. As technology continues to advance, we can expect to see more innovative and cost-effective solutions in the load cell market, further enhancing their utility across various industries.
The lifespan of a 2000 kg load cell can vary significantly depending on usage conditions and maintenance. Under normal operating conditions and with proper care, a high-quality load cell can last 5-10 years or even longer. Factors that influence lifespan include:
- Environmental conditions (temperature, humidity, exposure to chemicals)
- Frequency and intensity of use
- Quality of installation and maintenance
- Overload protection measures
Regular calibration and inspection can help extend the life of a load cell and ensure continued accuracy.
The calibration frequency for a 2000 kg load cell depends on several factors:
- Regulatory requirements for your industry
- Frequency and intensity of use
- Environmental conditions
- Manufacturer recommendations
As a general guideline, many industries perform calibration annually. However, some applications may require more frequent calibration, such as quarterly or even monthly, especially in harsh environments or for critical measurements. It's best to consult with the manufacturer and consider your specific application requirements to determine the optimal calibration schedule.
Yes, a 2000 kg load cell can be used for measuring weights less than its full capacity. However, there are some considerations:
- Accuracy: Load cells are typically most accurate when measuring weights between 20% and 100% of their rated capacity. For very light loads, the accuracy may be reduced.
- Resolution: The resolution of the measurement system should be considered for smaller weights.
- Overload protection: Using a higher capacity load cell can provide better protection against accidental overloads.
For applications consistently measuring much smaller weights, it may be more appropriate to use a lower capacity load cell to ensure optimal accuracy and resolution.
The main differences between a 2000 kg S-type load cell and a shear beam load cell are:
1. Design:
- S-type: S-shaped design, can measure both tension and compression forces.
- Shear beam: Horizontal beam design, typically measures compression forces.
2. Installation:
- S-type: Often suspended or mounted vertically.
- Shear beam: Usually mounted horizontally, with one end fixed and the other end free.
3. Applications:
- S-type: Versatile, used in hanging scales, tension measurement, and some platform scales.
- Shear beam: Commonly used in platform scales, tank weighing, and conveyor scales.
4. Cost:
- S-type: Generally less expensive due to simpler design.
- Shear beam: Often more expensive but can offer better performance in certain applications.
5. Accuracy:
- Both types can offer high accuracy, but shear beam designs may have slight advantages in some applications due to their ability to compensate for off-center loading.
The choice between these types depends on the specific application requirements, installation constraints, and budget considerations.
Environmental factors can significantly impact the performance of a 2000 kg load cell:
1. Temperature:
- Affects the material properties of the load cell, causing expansion or contraction.
- Can influence the electrical characteristics of the strain gauges.
- High-quality load cells often have temperature compensation features.
2. Humidity:
- Can cause corrosion in non-sealed load cells.
- May affect the electrical insulation properties.
3. Vibration and Shock:
- Can cause measurement errors or even damage to the load cell.
- Proper mounting and shock absorption measures are important.
4. Dust and Debris:
- Can interfere with moving parts or affect electrical connections.
- IP-rated load cells offer protection against dust ingress.
5. Chemical Exposure:
- Certain chemicals can corrode or degrade load cell materials.
- Stainless steel load cells offer better resistance to many chemicals.
6. Electromagnetic Interference (EMI):
- Can affect the electrical signal output of the load cell.
- Proper shielding and grounding are important in environments with high EMI.
To mitigate these effects, it's important to choose a load cell with appropriate environmental ratings (e.g., IP67 for water and dust protection) and to implement proper installation and protection measures based on the specific environmental conditions of the application.
