In the world of force measurement and weight sensing, two technologies stand out: strain gauges and load cells. While these terms are often used interchangeably, they represent distinct concepts with unique applications and characteristics. This article will delve into the intricacies of strain gauges and load cells, exploring their differences, functionalities, and applications across various industries.
A strain gauge is a sensor designed to measure the deformation or strain experienced by an object when subjected to external forces. These small, flexible devices are typically made of a thin metallic foil arranged in a grid pattern and bonded to the surface of the object being measured.
When the object experiences stress or strain, the foil deforms, causing a change in its electrical resistance. This change in resistance is proportional to the applied force, allowing for precise measurements of strain.

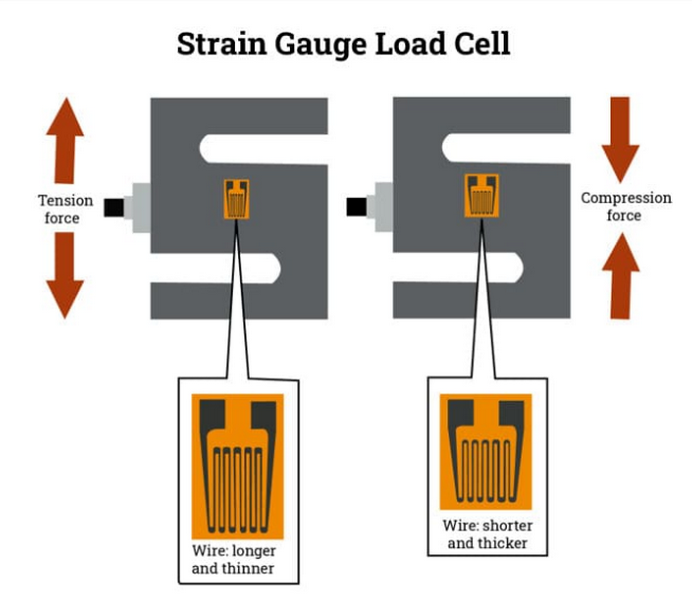

Strain gauges operate on the principle of electrical resistance change in response to mechanical deformation. Here's a step-by-step breakdown of their operation:
1. The strain gauge is firmly bonded to the surface of the object being measured.
2. As the object experiences stress, it deforms slightly.
3. This deformation causes the metallic foil in the strain gauge to stretch or compress.
4. The stretching or compression changes the electrical resistance of the foil.
5. The change in resistance is measured using a Wheatstone bridge circuit.
6. The measured change in resistance is then converted into a strain value.
A load cell is a transducer that converts an applied force into an electrical output signal. It's essentially a complete force measurement device that often incorporates strain gauges as its sensing elements.
Load cells are designed to measure specific types of forces, such as tension, compression, or shear, and come in various shapes and sizes to suit different applications.

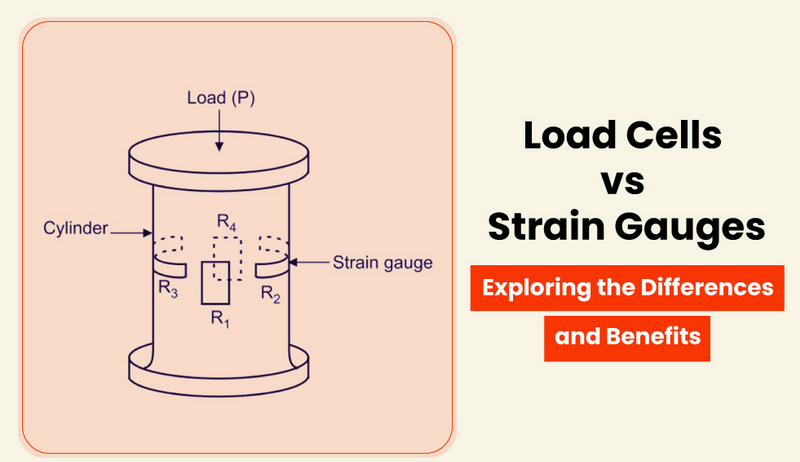

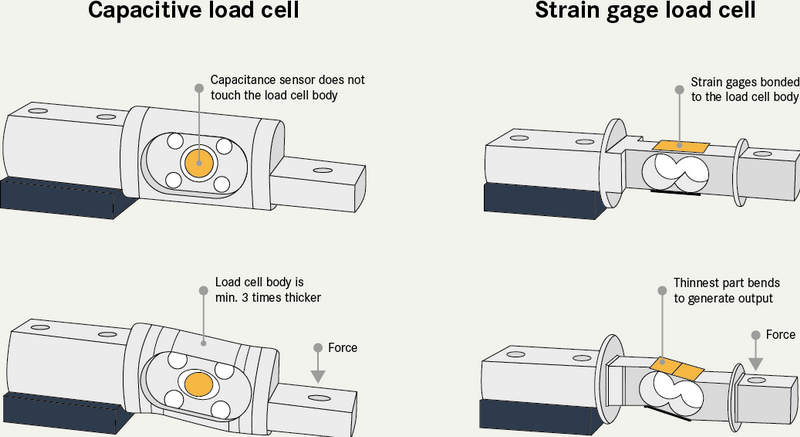

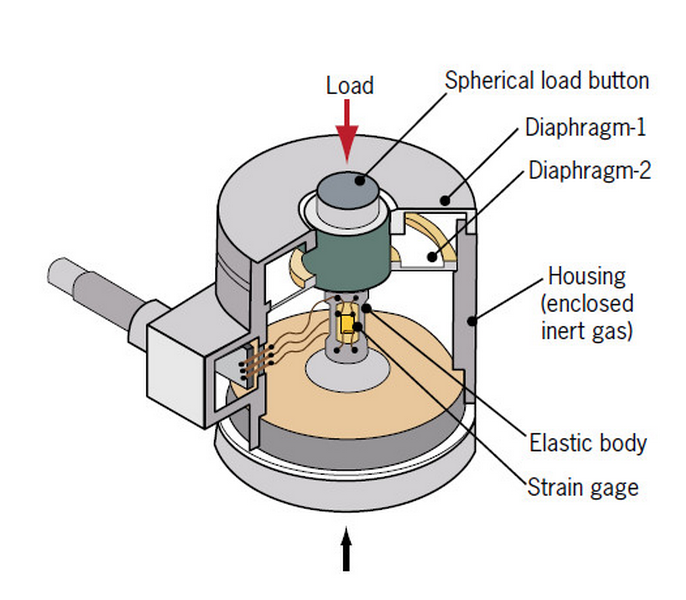

Load cells typically use strain gauges as their core sensing element, but they incorporate additional components to create a complete force measurement system. Here's how they work:
1. The load cell's body is designed to deform predictably under applied force.
2. Strain gauges are strategically placed on the load cell body.
3. When a force is applied, the load cell body deforms, causing the strain gauges to change resistance.
4. The change in resistance is measured and converted into an electrical signal.
5. This signal is then amplified and processed to provide a readable force or weight measurement.
Understanding the distinctions between strain gauges and load cells is crucial for selecting the right technology for specific applications. Let's explore the key differences:
- Strain Gauges: Primarily measure strain or deformation in an object.
- Load Cells: Directly measure force or weight applied to them.
- Strain Gauges: Simpler devices, often just a thin foil or wire element.
- Load Cells: More complex, incorporating strain gauges and additional components.
- Strain Gauges: Produce a change in electrical resistance.
- Load Cells: Provide a calibrated electrical output signal proportional to the applied force.
- Strain Gauges: Used in various applications beyond force measurement, such as structural health monitoring and stress analysis.
- Load Cells: Specifically designed for force and weight measurement in industrial and commercial applications.
- Strain Gauges: Often require careful calibration and signal conditioning for accurate measurements.
- Load Cells: Typically come pre-calibrated and ready for use in specific force ranges.
- Strain Gauges: More susceptible to environmental factors like temperature and humidity.
- Load Cells: Often include compensation for environmental factors, providing more stable measurements.
- Strain Gauges: Generally less expensive as individual components.
- Load Cells: More costly due to their complexity and integrated design.
Strain gauges find applications in various fields due to their versatility and sensitivity. Some common uses include:
1. Structural Health Monitoring: Monitoring the integrity of bridges, buildings, and other large structures.
2. Aerospace Engineering: Measuring stress and strain on aircraft components during flight.
3. Automotive Testing: Analyzing the performance and safety of vehicle components.
4. Biomedical Engineering: Developing prosthetics and studying biomechanics.
5. Materials Research: Investigating the properties of new materials under different stress conditions.
Load cells are widely used in industries that require precise force or weight measurements. Some typical applications include:
1. Industrial Weighing: In scales for trucks, tanks, and hoppers.
2. Material Testing: For quality control and research in manufacturing.
3. Robotics: Providing force feedback in robotic arms and grippers.
4. Aerospace: In thrust measurement systems for rocket engines.
5. Medical Equipment: In hospital beds, patient lifts, and rehabilitation devices.
Advantages:
- High sensitivity to small deformations
- Versatile in application
- Can be applied to complex geometries
- Relatively inexpensive
Limitations:
- Require careful installation and calibration
- Sensitive to temperature changes
- May require signal amplification for accurate readings
Advantages:
- Provide direct force measurements
- Often come pre-calibrated and ready to use
- More robust and suitable for industrial environments
- Can measure a wide range of forces
Limitations:
- More expensive than individual strain gauges
- Limited flexibility in terms of measurement location
- May be overkill for simple strain measurement applications
When deciding between strain gauges and load cells, consider the following factors:
1. Measurement Requirement: Do you need to measure strain or direct force?
2. Application Environment: Consider temperature, humidity, and vibration levels.
3. Accuracy Needs: Load cells often provide higher accuracy for force measurements.
4. Budget: Strain gauges are generally less expensive but may require additional components.
5. Installation Complexity: Load cells are often easier to install and use.
6. Measurement Range: Consider the magnitude of forces you need to measure.
As technology advances, we can expect to see improvements in both strain gauges and load cells:
1. Miniaturization: Smaller sensors for more precise and localized measurements.
2. Wireless Capabilities: Integration with IoT for remote monitoring and data collection.
3. Advanced Materials: Development of new materials for improved sensitivity and durability.
4. AI Integration: Use of artificial intelligence for predictive maintenance and advanced analysis.
5. Energy Harvesting: Self-powered sensors that can operate without external power sources.
While strain gauges and load cells are both crucial in the field of force measurement, they serve different purposes and have distinct characteristics. Strain gauges excel in measuring deformation and are versatile in their applications, from structural health monitoring to materials research. Load cells, on the other hand, provide direct force measurements and are indispensable in industrial weighing and force testing applications.
Understanding the differences between these technologies is essential for engineers, researchers, and industry professionals to choose the right tool for their specific needs. As technology continues to advance, we can expect even more sophisticated and integrated solutions that will further enhance our ability to measure and analyze forces in various applications.
The main difference lies in their primary function and complexity. A strain gauge is a sensor that measures the deformation or strain in an object, while a load cell is a complete transducer that directly measures force or weight, often incorporating strain gauges as part of its design.
In some applications, strain gauges can be used instead of load cells, especially when the primary goal is to measure strain or deformation rather than direct force. However, for precise force or weight measurements, particularly in industrial settings, load cells are generally preferred due to their calibrated output and robustness.
Strain gauges can be highly accurate for measuring strain, but their accuracy in force measurement depends on proper installation, calibration, and signal processing. Load cells, being purpose-built for force measurement, typically offer higher accuracy and reliability for direct force measurements, especially in challenging environments.
Load cells offer several advantages over strain gauges for force measurement:
- They provide direct force or weight readings without additional calculations.
- They are often pre-calibrated and easier to integrate into measurement systems.
- They are more robust and suitable for harsh industrial environments.
- They can measure a wider range of forces with high accuracy.
Strain gauges are preferred in situations where:
- The primary goal is to measure strain or deformation rather than direct force.
- The application requires measurements on complex geometries or in confined spaces.
- Cost is a significant factor, and the additional complexity of a load cell is not necessary.
- The research or analysis focuses on stress distribution or material properties rather than absolute force values.
