Load cells are essential components in various industries, serving as the backbone for weight measurement and force detection. These devices convert mechanical force into an electrical signal, allowing for precise measurements in applications ranging from industrial scales to medical devices. This article delves into the functionality of load cells, their types, applications, and the technology behind them.

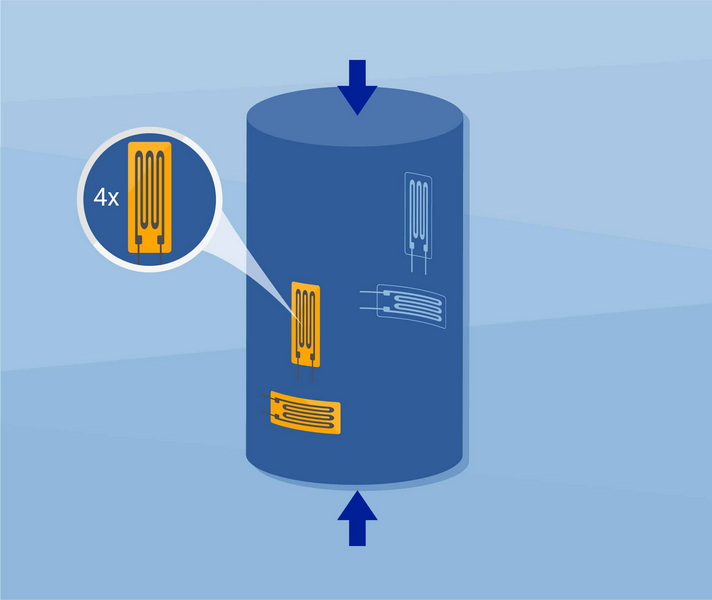

A load cell is a transducer that converts a force such as tension, compression, pressure, or torque into a measurable electrical signal. The most common type of load cell uses strain gauges, which change resistance when deformed. This change in resistance is then converted into an electrical signal that can be measured and standardized.

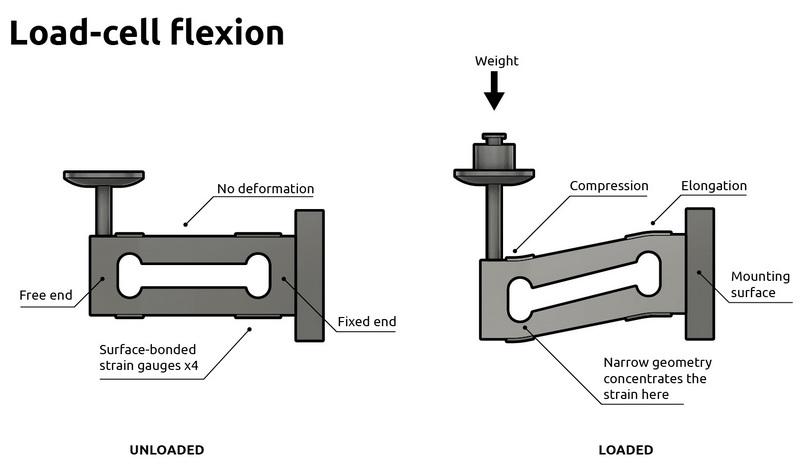

Load cells operate on the principle of converting mechanical force into an electrical signal. When a load is applied, the internal strain gauge deforms, causing a change in resistance. This change is proportional to the force applied, allowing for accurate weight measurement.
1. Strain Gauge Load Cells: These are the most common type, utilizing a Wheatstone bridge circuit to convert mechanical deformation into an electrical signal.
2. Hydraulic Load Cells: These use fluid pressure to measure weight and are known for their robustness and high capacity.
3. Pneumatic Load Cells: These measure weight through changes in air pressure and are often used in environments where electrical devices may not be suitable.
Load cells come in various types, each suited for specific applications:
◆ Strain Gauge Load Cells: These are the most common type, utilizing a Wheatstone bridge circuit to convert mechanical deformation into an electrical signal.
◆ Hydraulic Load Cells: These use fluid pressure to measure weight and are known for their robustness and high capacity.
◆ Pneumatic Load Cells: These measure weight through changes in air pressure and are often used in environments where electrical devices may not be suitable.
Load cells are utilized in numerous industries, including:
◆ Manufacturing: For weighing raw materials and finished products.
◆ Medical: In devices that require precise weight measurements, such as scales for patients.
◆ Aerospace: For testing the weight and balance of aircraft components.
◆ Automotive: In testing the load and stress on vehicle components.
Calibration is crucial for ensuring the accuracy of load cells. This process involves applying known weights to the load cell and adjusting the output signal to match the expected values. Regular calibration is necessary to maintain precision, especially in critical applications.
The accuracy of a load cell is determined by several factors, including the type of load cell, the materials used, and the calibration process. High-quality load cells can achieve accuracies of up to 0.01% of the full scale, making them reliable for industrial applications.
Advancements in load cell technology have led to the development of more accurate and reliable devices. Innovations include digital load cells that provide real-time data and wireless load cells that eliminate the need for cumbersome wiring.
Load cells play a vital role in modern measurement systems, providing accurate and reliable data across various industries. Understanding their functionality, types, and applications is essential for anyone involved in fields that require precise weight measurement.
The primary function of a load cell is to convert mechanical force into an electrical signal for measurement.
The main types include strain gauge load cells, hydraulic load cells, and pneumatic load cells.
Load cells should be calibrated regularly, typically every six months to a year, depending on usage and application.
Load cells are used in manufacturing, medical, aerospace, and automotive industries.
Factors include the type of load cell, materials used, and the calibration process.
This article provides a comprehensive overview of load cells, their functions, types, and applications, ensuring a solid understanding of this critical technology.
