Load cells are crucial components in various industries, from manufacturing to logistics, providing accurate force and weight measurements. Among the different types of load cells, those equipped with sen (sense) wires offer enhanced precision and reliability. This article delves into the purpose and functionality of sen wires in load cells, exploring their significance in improving measurement accuracy and overall system performance.
Before we dive into the specifics of sen wires, it's essential to understand what a load cell is. A load cell is a transducer that converts force into an electrical signal[4]. It typically consists of strain gauges arranged in a Wheatstone bridge configuration, which allows for precise measurement of applied force or weight.

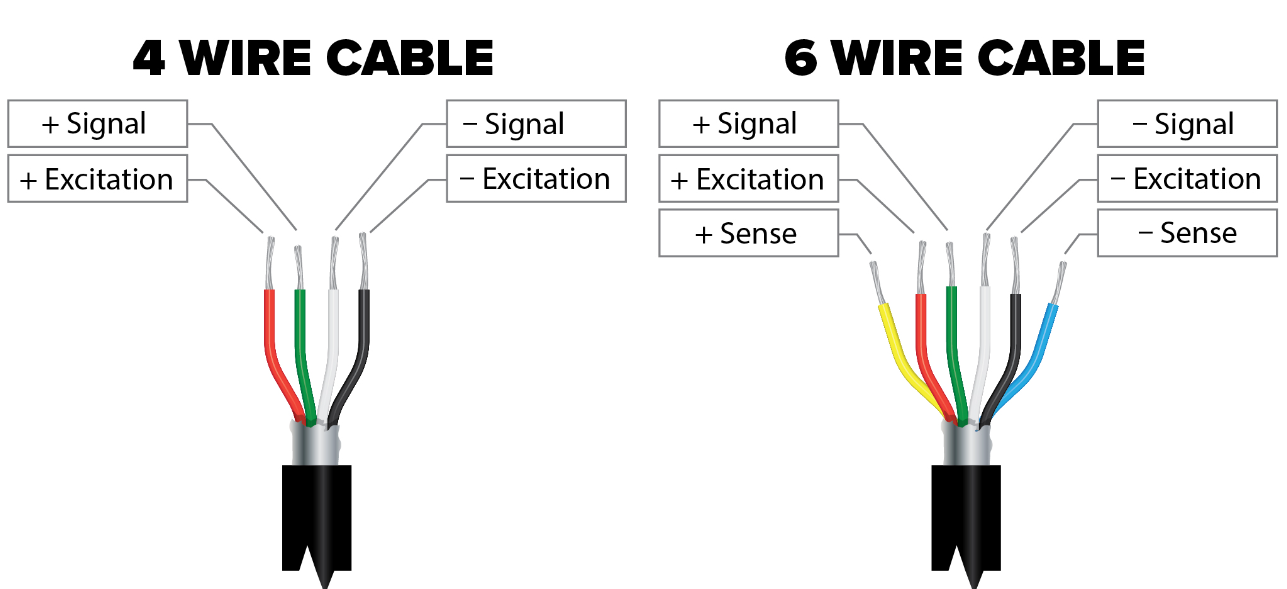

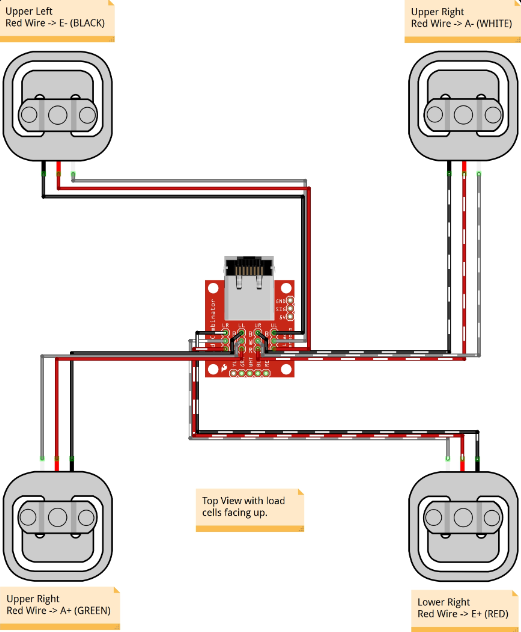

Most standard load cells feature a four-wire configuration:
1. Excitation (+)
2. Excitation (-)
3. Signal (+)
4. Signal (-)
The excitation wires supply power to the load cell, while the signal wires carry the output that represents the measured force.
Sen wires, short for sense wires, are additional wires found in more advanced load cell configurations, typically creating a six-wire system. These wires serve a specific purpose in enhancing the accuracy of force measurements.
Sen wires are designed to compensate for voltage drops that occur in the excitation lines, especially when dealing with long cable runs or varying environmental conditions. They provide a feedback mechanism that allows the measuring instrument to adjust for these voltage fluctuations, ensuring more accurate readings.

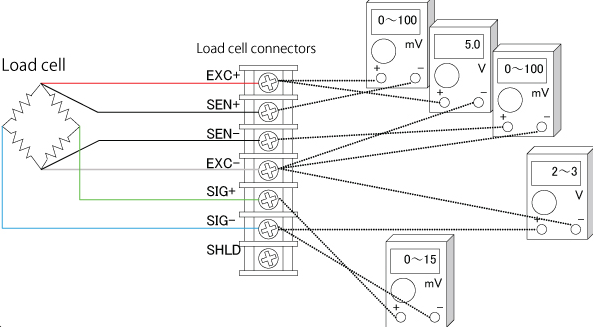

In a six-wire load cell configuration, the sen wires are connected as follows:
1. Sen (+): Monitors the positive voltage at the load cell
2. Sen (-): Monitors the negative voltage (ground) at the load cell
These sen wires form a loop from the load cell back to the weight controller or measuring instrument[1]. By measuring the actual voltage at the load cell, the system can compensate for any voltage drops in the excitation lines.
The primary benefit of sen wires is the significant improvement in measurement accuracy. By compensating for voltage drops, sen wires ensure that the load cell receives the correct excitation voltage, leading to more precise force measurements.
Sen wires allow for longer cable runs between the load cell and the measuring instrument without sacrificing accuracy. This is particularly useful in large-scale industrial applications where load cells may be located far from the control room.
Environmental factors, such as temperature changes, can affect the resistance of cables and, consequently, the voltage supplied to the load cell. Sen wires help mitigate these effects by providing real-time voltage feedback.
While sen wires offer clear advantages, they are not always necessary. Consider using load cells with sen wires in the following scenarios:
1. Long cable runs (typically exceeding 20 meters or 65 feet)
2. Applications requiring high precision measurements
3. Environments with significant temperature fluctuations
4. Systems where maintaining consistent excitation voltage is critical
To effectively utilize sen wires in a load cell system, follow these steps:
1. Choose a compatible measuring instrument that supports six-wire configurations.
2. Ensure proper wiring connections, matching each wire to its corresponding terminal.
3. Remove any jumpers between excitation and sense terminals on the measuring instrument.
4. Calibrate the system to account for the sen wire feedback mechanism.
While sen wires offer significant benefits, there are some challenges to consider:
1. Increased complexity in wiring and setup
2. Higher cost compared to standard four-wire load cells
3. Potential for errors if not properly implemented or calibrated
It's crucial to weigh these factors against the improved accuracy and reliability when deciding whether to use load cells with sen wires.
To illustrate the practical application of sen wires, let's consider a case study of a large-scale industrial weighing system:
A manufacturing plant requires precise weight measurements of raw materials stored in outdoor silos. The load cells are located at the base of each silo, with cable runs of approximately 50 meters to the control room. Temperature fluctuations between day and night affect cable resistance.
By implementing load cells with sen wires, the plant achieves:
1. Consistent accuracy despite long cable runs
2. Compensation for temperature-induced voltage fluctuations
3. Improved overall reliability of weight measurements
This case demonstrates how sen wires can significantly enhance the performance of load cell systems in challenging industrial environments.
As technology advances, we can expect further improvements in load cell design and functionality. Some potential developments include:
1. Integration of digital compensation techniques
2. Wireless sen wire technology for easier installation
3. Smart load cells with built-in temperature compensation
These advancements may further enhance the accuracy and ease of use of load cell systems, potentially reducing the need for traditional sen wires in some applications.
Sen wires play a crucial role in enhancing the accuracy and reliability of load cell measurements, particularly in challenging environments or applications requiring high precision. By compensating for voltage drops and environmental factors, sen wires ensure that load cells provide consistent and accurate force measurements.
While not necessary for all applications, the use of sen wires can significantly improve the performance of weighing and force measurement systems in industrial settings. As technology continues to evolve, we can expect further refinements in load cell design, potentially offering even greater accuracy and ease of use in the future.
Understanding the function and benefits of sen wires empowers engineers and system designers to make informed decisions when selecting and implementing load cells for their specific applications. By carefully considering the requirements of each project and the advantages offered by sen wires, professionals can ensure optimal performance and reliability in their force measurement systems.
The main purpose of sen wires in a load cell is to compensate for voltage drops in the excitation lines, especially over long cable runs or in environments with temperature fluctuations. They provide a feedback mechanism that allows the measuring instrument to adjust for these voltage changes, ensuring more accurate force measurements.
Sen wires improve measurement accuracy by monitoring the actual voltage at the load cell and providing this information back to the measuring instrument. This allows the system to compensate for any voltage drops in the excitation lines, ensuring that the load cell receives the correct excitation voltage and produces more precise force measurements.
You should consider using a load cell with sen wires in the following scenarios:
- When dealing with long cable runs (typically exceeding 20 meters or 65 feet)
- In applications requiring high precision measurements
- In environments with significant temperature fluctuations
- In systems where maintaining consistent excitation voltage is critical
No, sen wires are not necessary for all load cell applications. They are most beneficial in situations where high precision is required or when dealing with long cable runs and varying environmental conditions. For many standard applications with shorter cable lengths and stable environments, traditional four-wire load cells may be sufficient.

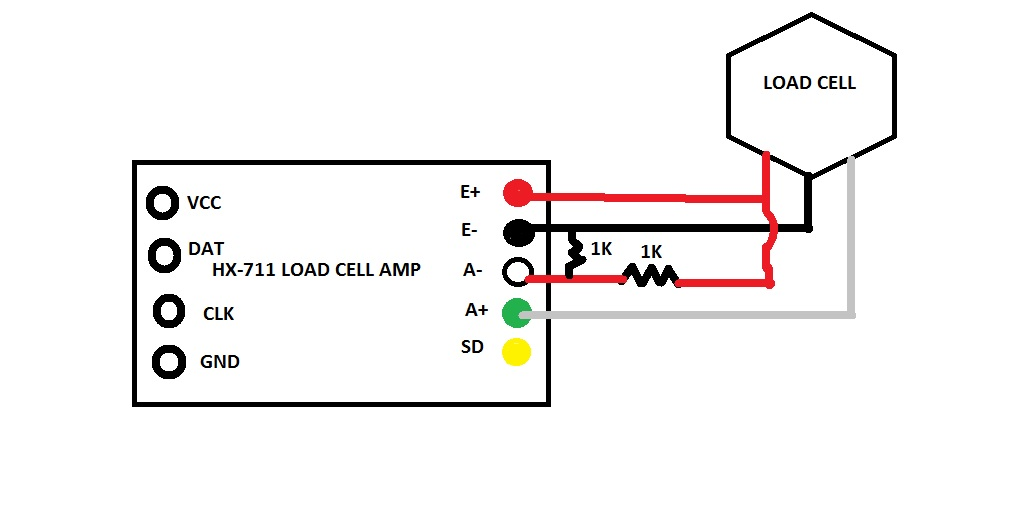

To properly connect sen wires in a load cell system:
1. Ensure your measuring instrument supports six-wire configurations
2. Match each wire to its corresponding terminal on the instrument
3. Remove any jumpers between excitation and sense terminals on the measuring instrument
4. Connect the sen (+) wire to the positive sense terminal and the sen (-) wire to the negative sense terminal
5. Calibrate the system to account for the sen wire feedback mechanism
