Load cells are essential components in various industries, from manufacturing to aerospace. They are used to measure force, weight, and pressure accurately. Choosing the right type of load cell for your specific application is crucial for obtaining precise measurements and ensuring the longevity of your equipment. In this comprehensive guide, we'll explore the different types of load cells, their characteristics, and how to select the most suitable one for your needs.
A load cell is a transducer that converts mechanical force into an electrical signal. This conversion allows for precise measurement of weight or force applied to an object. Load cells are the backbone of many weighing systems and force measurement applications.
Strain gauge load cells are the most common type used in industrial applications. They work by measuring the deformation of a metal spring element when force is applied.
- High accuracy
- Wide range of capacities
- Cost-effective
- Suitable for various environments
- Industrial scales
- Platform scales
- Tank and hopper weighing
- Force measurement in manufacturing
Hydraulic load cells use fluid pressure to measure force. When a load is applied, it causes a change in the fluid pressure, which is then measured and converted to a force reading.
- Robust and durable
- Suitable for harsh environments
- No electrical components (intrinsically safe)
- Outdoor weighing systems
- Hazardous environments
- Heavy-duty industrial applications
Pneumatic load cells use air pressure to measure force. They are similar to hydraulic load cells but use compressed air instead of fluid.
- Intrinsically safe
- Suitable for washdown environments
- No temperature sensitivity
- Food and pharmaceutical industries
- Explosive environments
- Clean room applications

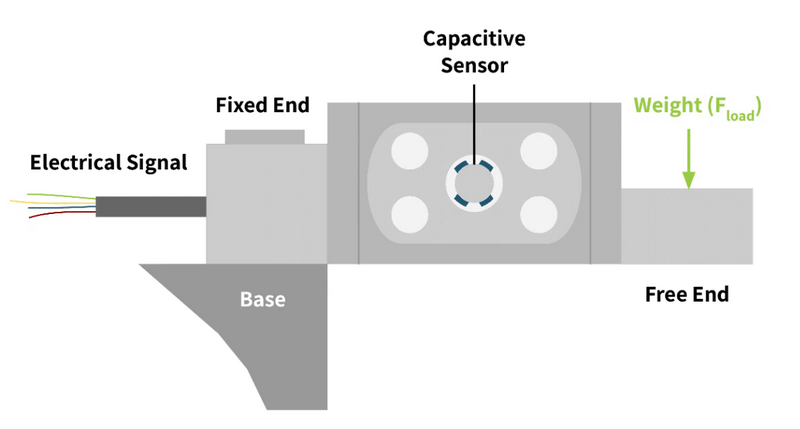

Capacitive load cells measure force by detecting changes in electrical capacitance when a load is applied.
- High accuracy
- Good long-term stability
- Resistant to overloads
- Precision scales
- Laboratory equipment
- Medical devices
Choosing the appropriate load cell depends on several factors:
Determine the maximum weight or force you need to measure. Select a load cell with a capacity that exceeds your maximum expected load by 20-30% to ensure accuracy and prevent overloading.
Consider the level of precision required for your application. High-precision applications may require strain gauge or capacitive load cells, while less critical applications can use hydraulic or pneumatic options.
Assess the conditions in which the load cell will operate:
- Temperature range
- Humidity levels
- Presence of chemicals or corrosive substances
- Potential for washdown or submersion
Consider how the load cell will be integrated into your system:
- Compression mounting
- Tension mounting
- Shear beam mounting
- S-type mounting
Determine the type of output signal required for your measurement system:
- mV/V output (most common)
- 4-20 mA
- 0-10 V
- Digital output (e.g., RS-232, RS-485)
Consider the cost of the load cell and associated equipment. While strain gauge load cells are generally more affordable, specialized load cells for harsh environments or high-precision applications may be more expensive.
Load cells are used in a wide variety of industries and applications:
Industrial scales, truck scales, and conveyor belt scales all rely on load cells for accurate weight measurement.
In manufacturing and processing plants, load cells are used to monitor and control material flow, mixing ratios, and batch processing.
Load cells are crucial in testing the structural integrity of aircraft components and automotive parts.
Precision load cells are used in medical devices such as patient lifts, hospital beds, and rehabilitation equipment.
Load cells are used in grain silos, livestock scales, and fertilizer dispensing systems.
To ensure the longevity and accuracy of your load cells:
1. Regularly inspect for physical damage or corrosion
2. Keep the load cell clean and free from debris
3. Avoid overloading or shock loading
4. Perform periodic calibration checks
5. Maintain proper wiring and connections
The field of load cell technology is continuously evolving:
1. Wireless load cells for easier installation and data collection
2. Smart load cells with built-in diagnostics and self-calibration features
3. Integration with IoT platforms for real-time monitoring and predictive maintenance
4. Miniaturization for use in smaller devices and wearable technology
5. Advanced materials for improved durability and performance in extreme conditions
Selecting the right type of load cell is crucial for accurate force and weight measurement in various applications. By considering factors such as capacity, accuracy, environment, mounting options, output signal, and budget, you can choose the most suitable load cell for your specific needs. Whether you opt for a strain gauge, hydraulic, pneumatic, or capacitive load cell, proper installation, maintenance, and calibration will ensure reliable performance and longevity.
As technology advances, load cells will continue to play a vital role in industrial processes, scientific research, and everyday applications. By staying informed about the latest developments in load cell technology, you can make informed decisions and optimize your force measurement systems for maximum efficiency and accuracy.
To determine the appropriate load cell capacity, consider the maximum weight or force you expect to measure and add a safety factor of 20-30%. For example, if your maximum expected load is 1000 kg, choose a load cell with a capacity of at least 1200-1300 kg. This ensures accuracy and prevents overloading, which can damage the load cell.
A single-point load cell system uses one load cell to measure the entire load, typically in smaller scales or platforms. A multi-point system uses multiple load cells distributed across the weighing surface, usually in larger scales or complex weighing systems. Single-point systems are simpler and more cost-effective for smaller applications, while multi-point systems provide better accuracy and stability for larger or irregularly shaped loads.
The frequency of load cell calibration depends on various factors, including usage, environmental conditions, and regulatory requirements. As a general guideline:
- For critical applications: Calibrate every 3-6 months
- For standard industrial use: Calibrate annually
- For less critical applications: Calibrate every 12-18 months
Always follow manufacturer recommendations and industry-specific regulations for calibration intervals.
Yes, load cells can be used in hazardous environments, but you must choose the appropriate type. Hydraulic and pneumatic load cells are intrinsically safe and suitable for explosive or flammable environments. For electrical load cells, look for models with intrinsically safe certifications (e.g., ATEX, IECEx) or use them in conjunction with safety barriers. Always consult with the manufacturer and follow local safety regulations when selecting load cells for hazardous areas.
Digital load cells offer several advantages over traditional analog load cells:
- Improved noise immunity: Digital signals are less susceptible to electromagnetic interference
- Higher resolution: Digital load cells can provide more precise measurements
- Easier integration: Direct connection to digital systems without the need for A/D converters
- Built-in diagnostics: Many digital load cells offer self-monitoring and error-detection features
- Simplified calibration: Digital load cells often allow for easier and more accurate calibration processes
However, digital load cells are generally more expensive and may require specialized equipment or software for setup and operation.
