Modal testing is a crucial technique in engineering that helps in understanding the dynamic behavior of structures. This method often employs modal hammers equipped with piezo load cells to generate and measure impulse forces. The integration of piezoelectric technology enhances the accuracy and efficiency of these tests. This article explores the reasons behind the use of piezo load cells in modal hammers, their advantages, and their applications in various fields.

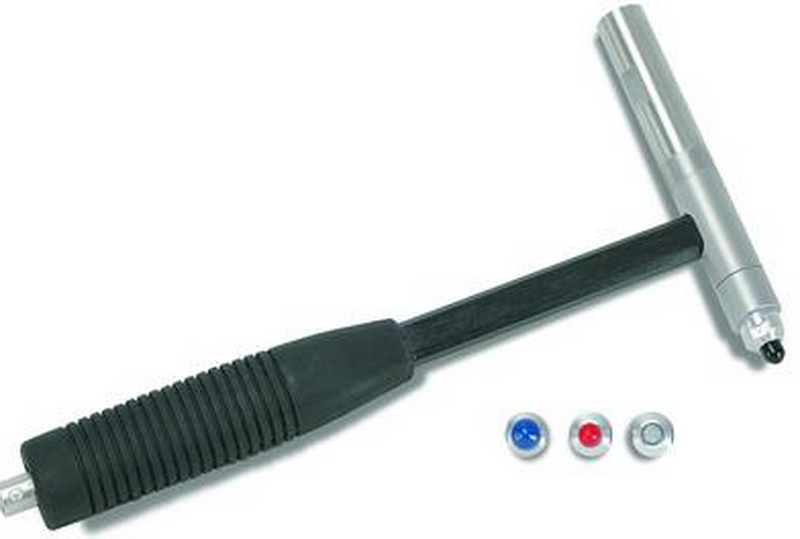

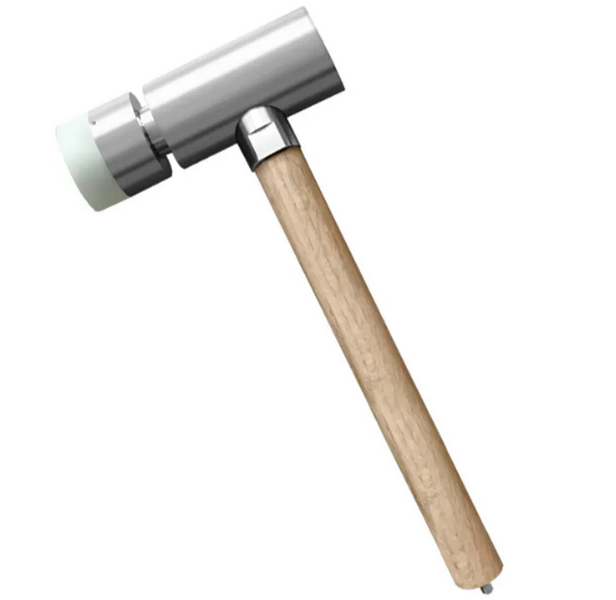

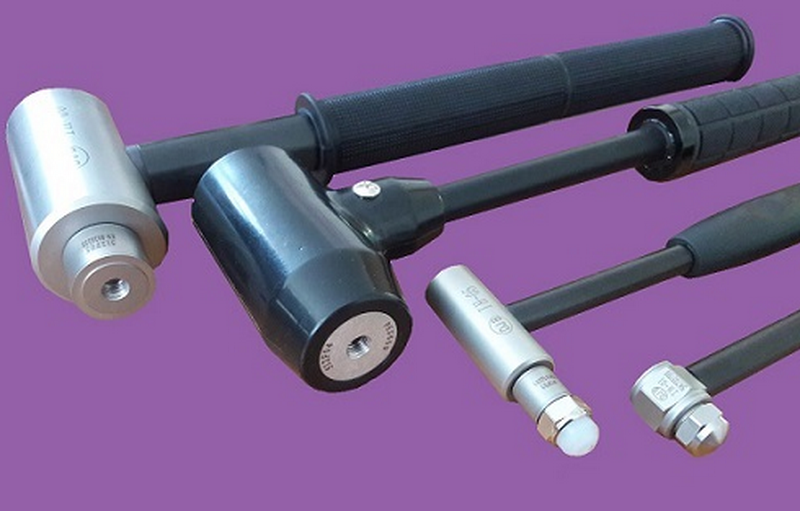

Modal hammers are specialized tools used to apply a controlled impact force to a structure. This impact generates vibrations that can be analyzed to determine the modal properties of the structure, such as natural frequencies, damping ratios, and mode shapes.
- Hammer Body: The main structure that houses the internal components.
- Striking Tip: The part that makes contact with the test specimen.
- Piezo Load Cell: A sensor integrated into the hammer that measures the force of the impact.
- Accelerometers: Devices used to measure the response of the structure to the applied force.
Piezo load cells are essential for measuring dynamic forces accurately. They operate on the principle of piezoelectricity, where certain materials generate an electrical charge in response to mechanical stress.
- High Sensitivity: Piezo load cells can detect minute changes in force, making them ideal for precise measurements in modal testing.
- Wide Frequency Range: They are capable of measuring forces over a broad frequency spectrum, which is crucial for capturing the dynamic response of structures.
- Compact Size: Their small form factor allows for easy integration into various devices without adding significant weight or bulk.
- Robustness: Piezo load cells are durable and can withstand harsh testing environments, ensuring reliable performance over time.
When a modal hammer strikes a structure, it generates an impulse force that excites the structure's natural frequencies. The piezo load cell measures this force and sends data to an acquisition system where it is analyzed alongside data from accelerometers placed on the structure.
The piezo load cell records the amplitude and frequency content of the applied force. This information is critical for:
- Resonance Detection: Identifying specific frequencies at which a structure vibrates naturally.
- Modal Analysis: Understanding how a structure behaves under various conditions and loads.
Modal testing is widely used across different industries due to its effectiveness in assessing structural integrity and performance.
In aerospace applications, modal testing is employed to ensure that components can withstand dynamic loads during flight. Engineers use modal hammers to test wings, fuselages, and other critical structures.
For instance, during the design phase of an aircraft wing, engineers apply modal testing to identify any potential resonance issues that could lead to structural failure during flight. By analyzing how different materials respond to dynamic loads, they can optimize designs for safety and performance.
Automotive engineers utilize modal testing to analyze vehicle components for durability and performance under stress. This helps in optimizing designs for safety and efficiency.
In automotive applications, modal hammers are often used to test parts such as chassis components, suspension systems, and engine mounts. By understanding how these parts behave under dynamic conditions—such as acceleration, braking, and cornering—engineers can improve vehicle handling and comfort while ensuring compliance with safety standards.
In civil engineering, modal testing assesses the health of bridges and buildings. By understanding how these structures respond to dynamic loads, engineers can identify potential issues before they become critical.
For example, after an earthquake or significant weather event, engineers may use modal hammers to evaluate bridges for any changes in their structural integrity. By measuring shifts in natural frequencies or damping characteristics, they can make informed decisions about necessary repairs or reinforcements.
Manufacturers use modal testing to improve product designs by analyzing how different materials and shapes respond to impacts and vibrations during operation.
In manufacturing settings, modal hammers help evaluate machinery components such as motors or pumps. By ensuring these parts can withstand operational stresses without excessive vibration or wear, manufacturers can enhance product longevity and reliability.
As technology advances, so do the methods employed in modal testing. New techniques enhance data acquisition and analysis capabilities:
Digital signal processing techniques allow for more sophisticated analysis of data collected during modal tests. By using algorithms that filter noise and enhance signal quality, engineers can obtain clearer insights into a structure's dynamic behavior.
Finite Element Analysis complements modal testing by providing simulations based on physical models. Engineers can compare experimental results from modal tests with FEA predictions to validate their designs or identify discrepancies that may indicate design flaws or unexpected behavior.
Modal testing is often integrated with non-destructive testing methods to provide a comprehensive assessment of structural integrity without causing damage. Techniques like ultrasonic testing or thermography can be combined with modal analysis for enhanced evaluation capabilities.
Despite its advantages, modal testing also poses certain challenges:
- Environmental Factors: External factors such as temperature changes or vibrations from nearby machinery can affect measurements. Engineers must account for these variables when conducting tests.
- Complex Structures: Analyzing complex geometries or composite materials can complicate data interpretation due to multiple modes interacting simultaneously.
- Calibration Needs: Ensuring that piezo load cells are properly calibrated is crucial for accurate measurements; any deviation could lead to erroneous results.
Looking ahead, several trends are shaping the future of modal testing:
- Integration with IoT: The Internet of Things (IoT) enables real-time monitoring of structures using embedded sensors linked to data analytics platforms. This integration allows for continuous assessment rather than periodic testing.
- Machine Learning Applications: Machine learning algorithms can analyze vast amounts of data collected from modal tests to identify patterns or predict failures before they occur.
- Increased Automation: Automating data collection and analysis processes will streamline modal testing procedures, making them more efficient and less prone to human error.
The integration of piezo load cells into modal hammers significantly enhances their functionality and accuracy in measuring dynamic forces during modal testing. Their high sensitivity, robustness, and ability to operate over a wide frequency range make them indispensable tools in various engineering fields. As technology advances, we can expect further improvements in modal testing methods leading to even more reliable assessments of structural integrity.
A modal hammer is a specialized tool used to apply controlled impact forces on structures for dynamic analysis.
A piezo load cell generates an electrical charge when subjected to mechanical stress, allowing it to measure force accurately.
Modal testing helps engineers understand how structures behave under dynamic loads, ensuring safety and reliability.
Modal hammers are used in aerospace, automotive, civil engineering, and manufacturing industries for structural analysis.
Common applications include resonance detection, durability testing of automotive parts, health monitoring of bridges, and optimization of product designs in manufacturing.
