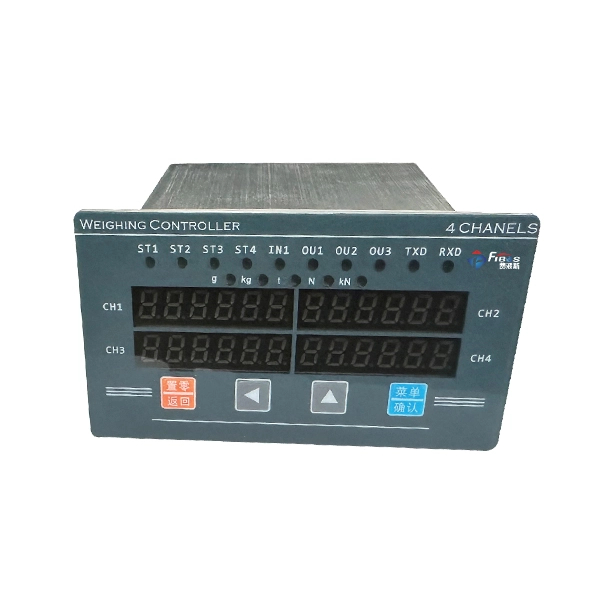

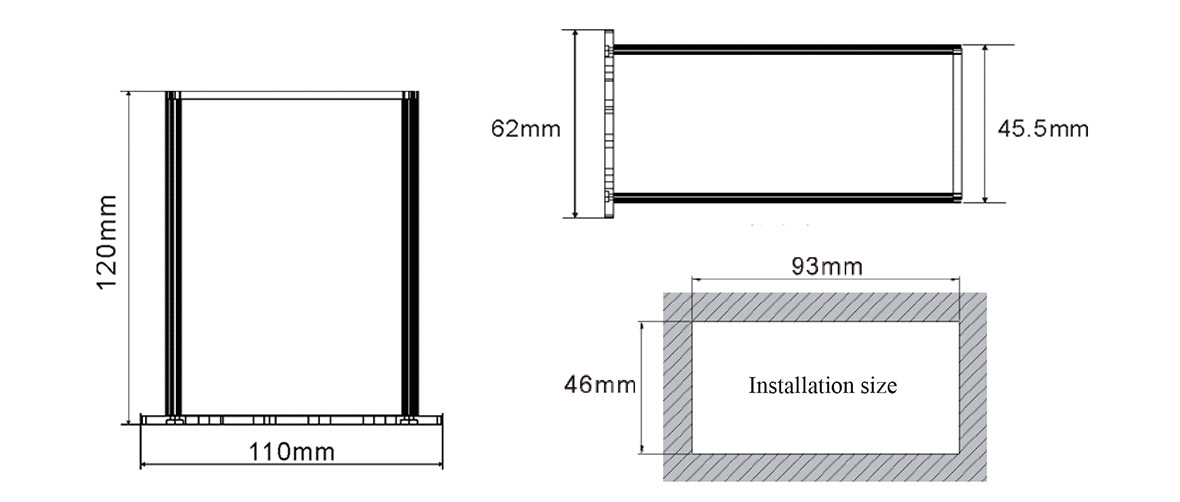

| Dimensions（Unit：mm） |

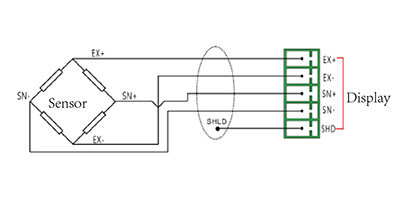

| Function Feature | Wiring |
▶ With 3/4 load cell input ports, suitable for 3-axis force measurement occasion. ▶ Support RS485&RS232, standard Modbus-RTU, mODBUS-TCP optional. ▶ I/O with 1 in 3 out (transistor) ▶ Each laod cell has one channel analog output, max it can support 4 channels analog output at same time. (No analog output while using network digital signal) ▶ Power supply: DC24V±5V |  |
| Specifications |
Specifications | Technique |
Screen | 4 channels 6-bit LED display |
Scale Interval | 1,2,5,10,20,50 |
Max Display Range | 999999 |
| Decimal Places | 0,0.0,0.00,0.0000,0.00000 |
Static Accuracy | Resolution 900000 |
Max Signal Input Range | -30mV~+30mV(-6mV/V~+6mV/V) |
Temp. Effect(for load cell) | ≤0.05uV(@0.02mV/V) |
Temp. Coeffcient%F.S.(for load cell) | ≤10ppm/℃ |
Input Resistance | ≥20MΩ |
Non-Linearity Error | ≤0.002%FS |
A/D | 3200t/s |
Temp. Effect(for display) | ≤10μ V/℃ |
| Temp. Coefficient%F.S.(for display) | ≤0.02%FS/°C |
| Sensor Type | 3 Strain Gauge Load Cell |
| Excitation Voltage | DC5V, MAX 4 pcs of 350Ω load cells can be connected in parallel |
| Switch Input | Total 4 Channels Transistor Output: DC 24V, 0.5A Total 2 Channels Transistor Input(NpN) |
| Analog Input | Max 4 Channels Analog Output (±10V/4~20mA Optional) |
| Switch Input Voltage | DC24V |
| Switch Input Current | 4-6mA |
| Power Supply | DC24V(±5V) |
| Power Consumption | ≤10W |
| Working Temp. | -10℃~50℃ |
| Humidity Range | ≤90% Relative Humidity(no condensate water) |
| Installation |
| Delivery Configurations |
