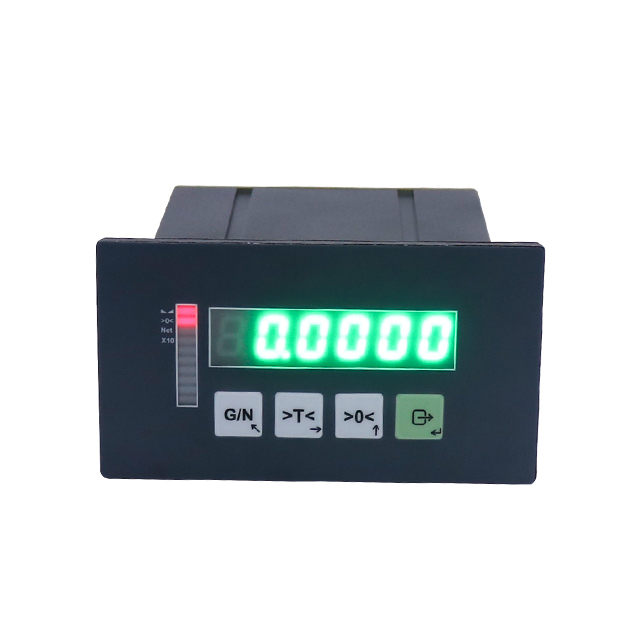

FA42
FIBOS
Analogue display instrument Function Feature |
Fully isolated design, with the power supply, sensors, serial port and option boards mutually isolated
Calibration without weights, suitable for complex weighing conditions
Built-in applications include upper and lower limit control, checkweighing, preset points, and peak capture comparison
Measurement, analysis and control functions can be added according to customer requirements
Expansion boards are available with optional analogue interfaces, PN interfaces, network communication interfaces and DP interfaces

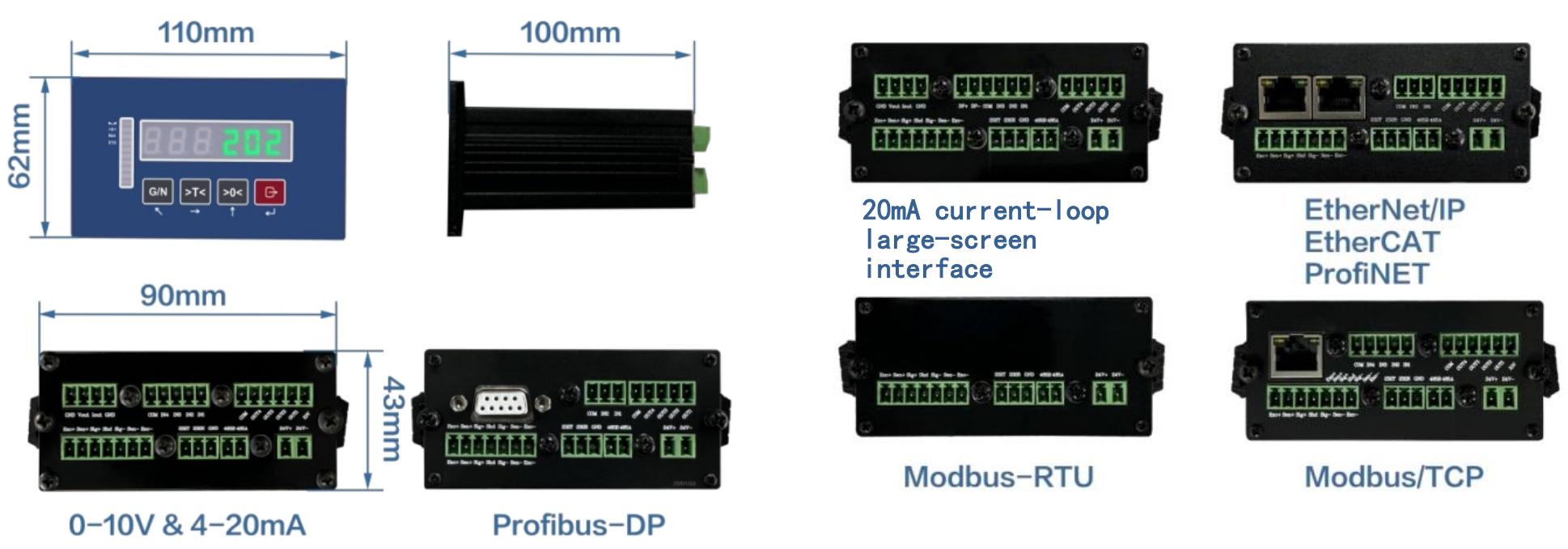

Analogue display instrument Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
Analogue display instrument Specifications |
Specifications | Technique |
| Overall Accuracy | 0.01 % |
| Verification Division Count | 10000e |
| Measurement Sensitivity | ≥0.5uvle |
| Minimum Sensitivity | 0.02uV/e |
| Measurement Signal Range | ±2.0mV/V |
| Maximum Signal Input Range | ±5.0mV/V |
| Bridge Circuit Power Supply | 5±1%VDC |
| Range | Section 2 |
| Linear Calibration | Section 5 |
| Measurement Rate | 200;100;50;2510t/s |
| Digital Filter Cutoff Frequency | 10;...0.3 Hz |
| Communication Interface | RS232 or RS485 |
| Operating Power Supply Voltage | 16~32VDC |
| Operating Temperature Range | -30...+65°C |
| Measurement resolution of the rated input signal | 1:1000000 |
Load Cell Styling Suggestions |
 |
Force sensor manufacturing process |
Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: It is a high-precision industrial weighing & control instrument for checkweighing, force monitoring, and process control in harsh industrial environments.
A: 0.01% overall accuracy, 1:1,000,000 resolution, and up to 2510 measurements/sec for both static and dynamic high-speed applications.
A: Yes. It features full galvanic isolation for strong anti-interference, a wide -30~+65℃ operating temperature, and 16-32V DC wide voltage input.
A: No. It supports code-free calibration, eliminating the need for standard weights and adapting to complex on-site conditions easily.
A: Standard RS232/RS485, with optional expansion for Modbus-RTU/TCP, Profibus-DP, EtherNet/IP, EtherCAT, ProfiNET, and more.
A: Optional analog outputs (0-10V / 4-20mA), plus expandable digital/network interfaces for flexible system integration.
A: Pre-installed with upper/lower limit judgment, checkweighing, preset point, peak capture, and other process control programs.
A: Yes. It supports custom measurement, analysis, and control functions to meet personalized industrial application needs.
