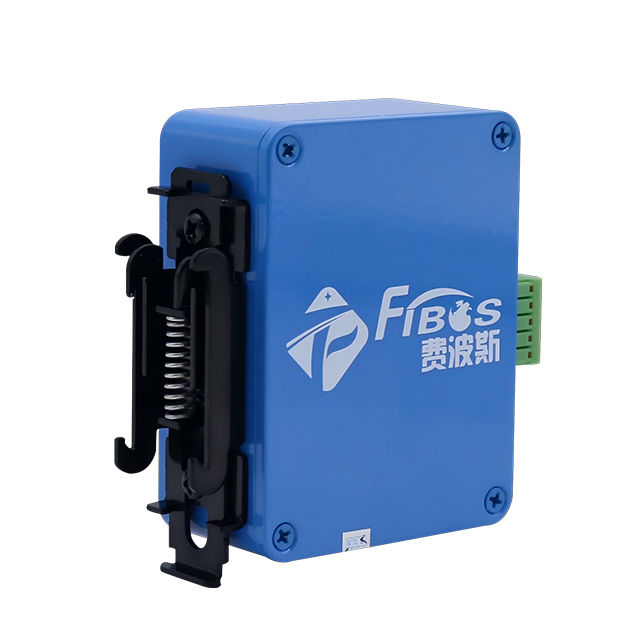

FA49
FIBOS
Route 1
65x85x35mm
Aluminium alloy

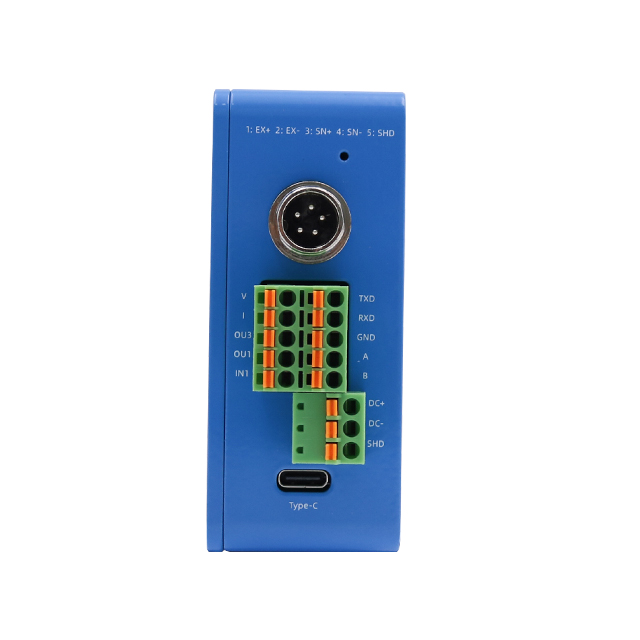

Communication amplifier Function Feature |
Features both RS232 and RS485 communication interfaces;

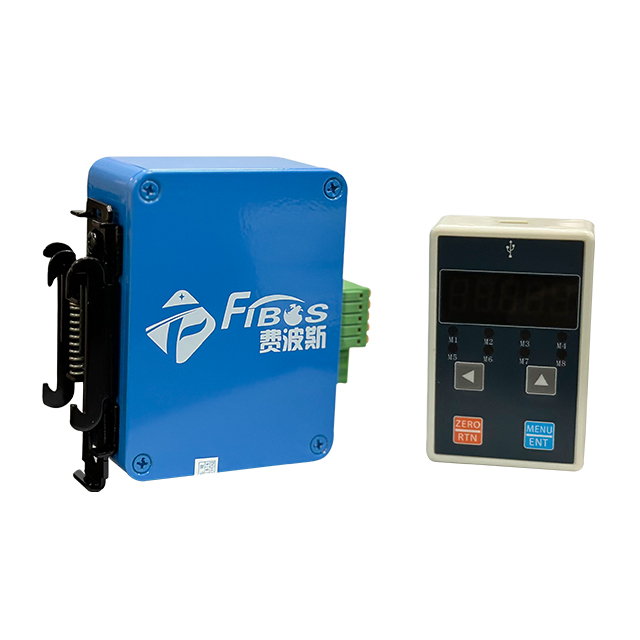

Supports calibration and parameter setting via an external handheld control panel;
Features an aluminium alloy housing, providing excellent resistance to interference;
Supports the Modbus-RTU protocol;
Utilises a proven filtering algorithm to ensure high accuracy;
Conversion speed of up to 1280 Hz;
Comes standard with analogue outputs (±10 V and 4–20 mA) and I/O (1 input, 2 outputs)

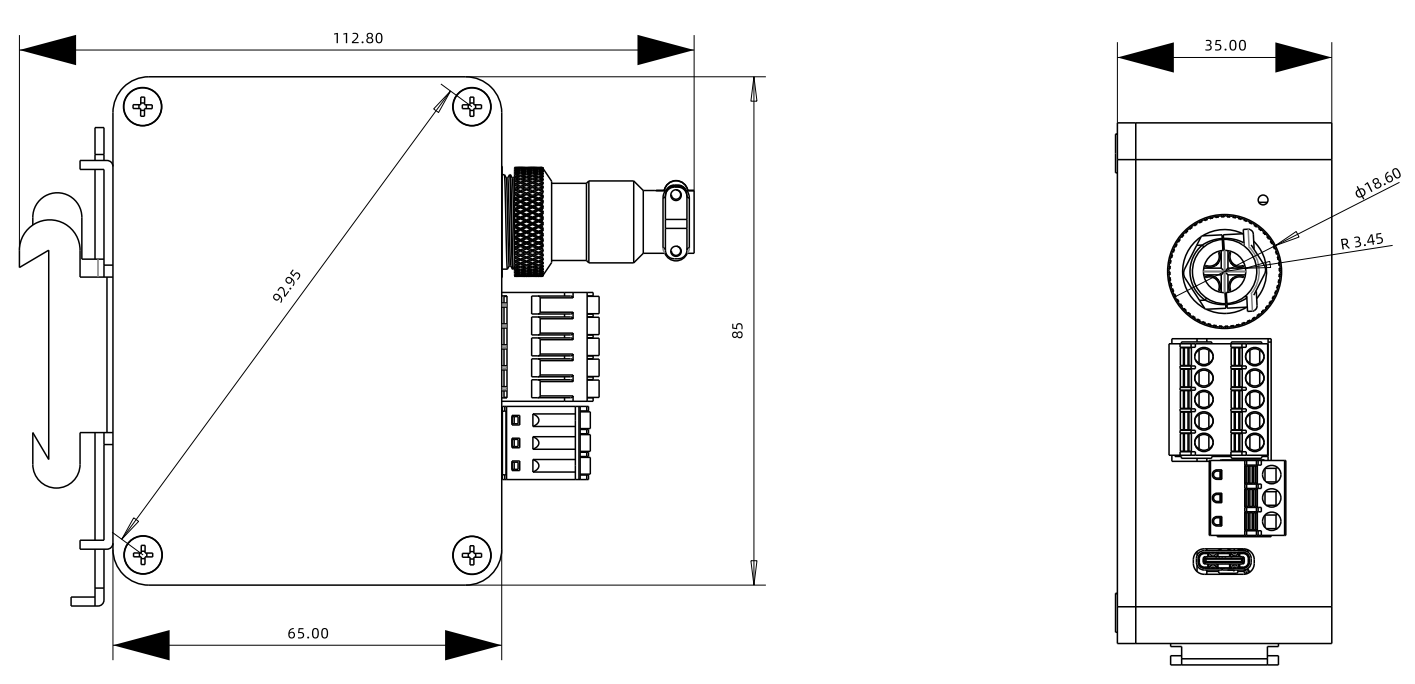

Communication amplifier Dimensions（Unit:mm） |
Communication amplifier Specifications |
Specifications | Technique |
| Number of AD channels | Channel 1 |
| A/D resolution | 24bit-Delta-Sigma |
| A/D conversion speed | 1280 Hz (adjustable to 10 Hz, 40 Hz, 640 Hz) |
| Supply voltage | DC18-30V |
| Sensor signal range | ±3.6mVN |
| Sensor excitation voltage | 5VDC±1%,100mA |
| Sensorinput load | 1–4 x 350 Ω sensors per channel |
| Input sensitivity | 0.4mV/V~6mV/V |
| Output linear | 1/90000 |
| Output linearity | <0.002% |
| Overall accuracy | Better than 0.01% |
| Analogue output resolution | 16bit |
| Analogue output | +10V,4-20mA |
| Input ports | 1 input |
| Output ports | 2 outputs (transistor) |
| Full-scale temperature drift | ≤10ppm/°C |
| Zero-point temperature drift | ≤10uv°C |
| Total power consumption | ≤10w |
| Communication method | RS232、RS485 |
| Communication protocol | Modbus-RTU |
| Baud rate | 4800, 9600, 19200 (default), 38400, 57600, 115200 |
| Dimension | 65x85x35mm |
| Operating temperature range | -20~70°C |
| Housing material | Aluminium alloy |
