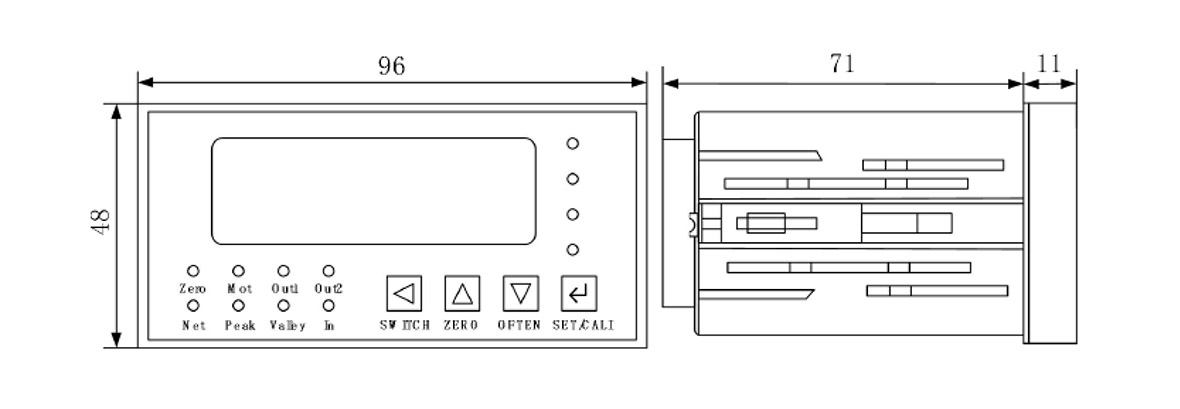

| Dimensions（Unit：mm） |

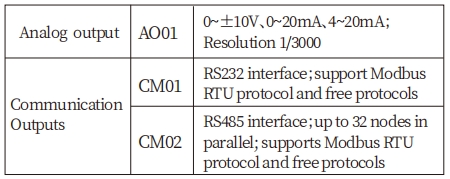

| Function Feature | Optional Specifications |
| ▶ Can be displayed on a 5-digit or 6-digit digital display ▶ Can add RS232, RS485 or choose one of three analog output options ▶ The switch quantity can be selected from transistors or relays ▶ Peak valley value measurement, upper and lower limit alarm |  |
| Specifications |
Specifications | Technique |
Input Range | 0.4~6mV/V |
Display | Single row 5 seats, single row 6 seats |
Display Accuracy | 1/10000 |
| Sensor Excitation Voltage | 5VDC±2%, 100mA(up to 6 350Ωsensors ) |
Power Supply | DC: 9V-30V |
Acquisition Frequency | ≥100-5000HZ |
Operation Temp. Range | -30~60℃ |
A/D Performance | 24seats, Delta-Sigma method |
Output Rate | 10,40,640,1280 t/s |
Interface | RS485+RS232/RS485+ AnalogOutput(0~±10V/0~±5V/0~20mA/4~20mA) (The Output mode can be RS232+RS485 or rs485+Analog output) |
Withstand Voltage | 1 minute at 2000V AC50/60Hz |
Surrounding Environmen | Operating temperature: -10~55℃; Storage temperature: -25~65℃ Operating humidity:35~85%RH; Storage humidity: 35~85%RH |
| Switching Value | 2-point relay output, 250VAC/3A resistive load, 3-point transistor output, 24V/1A load capacity, 1-channel input |
| Installation |
| Delivery Configurations |
