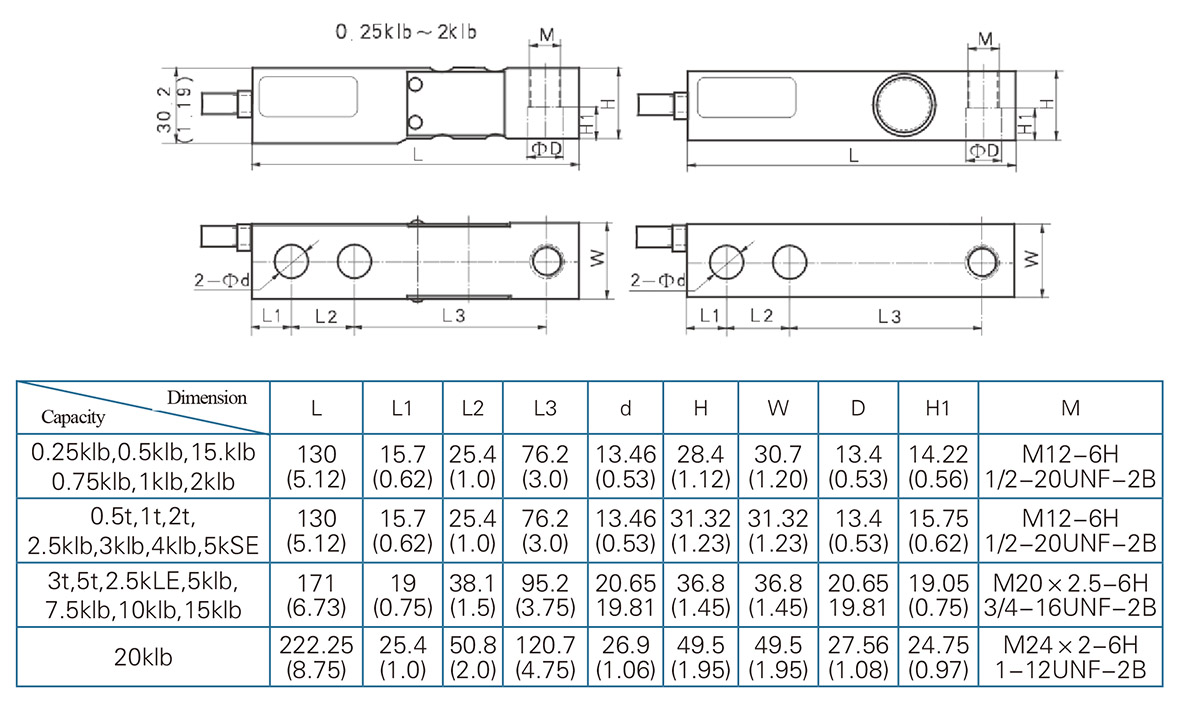

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

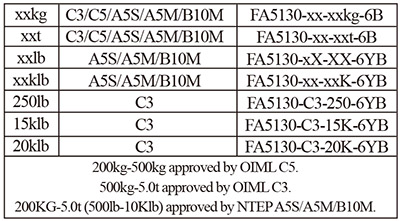

| Load Direction | Recommended selection model |
 |
|

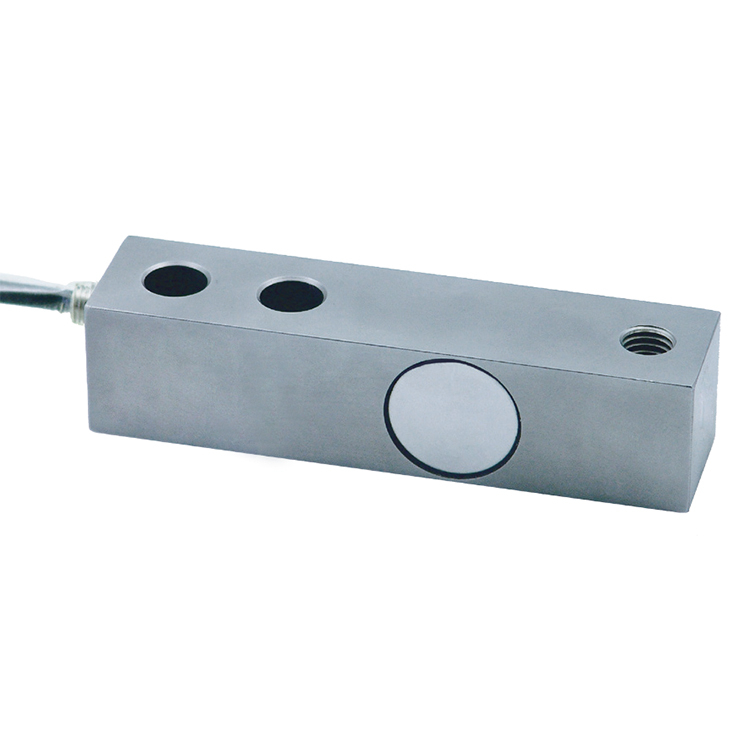

▶ Stainless steel IP67 shear beam load cell (250kg is bending beam load cells) ▶ Suitable for floor scales, automobile test facilities, hopper scales and other weighing devices. ▶ Current calibrated (sc-option) | |
| Specifications |
| Specfications | Technique | ||||
| Maximum capacity (Emax) | 0.5/1/2/5t;0.25/0.5/0.75/1/1.5/2/2.5KLE/3/4/5/5KSE/7.5/10/15/20klb | ||||
| Accuracy class | C3 | C5 | A5S | B10M | A5M |
| Approvals | OIML R60 C3 | OIML R60 C5 | |||
| Maximum number of load cell intervals(nLC) | 3000nmax | 5000nmax | III 5000 Single | IIIL 10000 Multiple | IIII 5000 Multiple |
| Ratio of minimum LC verification interval Y=Emax / Vmin | Emax/1000V min | Emax/18000Vmin | Emax/15000Vmin | Emax/10000Vmin | Emax/15000Vmin |
| Combined error | ≤±0.02%FS | ≤±0.01%FS | ≤±0.018%FS | ≤±0.050%FS | ≤±0.026%FS |
| Creep | ≤±0.016%FS/30min | ≤±0.012%FS/30min | ≤±0.012%FS/30min | ≤±0.040%FS/30min | ≤±0.017%FS/30min |
| Temperature effect on sensitivity | ≤±0.011%FS/10℃ | ≤±0.007%FS/10℃ | ≤±0.009%FS/10℃ | ≤±0.040%FS/10℃ | ≤±0.013%FS/10℃ |
| Temperature effect on zero | ≤±0.015%FS/10℃ | ≤±0.014%FS/10℃ | ≤±0.01%FS/10℃ | ≤±0.020%FS/10℃ | ≤±0.014%FS/10℃ |
| Output sensitivity (=FS) | 3.0 ± 0.008mV/V | ||||
| Input resistance | 350 ± 3.5Ω | ||||
| Output resistance | 350 ± 3.5Ω | ||||
| Insulation resistance | ≥ 5000MΩ(50VDC) | ||||
| Zero balance | ±1.0%FS | ||||
| Compensated temperature | -10~+40℃ | ||||
| Operating temperature | -35~+70℃ | ||||
| Excitation, recommended voltage | 5 ~ 12V(DC) | ||||
| Excitation maximum | 18V(DC) | ||||
| Safe overload | 150%FS | ||||
| Ultimate overload | 300%FS | ||||
| ATEX Classification(optional) | II1G Ex ia II1C T4/II1D Ex iaD20 T73℃/II3G Ex nL II C T4 | ||||

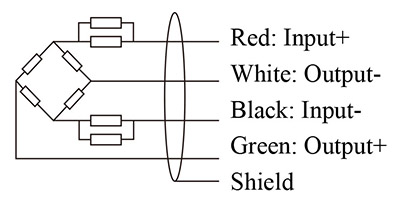

| Wiring | Red: Input+, Green: Output+, Transparent: Shield, Black:Input-,White: Output- | ||||
| Cable diameter: Φ5mm; Shielded, 4conductor cable;Standard cable length: 6m | |||||

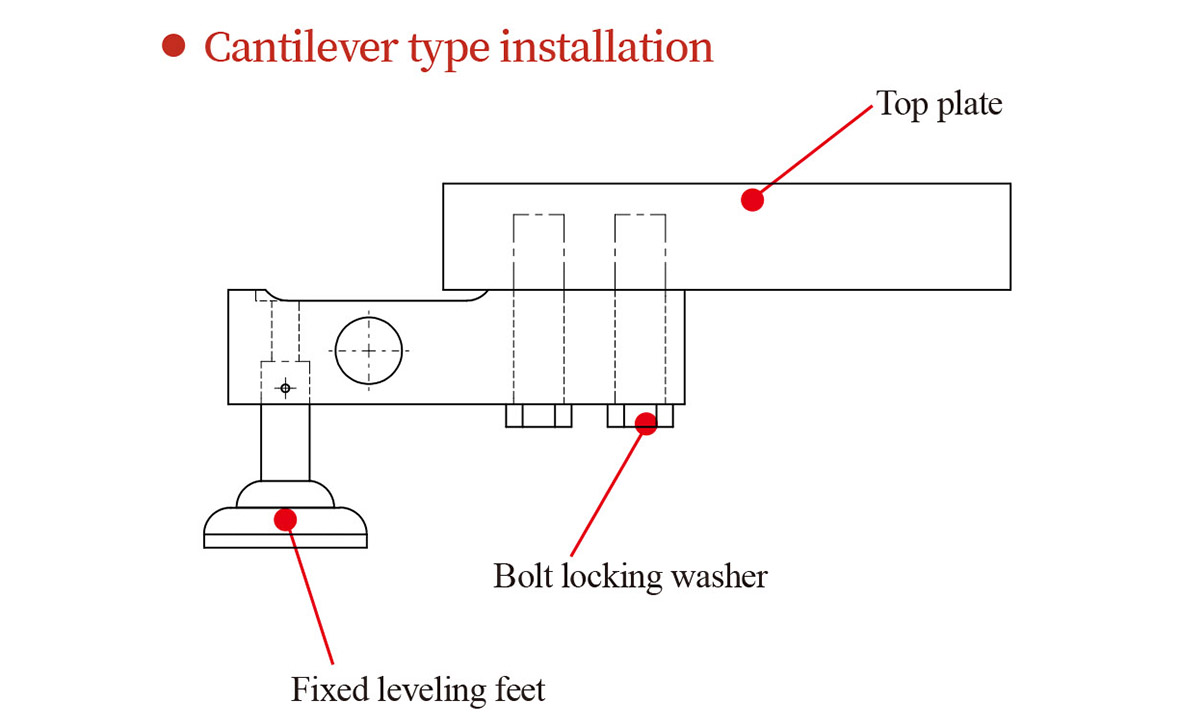

| Installation |
| Delivery Configurations |
