Load cells are essential components in various measurement systems, widely used in industrial applications, weighing scales, and force measurement devices. They convert mechanical force into an electrical signal, allowing for precise measurements of weight or force. Understanding how to connect and calibrate load cells is crucial for ensuring accurate readings and optimal performance. This article will provide a comprehensive guide on load cell connection diagrams, wiring configurations, calibration processes, and troubleshooting common issues.

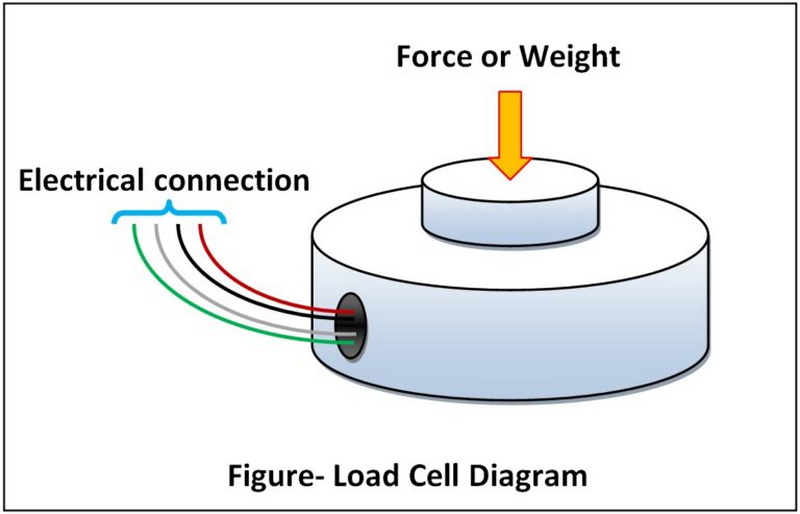

Load cells are transducers that convert a force applied to them into an electrical signal. They operate based on the principle of strain gauges, which change their electrical resistance when deformed. Load cells come in various types, including:
- Tension Load Cells: Designed to measure pulling forces.
- Compression Load Cells: Used for measuring pushing forces.
- Shear Beam Load Cells: Commonly used in industrial scales and platforms.
Each type of load cell has its specific applications and advantages, making it essential to choose the right one for your needs.
When connecting load cells, understanding the wiring configurations is vital. The most common configurations include:

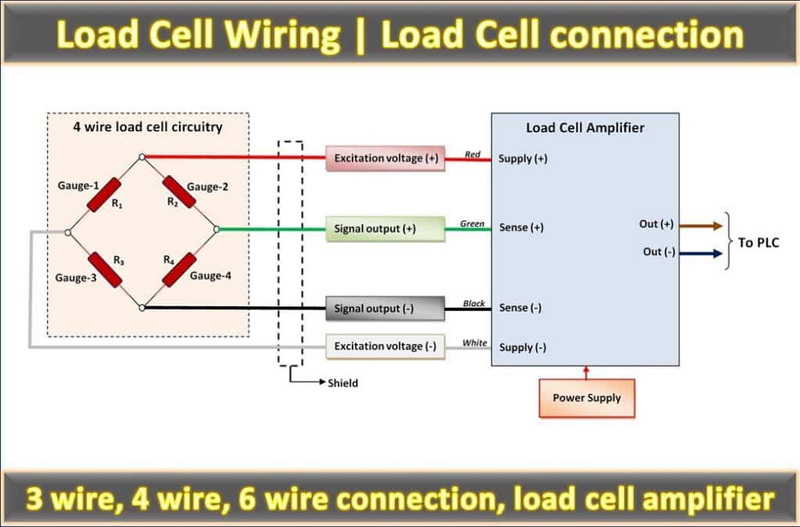

- 4-Wire Configuration: This is the most widely used configuration, consisting of two wires for the excitation voltage and two for the signal output. It helps minimize the effects of lead resistance, ensuring accurate measurements.

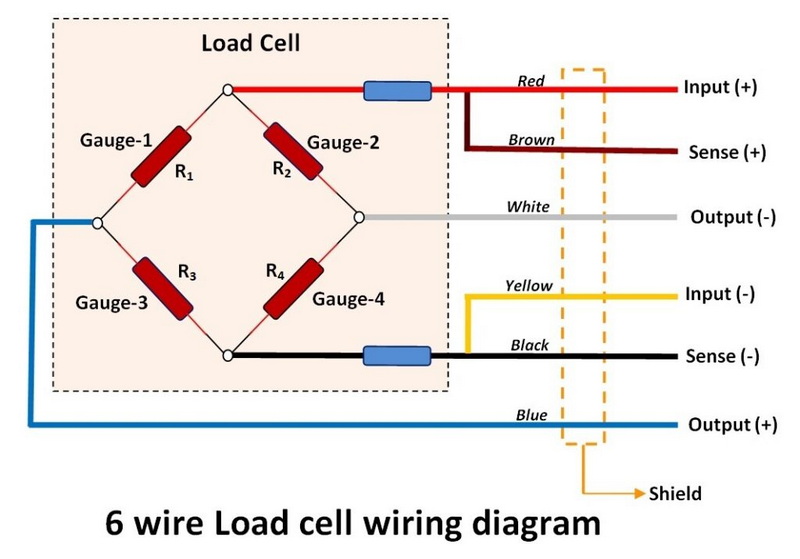

- 6-Wire Configuration: This configuration includes two additional wires for sensing the voltage drop across the load cell. It provides even greater accuracy by compensating for any resistance in the lead wires.

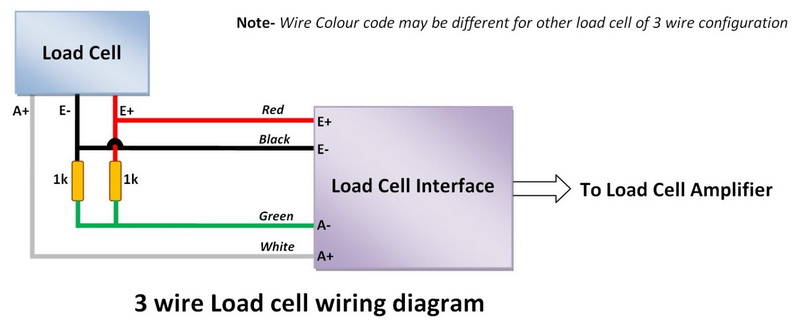

- 3-Wire Configuration: Less common, this configuration is typically used in low-cost applications. It is simpler but can be less accurate due to the potential for lead resistance affecting the measurements.
Connecting a load cell involves several steps to ensure proper functionality. Here's a detailed guide:
1. Gather Necessary Tools and Materials: You will need a load cell, a signal conditioner or amplifier, wiring tools, and a multimeter for testing.
2. Identify Wire Colors: Load cells typically have standard wire color codes. Commonly, the wires are color-coded as follows:
- Red: Excitation (+)
- Black: Excitation (-)
- Green: Signal (+)
- White: Signal (-)
3. Connect the Wires: Following the wiring diagram, connect the load cell wires to the corresponding terminals on the signal conditioner. Ensure that the connections are secure to prevent any signal loss.
4. Test the Connections: Use a multimeter to check the continuity of the connections. This step ensures that there are no breaks in the wiring.
5. Power Up the System: Once the connections are verified, power up the signal conditioner. Check for any error messages or indicators that may suggest a wiring issue.
6. Calibrate the Load Cell: Calibration is essential for accurate measurements. Follow the calibration process outlined in the next section.
Calibration is the process of adjusting the load cell output to ensure that it accurately reflects the applied force. Here's how to calibrate a load cell effectively:
1. Prepare Calibration Weights: Obtain known weights that will be used for calibration. These weights should cover the range of measurements you expect to take.
2. Zero the Load Cell: Before applying any weights, ensure that the load cell reads zero. This step is crucial for accurate calibration.
3. Apply Known Weights: Gradually apply the known weights to the load cell, starting from the lowest weight and moving to the highest. Record the output signal for each weight.
4. Create a Calibration Curve: Plot the known weights against the output signals to create a calibration curve. This curve will help you understand the relationship between the applied force and the output signal.
5. Adjust the Signal Conditioner: If necessary, adjust the settings on the signal conditioner to match the calibration curve. This adjustment ensures that the load cell provides accurate readings.
6. Recheck Zero: After calibration, recheck the zero reading to ensure that the load cell is still calibrated correctly.
For a visual representation of the calibration process, you can refer to this instructional video that demonstrates the steps involved in connecting and calibrating a load cell.
Even with proper installation and calibration, issues may arise with load cells. Here are some common problems and their solutions:
- Inconsistent Readings: If the load cell provides inconsistent readings, check the wiring connections for any loose or damaged wires. Ensure that the load cell is properly mounted and not subject to vibrations.
- Zero Drift: If the load cell does not read zero when no load is applied, it may require recalibration. Ensure that the load cell is not subjected to any external forces during the zeroing process.
- Overload Conditions: If the load cell is overloaded, it may become damaged. Always ensure that the load applied does not exceed the load cell's rated capacity.
- Signal Noise: Electrical noise can affect the load cell's output. Use shielded cables and proper grounding techniques to minimize interference.
- Temperature Effects: Load cells can be sensitive to temperature changes. If measurements vary significantly with temperature, consider using temperature compensation techniques.
Connecting and calibrating a load cell is a critical process that ensures accurate measurements in various applications. By understanding the wiring configurations, following proper connection procedures, and performing regular calibrations, you can maintain the performance of your load cell system. Troubleshooting common issues will further enhance the reliability of your measurements.
Tension load cells measure pulling forces, while compression load cells measure pushing forces. The choice between them depends on the application requirements.
Calibration frequency depends on usage and environmental conditions. It is recommended to calibrate load cells at least once a year or after significant changes in the setup.
Yes, but ensure that the load cell is rated for outdoor use and protected from environmental factors such as moisture and extreme temperatures.
Check the wiring connections, ensure the signal conditioner is powered, and verify that the load cell is not overloaded. If issues persist, consult the manufacturer.
To improve accuracy, ensure proper installation, regular calibration, and use of high-quality components. Additionally, minimize environmental factors that could affect readings.
