Load cells are crucial components in various industries, from manufacturing and logistics to agriculture and healthcare. These precision instruments are designed to convert force into measurable electrical signals, enabling accurate weight and force measurements. However, to ensure their reliability and accuracy, it's essential to know how to check a load cell properly. This comprehensive guide will walk you through the methods, tools, and best practices for load cell testing, troubleshooting, and maintenance.

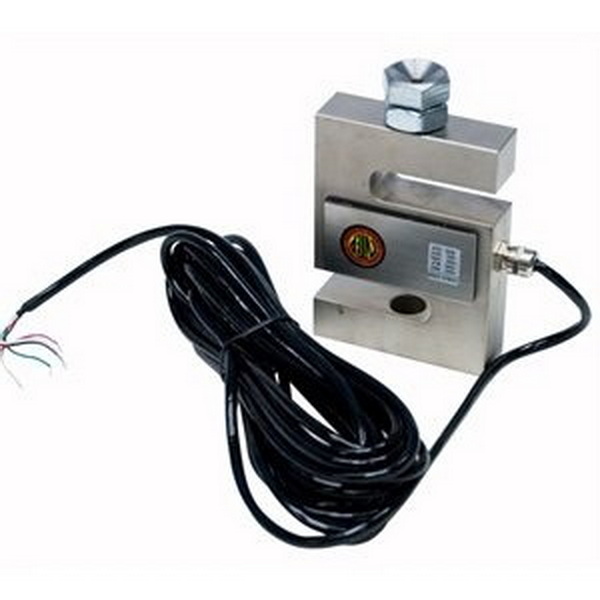

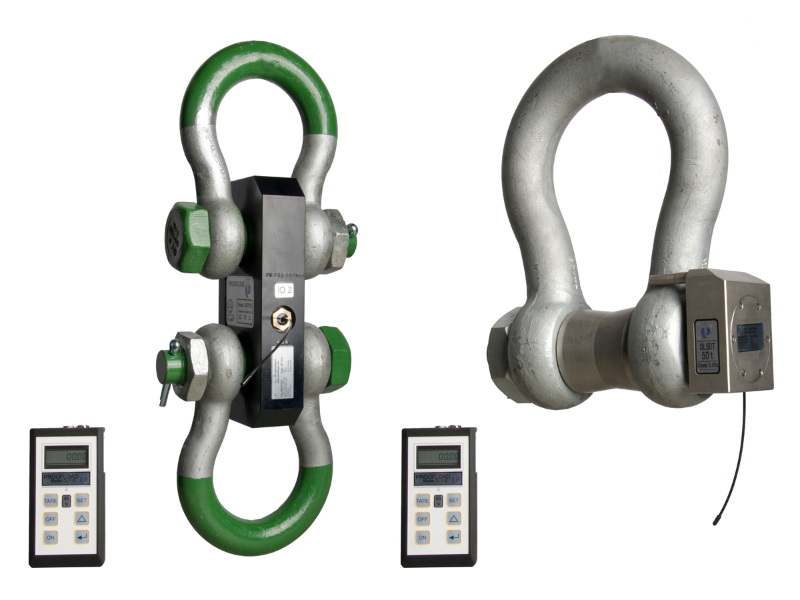

Before diving into the testing procedures, it's important to understand what a load cell is and how it works. A load cell is a transducer that converts force into an electrical signal. It typically consists of a metal body with strain gauges attached. When force is applied, the metal body deforms slightly, causing the strain gauges to change resistance. This change is then converted into an electrical signal proportional to the applied force.
To effectively check a load cell, you'll need some specific tools:
1. Digital Multimeter: A high-quality digital multimeter is essential for measuring resistance, voltage, and current in load cells.
2. Calibration Weights: These are used to apply known forces during testing and calibration.
3. Insulation Tester: This tool helps measure the insulation resistance between the load cell body and its wiring.
4. Load Cell Simulator: Useful for troubleshooting issues in the weighing system without disconnecting the load cell.
5. Oscilloscope: Helpful for visualizing signal output and detecting interference.
Before conducting any electrical tests, always start with a thorough visual inspection:
- Check for visible signs of damage, corrosion, or wear.
- Inspect cables and connectors for cuts, frays, or loose connections.
- Ensure the load cell is properly mounted and aligned.
- Look for any debris or foreign objects that might interfere with the load cell's operation.
The zero balance test checks the load cell's output when no force is applied:
1. Connect the load cell to a digital multimeter set to measure millivolts (mV).
2. Ensure no force is applied to the load cell.
3. Record the output voltage.
4. Compare this reading to the manufacturer's specifications.
A significant deviation from the expected zero balance could indicate damage or calibration issues.
This test measures the internal resistance of the load cell:
1. Set your multimeter to measure resistance (ohms).
2. Measure the resistance between the excitation leads (input).
3. Measure the resistance between the signal leads (output).
4. Compare these values to the manufacturer's specifications.
Incorrect resistance values may indicate internal damage or wiring issues.
This test checks for moisture ingress or internal short circuits:
1. Use an insulation tester set to 50V DC.
2. Connect one lead to the load cell body and the other to all the wires shorted together.
3. Measure the resistance.
4. A reading below 5000 megohms may indicate moisture ingress or insulation breakdown.
Shunt calibration simulates a load on the cell:
1. Connect a precision resistor (shunt) across the negative excitation and negative signal leads.
2. Apply the recommended excitation voltage.
3. Measure the output signal.
4. Compare the reading to the expected value provided by the manufacturer.
This test helps verify the load cell's sensitivity and linearity.
Proper calibration is crucial for accurate load cell performance:
1. Zero Calibration: Adjust the system to read zero when no load is applied.
2. Span Calibration: Apply a known weight and adjust the system to display the correct value.
3. Linearity Calibration: Check and adjust the load cell's response across its entire range.
4. Temperature Compensation: Calibrate the load cell at different temperatures to account for thermal effects.
Regular calibration helps maintain accuracy and detect potential issues early.
Even with proper maintenance, load cells can experience various issues. Here are some common problems and their solutions:
- Cause: Temperature fluctuations, moisture, or loose connections.
- Solution: Check for environmental factors, ensure proper sealing, and verify all connections.
- Cause: Overloading, physical damage, or improper installation.
- Solution: Inspect for damage, verify installation, and recalibrate if necessary.
- Cause: Residual stress, temperature changes, or mounting issues.
- Solution: Allow for proper warm-up, check mounting, and consider re-zeroing the system.
- Cause: Overloading, fatigue, or electrical issues.
- Solution: Check for signs of overloading, verify excitation voltage, and consider replacement if necessary.
- Cause: Electromagnetic interference, ground loops, or poor shielding.
- Solution: Improve shielding, check grounding, and isolate the load cell from noise sources.
Proper installation is crucial for optimal load cell performance:
1. Prepare a stable, level mounting surface.
2. Ensure proper alignment and orientation of the load cell.
3. Use appropriate hardware and torque specifications.
4. Implement proper cable management to prevent strain and damage.
5. Protect the load cell from environmental factors like moisture and temperature extremes.
6. Allow for thermal expansion and contraction in the mounting design.
7. Implement overload protection mechanisms.
Signal interference can significantly impact load cell accuracy. Here are some prevention strategies:
1. Use shielded cables and proper grounding techniques.
2. Keep load cell wiring separate from power cables.
3. Implement digital filtering in the signal processing.
4. Use signal amplifiers close to the load cell to boost signal strength.
5. Consider using digital load cells for improved noise immunity.
6. Regularly inspect and maintain cable connections and shielding.
Regular maintenance is key to ensuring long-term load cell performance:
1. Establish a routine inspection schedule.
2. Clean the load cell and surrounding area regularly.
3. Check for signs of corrosion, moisture ingress, or physical damage.
4. Verify cable integrity and connection quality.
5. Perform periodic calibration checks.
6. Keep detailed records of maintenance activities and calibration results.
7. Train operators on proper handling and use of load cell equipment.

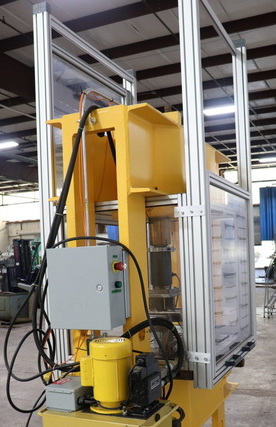

For more in-depth analysis, consider these advanced testing methods:
1. Creep Test: Apply a constant load and monitor output over time to check for stability.
2. Hysteresis Test: Measure output during loading and unloading to check for consistency.
3. Repeatability Test: Apply the same load multiple times to verify consistent readings.
4. Environmental Testing: Subject the load cell to various temperatures and humidity levels to assess performance.
5. Fatigue Testing: Apply cyclic loading to evaluate long-term durability.
Selecting the appropriate load cell is crucial for accurate measurements:
1. Consider the required capacity and precision.
2. Evaluate environmental factors like temperature, moisture, and vibration.
3. Determine the appropriate load cell type (e.g., compression, tension, shear).
4. Consider the physical size and mounting requirements.
5. Evaluate the need for special features like hermetic sealing or explosion-proof design.
6. Consider the compatibility with existing equipment and data acquisition systems.
The field of load cell technology is continuously evolving:

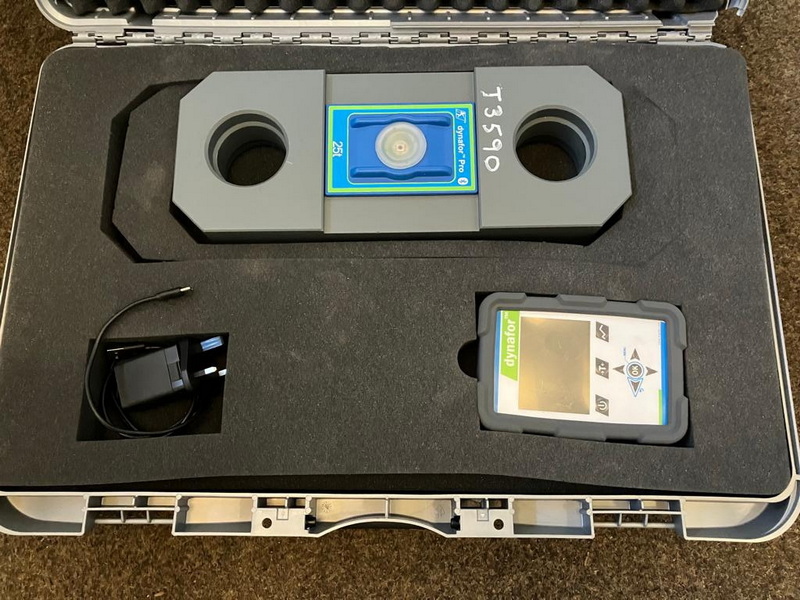

1. Wireless Load Cells: Eliminating the need for complex wiring and reducing installation costs.
2. Smart Load Cells: Incorporating built-in diagnostics and data processing capabilities.
3. Fiber Optic Load Cells: Offering improved performance in harsh environments and high EMI areas.
4. Nanotechnology: Enabling the development of smaller, more sensitive load cells.
5. AI and Machine Learning: Enhancing load cell data analysis and predictive maintenance.
Knowing how to check a load cell is essential for maintaining accurate and reliable weight measurement systems. By following the methods, tools, and best practices outlined in this guide, you can ensure your load cells perform optimally and detect potential issues before they lead to significant problems. Regular testing, proper maintenance, and a good understanding of load cell technology will help you maximize the lifespan and accuracy of your load cell equipment.
A1: The frequency of calibration depends on various factors, including usage, environmental conditions, and industry regulations. Generally, it's recommended to calibrate load cells at least once a year. However, for critical applications or harsh environments, more frequent calibration may be necessary.
A2: While some tests require disconnecting the load cell, others can be performed in-situ. For example, you can perform visual inspections and basic output checks without disconnecting the load cell. However, for more comprehensive testing, it's often necessary to isolate the load cell from the system.
A3: If a load cell fails a test, first verify that the test was conducted correctly and that all connections are secure. If the issue persists, consult the manufacturer's documentation for troubleshooting steps. In some cases, recalibration may resolve the issue. If the load cell is damaged or severely out of specification, replacement may be necessary.
A4: To protect load cells from environmental factors, consider using hermetically sealed load cells for moisture protection, implementing temperature compensation techniques, using protective covers or enclosures, and ensuring proper grounding and shielding to minimize electromagnetic interference.
A5: A strain gauge is a component used within a load cell. The strain gauge measures the deformation of the load cell's body when force is applied. The load cell, as a complete unit, includes the strain gauges, the metal body, and often additional components like amplifiers or temperature compensation circuits. In essence, a load cell uses strain gauges to convert force into an electrical signal.
