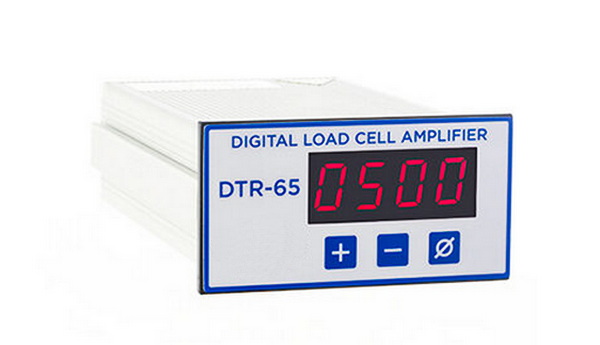

A tension load cell is a transducer that measures pulling forces and converts them into an electrical signal. These load cells are commonly used in various applications, such as suspended weighing systems, crane scales, and force measurement setups[6]. A digital readout, also known as a load cell indicator, interprets the electrical signals from the load cell and displays the corresponding weight or force measurements in a digital format[2]. This article provides a comprehensive guide on how to connect a tension load cell to a digital readout, ensuring accurate and reliable measurements.
Tension load cells are designed to measure forces pulling on them. Unlike compression load cells, which measure forces pushing on them, tension load cells are ideal for applications where objects are suspended or lifted. These load cells typically feature a threaded hole or hook for easy attachment to the load[6].
Key Features of Tension Load Cells:
- Measurement of Pulling Forces: Specifically designed to measure tension or pulling forces.
- Versatile Applications: Used in suspended weighing, crane scales, and force measurement setups.
- Threaded Holes or Hooks: Designed for easy attachment to loads.
- Durable Construction: Typically made from stainless steel to withstand harsh environments[6].
Before connecting a tension load cell to a digital readout, gather all the necessary components. Here's a list of what you'll need:
1. Tension Load Cell: The transducer that converts force into an electrical signal.
2. Digital Readout: The device that displays the weight or force measurements[2].
3. Load Cell Cable: The cable used to connect the load cell to the digital readout.
4. Power Supply: Provides power to the digital readout and sometimes to the load cell[1].
5. Wiring Diagram: The manufacturer's diagram for both the load cell and the digital readout.
6. Screwdrivers and Wrenches: For secure mechanical and electrical connections.
7. Multimeter: For testing connections and troubleshooting[7].
Load cells come in different wiring configurations, each with its own set of connections. The most common types are 4-wire and 6-wire load cells. Understanding these configurations is crucial for proper connection[1].
A 4-wire load cell has four wires:
- Excitation+ (E+): Positive power supply.
- Excitation- (E-): Negative power supply or ground.
- Signal+ (S+): Positive output signal.
- Signal- (S-): Negative output signal[1].
A 6-wire load cell has six wires:
- Excitation+ (E+): Positive power supply.
- Excitation- (E-): Negative power supply or ground.
- Signal+ (S+): Positive output signal.
- Signal- (S-): Negative output signal.
- Sense+ (Sen+): Positive voltage feedback.
- Sense- (Sen-): Negative voltage feedback[1].
The additional sense wires in a 6-wire load cell compensate for voltage drops due to cable length and temperature variations, providing more accurate readings[1].
Follow these steps to connect a tension load cell with a digital readout:
The first step is to identify each wire from the load cell cable. Refer to the manufacturer's wiring diagram for the load cell and the digital readout. Common wire colors include red for Excitation+, black for Excitation-, green for Signal+, and white for Signal-[1].
Connect the Excitation+ (E+) wire to the positive terminal of the power source or indicator. Connect the Excitation- (E-) wire to the ground or negative terminal of the power source or indicator[1].
Connect the Signal+ (S+) wire to the positive input terminal of the indicator or data acquisition system. Connect the Signal- (S-) wire to the negative input terminal of the indicator[1].
If you are using a 6-wire load cell, connect the Sense+ (Sen+) wire to the Sense+ terminal of the indicator. Connect the Sense- (Sen-) wire to the Sense- terminal of the indicator. These sense wires allow the indicator to monitor the exact excitation voltage the load cell is receiving, compensating for voltage drops in long cables[1].
If the load cell cable has a shield, ground it on one end, usually at the indicator, to reduce electromagnetic interference. This helps to ensure stable and accurate readings[1].
Double-check that all connections are secure and match the load cell and indicator wiring diagrams. Incorrect wiring can lead to inaccurate readings or damage to the load cell or indicator[1].

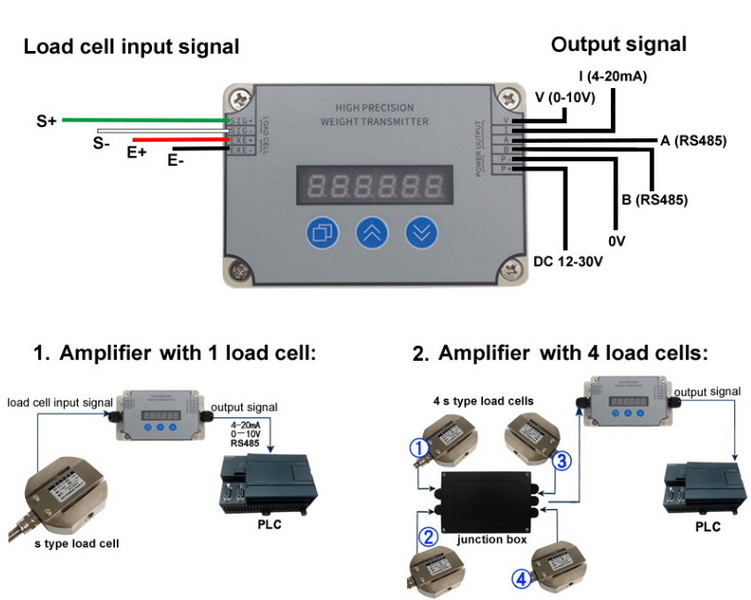

Here are example wiring diagrams for both 4-wire and 6-wire load cells connected to a digital readout.
Load Cell Digital Readout
--------- ---------------
E+ (Red) -----> Excitation+
E- (Black) -----> Excitation-
S+ (Green) -----> Signal+
S- (White) -----> Signal-
Load Cell Digital Readout
--------- ---------------
E+ (Red) -----> Excitation+
E- (Black) -----> Excitation-
S+ (Green) -----> Signal+
S- (White) -----> Signal-
Sen+ (Blue) -----> Sense+
Sen- (Yellow)-----> Sense-

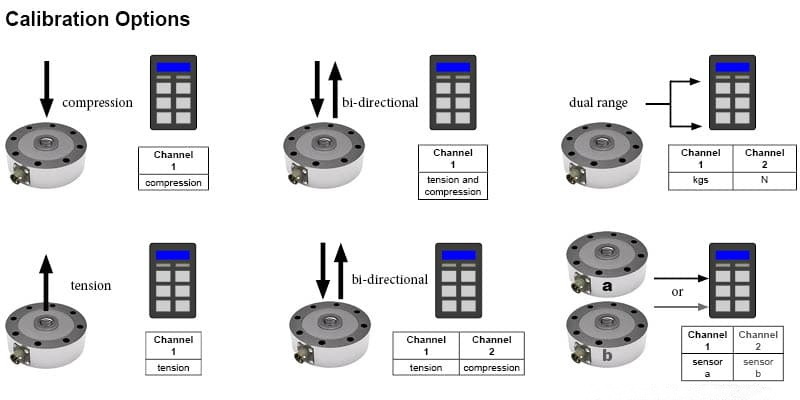

After making the physical connections, the next step is to calibrate the load cell and set up the digital readout. Calibration ensures that the measurements are accurate and reliable[4].
Turn on the digital readout and allow it to warm up for a few minutes. This ensures that the internal components reach a stable operating temperature.
Most digital readouts have a "zero" or "tare" function. Use this function to set the display to zero when there is no load on the tension load cell. This compensates for any initial offset in the load cell output[2].
Place a known weight on the tension load cell. This weight should be within the load cell's capacity and accurately measured.
Use the calibration function on the digital readout to adjust the display to match the known weight. This usually involves entering the value of the known weight and allowing the readout to adjust its internal settings[4].
Remove the known weight and ensure the display returns to zero. Then, apply different known weights to verify the accuracy of the calibration across the load cell's measurement range.
If you encounter issues with your tension load cell and digital readout, here are some common problems and solutions[3]:
1. Inaccurate Readings:
- Problem: The digital readout displays inaccurate weight or force measurements.
Solution:
- Check the wiring connections to ensure they are correct and secure[1].
- Recalibrate the load cell and digital readout[4].
- Ensure the load cell is not overloaded or damaged[7].
2. Unstable Readings:
- Problem: The readings on the digital readout fluctuate or are unstable.
Solution:
- Check for loose connections or damaged cables[1].
- Ensure the load cell is properly grounded to reduce electromagnetic interference[1].
- Verify that the load cell is not exposed to excessive vibration or mechanical stress.
3. No Readings:
- Problem: The digital readout displays no readings at all.
Solution:
- Check the power supply to the digital readout and load cell[1].
- Verify that the load cell is properly connected to the digital readout[1].
- Use a multimeter to check the excitation voltage and signal output from the load cell[7].
4. Negative Readings:
- Problem: The digital readout displays negative readings when the load cell is under tension.
Solution:
- Check the orientation of the load cell to ensure it is installed correctly[7].
- Verify the wiring connections, particularly the Signal+ and Signal- wires[1].
Check for any damage to the load cell, such as abrasions, punctures, or deformations. For new installations, ensure the load cell cable wires are securely connected to the correct terminal blocks[5].
Check the terminal resistance measurements against the load cell's specifications[5].
Check the zero balance measurement against the specifications[5]. A sudden change in the zero balance value can indicate a fault[3].
Check the stability of the mV/V reading under no-load conditions. Unstable readings may indicate loose connections or internal damage[5].
Apply gradual pressure to the load cell and verify that the mV/V reading increases. Upon releasing the pressure, the reading should return to zero[5].
Check insulation resistance measurements against the load cell's specifications[5].
A digital readout offers several advantages over traditional analog indicators[2]:
- High Precision and Accuracy: Provides real-time, accurate measurements, ensuring precise operations.
- Ease of Use: Features a user-friendly interface with clear, easy-to-understand readings.
- Durability and Reliability: Built to withstand industrial use, ensuring long-term performance in harsh environments.
- Data Storage: Capable of storing measurements for future reference, facilitating tracking and monitoring of load changes over time[2].
- Digital Output: Convenient for users to read out via digital display or indicator, easy to communicate with each load cell independently within a system[8].
- Flexibility: Offers greater flexibility to record data for log duration and control[8].
Tension load cells with digital readouts are used in a wide range of applications[2]:
- Industrial Weighing: Measuring the weight of suspended objects in manufacturing and processing plants.
- Crane Scales: Ensuring accurate and safe lifting operations in construction and logistics.
- Tension Testing: Evaluating the tensile strength of materials in research and development.
- Force Measurement: Monitoring forces in structural testing and engineering applications.
- Packaging Scales: Used in packaging scales, platform scales, electronic belt scales, and batching scales[2].
To maintain the accuracy of your tension load cell and digital readout, follow these best practices:
- Regular Calibration: Calibrate the load cell and digital readout periodically, especially after moving or servicing the equipment[4].
- Proper Handling: Avoid overloading or subjecting the load cell to shock loads, which can damage the internal strain gauges[7].
- Environmental Protection: Protect the load cell and digital readout from extreme temperatures, humidity, and corrosive substances[7].
- Routine Inspections: Regularly inspect the load cell, cables, and connections for any signs of damage or wear[5].
- Zero Balance Adjustments: Periodically check and adjust the zero balance to compensate for any drift in the load cell output[5].
Connecting a tension load cell with a digital readout involves careful wiring, proper calibration, and regular maintenance. By following the steps outlined in this guide, you can ensure accurate and reliable weight and force measurements for a variety of applications. Whether you're working in industrial weighing, crane operations, or material testing, a properly connected and calibrated tension load cell with a digital readout is essential for achieving precise and dependable results.
Answer: Common signs of a faulty load cell include inaccurate readings, unstable readings, no readings at all, or a sudden change in the zero balance[3]. Perform visual inspections, check terminal resistance, and verify mV/V stability to troubleshoot[5].
Answer: A 4-wire load cell has four wires for excitation and signal output, while a 6-wire load cell includes two additional sense wires to compensate for voltage drops due to cable length and temperature variations, providing more accurate readings[1].
Answer: Calibrate your load cell periodically, especially after moving or servicing the equipment. Regular calibration ensures accurate and reliable measurements[4].
Answer: Load cell values can fluctuate due to physical damage, environmental conditions such as temperature and moisture, cable breaks, or short circuits[7].
Answer: A zero-balance check involves measuring the output of the load cell under no-load conditions and comparing it to the manufacturer's specifications. Significant deviations indicate a potential issue[5].
