Load cells are essential components in various measurement systems, particularly in weighing applications. They convert mechanical force into an electrical signal, allowing for precise measurements. Connecting load cells in series can enhance their functionality, especially in applications requiring higher sensitivity and accuracy. This article will explore the process of connecting load cells in series, the benefits of this configuration, and how to troubleshoot common issues.

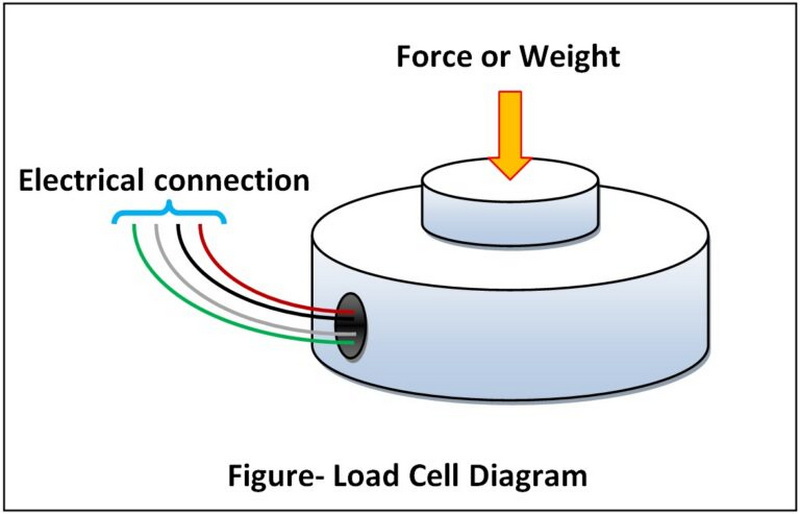

Load cells are transducers that convert force or weight into an electrical signal. They are widely used in industrial applications, including scales, force measurement systems, and material testing. There are several types of load cells, including strain gauge, hydraulic, and pneumatic load cells, each with unique characteristics and applications.
- Strain Gauge Load Cells: The most common type, utilizing strain gauges to measure deformation.
- Hydraulic Load Cells: Use fluid pressure to measure weight, suitable for heavy loads.
- Pneumatic Load Cells: Operate using air pressure, ideal for specific applications requiring non-contact measurement.
Connecting load cells in series allows for the summation of their outputs, which can be beneficial in various scenarios. This configuration is particularly useful when measuring large loads that exceed the capacity of a single load cell.
- Increased Sensitivity: The output signal can be amplified, leading to more precise measurements.
- Higher Load Capacity: Multiple load cells can handle larger weights collectively.
- Simplified Wiring: Fewer connections are needed compared to parallel configurations.
Connecting load cells in series involves a few straightforward steps. Here's a detailed guide:
1. Gather Necessary Tools and Materials:
- Load cells (ensure they are compatible).
- Load cell amplifier.
- Wiring tools (screwdriver, wire strippers, etc.).
- Multimeter for testing connections.
2. Identify Wiring Configuration:
- Load cells typically come in 4-wire or 6-wire configurations. Understanding these configurations is crucial for proper connections.
3. Wiring the Load Cells:

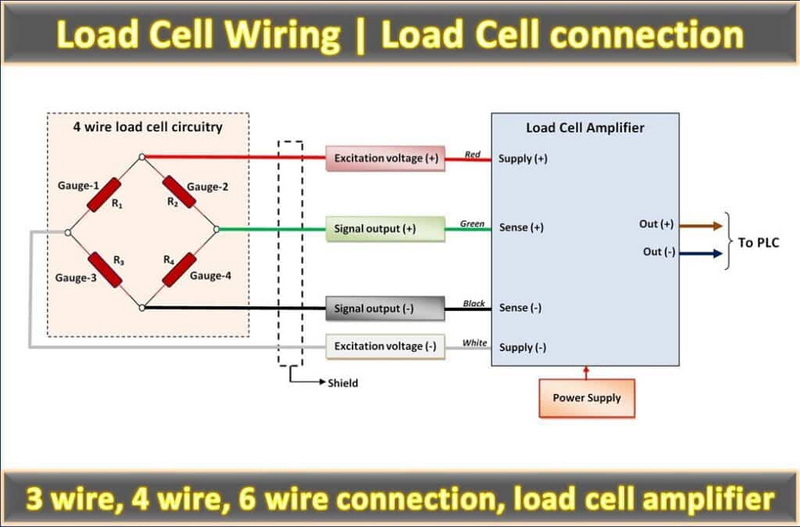

- For a 4-wire load cell:
- Connect the positive excitation wire of the first load cell to the positive excitation of the second load cell.
- Connect the negative excitation wire of the first load cell to the negative excitation of the second load cell.
- Connect the output wires accordingly.

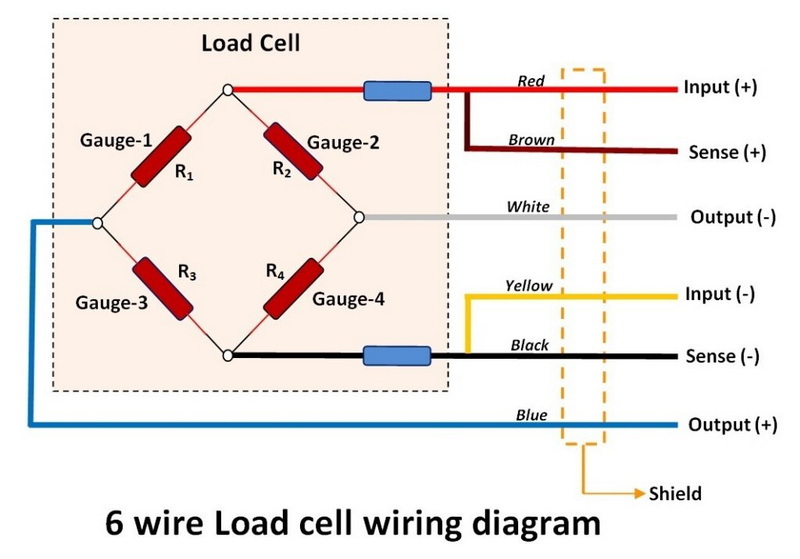

- For a 6-wire load cell:
- Use the additional sense wires to improve accuracy by compensating for voltage drops.
4. Connect to the Load Cell Amplifier:
- The combined output from the load cells should be connected to a load cell amplifier, which will process the signal for further use.
- 4-Wire Configuration: Most common, suitable for general applications.
- 6-Wire Configuration: Provides better accuracy by compensating for resistance in the wires.
Once the load cells are connected, the next step is signal processing. The load cell amplifier plays a crucial role in this process, converting the small electrical signals from the load cells into a usable format.
Load cell amplifiers enhance the signal strength, making it easier to read and interpret. They also help filter out noise, ensuring that the measurements are accurate and reliable.
Calibration is essential for ensuring that the load cells provide accurate measurements. Here's how to calibrate load cells connected in series:
1. Set Up Calibration Weights: Use known weights to test the load cells.
2. Apply Weights Sequentially: Start with the lowest weight and gradually increase.
3. Adjust the Output: Use the amplifier's settings to adjust the output until it matches the known weights.
4. Repeat for Accuracy: Perform the calibration multiple times to ensure consistency.
Even with proper connections, issues can arise. Here are some common problems and their solutions:
- Inconsistent Readings: This may indicate poor connections or faulty load cells.
- Signal Noise: Check for interference from nearby electrical devices.
- Calibration Drift: Regularly recalibrate to maintain accuracy.
- Check Connections: Ensure all wires are securely connected and free from damage.
- Use Shielded Cables: This can help reduce electrical noise.
- Regular Maintenance: Periodically check and recalibrate the system.
Connecting load cells in series is a powerful method to enhance measurement capabilities in various applications. By understanding the wiring configurations, signal processing, and calibration processes, users can ensure accurate and reliable measurements. Proper troubleshooting techniques can further enhance the performance of load cell systems.
Series connections sum the outputs of multiple load cells, increasing sensitivity and load capacity, while parallel connections allow for individual load measurements.
Regularly test with known weights and adjust the output until it matches the expected values.
It is generally recommended to use the same type of load cells in series to ensure consistent performance.
Basic wiring tools such as screwdrivers, wire strippers, and a multimeter for testing connections.
Check connections, use shielded cables to reduce noise, and perform regular maintenance and recalibration.
