In the world of industrial automation and process control, the integration of load cells with Programmable Logic Controllers (PLCs) plays a crucial role in weight measurement applications. This comprehensive guide will walk you through the process of connecting load cells to PLCs, covering everything from basic wiring to advanced troubleshooting techniques. Whether you're a seasoned engineer or a newcomer to the field, this article will provide valuable insights into load cell PLC integration, ensuring accurate and reliable weight measurements in your industrial applications.
Before diving into the connection process, it's essential to understand the basic components involved:
Load cells are transducers that convert mechanical force into electrical signals. They are widely used in various industries for weight measurement and force sensing applications. Load cells come in different types, including strain gauge, hydraulic, and pneumatic, with strain gauge load cells being the most common in industrial settings.
PLCs are digital computers used for automation of industrial processes. They are designed to handle multiple inputs and outputs, making them ideal for controlling and monitoring various aspects of manufacturing and process control systems. PLCs can process signals from load cells and use this data to control other parts of the system or provide weight information to operators.
Before beginning the integration process, ensure you have the following components:
1. Load cell(s)
2. Load cell amplifier or weight transmitter
3. PLC with analog input module
4. Connecting cables
5. Power supply

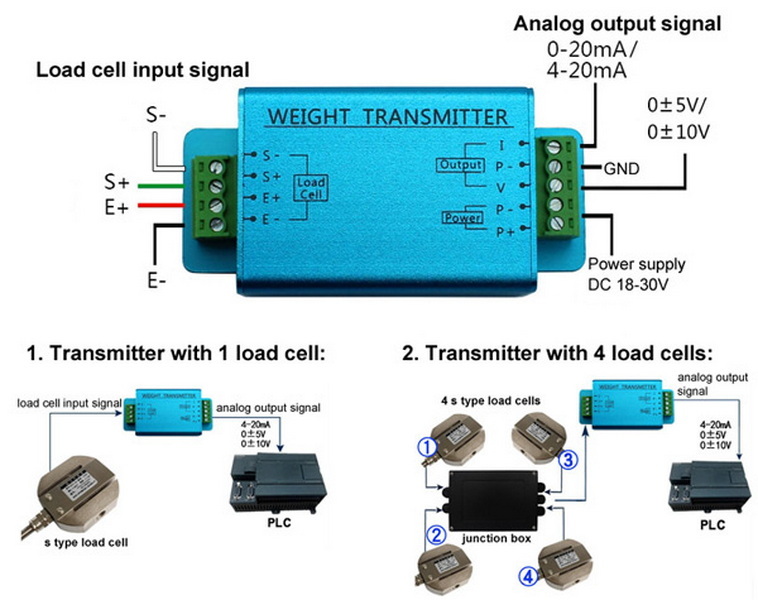

Proper wiring is crucial for accurate weight measurements. Follow these steps to wire your load cell to the PLC:
1. Connect the load cell to the amplifier or weight transmitter.
2. Wire the amplifier's output to the PLC's analog input module.
3. Ensure proper power supply connections to all components.
Load cell signals are typically very small (in the millivolt range) and need to be amplified and conditioned before being sent to the PLC. This is where the load cell amplifier or weight transmitter comes into play. These devices perform several important functions:
1. Amplification of the load cell signal
2. Filtering out noise and interference
3. Converting the signal to a standard industrial format (e.g., 4-20mA or 0-10V)
Once the hardware connections are in place, you need to configure the PLC to properly interpret the load cell signals:
1. Set up the analog input module to match the output of your weight transmitter (e.g., 4-20mA or 0-10V).
2. Configure the PLC's scaling parameters to convert the analog signal into meaningful weight units.
3. Implement any necessary filtering or averaging in the PLC program to stabilize readings.
Proper calibration is essential for accurate weight measurements. Here are some common calibration techniques:
This method involves using two known weights to establish the relationship between the load cell output and the actual weight:
1. Zero point: Record the output with no weight applied.
2. Span point: Apply a known weight (ideally close to the maximum capacity) and record the output.
3. Use these two points to calculate the calibration factors in your PLC program.
For applications requiring higher accuracy, multi-point calibration can be used:
1. Take measurements at multiple known weights across the load cell's range.
2. Use these points to create a calibration curve, which can be implemented in the PLC for more accurate readings across the entire range.
This method simulates a weight by connecting a precision resistor across one arm of the load cell's bridge circuit:
1. Record the normal zero reading.
2. Apply the shunt resistor and record the new reading.
3. Use this information to verify or adjust the calibration factors in your system.
Even with careful installation and calibration, issues can arise. Here are some common problems and their solutions:
- Check for loose connections in the wiring.
- Verify proper grounding and shielding of cables.
- Ensure the load cell is properly mounted and not subject to vibration.
- Verify that the load cell is not overloaded or damaged.
- Check for mechanical interference or binding in the weighing system.
- Consider using multi-point calibration for improved accuracy.
- Check for temperature fluctuations affecting the load cell.
- Verify the stability of the power supply.
- Implement auto-zero routines in the PLC program to compensate for minor drifts.
When setting up an industrial weighing system using load cells and PLCs, consider the following factors:
- Protect load cells and electronics from moisture, dust, and extreme temperatures.
- Use appropriate enclosures and cable glands to maintain IP ratings.
- Ensure your system meets relevant industry standards (e.g., OIML, NTEP for legal-for-trade applications).
- Implement safety interlocks and emergency stop functions in the PLC program.
- Plan for integration with other systems, such as HMIs, SCADA, or ERP systems.
- Consider implementing data logging and reporting functions in the PLC program.
Load cell and PLC integrations are used in various industries and applications, including:
1. Batch processing and recipe management
2. Inventory control and silo monitoring
3. Conveyor belt weighing systems
4. Vehicle weighing and axle load monitoring
5. Tension control in web handling applications
Modern load cell amplifiers offer various configuration options to optimize performance:
1. Adjustable gain and offset
2. Digital filtering options
3. Tare and zero functions
4. Communication protocols (e.g., Modbus, Profibus) for direct integration with PLCs
Advanced weight transmitters can provide additional functionality:
1. Built-in calibration routines
2. Multi-channel inputs for multiple load cell systems
3. Digital I/O for control functions
4. Advanced filtering and signal processing options
For applications requiring high-speed or high-precision measurements, specialized data acquisition systems can be used in conjunction with PLCs:
1. High-speed sampling rates for dynamic weighing applications
2. Precision A/D converters for improved resolution
3. Advanced signal processing capabilities
4. Integration with PLC systems for control and data logging
Connecting load cells to PLCs is a crucial skill in industrial automation and process control. By following the steps outlined in this guide and understanding the key concepts of load cell PLC integration, you can ensure accurate and reliable weight measurements in your applications. Remember that proper wiring, calibration, and troubleshooting are essential for optimal performance. As technology continues to advance, staying up-to-date with the latest developments in load cell and PLC technologies will help you design and maintain efficient and effective weighing systems.

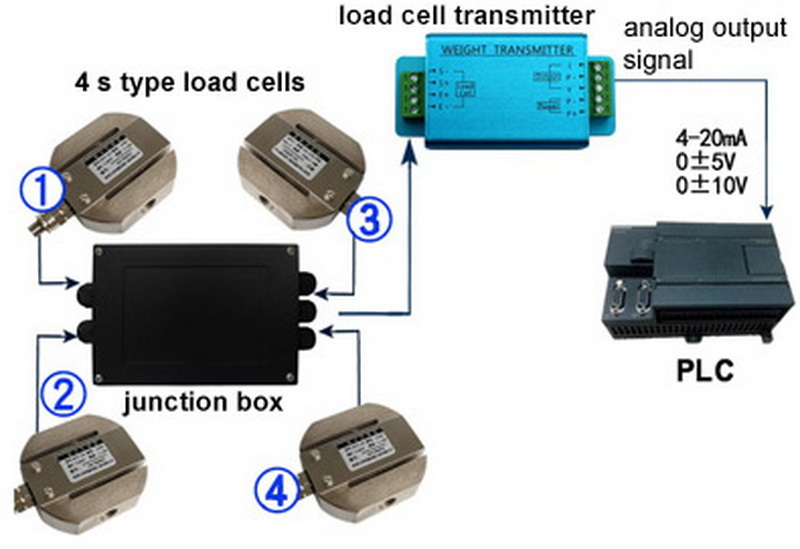

A1: The number of load cells that can be connected to a single PLC depends on the PLC's capabilities and the specific application requirements. Most PLCs can handle multiple analog inputs, allowing for connection of several load cells. However, for systems with many load cells, it's common to use a specialized weight transmitter or summing box to combine signals from multiple load cells before sending a single output to the PLC.
A2: 4-wire load cells have two excitation wires (power supply) and two signal wires (output). 6-wire load cells have an additional pair of sense wires. The sense wires are used to compensate for voltage drops in the excitation lines, especially in applications with long cable runs. This results in more accurate measurements, as the amplifier can adjust for any voltage losses in the system.
A3: The frequency of calibration depends on various factors, including the application's accuracy requirements, environmental conditions, and regulatory standards. As a general guideline, industrial weighing systems should be calibrated at least annually. However, some critical applications may require more frequent calibration, while stable systems in controlled environments might need less frequent calibration. Always consult the manufacturer's recommendations and any applicable industry standards.
A4: In most cases, load cells cannot be connected directly to a PLC without an amplifier. Load cells typically output very small voltage signals (in the millivolt range) that are too weak for most PLC analog inputs to read accurately. An amplifier or weight transmitter is necessary to boost the signal strength and convert it to a standard industrial format (e.g., 4-20mA or 0-10V) that the PLC can easily interpret.
A5: Common sources of error in load cell measurements include:
1. Temperature fluctuations: Use temperature-compensated load cells or implement software compensation.
2. Mechanical misalignment: Ensure proper installation and use of mounting hardware.
3. Electrical noise: Use shielded cables and proper grounding techniques.
4. Creep and hysteresis: Choose high-quality load cells and implement regular calibration routines.
5. Overloading: Install mechanical stops and implement software limits to prevent damage to the load cells.
To mitigate these errors, use high-quality components, follow proper installation procedures, implement regular maintenance and calibration routines, and use appropriate signal conditioning and filtering techniques in your PLC program.
