How To Convert Load Cell Voltage To Force?

Content Menu

Introduction

Understanding Load Cells

Basic Principles of Load Cell Operation

Load Cell Specifications

The Conversion Process

>> Step 1: Determine the Load Cell's Sensitivity

>> Step 2: Calculate the Full-Scale Output

>> Step 3: Measure the Actual Output Voltage

>> Step 4: Calculate the Force

Practical Considerations

>> 1. Signal Conditioning

>> 2. Temperature Compensation

>> 3. Calibration

>> 4. Non-Linearity Correction

Advanced Techniques

>> 1. Digital Signal Processing (DSP)

>> 2. Multi-Point Calibration

>> 3. Dynamic Force Measurement

Applications

Troubleshooting Common Issues

Future Trends

Conclusion

Frequently Asked Questions

>> Q1: What is the difference between a load cell and a force sensor?

>> Q2: How often should I calibrate my load cell?

>> Q3: Can I use a load cell to measure dynamic forces?

>> Q4: How do I choose the right capacity load cell for my application?

>> Q5: What are some common sources of error in load cell measurements?

Introduction

Load cells are essential components in various industries, from manufacturing to aerospace, playing a crucial role in measuring and monitoring forces and weights. One of the most common questions that arise when working with load cells is how to convert the voltage output into a meaningful force measurement. This comprehensive guide will walk you through the process of converting load cell voltage to force, covering everything from basic concepts to advanced techniques.

Understanding Load Cells

Before diving into the conversion process, it's essential to understand what load cells are and how they work. Load cells are transducers that convert mechanical force into an electrical signal. They typically use strain gauges to measure the deformation of a structural member under an applied force.Load cells come in various types, including:

1. Strain gauge load cells

2. Hydraulic load cells

3. Pneumatic load cells

4. Capacitive load cells

Among these, strain gauge load cells are the most common due to their accuracy, reliability, and cost-effectiveness.

Basic Principles of Load Cell Operation

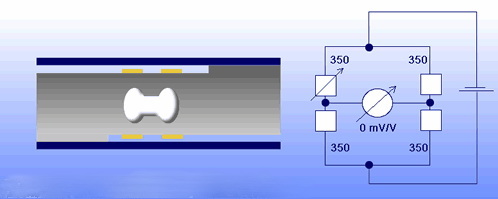

Strain gauge load cells operate on the principle of electrical resistance change in response to applied force. When a force is applied to the load cell, it causes a slight deformation in the structural member. This deformation is measured by strain gauges, which are typically arranged in a Wheatstone bridge configuration.

The Wheatstone bridge converts the small changes in resistance into a measurable voltage output. This output voltage is proportional to the applied force, forming the basis for our conversion process.

Load Cell Specifications

To accurately convert load cell voltage to force, you need to understand the key specifications of your load cell:

1. Rated capacity: The maximum force the load cell is designed to measure.

2. Sensitivity: Typically expressed in mV/V (millivolts per volt), this indicates the output voltage per unit of excitation voltage at full capacity.

3. Excitation voltage: The input voltage required to power the load cell.

4. Non-linearity: The maximum deviation from a straight line between no-load and rated capacity.

5. Hysteresis: The maximum difference in output readings when the same force is applied, once from increasing force and once from decreasing force.

Understanding these specifications is crucial for accurate voltage-to-force conversion.

convert load cell voltage to force

The Conversion Process

Now, let's delve into the step-by-step process of converting load cell voltage to force:

Step 1: Determine the Load Cell's Sensitivity

The sensitivity of a load cell is typically provided by the manufacturer and is expressed in mV/V. For example, a load cell might have a sensitivity of 2 mV/V.

Step 2: Calculate the Full-Scale Output

To calculate the full-scale output, multiply the sensitivity by the excitation voltage. For instance, if your excitation voltage is 10V and the sensitivity is 2 mV/V:Full-Scale Output = 2 mV/V * 10V = 20 mV

Step 3: Measure the Actual Output Voltage

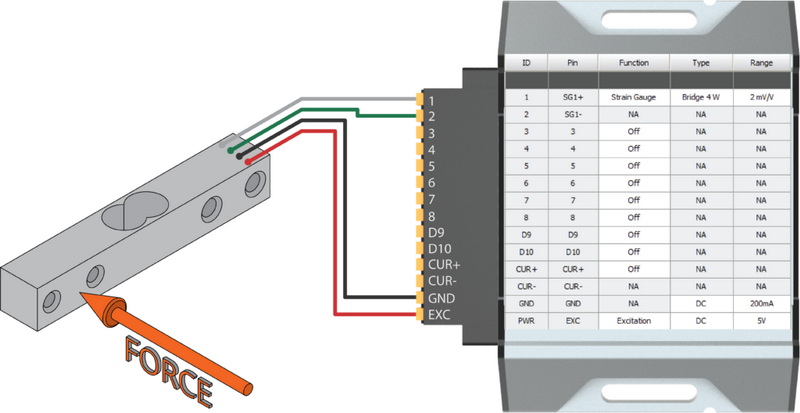

When a force is applied to the load cell, measure the actual output voltage. This is typically done using a high-precision voltmeter or data acquisition system.

Step 4: Calculate the Force

To calculate the force, use the following formula:Force = (Measured Voltage / Full-Scale Output) * Rated CapacityFor example, if your measured voltage is 10 mV, the full-scale output is 20 mV, and the rated capacity is 1000 N:Force = (10 mV / 20 mV) * 1000 N = 500 N

Practical Considerations

While the basic conversion process is straightforward, there are several practical considerations to keep in mind:

1. Signal Conditioning

Load cell outputs are typically in the millivolt range, which can be susceptible to noise and interference. Signal conditioning circuits, such as instrumentation amplifiers, are often used to amplify and filter the signal before conversion.

2. Temperature Compensation

Load cells can be sensitive to temperature changes. Many modern load cells include built-in temperature compensation, but it's essential to consider this factor, especially in environments with significant temperature fluctuations.

3. Calibration

Regular calibration is crucial for maintaining accuracy. This involves applying known forces to the load cell and adjusting the conversion factors accordingly.

4. Non-Linearity Correction

While load cells are designed to be linear, there can be slight deviations, especially at the extremes of their range. Advanced systems may incorporate non-linearity correction algorithms to improve accuracy across the entire measurement range.

Advanced Techniques

For high-precision applications, several advanced techniques can be employed:

1. Digital Signal Processing (DSP)

DSP techniques can be used to filter out noise, perform advanced calibration, and implement complex compensation algorithms.

2. Multi-Point Calibration

Instead of relying on a single calibration point, multi-point calibration involves measuring the load cell output at multiple known forces. This allows for more accurate conversion across the entire measurement range.

3. Dynamic Force Measurement

For applications involving rapidly changing forces, specialized techniques may be required to account for the dynamic behavior of the load cell.

convert load cell voltage to force2

Applications

The ability to accurately convert load cell voltage to force has numerous applications across various industries:

1. Industrial Weighing: From small-scale laboratory balances to large truck scales.

2. Material Testing: Measuring tensile and compressive forces in materials.

3. Aerospace: Monitoring forces on aircraft components during flight.

4. Robotics: Providing force feedback for robotic arms and grippers.

5. Medical Devices: Ensuring precise force application in rehabilitation equipment and prosthetics.

Troubleshooting Common Issues

When working with load cells, you may encounter several common issues:

1. Drift: Gradual change in output over time, often due to temperature changes or mechanical relaxation.

2. Noise: Unwanted fluctuations in the output signal, which can be electrical or mechanical in origin.

3. Overloading: Applying forces beyond the rated capacity, which can lead to permanent damage or calibration shifts.

4. Creep: A gradual increase in output under constant load, typically due to material properties of the load cell.

Understanding these issues and their causes is crucial for maintaining accurate force measurements.

Future Trends

The field of load cell technology and force measurement is continually evolving. Some emerging trends include:

1. Wireless Load Cells: Eliminating the need for complex wiring in large-scale applications.

2. Smart Load Cells: Incorporating onboard processing for advanced calibration and diagnostics.

3. Miniaturization: Developing smaller, more sensitive load cells for use in compact devices.

4. Integration with IoT: Connecting load cells to the Internet of Things for remote monitoring and data analysis.

Conclusion

Converting load cell voltage to force is a fundamental skill in many engineering and scientific disciplines. By understanding the principles behind load cell operation, mastering the conversion process, and being aware of practical considerations and advanced techniques, you can ensure accurate and reliable force measurements in your applications.Remember that while the basic conversion process is straightforward, achieving high accuracy and reliability often requires attention to detail, regular calibration, and an understanding of the specific requirements of your application.

convert load cell voltage to force1

Frequently Asked Questions

Q1: What is the difference between a load cell and a force sensor?

A1: While the terms are often used interchangeably, a load cell is a specific type of force sensor. Load cells typically measure force through the deformation of a structural element, while force sensors can use various other principles, such as piezoelectric effects or capacitive sensing.

Q2: How often should I calibrate my load cell?

A2: The calibration frequency depends on the application, environment, and required accuracy. In general, it's recommended to calibrate load cells at least annually, but more frequent calibration may be necessary for high-precision applications or harsh environments.

Q3: Can I use a load cell to measure dynamic forces?

A3: Yes, load cells can measure dynamic forces, but you need to consider factors such as the natural frequency of the load cell and the sampling rate of your data acquisition system. For high-speed dynamic measurements, specialized load cells and data acquisition techniques may be required.

Q4: How do I choose the right capacity load cell for my application?

A4: Select a load cell with a rated capacity that exceeds your maximum expected force by about 20-50%. This provides a safety margin and ensures the load cell operates in its most accurate range. However, avoid oversizing, as this can reduce sensitivity to smaller forces.

Q5: What are some common sources of error in load cell measurements?

A5: Common sources of error include:- Temperature fluctuations- Improper mounting or alignment- Electrical noise- Overloading- Hysteresis and non-linearity- Creep and long-term driftUnderstanding and mitigating these error sources is crucial for accurate force measurements.
