Load cells are crucial components in various industries, serving as the backbone of force measurement and weighing systems. Whether you're developing industrial scales, testing equipment, or automated manufacturing processes, understanding how to design a load cell is essential for achieving accurate and reliable measurements. This comprehensive guide will walk you through the intricacies of load cell design, from basic principles to advanced optimization techniques.
At its core, a load cell is a transducer that converts mechanical force into an electrical signal. The design process begins with a clear understanding of the fundamental principles that govern load cell operation.
Most modern load cells utilize strain gauge technology. Strain gauges are thin metallic foils or semiconductor devices that change their electrical resistance when subjected to mechanical deformation. In a load cell, these gauges are strategically placed on a specially designed structure, typically made of metal.
When a force is applied to the load cell, the structure deforms slightly, causing the strain gauges to stretch or compress. This deformation alters the electrical resistance of the gauges, which can be measured and converted into a force reading.
To amplify the small changes in resistance and compensate for temperature effects, strain gauges in load cells are typically arranged in a Wheatstone bridge circuit. This configuration consists of four resistive elements, with at least one being an active strain gauge.The Wheatstone bridge allows for precise measurement of small resistance changes and helps cancel out common-mode errors, improving the overall accuracy and stability of the load cell.
Understanding the various types of load cells is crucial for selecting the right design for your specific application. Each type has its own strengths and limitations, making them suitable for different scenarios.

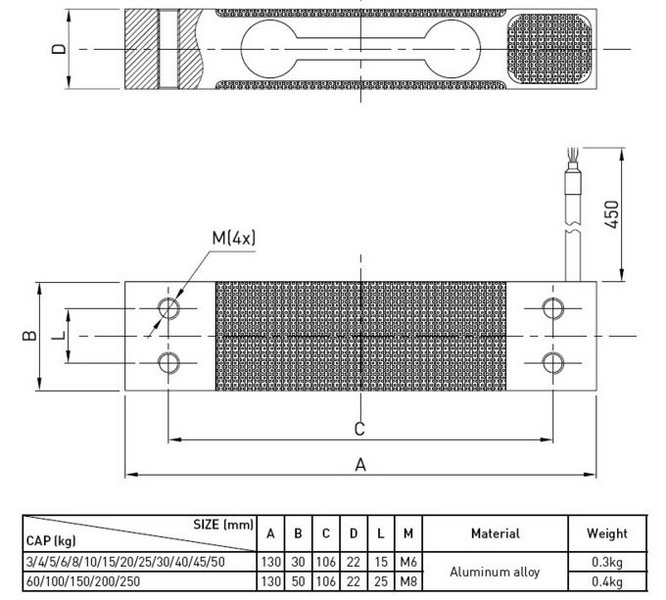

Single point load cells are designed to measure force at a single point of application. They are commonly used in small platform scales and retail weighing applications.
S-beam load cells, named for their S-shaped design, are versatile and can measure both tension and compression forces. They are often used in hanging scale applications and material testing.

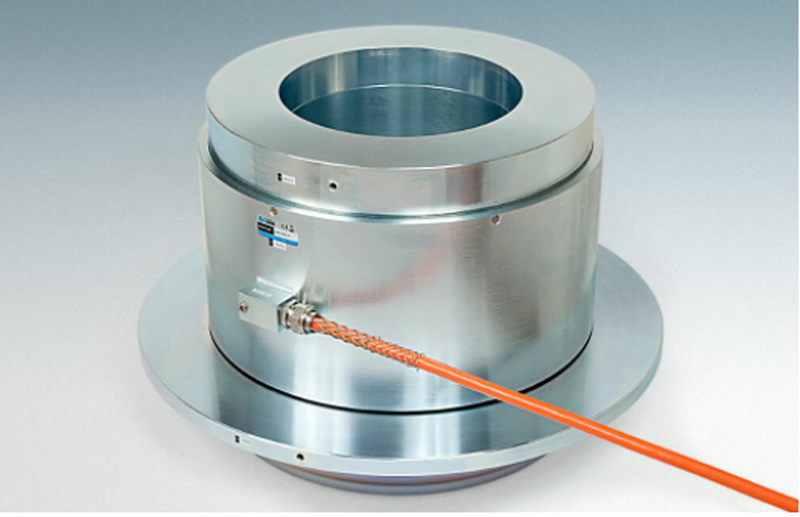

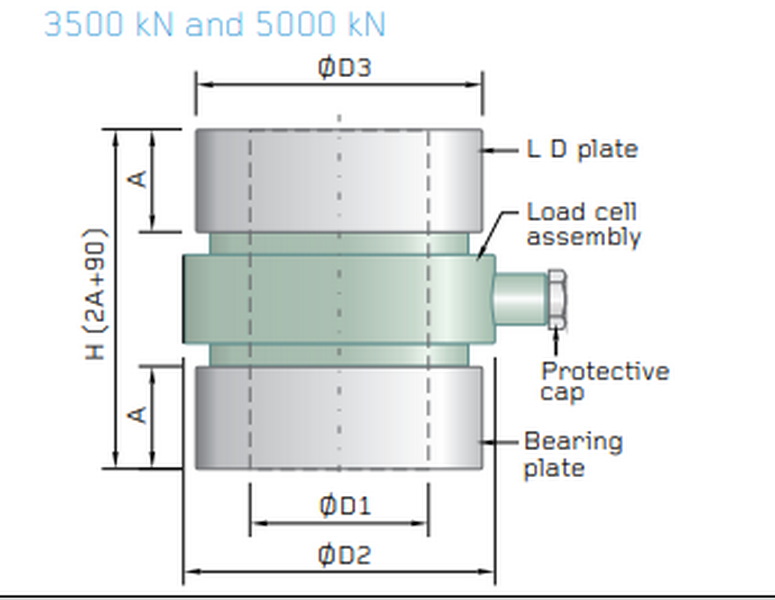

Canister load cells, also known as compression load cells, are cylindrical in shape and designed to handle high-capacity loads. They are commonly used in truck scales and large industrial applications.
Button load cells are compact and designed for applications where space is limited. They are often used in medical devices and small-scale force measurement applications.
Beam load cells come in various configurations, including bending beam and shear beam designs. They are widely used in industrial weighing and process control applications.
The choice of materials and construction methods plays a crucial role in load cell performance and durability.
Common materials used in load cell construction include:
1. Aluminum: Lightweight and corrosion-resistant, suitable for low to medium capacity applications.
2. Steel: Offers high strength and durability, ideal for high-capacity load cells.
3. Stainless Steel: Provides excellent corrosion resistance for harsh environments.
4. Alloy Steel: Offers a balance of strength and cost-effectiveness.
The selection of material depends on factors such as the required capacity, operating environment, and budget constraints.
Modern load cell construction often involves precision machining and advanced manufacturing techniques. Computer Numerical Control (CNC) machining allows for tight tolerances and consistent production of load cell bodies.For hermetically sealed load cells, techniques such as laser welding or glass-to-metal bonding are employed to create a robust, airtight enclosure that protects the internal components from environmental factors.
Optimizing the design of a strain gauge load cell involves several key considerations:

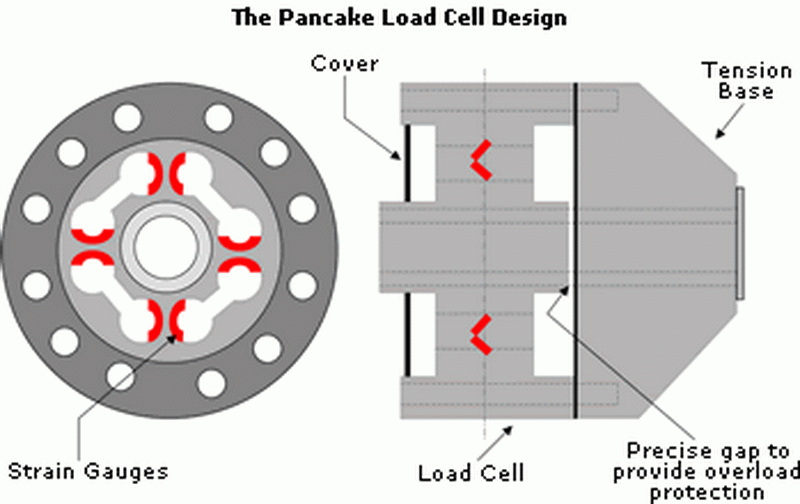

The positioning of strain gauges on the load cell structure is critical for maximizing sensitivity and minimizing errors. Finite Element Analysis (FEA) is often used to determine the optimal locations for gauge placement.
Temperature fluctuations can affect load cell accuracy. Implementing temperature compensation techniques, such as using self-temperature-compensated gauges or incorporating additional temperature sensors, helps maintain accuracy across a wide range of operating conditions.
Creep (the change in output over time under constant load) and hysteresis (the difference in output when approaching a load from different directions) are common challenges in load cell design. Careful material selection and structural design can help minimize these effects.
Incorporating mechanical stops or designing the load cell structure to withstand forces beyond its rated capacity helps prevent damage from accidental overloading.
Designing an effective load cell goes beyond the mechanical structure and strain gauges. Integration with modern force measurement technology is essential for creating a complete measurement system.
The raw output from a strain gauge load cell is typically in the millivolt range and requires amplification and filtering. Signal conditioning circuits are designed to:
1. Amplify the low-level signal
2. Filter out noise and unwanted frequencies
3. Provide excitation voltage to the Wheatstone bridge
4. Compensate for temperature effects
For digital systems, high-resolution analog-to-digital converters (ADCs) are used to convert the amplified analog signal into a digital format. The choice of ADC depends on factors such as required resolution, sampling rate, and system integration requirements.
Advanced load cell systems often incorporate digital signal processing (DSP) techniques to further enhance measurement accuracy and stability. DSP can be used for:
1. Digital filtering to reduce noise
2. Implementing advanced calibration algorithms
3. Compensating for non-linearity and other systematic errors
4. Performing real-time data analysis
Proper calibration is crucial for ensuring the accuracy and reliability of a load cell. The calibration process involves applying known forces to the load cell and adjusting the measurement system to provide accurate readings.
1. Dead Weight Calibration: Using precisely known masses to apply force to the load cell.
2. Hydraulic or Pneumatic Calibration: Utilizing pressure-based systems to apply precise forces.
3. Reference Load Cell Calibration: Comparing the output of the load cell under test to a highly accurate reference load cell.
A typical calibration procedure involves:
1. Zero Balance: Adjusting the output to zero with no load applied.
2. Span Adjustment: Applying a known full-scale load and adjusting the gain to match the expected output.
3. Linearity Check: Verifying the load cell's response at multiple points across its range.
4. Hysteresis Test: Checking for differences in output when approaching a load from increasing and decreasing directions.
5. Repeatability Test: Ensuring consistent readings under repeated loading conditions.
For applications in harsh environments or where hygiene is critical, hermetically sealed load cells offer superior protection against moisture, dust, and other contaminants.
1. Welded Seals: Using precision welding to create a permanent, airtight seal.
2. Glass-to-Metal Sealing: Employing specialized glass that bonds directly to metal, creating a robust hermetic seal.
3. Epoxy Sealing: Utilizing high-performance epoxy resins to seal the load cell enclosure.
1. Enhanced durability in harsh environments
2. Improved long-term stability
3. Suitability for washdown applications in food and pharmaceutical industries
4. Protection against corrosive atmospheres
Proper mounting and installation are critical for achieving optimal load cell performance. Key considerations include:
The load cell support and vessel system should be designed to eliminate flexing that could affect readings. For tanks with long legs, load cells should be installed near the top of the legs to minimize deflection.

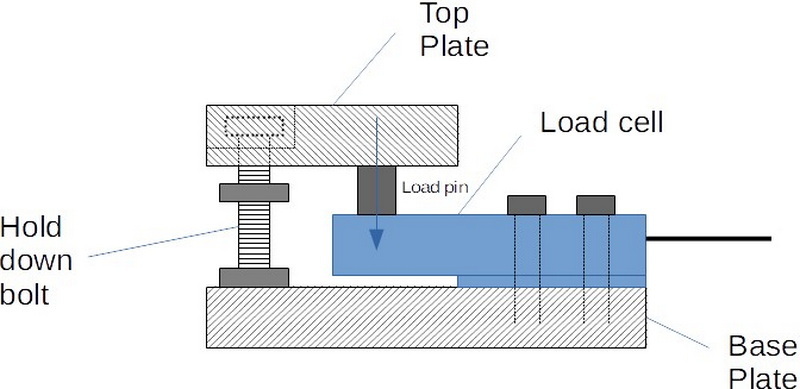

Specialized mounting kits help absorb side forces and ensure proper load introduction to the load cell. These kits often include components such as load buttons, base plates, and anti-rotation devices.
Proper alignment and leveling of the load cell are essential for accurate measurements. Misalignment can introduce errors and potentially damage the load cell over time.
Proper routing and protection of load cell cables help prevent signal interference and physical damage. Using flexible conduit or armored cables can provide additional protection in industrial environments.
Load cells are key components in a wide range of industrial weighing systems. Integrating load cells into these systems requires consideration of factors such as:
1. System capacity and accuracy requirements
2. Environmental conditions (temperature, humidity, vibration)
3. Data communication protocols (e.g., Modbus, Profibus, Ethernet/IP)
4. Regulatory compliance (e.g., OIML, NTEP certifications for legal-for-trade applications)
5. Integration with process control systems and data acquisition software
Designing a load cell is a multifaceted process that requires a deep understanding of mechanical engineering, electrical principles, and materials science. By carefully considering each aspect of the design process, from strain gauge selection to signal processing and system integration, engineers can create load cells that meet the demanding requirements of modern industrial and scientific applications.As technology continues to advance, load cell design will likely see further improvements in accuracy, durability, and integration capabilities. Staying informed about the latest developments in materials, sensing technologies, and digital signal processing will be crucial for those looking to push the boundaries of load cell performance.
A1: While the terms are often used interchangeably, a load cell is a specific type of force sensor. Load cells are typically designed to measure weight or force in a specific direction and often incorporate strain gauges. Force sensors, on the other hand, can use various technologies (such as piezoelectric or capacitive sensing) and may be designed to measure force in multiple directions.
A2: To choose the right capacity, consider the maximum force or weight you need to measure and add a safety factor. It's generally recommended to select a load cell with a capacity 20-50% higher than the maximum expected load. This helps prevent overloading and ensures the load cell operates in its optimal range for better accuracy and longevity.
A3: Some load cell designs, such as S-beam load cells, can measure both tension and compression forces. However, many load cells are designed specifically for either tension or compression. It's important to select a load cell that matches your application requirements.
A4: The calibration frequency depends on factors such as usage, environmental conditions, and accuracy requirements. In general, it's recommended to calibrate load cells at least annually. However, some applications may require more frequent calibration, especially in harsh environments or for high-precision measurements.
A5: The main factors affecting load cell accuracy include:
1. Temperature fluctuations
2. Creep and hysteresis
3. Non-linearity
4. Mounting and alignment issues
5. Electrical noise and interference
6. Overloading or shock loading
7. Environmental factors (humidity, vibration, etc.)
Addressing these factors through proper design, material selection, and installation can help maximize load cell accuracy and reliability.
