Load cells are crucial components in various industries, from manufacturing and logistics to agriculture and pharmaceuticals. These precision instruments are responsible for accurate weight measurements, ensuring quality control, safety, and efficiency in numerous applications. However, like any sophisticated equipment, load cells can encounter issues that affect their performance. In this comprehensive guide, we'll explore the common problems faced by load cells and provide detailed solutions on how to fix them.

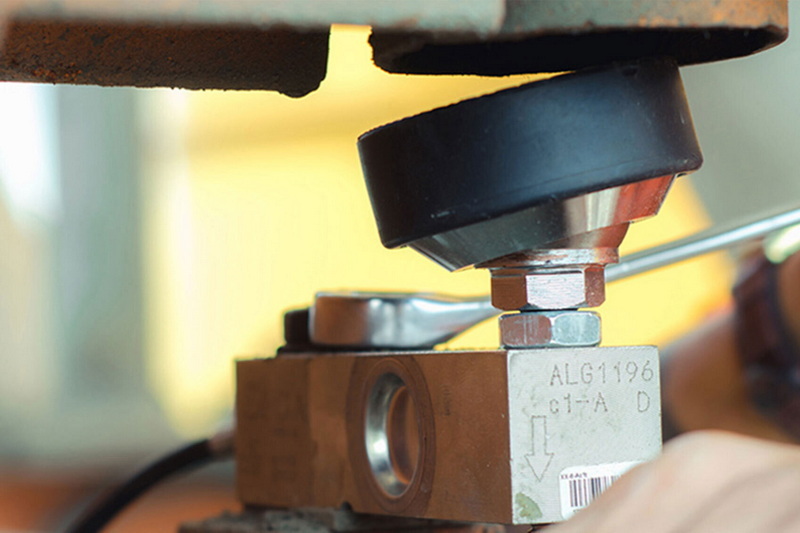

Before diving into troubleshooting and repair, it's essential to understand what load cells are and how they function. Load cells are transducers that convert force or weight into an electrical signal. This signal is then processed and displayed as a weight measurement on connected equipment.
Load cells come in various types, including:
1. Strain gauge load cells
2. Hydraulic load cells
3. Pneumatic load cells
4. Capacitive load cells
Each type has its unique characteristics and applications, but strain gauge load cells are the most commonly used in industrial settings.
Load cells can experience a range of problems that affect their accuracy and reliability. Some of the most frequent issues include:
1. Inaccurate readings
2. Zero drift
3. Signal instability
4. Overloading
5. Temperature sensitivity
6. Moisture damage
7. Wiring problems
Let's explore these issues in detail and discuss how to address them effectively.
Inaccurate readings are often the first sign that something is wrong with a load cell. This problem can stem from various sources, including calibration errors, mechanical issues, or electrical interference.
a) Calibration: Regularly calibrate your load cells using certified weights. This process ensures that the load cell's output corresponds accurately to the applied weight.
b) Check for mechanical obstructions: Ensure that nothing is impeding the load cell's movement or causing friction. Look for debris, rust, or damaged components that might affect the cell's performance.
c) Verify electrical connections: Inspect all wiring and connections for loose or corroded contacts. Clean and tighten connections as necessary.
d) Shield from electromagnetic interference: If possible, move the load cell away from sources of electromagnetic interference or use shielding materials to protect the cell and its wiring.
Zero drift occurs when the load cell's output signal changes over time, even when no weight is applied. This can lead to inaccurate measurements and the need for frequent recalibration.
a) Temperature compensation: Many modern load cells come with built-in temperature compensation. If your load cell lacks this feature, consider upgrading to a model that includes it.
b) Stable environment: Try to maintain a consistent temperature and humidity level in the area where the load cell operates.
c) Regular zeroing: Implement a routine where the load cell is zeroed at regular intervals, especially before critical measurements.
d) Check for creep: Load cell creep can cause zero drift. If creep is suspected, consult the manufacturer for guidance or consider replacing the load cell.
Signal instability manifests as fluctuating or erratic readings, making it difficult to obtain consistent measurements.
a) Improve grounding: Ensure that all components of the weighing system are properly grounded to minimize electrical noise.
b) Use high-quality cables: Invest in shielded, high-quality cables to reduce signal interference.
c) Filter the signal: Implement digital filtering in the signal processing stage to smooth out fluctuations.
d) Check for loose connections: Verify that all electrical connections are secure and free from corrosion.
Overloading occurs when a load cell is subjected to weight beyond its rated capacity. This can cause permanent damage and compromise the cell's accuracy.

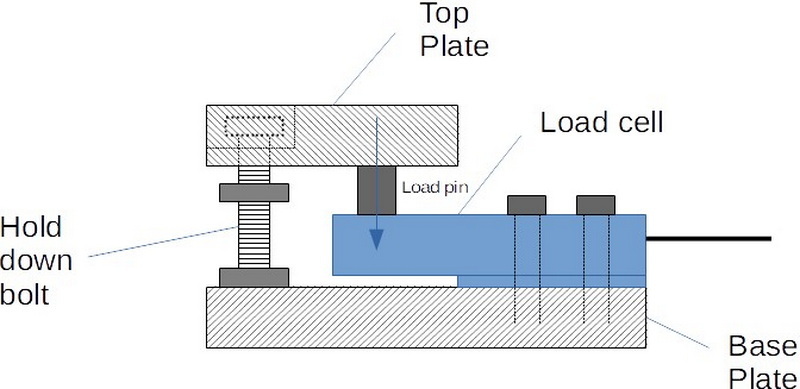

a) Implement overload protection: Install mechanical stops or electronic cutoffs to prevent excessive loads from being applied to the cell.
b) Proper sizing: Ensure that the load cell's capacity is appropriate for the application, including any potential dynamic loads or impact forces.
c) Regular inspection: Periodically inspect the load cell for signs of physical damage or deformation.
d) Replace if necessary: If overloading has occurred, it's often best to replace the load cell to ensure continued accuracy.
Load cells can be sensitive to temperature changes, which can affect their accuracy and stability.
a) Use temperature-compensated load cells: Choose load cells designed with built-in temperature compensation for improved stability across a range of temperatures.
b) Control the environment: If possible, maintain a consistent temperature in the area where the load cell operates.
c) Allow for warm-up: Give the load cell and associated electronics time to reach a stable temperature before taking critical measurements.
d) Calibrate at operating temperature: Perform calibration procedures at the temperature at which the load cell will typically operate.
Moisture can be a significant problem for load cells, potentially causing corrosion, short circuits, and signal drift.
a) Use sealed load cells: Opt for load cells with high IP (Ingress Protection) ratings suitable for your operating environment.
b) Implement moisture barriers: Use silicone sealants or protective covers to shield the load cell and its connections from moisture.
c) Regular maintenance: Inspect and clean the load cell and its surroundings regularly to prevent moisture accumulation.
d) Proper installation: Ensure that load cells are installed in a way that prevents water from pooling around them.
Faulty wiring can lead to a host of issues, including signal loss, inaccurate readings, and intermittent failures.
a) Regular inspection: Periodically examine all wiring for signs of wear, damage, or corrosion.
b) Use appropriate cables: Employ cables specifically designed for load cell applications, with proper shielding and gauge.
c) Proper termination: Ensure all wire terminations are secure and protected from the environment.
d) Avoid sharp bends: Route cables with gentle curves to prevent stress and potential internal wire breakage.
Proper calibration is crucial for maintaining load cell accuracy. Here's a basic process for calibrating a load cell:
1. Zero the system with no load applied.
2. Apply a known weight (ideally at least 75% of the cell's capacity).
3. Adjust the system's span to match the known weight.
4. Remove the weight and check that the system returns to zero.
5. Repeat the process with different weights to ensure linearity.
For more complex systems or critical applications, it's advisable to have calibration performed by certified professionals.
To minimize load cell issues and extend their lifespan, implement a preventive maintenance program:
1. Regular cleaning: Keep the load cell and surrounding area free from debris and contaminants.
2. Scheduled inspections: Periodically examine the load cell for physical damage, corrosion, or signs of wear.
3. Environmental monitoring: Keep track of temperature and humidity levels in the operating environment.
4. Documentation: Maintain detailed records of calibrations, repairs, and any observed issues.
5. Training: Ensure that operators understand proper handling and usage of load cell equipment.
Despite best efforts at maintenance and repair, there comes a time when replacement is the best option. Consider replacing a load cell when:
1. It has been overloaded beyond its rated capacity.
2. Accuracy cannot be maintained even after calibration.
3. Physical damage is evident, such as cracks or severe corrosion.
4. The cell has reached the end of its expected lifespan.
5. Repairs would cost more than replacement.
Load cells are vital components in many weighing applications, and maintaining their accuracy and reliability is crucial. By understanding common issues and how to address them, you can ensure that your load cells continue to perform optimally. Regular maintenance, proper calibration, and prompt attention to any problems will help extend the life of your load cells and maintain the integrity of your weighing systems.
Remember, while many load cell issues can be resolved through troubleshooting and basic repairs, some problems may require professional intervention. When in doubt, consult with the manufacturer or a certified technician to ensure the best outcome for your equipment.
A1: The frequency of load cell calibration depends on various factors, including usage, environmental conditions, and industry regulations. As a general rule, load cells should be calibrated at least once a year. However, in critical applications or harsh environments, more frequent calibrations may be necessary. Always follow manufacturer recommendations and any applicable industry standards.
A2: In some cases, minor issues with load cells can be repaired. However, if a load cell has been physically damaged, overloaded beyond its capacity, or shows signs of significant wear, replacement is often the best option. Attempting to repair a severely damaged load cell may compromise its accuracy and reliability.
A3: To verify load cell accuracy, you can perform a simple linearity test:
1. Zero the system.
2. Apply a series of known weights, covering the cell's range.
3. Compare the displayed values to the actual weights.
4. Calculate the error at each point.
If the errors exceed the load cell's specified tolerance, recalibration or further troubleshooting may be necessary.
A4: Load cell drift can be caused by several factors, including:
- Temperature changes
- Humidity fluctuations
- Mechanical stress or creep
- Electrical interference
- Aging of the load cell components
Regular calibration and maintaining a stable operating environment can help minimize drift.
A5: To protect load cells from electrical interference:
1. Use shielded cables for all load cell connections.
2. Ensure proper grounding of all system components.
3. Keep load cell wiring separate from power cables.
4. Use signal conditioners or amplifiers with built-in filtering.
5. If possible, locate load cells away from sources of electromagnetic interference, such as motors or high-power electrical equipment.
