Before diving into the construction process, it's important to understand what a torque sensor is and how it works. A torque sensor, also known as a torque transducer or torque meter, converts torsional mechanical input into an electrical output signal. There are two main types of torque sensors:
1. Reaction torque sensors
2. Rotating torque sensors
Both types utilize various transduction principles to measure torque, including strain gauges, piezoelectric crystals, capacitive sensing, and magnetic field variations.
To build a basic torque sensor, you'll need the following materials:
- Arduino board (e.g., Arduino Mega)
- LCD shield
- Load cell
- Signal amplifier
- Strain gauges
- Socket extension or shaft
- Adhesives (super glue, hot glue)
- Wires and connectors
- Soldering equipment
- 3D printer or craft materials (optional)
The first step in creating your torque sensor is preparing the sensing element. For this guide, we'll focus on using strain gauges, which are widely available and relatively inexpensive.
1. Choose a suitable shaft or socket extension as your sensing element.
2. Clean the surface thoroughly to ensure proper adhesion.
3. Mark the positions for the strain gauges at a 45-degree angle to the shaft's axis.
4. Carefully apply super glue to attach the strain gauges to the marked positions.
Once the strain gauges are securely attached, it's time to wire them up:
1. Connect the strain gauges in a Wheatstone bridge configuration.
2. Use thin, flexible wires to minimize interference with the shaft's rotation.
3. Apply hot glue or silicone sealant to protect the connections and provide strain relief.
The electrical signal produced by the strain gauges is typically very weak and requires amplification:
1. Connect the Wheatstone bridge output to a signal amplifier, such as an instrumentation amplifier.
2. Adjust the gain of the amplifier to achieve the desired sensitivity.
3. Implement any necessary filtering to reduce noise in the signal.
To process and display the torque measurements, we'll use an Arduino board:
1. Connect the amplified signal to an analog input on the Arduino.
2. Attach an LCD shield to the Arduino for displaying the measurements.
3. Write and upload the Arduino sketch to read the sensor input and calculate torque values.
Proper calibration is crucial for accurate torque measurements:
1. Apply known torque values to the sensor using calibrated weights or a reference torque wrench.
2. Record the sensor output for each known torque value.
3. Create a calibration curve or equation to convert sensor readings to torque values.
4. Implement the calibration in your Arduino sketch.
To protect your torque sensor and ensure reliable measurements:
1. Design and 3D print (or construct) a housing for the sensor components.

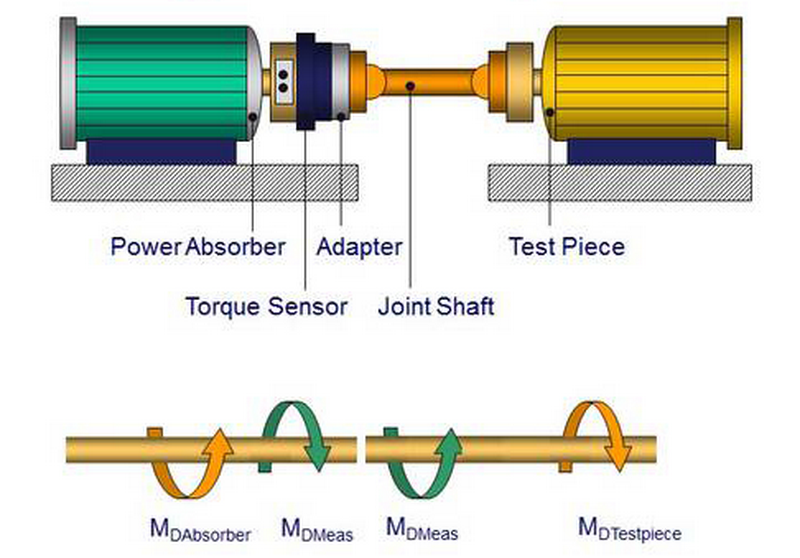

2. Create mounting points for attaching the sensor to your test setup or machinery.
3. Ensure proper alignment and minimal interference with the rotating shaft.
For those looking to enhance their torque sensor design, consider these advanced techniques:
Instead of using strain gauges, you can explore non-contact methods such as magnetoelastic or surface acoustic wave (SAW) sensors. These technologies offer advantages in terms of durability and reduced maintenance.

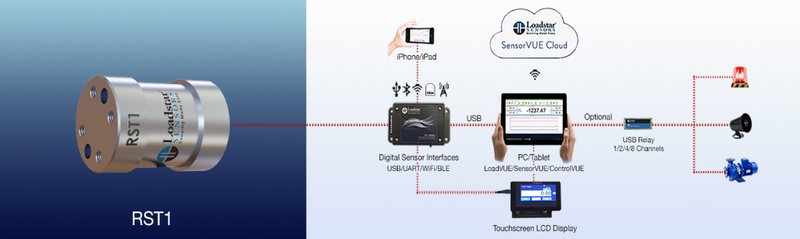

Implement wireless data transmission using Bluetooth or Wi-Fi modules to eliminate the need for slip rings in rotating torque sensors.
Incorporate temperature sensors and compensation algorithms to improve accuracy across a wide range of operating conditions.
DIY torque sensors can be used in various applications, including:
1. Automotive testing and development
2. Robotics and automation
3. Wind turbine efficiency monitoring
4. Material testing and characterization
5. Sports equipment performance analysis
Building your own torque sensor is a rewarding project that combines mechanical engineering, electronics, and programming. By following the steps outlined in this guide, you can create a functional torque measurement device for a fraction of the cost of commercial sensors. While DIY sensors may not match the precision of professional-grade equipment, they can provide valuable insights for many applications and serve as an excellent learning experience.
The accuracy of a DIY torque sensor depends on various factors, including the quality of components used, calibration precision, and environmental conditions. With careful construction and calibration, you can achieve accuracies within 1-5% of full-scale range. However, for applications requiring high precision, professional-grade sensors are recommended.
When selecting strain gauges, consider the following factors:
- Resistance (typically 120Ω or 350Ω)
- Gauge factor (sensitivity to strain)
- Temperature compensation
- Size and shape suitable for your shaft diameter
Choose strain gauges specifically designed for torque measurement applications for best results.
DIY torque sensors can be used for moderate-speed applications, but high-speed use may introduce additional challenges. For rotating sensors, ensure proper balancing and consider using non-contact methods like magnetoelastic sensors for very high-speed applications.
The calibration frequency depends on the sensor's usage and environmental conditions. As a general rule:
- Perform an initial calibration after construction
- Recalibrate every 6-12 months for regular use
- Calibrate more frequently if exposed to extreme temperatures or mechanical shocks
Common sources of error in torque measurements include:
- Misalignment of the sensor or shaft
- Temperature variations affecting strain gauge performance
- Electromagnetic interference
- Mechanical hysteresis in the sensing element
- Inadequate signal conditioning or filtering
Addressing these factors can significantly improve the accuracy and reliability of your DIY torque sensor.
