Creating a load cell at home can be an exciting and educational project, especially for those interested in electronics, engineering, or DIY projects. A load cell is a type of transducer that converts a force or weight into an electrical signal. This article will guide you through the process of making a simple load cell using readily available materials and components. We will cover the necessary tools, materials, step-by-step instructions, and tips for calibration and testing.
Before diving into the construction process, it's essential to understand what a load cell is and how it works. Load cells are commonly used in weighing scales, industrial applications, and various measurement systems. They typically consist of a metal element that deforms under load, and this deformation is measured using strain gauges.
There are several types of load cells, including:
1. Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation.
2. Hydraulic Load Cells: These use fluid pressure to measure weight.
3. Pneumatic Load Cells: These use air pressure for measurement.
For this project, we will focus on creating a strain gauge load cell, as it is the most accessible and straightforward to build at home.
To create a load cell, you will need the following materials:
- Strain Gauges: These are the key components that will measure the deformation.
- Adhesive: A strong adhesive like epoxy or cyanoacrylate to attach the strain gauges to the metal element.
- Metal Element: A piece of metal (aluminum or steel) that will deform under load.
- Wires: For connecting the strain gauges to the measurement circuit.
- Arduino or Microcontroller: To read the output from the load cell.
- HX711 Module: A precision analog-to-digital converter for load cells.
- Breadboard and Jumper Wires: For prototyping the circuit.
- Power Supply: To power the Arduino and HX711 module.
You will also need some tools to assist in the construction:
- Soldering Iron: For connecting wires to the strain gauges and HX711.
- Multimeter: To measure resistance and check connections.
- Scissors or Wire Cutters: For cutting wires.
- Ruler: To measure dimensions accurately.
- Drill: If you need to create holes in the metal element for mounting.
1. Select the Metal: Choose a piece of metal that is strong enough to support the weight you intend to measure. Aluminum is a good choice due to its lightweight and strength.

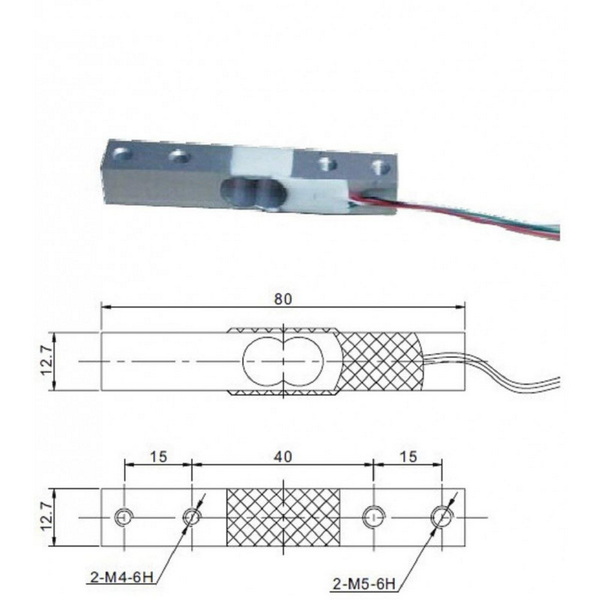

2. Shape the Metal: Depending on your design, you may need to cut or shape the metal. A simple rectangular beam is often used for load cells.
1. Determine Placement: Decide where to place the strain gauges on the metal element. Typically, they are placed on the tension and compression sides of the beam.
2. Clean the Surface: Use a cleaning solution to remove any grease or dirt from the metal surface.
3. Apply Adhesive: Apply a thin layer of adhesive to the back of the strain gauge and carefully place it on the metal. Ensure it is aligned correctly.
4. Allow to Cure: Let the adhesive cure as per the manufacturer's instructions.
1. Wiring: Each strain gauge will have two wires. Connect these wires to the HX711 module according to the wiring diagram.
2. Solder Connections: Use a soldering iron to make secure connections. Ensure there are no short circuits.

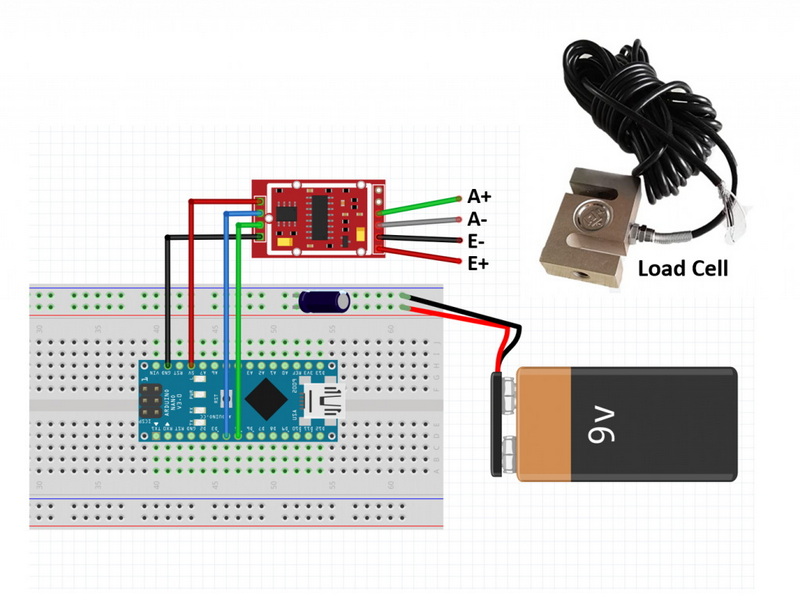

1. Connect to Arduino: Connect the HX711 module to your Arduino using jumper wires. The typical connections are:
- VCC to 5V
- GND to Ground
- DT to a digital pin (e.g., D2)
- SCK to another digital pin (e.g., D3)
2. Power the Module: Ensure the HX711 is powered correctly.
1. Calibrate the Load Cell: To ensure accurate measurements, you will need to calibrate your load cell. Place known weights on the load cell and record the readings from the Arduino.
2. Adjust the Code: Use the calibration data to adjust your code for accurate weight readings.
1. Test with Weights: Start testing your load cell with various weights. Ensure that the readings are consistent and accurate.
2. Make Adjustments: If the readings are off, check your connections and recalibrate as necessary.
- Use Quality Strain Gauges: The quality of the strain gauges will significantly affect the accuracy of your load cell.
- Ensure Proper Adhesion: Make sure the strain gauges are securely attached to the metal element to avoid errors in measurement.
- Keep the Setup Stable: Ensure that the load cell is placed on a stable surface during testing to avoid fluctuations in readings.
Load cells have a wide range of applications across various industries. Here are some common uses:
1. Weighing Scales: Load cells are the backbone of most electronic weighing scales, providing accurate weight measurements.
2. Industrial Automation: In manufacturing, load cells are used to monitor the weight of materials and products during production.
3. Force Measurement: Load cells can measure the force applied in various applications, such as testing materials for strength.
4. Medical Equipment: In healthcare, load cells are used in devices like patient scales and medical testing equipment.
5. Transportation: Load cells are used in vehicles to monitor load distribution and ensure safety.
When building and using a load cell, you may encounter some common issues. Here are a few troubleshooting tips:
1. Inconsistent Readings: If your load cell is giving inconsistent readings, check the connections and ensure that the strain gauges are securely attached.
2. Calibration Errors: If the load cell is not calibrated correctly, it may give inaccurate readings. Revisit the calibration process and ensure you are using known weights.
3. Electrical Noise: Electrical interference can affect the readings. Ensure that your setup is away from other electronic devices and use shielded cables if necessary.
4. Temperature Effects: Temperature changes can affect the performance of strain gauges. If you are working in a variable temperature environment, consider compensating for temperature changes in your code.
Building a load cell at home can be a rewarding project that enhances your understanding of electronics and measurement systems. By following the steps outlined in this article, you can create a functional load cell that can be used for various applications, from weighing scales to force measurement systems. Remember to take your time during the calibration process to ensure accurate readings.
