A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied to the load cell, it deforms slightly, causing a change in resistance in the strain gauges. This change in resistance is converted into an electrical signal that can be measured and interpreted.
1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are often used in applications where the load is applied vertically downwards.
2. Tension Load Cells: These are designed to measure tensile forces. They are commonly used in applications where the load is applied in a pulling manner.
3. Bending Beam Load Cells: These load cells measure the bending of a beam under load. They are often used in scales and weighing systems.
4. S-Type Load Cells: These load cells can measure both tension and compression. They are versatile and widely used in various applications.
Load cells operate based on the principle of converting mechanical force into an electrical signal. The key components of a load cell include:
◆ Strain Gauges: These are thin wires or films that change resistance when stretched or compressed. They are bonded to the load cell's structure.
◆ Excitation Voltage: Load cells require an external voltage source to operate. This voltage is applied to the strain gauges to produce a measurable output.
◆ Output Signal: The output from a load cell is typically in millivolts (mV) and is proportional to the load applied. The output signal can be amplified and converted into a readable format.
To read the output from a load cell, follow these steps:
1. Connect the Load Cell: Ensure that the load cell is properly connected to a power source and a measuring device, such as a multimeter or a data acquisition system.
2. Set Up the Measuring Device: If using a multimeter, set it to the appropriate range to measure millivolts. For data acquisition systems, configure the software to read the load cell output.
3. Apply a Known Load: To calibrate the load cell, apply a known weight to the load cell. This could be a calibration weight or any object with a known mass.
4. Measure the Output: Observe the output on the measuring device. The output will be a small voltage reading in millivolts.

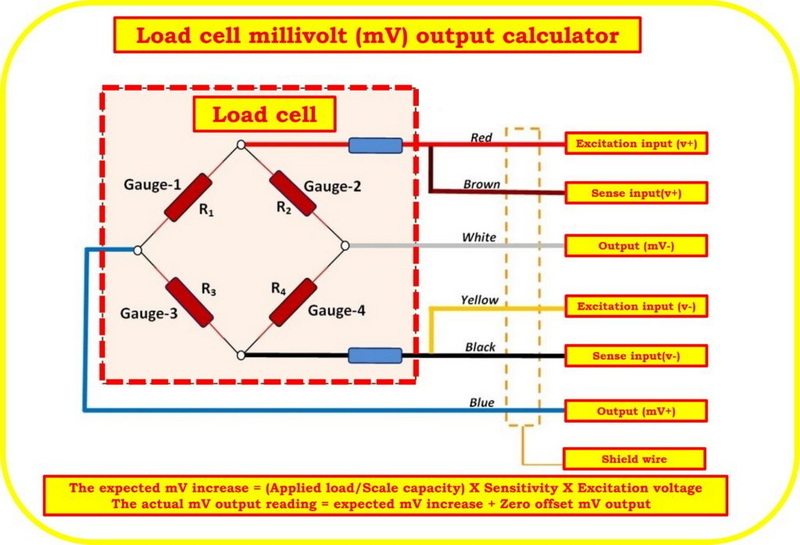

5. Calculate the Load: Use the following formula to calculate the load based on the output voltage:
This formula allows you to convert the voltage reading back into a weight measurement.
Several factors can influence the accuracy and reliability of load cell output:
◆ Temperature: Load cells can be sensitive to temperature changes, which can affect the resistance of the strain gauges. It is essential to account for temperature variations during measurements.
◆ Calibration: Regular calibration is necessary to ensure accurate readings. Over time, load cells can drift from their original calibration due to wear and tear.
◆ Mechanical Alignment: Proper alignment of the load cell is crucial. Misalignment can lead to erroneous readings and affect the load cell's performance.
◆ Environmental Conditions: Factors such as humidity, dust, and vibrations can impact load cell performance. It is essential to use load cells in suitable environments to maintain accuracy.
Load cells are used in various applications, including:
◆ Industrial Weighing: Load cells are commonly used in industrial scales for weighing products, materials, and equipment.
◆ Automotive Testing: Load cells are used in crash testing and vehicle dynamics testing to measure forces and loads.
◆ Aerospace: Load cells are employed in aircraft testing to measure loads during various flight conditions.
◆ Medical Devices: Load cells are used in medical scales and devices to measure patient weight accurately.
◆ Food Industry: In the food industry, load cells are used for portion control and to ensure that products meet weight specifications.
◆ Construction: Load cells are utilized in construction for monitoring the weight of materials and ensuring safety during lifting operations.
If you encounter issues with load cell output, consider the following troubleshooting steps:
1. Check Connections: Ensure that all electrical connections are secure and free from corrosion.
2. Inspect for Damage: Examine the load cell for any physical damage or signs of wear.
3. Calibrate the Load Cell: If readings are inconsistent, recalibrate the load cell using known weights.
4. Test with a Multimeter: Use a multimeter to check the output voltage directly from the load cell to identify any discrepancies.
5. Consult the Manufacturer: If problems persist, consult the load cell manufacturer for technical support and guidance.
To ensure optimal performance and longevity of load cells, consider the following best practices:
◆ Regular Calibration: Schedule regular calibration sessions to maintain accuracy. This is especially important in critical applications where precision is paramount.
◆ Environmental Protection: Use load cells in environments that minimize exposure to extreme temperatures, humidity, and dust. Consider using protective enclosures if necessary.
◆ Proper Installation: Follow manufacturer guidelines for installation to ensure proper alignment and load application. Misalignment can lead to inaccurate readings.
◆ Avoid Overloading: Ensure that the load applied does not exceed the rated capacity of the load cell. Overloading can cause permanent damage.
◆ Monitor Performance: Regularly monitor the performance of load cells to detect any anomalies early. This can help prevent larger issues down the line.
Understanding how to read load cell output is essential for anyone involved in weight measurement applications. By following the steps outlined in this article, you can effectively measure and interpret load cell outputs, ensuring accurate and reliable results. Regular maintenance, calibration, and troubleshooting are key to maintaining the performance of load cells in various applications.
The typical output of a load cell is in millivolts (mV). The output is proportional to the load applied, and the exact output can vary based on the load cell's specifications and the excitation voltage used.
Load cells should be calibrated regularly, typically at least once a year. However, in critical applications or environments with significant temperature fluctuations, more frequent calibration may be necessary.
Yes, load cells can be used outdoors, but it is essential to select models that are designed for such conditions. Look for load cells with weatherproof or waterproof ratings to ensure durability.
If load cell readings are inconsistent, check for loose connections, inspect the load cell for damage, and recalibrate it using known weights. If issues persist, consult the manufacturer for support.
Yes, S-type load cells are designed to measure both tension and compression. They are versatile and can be used in various applications where both types of forces need to be measured.
