Load cells are the unsung heroes of the weighing world, silently working behind the scenes in countless industries to ensure accurate measurements. From the produce scale at your local grocery store to massive industrial weighing systems, load cells play a crucial role in our daily lives and various business operations. However, like any precision instrument, load cells require regular testing and maintenance to ensure their continued accuracy and reliability.In this comprehensive guide, we'll explore the intricate world of load cell testing, covering everything from basic principles to advanced techniques. Whether you're a seasoned metrologist or a curious beginner, this article will provide you with valuable insights into the methods, equipment, and best practices for testing scale load cells.
Before diving into testing procedures, it's essential to understand what a load cell is and how it functions. A load cell is a transducer that converts force into an electrical signal. This conversion is typically achieved through the use of strain gauges, which change their electrical resistance when subjected to mechanical stress.
The most common types of load cells include:
1. Strain gauge load cells
2. Hydraulic load cells
3. Pneumatic load cells
4. Capacitive load cells
Each type has its own advantages and applications, but strain gauge load cells are by far the most widely used in modern weighing systems.
Testing a load cell is crucial to ensure its accuracy and reliability. There are several methods available, ranging from simple visual inspections to complex electronic analyses. Let's explore some of the most common and effective testing methods:
While it may seem basic, a thorough visual inspection can reveal a lot about a load cell's condition. Look for signs of physical damage, corrosion, or misalignment. Check the cable connections and ensure there are no visible cracks or deformations in the load cell body.

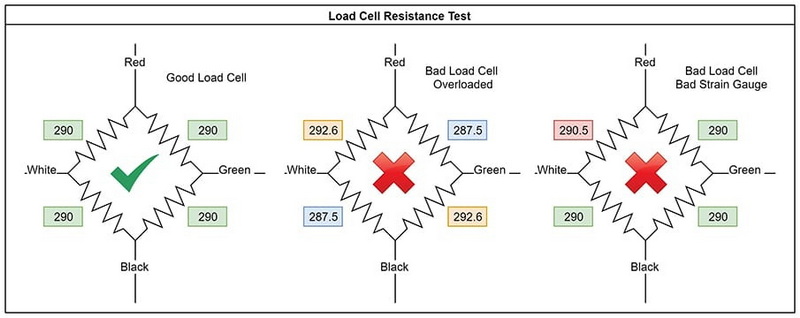

Using a digital multimeter, you can measure the resistance between various points on the load cell. This test helps identify issues with the internal wiring or strain gauges. Typical measurements include:
- Input resistance (between excitation leads)
- Output resistance (between signal leads)
- Insulation resistance (between any wire and the load cell body)
This test checks the balance of the Wheatstone bridge circuit within the load cell. An imbalance can indicate damage or degradation of the strain gauges.
Shunt calibration involves simulating a load on the cell by connecting a precision resistor across one arm of the bridge circuit. This method allows you to verify the load cell's sensitivity without applying actual weights.
These tests involve applying known loads to the cell and measuring its output. Linearity testing checks if the output is proportional to the applied load across the cell's range. Hysteresis testing examines if the cell returns to zero properly after load removal.
To effectively test load cells, you'll need some specialized equipment. Here are the key tools required:

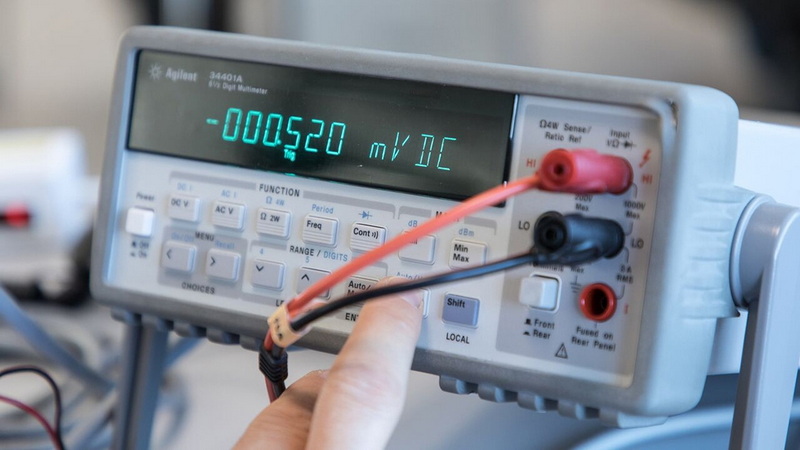

A high-quality digital multimeter is indispensable for load cell testing. It's used for resistance measurements, voltage checks, and troubleshooting electrical issues.
Accurate test weights are crucial for verifying a load cell's performance. These weights should be certified and traceable to national standards.
This device amplifies and displays the load cell's output signal. Modern indicators often include built-in diagnostic features.
A stable, low-noise power supply is essential for providing the excitation voltage to the load cell during testing.
For more advanced testing, a data acquisition system can help capture and analyze load cell outputs over time.
Now that we've covered the basics, let's walk through a comprehensive testing procedure for a typical strain gauge load cell:
1. Gather all necessary equipment and ensure it's in good working order.
2. Clean the load cell and surrounding area to remove any debris or contaminants.
3. Allow the load cell and testing equipment to acclimate to the environment for at least an hour to ensure thermal stability.
1. Examine the load cell for any visible damage, corrosion, or misalignment.
2. Check all cable connections and ensure they're secure.
3. Verify that the load cell is properly mounted and free from any obstructions.
1. Set your digital multimeter to measure resistance.
2. Measure and record the resistance between:
- Excitation leads (typically red and black wires)
- Signal leads (typically green and white wires)
- Each lead and the load cell body (to check insulation)
3. Compare the measured values to the manufacturer's specifications.
1. Connect the load cell to a signal conditioner or indicator.
2. Apply the recommended excitation voltage.
3. With no load on the cell, measure the output signal.
4. The zero balance should be within the manufacturer's specified range.
1. Connect a precision resistor across one arm of the bridge circuit.
2. Record the change in output signal.
3. Compare the result to the expected value provided by the manufacturer.
1. Apply a series of known weights to the load cell, increasing from zero to full capacity.
2. Record the output at each weight increment.
3. Remove the weights in reverse order, again recording the output.
4. Plot the results and analyze for linearity and hysteresis errors.
1. Apply a mid-range weight to the load cell multiple times.
2. Record the output for each application.
3. Calculate the standard deviation of the readings to assess repeatability.
1. If the load cell operates in challenging environments, consider testing under various conditions (temperature, humidity, vibration).
2. Use environmental chambers or simulation equipment as needed.
1. Compile all test results into a comprehensive report.
2. Compare results to manufacturer specifications and industry standards.
3. Identify any areas of concern or potential issues.
Even with regular testing and maintenance, load cells can sometimes experience problems. Here are some common issues and how to troubleshoot them:
If the load cell's zero point is unstable or drifting, it could be due to temperature changes, mechanical stress, or electrical interference. Check for loose connections, ensure proper grounding, and verify that the load cell is not under any residual stress.
Non-linear output can be caused by overloading, improper mounting, or damage to the load cell. Verify that the cell hasn't been subjected to loads beyond its rated capacity and check for any signs of physical damage.
Excessive hysteresis may indicate mechanical problems within the load cell or issues with the mounting hardware. Ensure that all mounting surfaces are clean and flat, and that the load cell is not constrained in any way.
If you're seeing erratic readings or unexplained fluctuations, electrical noise could be the culprit. Check for proper shielding and grounding of all cables, and ensure that the load cell is not located near sources of electromagnetic interference.
To ensure consistency and reliability across different applications and industries, several organizations have developed standards for load cell performance and testing. Some of the most widely recognized standards include:
1. NTEP (National Type Evaluation Program) - USA
2. OIML R60 (International Organization of Legal Metrology) - International
3. EN 45501 - European Union
4. NIST Handbook 44 - USA
These standards define parameters such as accuracy classes, maximum permissible errors, and testing procedures. Familiarizing yourself with the relevant standards for your application is crucial for ensuring compliance and maintaining quality.
Load cell testing is critical in a wide range of industries and applications, including:
1. Industrial weighing systems
2. Aerospace and defense
3. Automotive manufacturing
4. Medical devices
5. Agriculture and food processing
6. Material testing and quality control
7. Robotics and automation
In each of these fields, accurate and reliable load cells are essential for ensuring product quality, safety, and operational efficiency.
Testing scale load cells is a complex but crucial process that ensures the accuracy and reliability of weighing systems across numerous industries. By understanding the principles behind load cell operation, mastering various testing methods, and staying up-to-date with industry standards, you can maintain the performance of your load cells and the integrity of your weighing systems.
Remember that regular testing and maintenance are key to preventing issues and extending the life of your load cells. Whether you're working with small precision scales or massive industrial weighing systems, the principles and techniques outlined in this guide will help you keep your load cells operating at peak performance.
A1: The frequency of load cell testing depends on various factors, including the application, environment, and regulatory requirements. As a general rule, it's recommended to perform a basic check at least once a month and a comprehensive test annually. However, in critical applications or harsh environments, more frequent testing may be necessary.
A2: Yes, many tests can be performed without removing the load cell from the scale. These include visual inspections, resistance measurements, and shunt calibration. However, for more comprehensive testing or if issues are suspected, it may be necessary to remove the load cell for bench testing.
A3: While related, calibration and testing are distinct processes. Testing involves verifying that a load cell is functioning correctly and within specified parameters. Calibration, on the other hand, involves adjusting the system to ensure that the output accurately corresponds to known input values. Calibration typically includes testing as part of the process.
A4: Environmental factors such as temperature, humidity, and vibration can significantly impact load cell performance. Temperature changes can cause zero drift and affect sensitivity. High humidity can lead to corrosion or electrical leakage. Vibration can introduce noise in the signal or cause fatigue in the load cell structure. It's important to consider these factors when selecting, installing, and testing load cells.
A5: If a load cell fails a test, the first step is to verify that the test was conducted correctly and that all equipment is functioning properly. If the failure is confirmed, try to identify the specific issue (e.g., drift, non-linearity, damage). Minor issues might be resolvable through recalibration or adjustments. However, if the problem persists or if there's physical damage, the load cell may need to be repaired or replaced by a qualified technician or the manufacturer.
