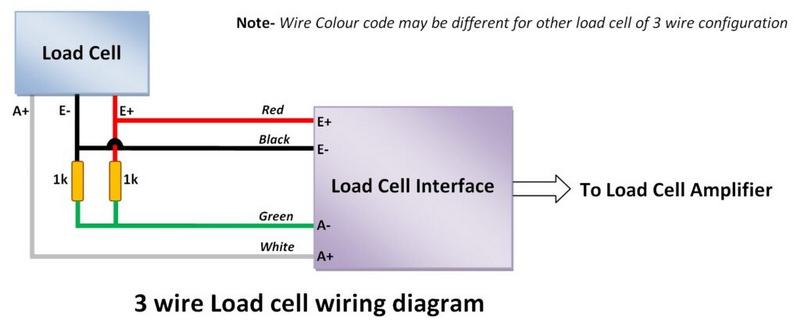

Before diving into troubleshooting, it's crucial to understand how a 3-wire load cell operates. A load cell converts mechanical force into an electrical signal. In a 3-wire configuration, the load cell typically has two output wires (often referred to as positive and negative) and one common wire, which is usually connected to the power supply.
1. Strain Gauge: The core component that deforms under load, generating a change in resistance.
2. Wiring: The three wires that connect the load cell to the measurement system.
3. Housing: The protective casing that encases the strain gauge and wiring.
3-wire load cells are commonly used in:
- Industrial scales
- Medical weighing systems
- Force measurement applications
- Load monitoring in construction
While 3-wire load cells are designed for durability, they can encounter several issues that may affect their performance. Here are some common problems:
One of the most frequent causes of load cell malfunction is wiring problems. This can include:
- Loose Connections: Over time, connections can become loose, leading to intermittent signals.
- Damaged Wires: Physical damage to the wires can cause short circuits or open circuits.
- Incorrect Wiring: Miswiring during installation can lead to incorrect readings.
Load cells must be calibrated to ensure accurate measurements. If a load cell is not calibrated correctly, it may produce erroneous readings. Calibration issues can arise from:
- Environmental changes (temperature, humidity)
- Mechanical stress beyond the load cell's capacity
- Aging of the load cell components
Electrical noise from nearby equipment can interfere with the load cell's signal. This is particularly common in industrial environments where heavy machinery operates. Sources of interference can include:
- Motors
- Transformers
- High-frequency devices
Load cells can be sensitive to environmental conditions. Factors such as:
- Temperature fluctuations
- Humidity
- Vibration from nearby machinery
can affect the performance of a load cell.
Now that we've identified common issues, let's explore the troubleshooting steps you can take to diagnose and resolve problems with a 3-wire load cell.
Start with a thorough visual inspection of the load cell and its wiring. Look for:
- Signs of physical damage to the load cell or wires
- Loose connections at the terminals
- Corrosion or dirt buildup on connectors
Using a multimeter, check the continuity of the wires. Follow these steps:
1. Disconnect the load cell from the measurement system.
2. Set the multimeter to the continuity setting.
3. Test each wire for continuity from the load cell to the connector.
If you find any breaks in the wire, you will need to repair or replace it.
To check if the load cell is calibrated correctly:
1. Apply a known weight to the load cell.
2. Record the output signal.
3. Compare the output signal to the expected value.
If the readings are off, recalibrate the load cell according to the manufacturer's instructions.
To determine if electrical interference is affecting the load cell:
1. Turn off nearby equipment that may cause interference.
2. Observe if the load cell readings stabilize.
3. If the readings improve, consider relocating the load cell or using shielding to reduce interference.
Evaluate the environment where the load cell is installed. Consider:
- Is the load cell exposed to extreme temperatures or humidity?
- Are there vibrations from nearby machinery?
If environmental factors are affecting the load cell, consider relocating it or implementing protective measures.
If you have gone through all the troubleshooting steps and the load cell is still not functioning correctly, it may be time to consult the manufacturer. They can provide specific guidance based on the model and application of your load cell.
To avoid future issues with your 3-wire load cell, consider the following preventive maintenance tips:
1. Regular Inspections: Schedule regular inspections to check for wear and tear on the load cell and wiring.
2. Calibration Checks: Periodically verify the calibration of the load cell, especially after significant environmental changes.
3. Environmental Controls: Implement measures to control temperature, humidity, and vibration in the load cell's environment.
4. Proper Installation: Ensure that the load cell is installed according to the manufacturer's specifications to prevent mechanical stress.
In addition to the basic troubleshooting steps, there are advanced techniques that can help diagnose more complex issues with a 3-wire load cell.
Signal conditioning is the process of manipulating an analog signal to prepare it for the next stage of processing. If the load cell output is noisy or unstable, consider using signal conditioning equipment to filter out unwanted noise. This can include:
- Amplifiers: To boost the signal strength.
- Filters: To remove high-frequency noise.
Using a data logger can help you monitor the load cell's performance over time. By recording the output under various conditions, you can identify patterns that may indicate underlying issues. This data can be invaluable for troubleshooting intermittent problems.
Many modern load cells come with software that can assist in diagnostics. This software can provide real-time data analysis, helping you identify issues such as drift, noise, or calibration errors. Familiarize yourself with any software tools provided by the manufacturer.
Troubleshooting a 3-wire load cell involves a systematic approach to identify and resolve issues. By understanding the common problems, following the troubleshooting steps, and implementing preventive maintenance, you can ensure the reliable performance of your load cell. Remember, if you encounter persistent issues, consulting the manufacturer is always a wise choice.
A 3-wire load cell typically consists of a strain gauge, wiring (two signal wires and one common wire), and a protective housing. The strain gauge is the key component that converts mechanical force into an electrical signal.
Common signs of a malfunctioning load cell include erratic or inconsistent readings, failure to return to zero, and physical damage to the load cell or wiring. Conducting a visual inspection and checking wiring connections can help identify issues.
If your load cell is not calibrated correctly, you should apply a known weight and compare the output signal to the expected value. If the readings are off, follow the manufacturer's calibration instructions to recalibrate the load cell.
To reduce electrical interference, you can turn off nearby equipment that may cause noise, relocate the load cell away from sources of interference, or use shielding techniques to protect the load cell's wiring.
Preventive maintenance for a load cell includes regular inspections for wear and tear, periodic calibration checks, environmental controls to manage temperature and humidity, and ensuring proper installation according to manufacturer specifications.
