A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied to the load cell, it deforms slightly, and this deformation changes the electrical resistance of the strain gauges attached to it. This change in resistance is then converted into a measurable electrical signal.
1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, with strain gauges bonded to it. The deformation changes the resistance of the strain gauges, which is measured to determine the load.
2. Hydraulic Load Cells: These load cells use hydraulic fluid to measure force. When a load is applied, the fluid pressure changes, which can be measured to determine the weight.
3. Pneumatic Load Cells: Similar to hydraulic load cells, pneumatic load cells use air pressure to measure force. They are often used in applications where electrical signals may be hazardous.
4. Bending Beam Load Cells: These load cells are designed to measure loads in a bending configuration. They are often used in scales and other weighing applications.
5. S-Type Load Cells: These load cells are shaped like an "S" and are used for tension and compression applications. They are versatile and can be used in various setups.
Load cells operate on the principle of converting mechanical force into an electrical signal. Here's a step-by-step explanation of how they work:
1. Application of Force: When a load is applied to the load cell, it causes a deformation in the load cell's structure.
2. Deformation Measurement: The deformation is measured by strain gauges attached to the load cell. These gauges are sensitive to changes in length and can detect even minute deformations.
3. Electrical Signal Generation: The change in resistance of the strain gauges due to deformation generates an electrical signal. This signal is proportional to the amount of force applied.
4. Signal Processing: The electrical signal is then processed by an amplifier or microcontroller, which converts it into a readable format, such as weight in kilograms or pounds.
5. Display: Finally, the processed signal is displayed on a digital readout or sent to a computer for further analysis.
Setting up a load cell involves several steps to ensure accurate measurements. Here's a guide to help you through the process:
Before starting, ensure you have the following equipment:
- Load cell
- Amplifier (e.g., HX711)
- Microcontroller (e.g., Arduino)
- Power supply
- Connecting wires
- Weighing platform or fixture
Follow these steps to connect the load cell to the amplifier:

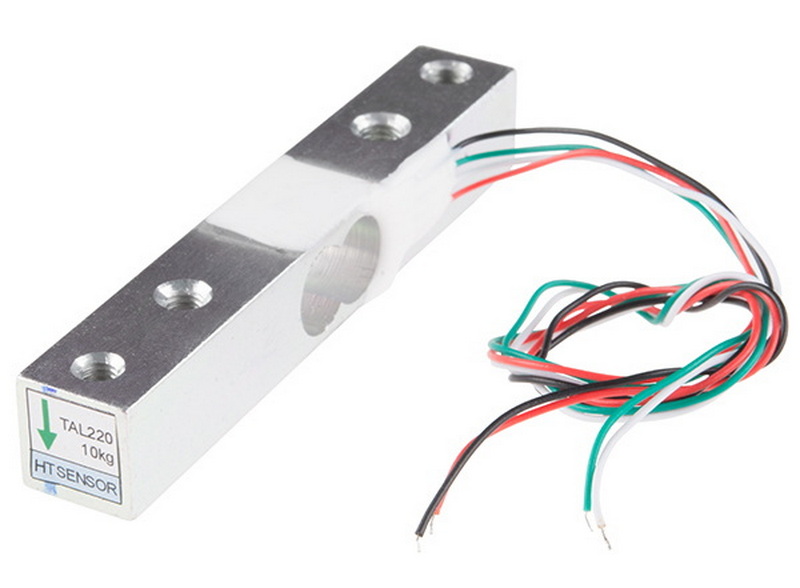

- Identify the load cell wires. Typically, a load cell has four wires: red (excitation+), black (excitation-), white (signal+), and green (signal-).
- Connect the red wire to the excitation+ terminal of the amplifier.
- Connect the black wire to the excitation- terminal.
- Connect the white wire to the signal+ terminal.
- Connect the green wire to the signal- terminal.
Next, connect the amplifier to the microcontroller:
- Connect the output pin of the amplifier to an analog input pin on the microcontroller.
- Connect the power and ground pins of the amplifier to the power supply and ground of the microcontroller.
Calibration is crucial for accurate measurements. Here's how to calibrate your load cell:
- Place a known weight on the load cell.
- Read the output from the microcontroller.
- Adjust the calibration factor in your code until the output matches the known weight.
Load cells are used in various applications across different industries. Here are some common uses:
1. Weighing Scales: Load cells are the backbone of electronic weighing scales, providing accurate weight measurements for retail, industrial, and laboratory applications.
2. Force Measurement: In research and development, load cells are used to measure forces in experiments, such as tensile testing and material strength analysis.
3. Industrial Automation: Load cells are integrated into automated systems for monitoring and controlling processes, such as filling and packaging.
4. Medical Devices: Load cells are used in medical equipment, such as patient scales and force measurement devices in rehabilitation.
5. Aerospace and Automotive Testing: Load cells are employed in testing the strength and durability of components in aerospace and automotive industries.
When using load cells, you may encounter some common issues. Here are some troubleshooting tips:
- Inconsistent Readings: Ensure that the load cell is properly calibrated and that there are no mechanical obstructions affecting its operation.
- Electrical Noise: Use shielded cables to minimize electrical noise, which can affect the accuracy of the readings.
- Temperature Effects: Load cells can be sensitive to temperature changes. Ensure that the load cell is used within its specified temperature range.
- Overloading: Avoid exceeding the load cell's rated capacity, as this can cause permanent damage.
To maximize the performance of load cells, consider implementing advanced techniques:
Signal conditioning is essential for improving the accuracy and reliability of load cell measurements. This process involves filtering out noise and amplifying the signal to ensure that the output is stable and precise. Using operational amplifiers can help achieve better signal quality.
In applications requiring higher accuracy or larger weight capacities, multiple load cells can be used in parallel or series configurations. This setup allows for better distribution of the load and can enhance the overall measurement accuracy. It is crucial to ensure that all load cells are calibrated together to maintain consistency.
When using load cells in harsh environments, consider using protective enclosures to shield them from dust, moisture, and extreme temperatures. This protection can prolong the lifespan of the load cell and maintain its accuracy.
Integrating data logging capabilities into your load cell system can provide valuable insights over time. By recording weight measurements, you can analyze trends, detect anomalies, and improve processes. Many microcontrollers can be programmed to log data to an SD card or transmit it to a computer for analysis.
For applications where wiring is impractical, wireless load cells can be an excellent solution. These load cells use Bluetooth or Wi-Fi to transmit data to a receiver, allowing for greater flexibility in setup and operation.
Load cells are versatile and essential devices for measuring weight and force in various applications. Understanding how to use them effectively can enhance your ability to gather accurate data in your projects. By following the setup and calibration procedures outlined in this article, you can ensure reliable performance from your load cell. Whether you are working in industrial automation, research, or any other field, load cells provide the precision and reliability needed for accurate measurements.
A load cell is a component that measures force or weight and converts it into an electrical signal. A scale, on the other hand, is a complete system that includes a load cell, display, and often additional components for weighing and measuring.
To check if your load cell is functioning properly, you can perform a calibration test using known weights. If the readings match the known weights, the load cell is likely working correctly. If not, recalibration or troubleshooting may be necessary.
Yes, load cells can be used outdoors, but it is essential to choose models that are designed for outdoor use. These models typically have protective enclosures to guard against moisture, dust, and temperature fluctuations.
The maximum weight a load cell can measure depends on its design and specifications. Load cells come in various capacities, ranging from a few grams to several tons. Always check the manufacturer's specifications for the maximum load rating.
To improve accuracy, ensure proper calibration, minimize electrical noise, use high-quality components, and consider environmental factors. Additionally, implementing signal conditioning and data logging can enhance measurement reliability.
