A load cell is a highly precise sensor designed to measure force, weight, or pressure. It operates based on the physical principle of converting mechanical force into an electrical signal through material deformation.
With its compact design, high reliability, and excellent repeatability, the load cell has become an essential component in industrial automation, manufacturing, packaging, weighing systems, and robotics.
As technology continues to evolve, load cells are now widely used in advanced applications such as robotics, tactile sensing, and medical prosthetics, where accurate and real-time force measurement is critical.
To meet the growing demands of these markets, new-generation load cells are being developed for higher accuracy, faster response, and smarter integration.

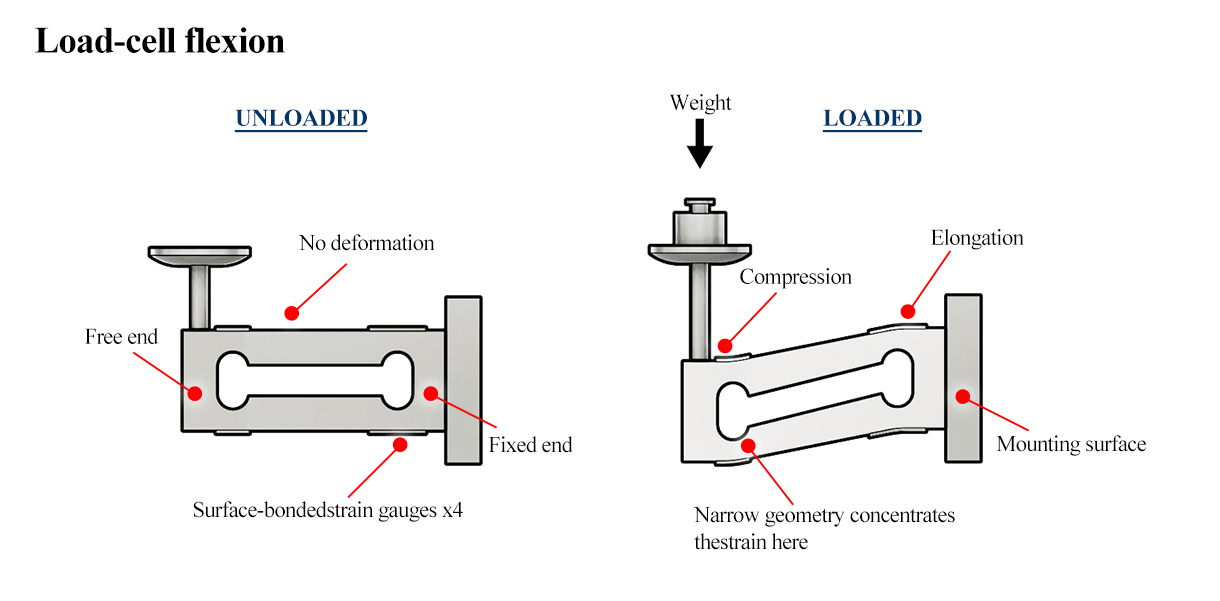

When a load or force is applied to a load cell, the sensor body slightly bends or deforms. This deformation, though microscopic, is detected by strain gauges bonded to the load cell surface.
The strain gauges change their resistance proportionally to the deformation, and this variation is converted into an electrical signal.
Through signal conditioning electronics, the electrical output is transformed into a calibrated weight or force reading.
In short, a load cell works through this process:

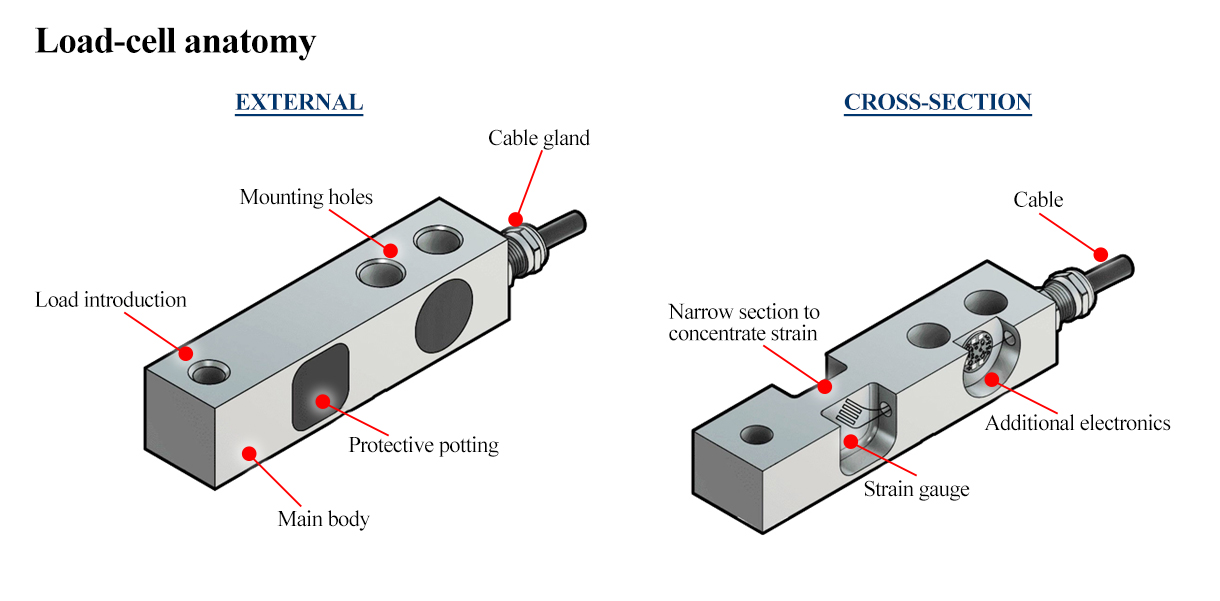

A standard load cell consists of two main parts:
The body bears the load and is usually made of high-strength stainless steel or aluminum alloy, ensuring durability, linear strain distribution, and stable performance.
Embedded inside the body are precision strain gauges, arranged in a zig-zag pattern.
This design makes them sensitive to tension and compression along a specific axis, allowing accurate single-axis or multi-axis force detection.
Different load cell designs suit different industrial needs. The four main types include:

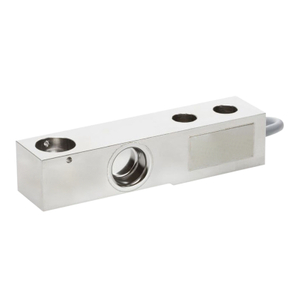

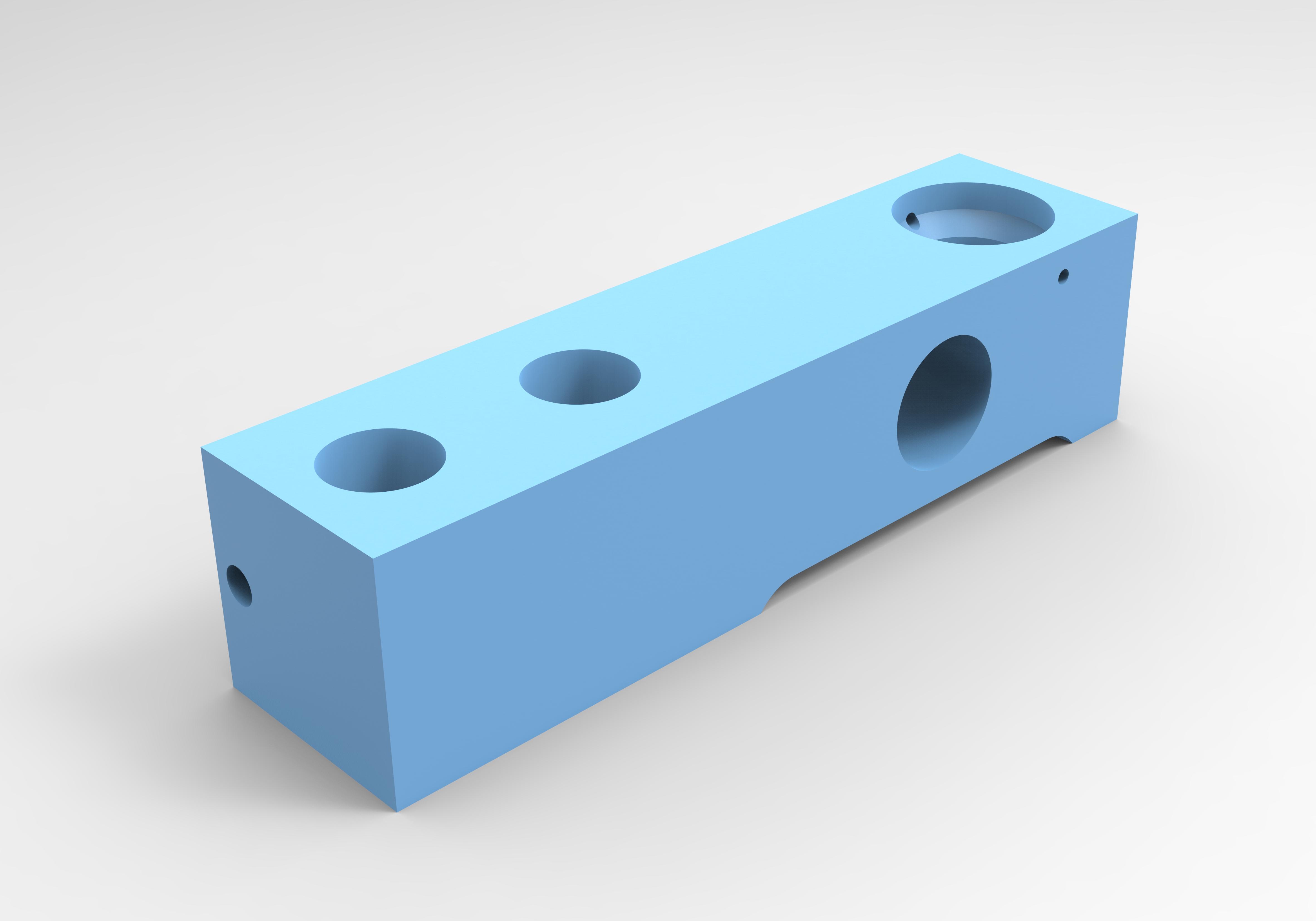

The shear beam load cell is one of the most widely used types in industrial weighing. It works as a cantilever beam — one end fixed, the other end deflecting under load.
It offers high accuracy, long-term stability, and excellent repeatability.
lIndustrial floor scales and platform scales
lTank and silo weighing systems
lProcess control and filling machinery
lMedical and logistics automation equipment
As a leading shear beam load cell manufacturer, FIBOS provides a wide range of load capacities and configurations designed for harsh industrial environments.

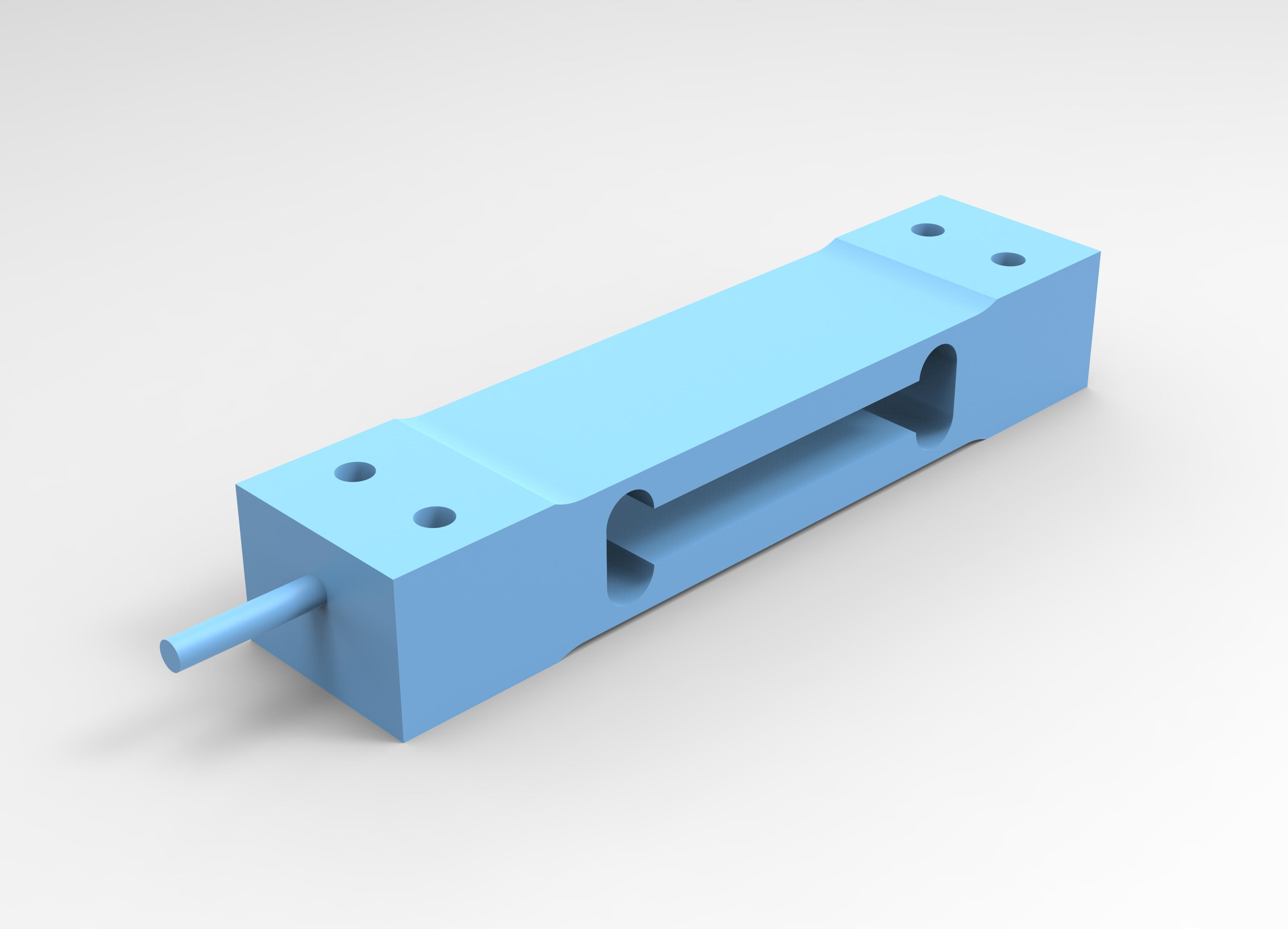

The single point load cell maintains high accuracy even when loads are applied off-center — making it ideal for applications with variable load positions.
lBench scales and retail weighing systems
lPackaging and sorting machines
lLaboratory and medical precision scales
FIBOS single point load cells are fully compensated for eccentric loading, ensuring consistent accuracy and sensitivity under all operating conditions.

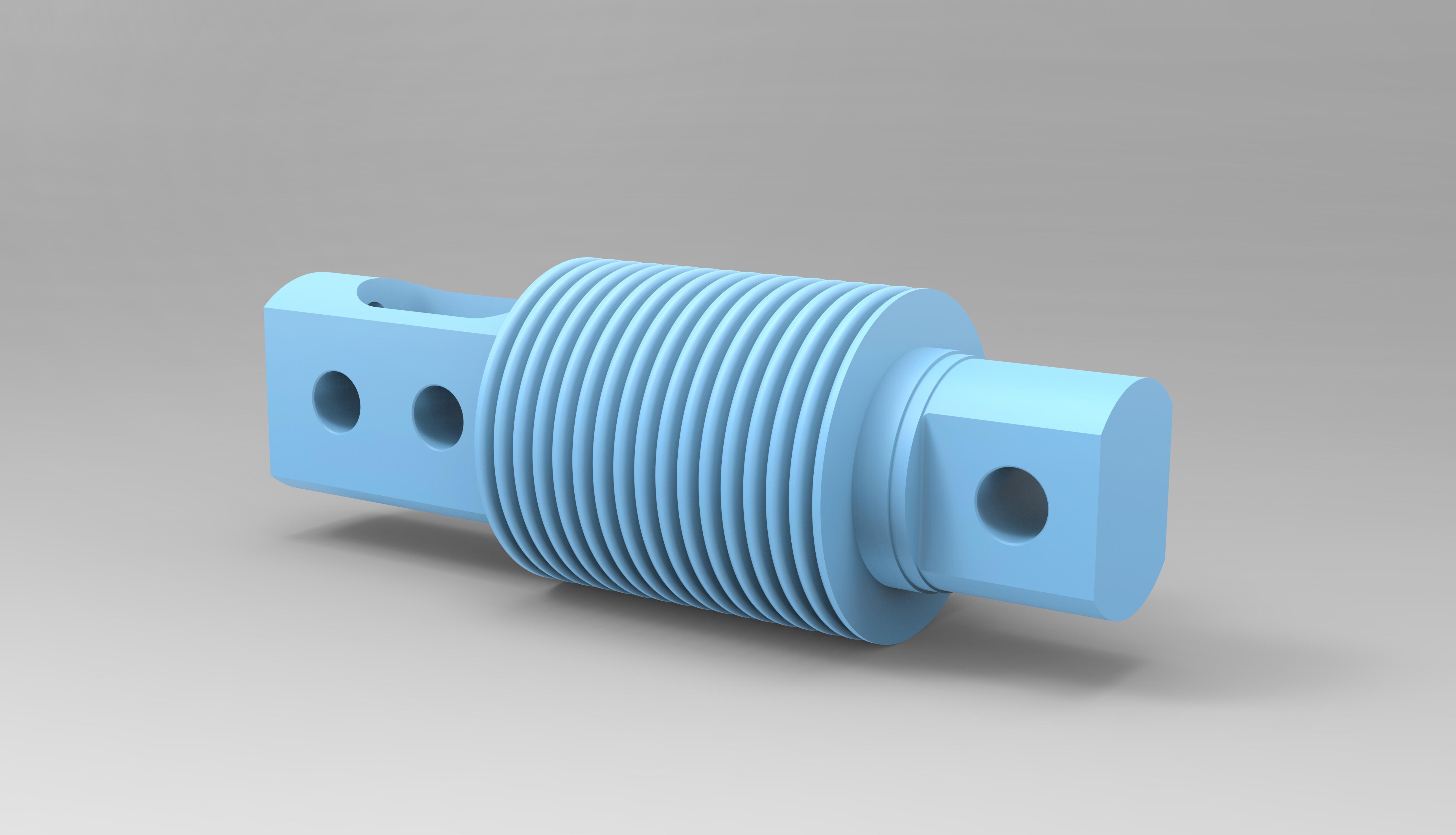

A compression load cell is designed to measure push or compressive forces.
It is built with a column-like structure for high capacity and superior strength, making it perfect for heavy-duty, static weighing applications.
lTruck and rail weighbridges
lSilo and tank weighing systems
lHeavy industrial and process control applications
FIBOS compression load cells feature stainless steel hermetic sealing and glass-to-metal technology, meeting CE, ROHS, and explosion-proof certifications.
Custom cable lengths, connectors, and IP protection levels are available upon request.

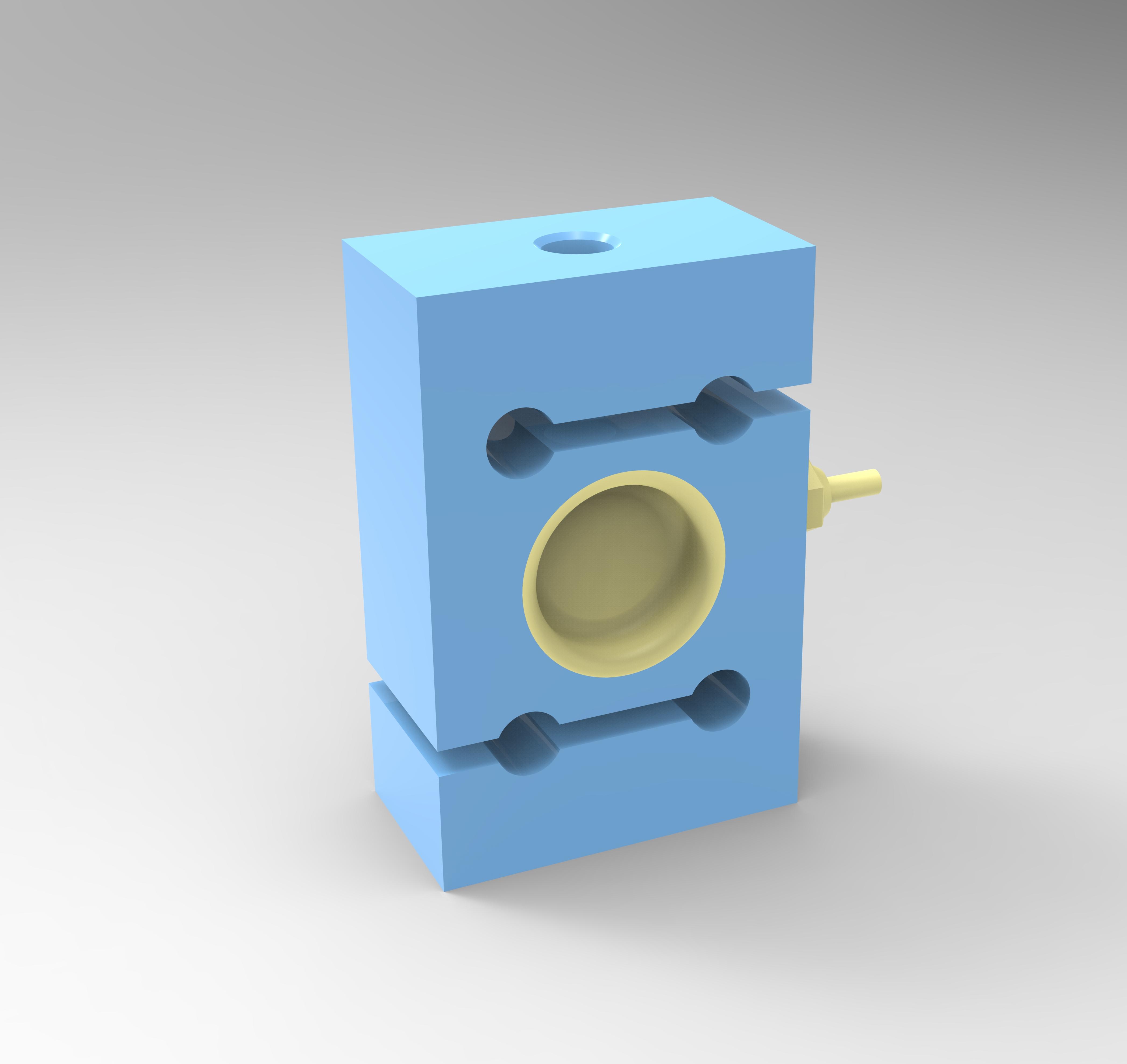

The tension load cell, also known as an S-type load cell, is designed to measure tensile forces, though it can also be used in compression.
Its S-shaped structure allows for bi-directional force measurement with excellent linearity.
lLifting and crane load monitoring
lTank, silo, and hanging scale systems
lMedical and rehabilitation equipment
FIBOS tension load cells include self-aligning mounting hardware to minimize side loads and ensure precise, repeatable measurements.
With the rise of IoT, smart manufacturing, and robotic systems, load cells are evolving from simple force sensors to intelligent sensing modules.
lIntegrated digital signal processing
lWireless data transmission and remote monitoring
lHigh-protection sealing and self-calibration
lMiniaturized and multi-axis load cell designs
FIBOS is at the forefront of these innovations, providing lightweight, fast, and intelligent load cell solutions for a connected industrial future.
Whether in industrial automation, robotics, medical devices, or logistics systems, selecting the right type of load cell is essential for achieving accuracy, stability, and performance.
As a professional load cell manufacturer, FIBOS offers a full range of products — including shear beam, single point, compression, and tension load cells — designed for diverse applications.
Contact us today to request datasheets, CAD drawings, certifications, and custom design support, and learn how FIBOS can deliver the right force measurement solution for your business.
