Force measurement is a critical aspect of various industries, from manufacturing to aerospace, where precise data is essential for safety, quality control, and operational efficiency. Two of the most commonly used sensors in force measurement are strain gauges and load cells. While both devices serve the purpose of measuring force, they operate on different principles and are suited for different applications. Understanding the key differences between strain gauges and load cells can help engineers and technicians select the appropriate sensor for their specific needs.
A strain gauge is a sensor that measures the amount of deformation or strain experienced by an object when a force is applied. It consists of a thin wire or foil arranged in a grid pattern, which is bonded to the surface of the material being tested. When the material deforms, the strain gauge deforms as well, causing a change in its electrical resistance. This change in resistance can be measured and correlated to the amount of strain experienced by the material.
Strain gauges are widely used in various applications, including:
- Material Testing: Engineers use strain gauges to test the mechanical properties of materials, such as tensile strength and elasticity.
- Structural Health Monitoring: Strain gauges are installed on bridges, buildings, and other structures to monitor their integrity and detect any potential failures.
- Aerospace Engineering: In the aerospace industry, strain gauges are used to measure the stress on aircraft components during testing and operation.
Strain gauges offer several advantages, including high sensitivity, the ability to measure small deformations, and versatility in application. However, they also have limitations, such as susceptibility to temperature changes and the need for careful installation to ensure accurate readings.

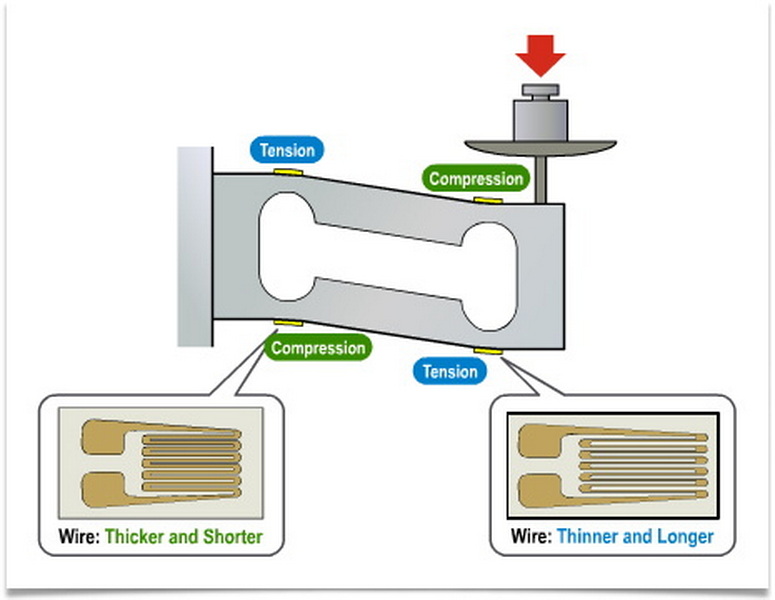

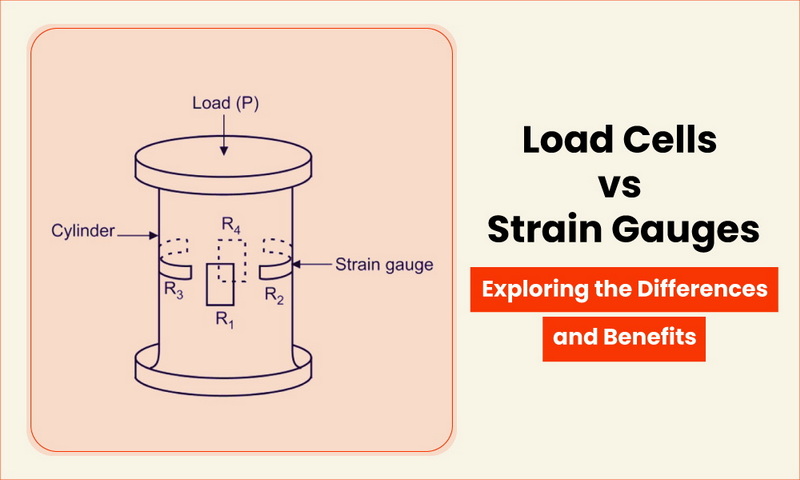

A load cell is a type of transducer that converts a force or weight into an electrical signal. Load cells typically use strain gauge technology as part of their design, but they are specifically engineered to measure weight or force in a more direct manner. When a load is applied to a load cell, it deforms, and this deformation is measured by the strain gauges embedded within the load cell.
Load cells are commonly used in various applications, including:
- Industrial Weighing: Load cells are the backbone of weighing scales used in industries such as food processing, pharmaceuticals, and logistics.
- Automated Systems: In automated manufacturing processes, load cells are used to ensure that products meet weight specifications.
- Force Measurement in Testing: Load cells are used in laboratories to measure forces in material testing and product development.
Load cells are known for their accuracy, reliability, and ability to handle large loads. They are designed to provide consistent measurements over time and are less affected by environmental factors compared to strain gauges. However, they can be more expensive and may require more complex installation and calibration.
When comparing strain gauges and load cells, several key differences emerge:
Strain gauges are typically simpler in design, consisting of a thin wire or foil arranged in a grid pattern. In contrast, load cells are more complex devices that incorporate strain gauges within a robust housing designed to withstand significant loads.
- Sensitivity: Strain gauges are highly sensitive and can detect minute changes in strain, making them ideal for applications requiring precise measurements. Load cells, while also sensitive, are designed to measure larger forces and may not be as responsive to small changes.
- Cost: Strain gauges are generally less expensive than load cells, making them a cost-effective choice for many applications. However, the total cost of ownership should consider installation and calibration expenses.
- Calibration: Load cells often require more extensive calibration processes due to their complexity, while strain gauges can be easier to calibrate in some applications.
Strain gauges are best suited for applications where precise strain measurement is required, such as in material testing or structural health monitoring. Load cells are more appropriate for applications involving weight measurement, such as in industrial scales or automated systems.
Selecting the appropriate sensor for a specific application involves considering several factors:
- Application Requirements: Determine whether the primary need is for precise strain measurement or weight measurement.
- Environmental Conditions: Consider the operating environment, including temperature, humidity, and potential exposure to chemicals or physical stress.
- Budget Constraints: Evaluate the total cost of ownership, including initial purchase price, installation, and maintenance costs.
In a recent project involving the construction of a new bridge, engineers opted for strain gauges to monitor the structural integrity during the construction phase. The data collected allowed them to make real-time adjustments to the design, ensuring safety and compliance with engineering standards.
Conversely, a food processing plant required accurate weight measurements for packaging. Load cells were installed in the automated packaging line to ensure that each package met the required weight specifications, improving efficiency and reducing waste.
The field of force measurement is continuously evolving, with advancements in technology leading to new applications and improved performance. Some trends to watch include:
- Wireless Technology: The integration of wireless technology in strain gauges and load cells allows for remote monitoring and data collection, enhancing convenience and efficiency.
- Smart Sensors: The development of smart sensors equipped with data processing capabilities enables real-time analysis and decision-making, improving operational efficiency.
- Miniaturization: As industries demand smaller and more compact sensors, manufacturers are focusing on miniaturizing strain gauges and load cells without compromising performance.
In summary, both strain gauges and load cells play vital roles in force measurement across various industries. While they share some similarities, their differences in design, performance, and application suitability make them unique tools for specific tasks. Understanding these differences is crucial for selecting the right sensor for any given application, ensuring accurate and reliable measurements.
Strain gauges measure the deformation or strain of an object when a force is applied, providing critical data for material testing and structural monitoring.
A load cell converts a force or weight into an electrical signal by measuring the deformation of its structure when a load is applied, often using embedded strain gauges.
Yes, strain gauges can be used in harsh environments, but they may require protective coatings or enclosures to shield them from temperature fluctuations, moisture, and chemicals.
Common types of load cells include compression load cells, tension load cells, and shear beam load cells, each designed for specific applications and load conditions.
Consider the specific requirements of your application, including the type of measurement needed (strain vs. weight), environmental conditions, and budget constraints to make an informed decision.
