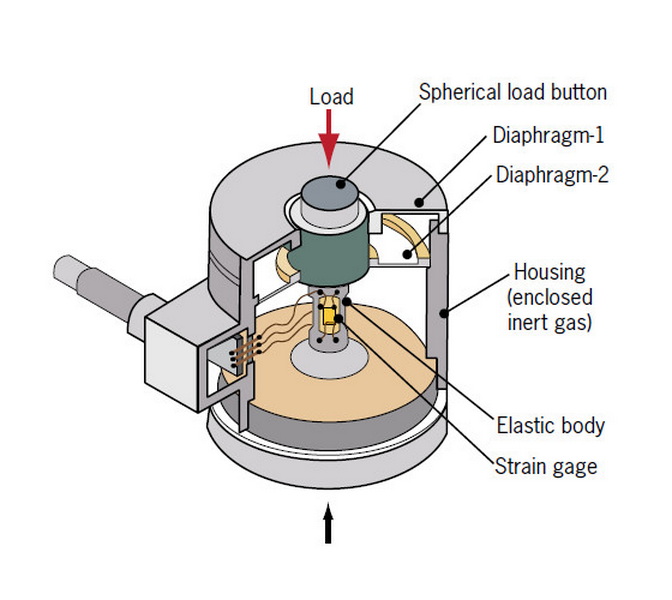

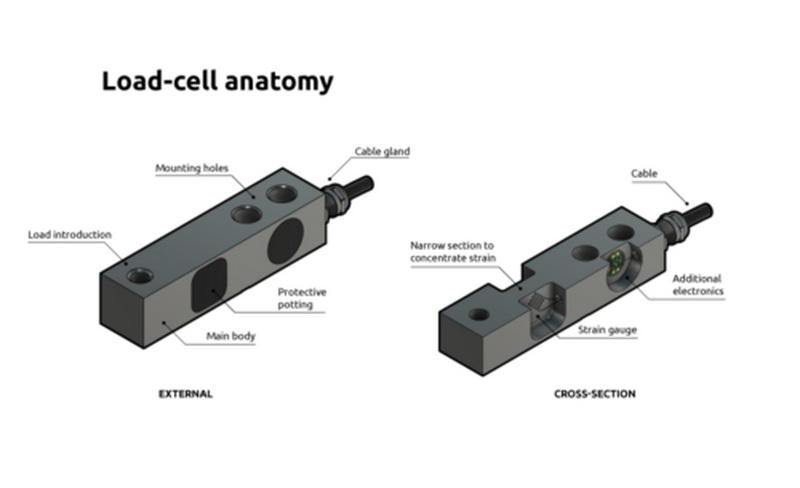

A load cell is a type of transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation caused by applied force. When a load is applied, the load cell deforms slightly, and this deformation is measured by the strain gauges, which produce a change in electrical resistance. This change is then converted into a weight reading.
There are several types of load cells, including:
1. Strain Gauge Load Cells: The most common type, using strain gauges to measure deformation.
2. Hydraulic Load Cells: Use fluid pressure to measure weight.
3. Pneumatic Load Cells: Use air pressure to measure weight.
4. Capacitive Load Cells: Measure changes in capacitance caused by applied force.
Each type has its advantages and is suited for different applications, but all have a maximum load capacity that should not be exceeded.
One of the most immediate consequences of exceeding a load cell's capacity is mechanical damage. When a load cell is overloaded, it can undergo permanent deformation. This deformation can lead to:
- Bending: The load cell may bend beyond its elastic limit, causing it to lose its ability to return to its original shape.
- Cracking: Excessive force can cause cracks in the load cell material, leading to complete failure.
- Component Failure: Internal components, such as strain gauges, can be damaged, resulting in inaccurate readings.
Load cells are calibrated to provide accurate readings within a specific range. Overloading can disrupt this calibration, leading to:
- Inaccurate Measurements: The load cell may provide readings that are significantly off from the actual weight, which can affect processes that rely on precise measurements.
- Drift: Over time, the load cell may experience drift, where the output signal changes even without a change in load, further complicating accuracy.
Continuous overloading can lead to wear and tear on the load cell and associated equipment. This can result in:
- Increased Maintenance Costs: Regular repairs and replacements can become costly, impacting the overall budget of operations.
- Downtime: Equipment failures can lead to production halts, resulting in lost revenue and productivity.
In industrial settings, overloaded load cells can pose serious safety risks. Potential hazards include:
- Accidents: Overloaded equipment can fail, leading to accidents that may injure workers or damage property.
- Liability Issues: Companies may face legal repercussions if overloaded equipment causes harm or damage.
Regularly exceeding load limits can lead to more frequent maintenance and replacement of load cells, increasing operational costs. This can strain budgets and resources, making it essential to monitor load cell usage closely.
To prevent the issues associated with exceeding load cell capacity, consider the following best practices:
Ensure that the load cell is appropriately sized for the application. This involves:
- Calculating Maximum Load: Determine the maximum load that will be applied and select a load cell with a capacity that exceeds this load.
- Considering Dynamic Loads: If the load will vary or include dynamic forces (e.g., shock loads), choose a load cell that can handle these variations.
Regularly calibrate load cells to ensure accurate measurements. Calibration should be performed:
- Annually: At a minimum, load cells should be calibrated once a year.
- After Repairs: Any time a load cell is repaired or replaced, it should be recalibrated.
Implement a monitoring and maintenance program that includes:
- Routine Inspections: Regularly check load cells for signs of wear, damage, or misalignment.
- Load Monitoring: Use load monitoring systems to track the loads applied to the load cell and ensure they remain within safe limits.
Educate staff on the importance of load cell capacity and the consequences of overloading. Training should include:
- Understanding Load Limits: Ensure that all personnel are aware of the load limits for each load cell.
- Proper Handling: Train staff on the correct handling and installation of load cells to prevent damage.
Incorporate safety factors into load cell selection. This means choosing a load cell with a capacity significantly higher than the expected maximum load. A common practice is to use a safety factor of 1.5 to 2 times the maximum load.
In a manufacturing facility, a load cell was used to weigh raw materials. The operators frequently overloaded the load cell, believing it could handle more than its rated capacity. Over time, the load cell began to show signs of wear, and the readings became increasingly inaccurate. Eventually, the load cell failed, leading to a production halt and costly repairs. After this incident, the facility implemented stricter load monitoring and staff training to prevent future occurrences.
A logistics company used load cells in their truck scales to ensure compliance with weight regulations. However, some drivers consistently overloaded the scales, believing they could save time by not weighing their loads. This practice led to several instances of equipment failure and fines from regulatory agencies. The company responded by installing load monitoring systems that alerted operators when loads exceeded safe limits, significantly reducing incidents of overload.
Exceeding the capacity of a load cell can lead to serious consequences, including mechanical damage, calibration loss, equipment failure, safety hazards, and increased maintenance costs. By understanding these risks and implementing best practices for load cell management, organizations can ensure accurate measurements, enhance safety, and reduce operational costs.
The maximum load a load cell can handle varies by model and type. Always refer to the manufacturer's specifications for the exact capacity.
Signs of overload may include physical deformation, inaccurate readings, or error messages from the weighing system.
If a load cell is damaged, it should be taken out of service immediately and inspected or replaced by a qualified technician.
Load cells should be calibrated at least once a year or after any significant repairs or changes in usage.
Yes, but it is essential to select a load cell designed to handle dynamic loads, as standard load cells may not provide accurate readings under these conditions.
